Hi!

I had a power outage and I am seeing a message stating that there was an unclean shutdown. I am unable to start the server due to this event. Any advice would he greatly apprecitiated. I attacthed my diagnostic here. TIAjaynjas-diagnostics-20251006-2300.zip

Disk2 is disabled, but it doesn't look like you have tried to start your array.

Also, most of your plugins are incompatible with your version of Unraid.

Boot in SAFE mode, start the array in Normal (not Maintenance) mode, and post new diagnostics.

I tried to mount the array in safe mode. It is not mounting. It is showing error message "Unmountable: wrong or no file system".

Edited October 7, 2025Oct 7 by Bugger

Post new diags please

This is the diagnostic I just ran. jaynjas-diagnostics-20251007-0918.zip

Constant ATA errors for parity, SMART is showing some issues, but looks more like a power/connection issue, forn now. Replace its cables and post new diags.

Okay. I will order some new cables and post new diags once done. Thanks.

Here is the diags after installing new cables.jaynjas-diagnostics-20251009-1851.zip

Now there are issues with the cache device, looks like a bad SATA cable for this one.

I picked up another cable to replace the cache drive. Here is the new diags.jaynjas-diagnostics-20251010-1949.zip

There are still issues issues with the cache drive, but let's ignore those for now, post new diags after array start.

Just tried starting the array. It's still getting hung. Disk 1 shows unmoutable: wrong disk or no file system. Disk 2 is still trying to mount. It's been hours already and still stuck.

Post new diags , please; possibly there are still ATA/controller issues with other devices.

Here is the new diags. after unable to start the array.jaynjas-diagnostics-20251012-1951.zip

Those diags are before array start

I am unable to start the array. I tried starting the array in safe mode and normal mode. It gets stuck and the array never starts.

Post a screenshot of Main - Array Devices after trying to start the array.

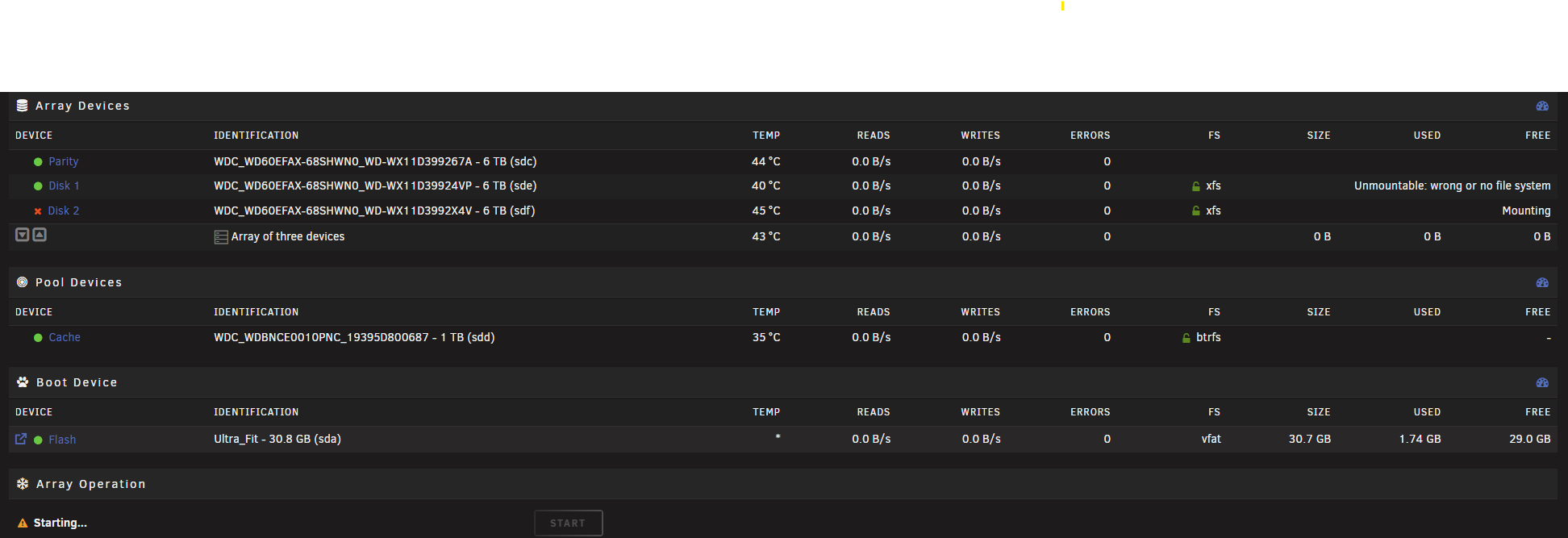

Here is the screen shot when trying to start the array.

If you cannot get them using the GUI, go to the CLI or use SSH and type diagnostics

If the array is stuck in "Mounting" status, I am still able to run a diagnostic? If so, is that what you wanted to see to confirm what else is the issue?

2 hours ago, Bugger said:

I am still able to run a diagnostic?

Have you tried?

No, I did not try. I will do so tonight.

Here is the diagnostic while trying to start the array. jaynjas-diagnostics-20251013-2013.zip

There are still issues with parity:

Oct 13 20:13:51 JAYnJAS kernel: ata6.00: status: { DRDY ERR }
Oct 13 20:13:51 JAYnJAS kernel: ata6.00: error: { ABRT }
Oct 13 20:13:51 JAYnJAS kernel: ata6.00: failed to enable AA (error_mask=0x1)
### [PREVIOUS LINE REPEATED 1 TIMES] ###
Oct 13 20:13:51 JAYnJAS kernel: ata6.00: configured for UDMA/133 (device error ignored)
Oct 13 20:13:51 JAYnJAS kernel: sd 7:0:0:0: [sdf] tag#12 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=28s
Oct 13 20:13:51 JAYnJAS kernel: sd 7:0:0:0: [sdf] tag#12 Sense Key : 0x5 [current]
Oct 13 20:13:51 JAYnJAS kernel: sd 7:0:0:0: [sdf] tag#12 ASC=0x21 ASCQ=0x4
Oct 13 20:13:51 JAYnJAS kernel: sd 7:0:0:0: [sdf] tag#12 CDB: opcode=0x8a 8a 00 00 00 00 01 80 16 61 e0 00 00 00 f8 00 00
Oct 13 20:13:51 JAYnJAS kernel: I/O error, dev sdf, sector 6443917792 op 0x1:(WRITE) flags 0x800 phys_seg 31 prio class 0
Oct 13 20:13:51 JAYnJAS kernel: md: disk0 write error, sector=6443917728
Oct 13 20:13:51 JAYnJAS kernel: md: disk0 write error, sector=6443917736
Oct 13 20:13:51 JAYnJAS kernel: md: disk0 write error, sector=6443917744
Oct 13 20:13:51 JAYnJAS kernel: md: disk0 write error, sector=6443917752

Assuming the cables were replaced, the disk may be failing. As a last try, it may be worth swapping cables with a different disk, both SATA and power, and seeing where the errors follow.

I have swapped both SATA and the power cables between all drives. Attached is the new diagnostic after attempting to start the array.jaynjas-diagnostics-20251014-1009.zip
