I have been running several dockers successfully , Sabnzbd, Radarr and Sonarr. I rencently ran into a problem with a share and had to delete the share and reinstall the three dockers. They had been working on 7.2 but now I cant seem to get Radarr and Sonarr to communicate with Sabnzbd. I have all three in bridge mode and the docker network setting is ipvlan. I 've tried host for the dockers but same result, Sonarr and Radarr can't seem to communicate with Sabnzbd using Sabnzbd's api. Diagnosticts are attached. Since I had this configuration working previously I suspect it's a networking problem. Any suggestions?

tower-diagnostics-20251103-0821.zip

For this stack and more for IF I bring somehting down or need another docker... I wat depend on checks and health cheks... I prefer compose for Arrs setups...

???
did you clear out the old configurations for the *arrs by deleting the appdata configurations?

Example for unraid:
https://trash-guides.info/

https://trash-guides.info/File-and-Folder-Structure/
https://trash-guides.info/File-and-Folder-Structure/How-to-set-up/Unraid/

example of my *ars folder structure and docker compose on unraid:
(what I've done to get it working on unraid in the past)

Docker compose plugin...

First a bath script to make the necessary folders... Assuming default

#!/bin/bash
set -Eeuo pipefail

# =========================================
# Prepare *arrs folder tree for bind mounts
# =========================================
# Edit these to match your system
PUID="0"             # 99 Unraid 'nobody' user 0 root
PGID="0"            # 100 Unraid 'users' group 0 root

# Root for app configs (per-app subfolders below)
APPDATA_ROOT="/mnt/user/appdata/arrs"

# Root for data (media + torrents live under here)
ARSDATA_ROOT="/mnt/user/arsdata"

# Which app config folders to create
APP_FOLDERS=(prowlarr sonarr radarr transmission watchtower)

# Data subtree (TRaSH layout)
DATA_DIRS=(
  "media"
  "media/tv"
  "media/movies"
  "torrents"
  "torrents/completed"
  "torrents/incomplete"
  "torrents/watch"
)


log(){ echo "[$(date +'%F %T')] $*"; }

mkown() {
  local path="$1"
  mkdir -p -- "$path"
  chown -R "$PUID:$PGID" "$path"
  chmod -R 777 "$path"
}

log "Creating appdata under: $APPDATA_ROOT"
for f in "${APP_FOLDERS[@]}"; do
  mkown "$APPDATA_ROOT/$f"
done

log "Creating data under: $ARSDATA_ROOT"
mkown "$ARSDATA_ROOT"
for d in "${DATA_DIRS[@]}"; do
  mkown "$ARSDATA_ROOT/$d"
done

log "Summary:"
log "  PUID: $PUID  PGID: $PGID
log "  APPDATA_ROOT: $APPDATA_ROOT"
log "  ARSDATA_ROOT: $ARSDATA_ROOT"
log "Done."

this way

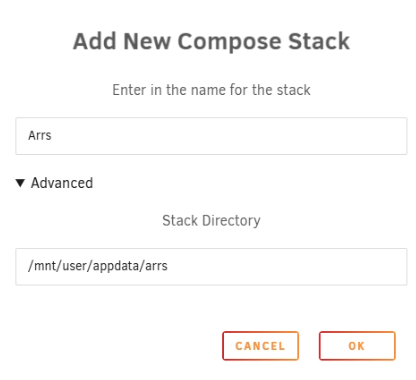

/mnt/user/appdata/arrs will be our compose docker and env location for latter!!!

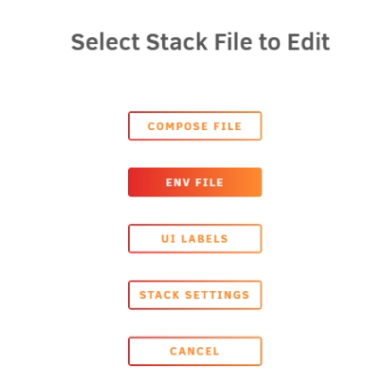

then eidt the stack env

ENV:

TZ=America/Chicago
PUID=0
PGID=0

# --- Unraid shares (simple) ---
APPDATA_ROOT=/mnt/user/appdata/arrs
ARSDATA_ROOT=/mnt/user/arsdata

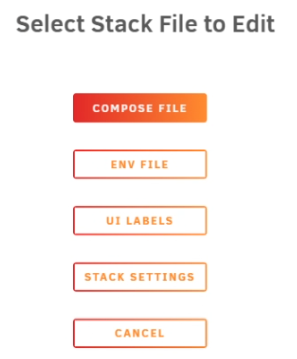

compose file:

Compose:

#version: "3.9"
#unraid compse is v2 adn this version tag is ignored!

################################################################################
# Networks - lets make our own docker bridge (unraid ip:port) to connect to the ars dockers...
################################################################################
networks:
  arrs:
    driver: bridge
    ipam:
      config:
        - subnet: 172.45.0.0/24
  br0:
    external: true

################################################################################
# Services
################################################################################
services:

  # Auto-update the stack (first Sunday each month)
  watchtower:
    image: containrrr/watchtower
    container_name: watchtower
    network_mode: host
    environment:
      - TZ=${TZ}
      - HOST_CONTAINERNAME=watchtower
    labels:
      - net.unraid.docker.managed=composeman
      - net.unraid.docker.icon=https://containrrr.dev/watchtower/images/logo-450px.png
      - com.centurylinklabs.watchtower.enable=false
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:rw
    # First Sunday: 0 0 1-7 * 0
    command: --schedule "0 0 1-7 * 0" --cleanup --include-stopped --label-enable
    restart: unless-stopped

  ##############################################################################
  # Indexers / Orchestrators
  ##############################################################################
  prowlarr:
    image: lscr.io/linuxserver/prowlarr:latest
    container_name: prowlarr
    labels:
      - com.centurylinklabs.watchtower.enable=true
      - folder.view=ARS
      - net.unraid.docker.managed=composeman
      - net.unraid.docker.webui=http://[IP]:[PORT:9696]/system/status
      - net.unraid.docker.icon=https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/prowlarr-logo.png
    environment:
      - PUID=${PUID}
      - PGID=${PGID}
      - TZ=${TZ}
    volumes:
      - prowlarr-config:/config
      - data-root:/data
    ports:
      - "9697:9696"
    networks:
      arrs:
        ipv4_address: 172.45.0.3
    restart: unless-stopped

  ##############################################################################
  # Download Client (Transmission example) use https://www.composerize.com/ for your nbzt docker or run standalon...
  ##############################################################################
  transmission:
    image: lscr.io/linuxserver/transmission:latest
    container_name: transmission
    labels:
      - com.centurylinklabs.watchtower.enable=true
      - folder.view=ARS
      - net.unraid.docker.managed=composeman
      - net.unraid.docker.webui=http://[IP]:[PORT:9091]
      - net.unraid.docker.icon=https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/transmission-logo.png
    environment:
      - PUID=${PUID}
      - PGID=${PGID}
      - TZ=${TZ}
      # If you want auth, set these real values or remove entirely:
      - USER=admin
      - PASS=password
      # Optional: direct Transmission to /data/torrents paths per trash guides guide...
      # - TRANSMISSION_DOWNLOAD_DIR=/data/torrents/completed
      # - TRANSMISSION_INCOMPLETE_DIR=/data/torrents/incomplete
      # - TRANSMISSION_WATCH_DIR=/data/torrents/watch
    volumes:
      - transmission-config:/config
      - data-root:/data
      - downloads:/downloads     # points to /data/torrents on the host
    networks:
      arrs:
        ipv4_address: 172.45.0.2
      br0:
        ipv4_address: 192.168.1.254
    healthcheck:
      test: ["CMD-SHELL", "bash -c 'exec 3<>/dev/tcp/127.0.0.1/9091'"]
      interval: 30s
      timeout: 5s
      retries: 10
    restart: unless-stopped

  ##############################################################################
  # TV / Movies
  ##############################################################################
  sonarr:
    image: lscr.io/linuxserver/sonarr:nightly
    container_name: sonarr
    labels:
      - com.centurylinklabs.watchtower.enable=true
      - folder.view=ARS
      - net.unraid.docker.managed=composeman
      - net.unraid.docker.webui=http://[IP]:[PORT:8989]/system/status
      - net.unraid.docker.icon=https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/sonarr-logo.png
    environment:
      - PUID=${PUID}
      - PGID=${PGID}
      - TZ=${TZ}
    volumes:
      - sonarr-config:/config
      - data-root:/data
    ports:
      - "8989:8989"
    networks:
      arrs:
        ipv4_address: 172.45.0.4
    depends_on:
      prowlarr:
        condition: service_started
      transmission:
        condition: service_healthy
    restart: unless-stopped

  radarr:
    image: lscr.io/linuxserver/radarr:nightly
    container_name: radarr
    labels:
      - com.centurylinklabs.watchtower.enable=true
      - folder.view=ARS
      - net.unraid.docker.managed=composeman
      - net.unraid.docker.webui=http://[IP]:[PORT:7878]/system/status
      - net.unraid.docker.icon=https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/radarr-logo.png
    environment:
      - PUID=${PUID}
      - PGID=${PGID}
      - TZ=${TZ}
    volumes:
      - radarr-config:/config
      - data-root:/data
    ports:
      - "7878:7878"
    networks:
      arrs:
        ipv4_address: 172.45.0.5
    depends_on:
      prowlarr:
        condition: service_started
      transmission:
        condition: service_healthy
    restart: unless-stopped

################################################################################
# Named volumes → bind mounts set via env file...
################################################################################
volumes:
  # Per-app configs
  prowlarr-config:
    driver: local
    driver_opts:
      type: none
      device: ${APPDATA_ROOT}/prowlarr
      o: bind

  sonarr-config:
    driver: local
    driver_opts:
      type: none
      device: ${APPDATA_ROOT}/sonarr
      o: bind

  radarr-config:
    driver: local
    driver_opts:
      type: none
      device: ${APPDATA_ROOT}/radarr
      o: bind

  transmission-config:
    driver: local
    driver_opts:
      type: none
      device: ${APPDATA_ROOT}/transmission
      o: bind

  # Optional spot for watchtower logs/config if you want it
  watchtower-config:
    driver: local
    driver_opts:
      type: none
      device: ${APPDATA_ROOT}/watchtower
      o: bind

  # Data roots (TRaSH layout)
  data-root:
    driver: local
    driver_opts:
      type: none
      device: ${ARSDATA_ROOT}
      o: bind

  # Transmission default convenience mount
  downloads:
    driver: local
    driver_opts:
      type: none
      device: ${ARSDATA_ROOT}/torrents
      o: bind

But I believe your isseus is with pre-existing data and configuration of the docker that is hard failing not some much inner docker network communication...

please review:
https://bmartino1.weebly.com/guide-dockernetworks.html
https://www.youtube.com/watch?v=3k_MwE0Z3CE

Thanks for the response. I may have solved this by switching to macvlan. Seems to be working now. I also deleted the app data configs and reinstalled.
