4 hours ago, trurl said:



Interesting. Do you have a parity disk in this setup? If so, how long does parity check take?

Duration: 9 hours, 43 minutes, 13 seconds. Average speed: 114.3 MB/sec

👍



Thanks. Not many doing this with USB or such light hardware. Let us know how it goes.

18 hours ago, Archer said:

Tiny Unraid (Low consumption)



CPU : Intel Atom Cherry Trail x5-Z8350

Memory : 2GB

USB : USB 3.0

Network speed : Gigabit Ethernet



External case : SISUN  5 Bay USB 3.0

Disk : Western Digital (WD) Red - 4 To (x5)

APC : Eaton 3S 550



Usage: Storage, Plex, Download







Hmm... 2GB of RAM... do you manually update versions?

the Update OS command fails on my brothers machine also with 2GB RAM as there is not enough /tmp space to hold both the downloaded zip file and the unpacked files.

Archer, I'm interested to know what your idle power consumption is.

On 1/11/2019 at 2:39 AM, ken-ji said:

Hmm... 2GB of RAM... do you manually update versions?

the Update OS command fails on my brothers machine also with 2GB RAM as there is not enough /tmp space to hold both the downloaded zip file and the unpacked files.



I have not updated yet, so I can not tell you.



On 1/11/2019 at 3:19 AM, bobkart said:

Archer, I'm interested to know what your idle power consumption is.

So, I do not know. ^^

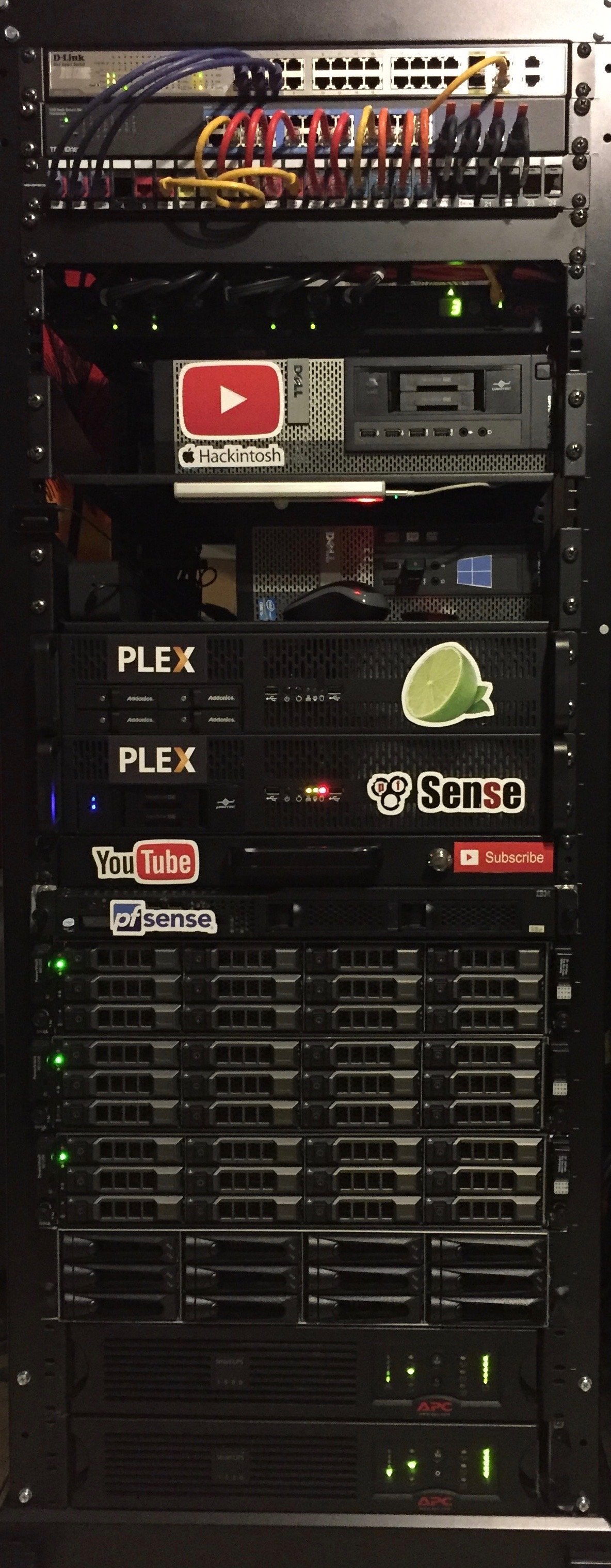

Just finish upgrading my old setup to a proper Rack server.   Old hardware for sale if anyone in Toronto Ont area wants to buy and pickup.  (PM me if interested)



SERVER #1 UNRAID   :  Intel Xeon CPU E3-1230 v3 : 16GB DDR3 ECC UDIMM : Supermicro MBD-X10SLL-F-O : Mellanox 10GBe SFP+ : 2 x Dell MD1200 : DELL H200E IT MODE : 24 x 4TB HDD : 1 x 2TB SSD Cache : 250GB SSD : Rosewill RSV-Z2700



SERVER #2 UNRAID  :  Intel Xeon CPU E3-1240 V2 : 16GB DDR3 DIMM : Dell T1650 Motherboard : Mellanox 10GBe SFP+ : Dell MD1200 : DELL H200E IT MODE : 12 x 8TB HDD : 3 x 512GB SSD Cache : 250GB SSD : Rosewill RSV-Z2700



SERVER #3 PFSENSE  :  IBM Server x3250 : Intel Xeon CPU 3040 @ 1.86GHz : 3GB DDR2 DIMM





Edited March 28, 20197 yr by Spazhead

I'll bite...

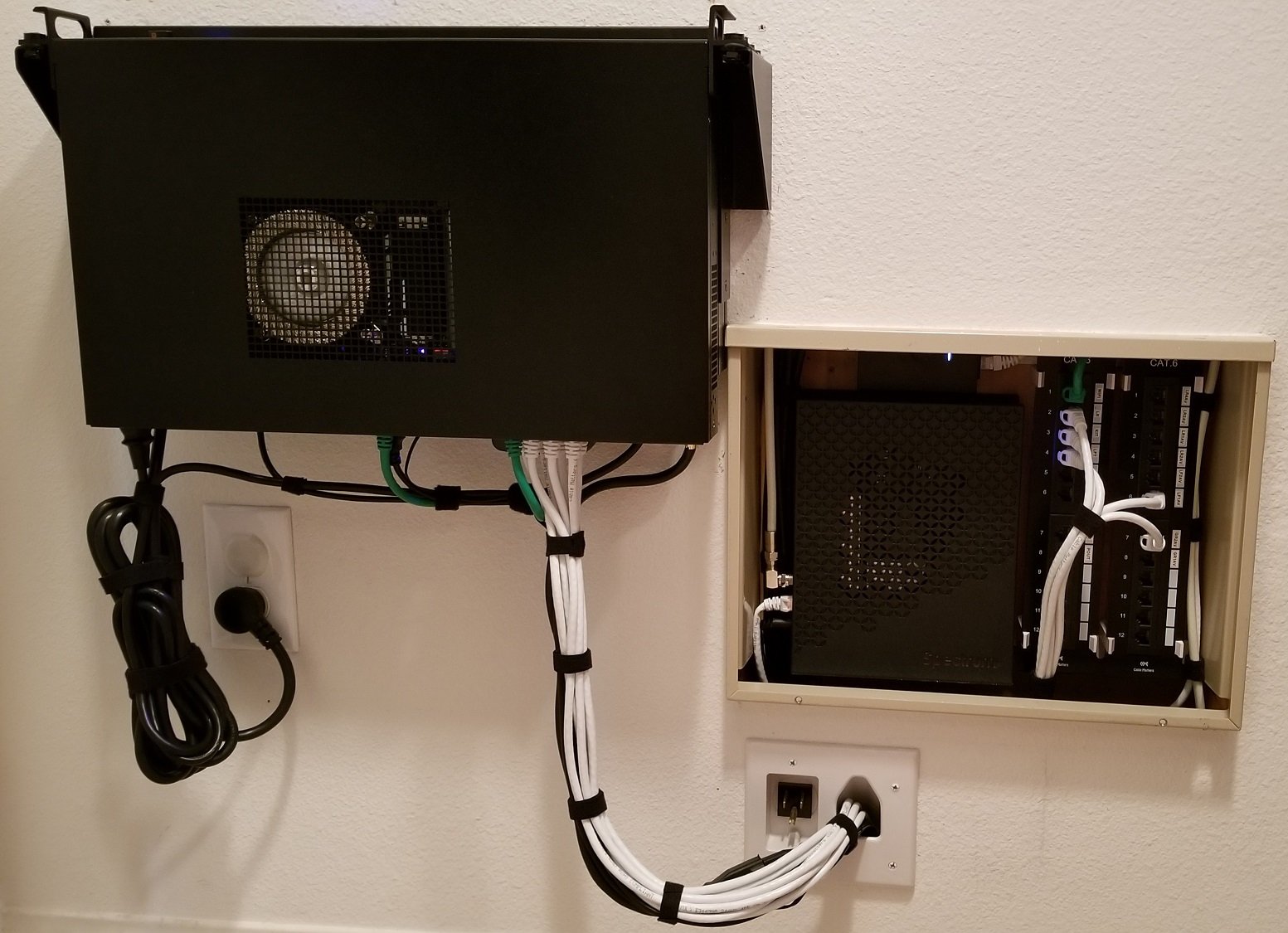

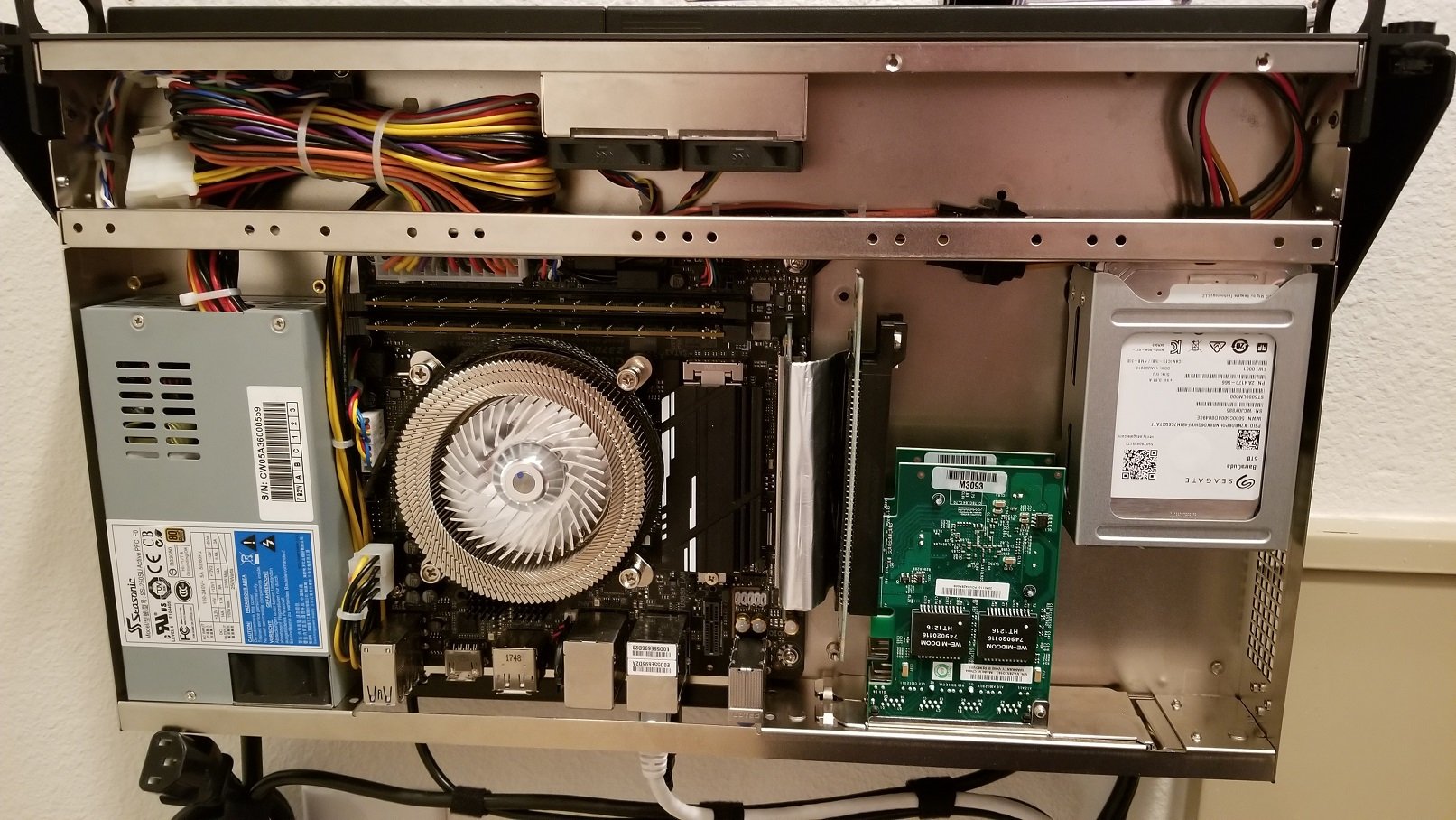

Recently consolidated Unraid Server:
1X Intel Core i7 8700T
1X Gigabyte Z370N WIFI
2X Supermicro VLP 16GB ECC Unbuffered DDR4 2666
2X Corsair Force MP510 M.2 480GB NVME SSD
2X Seagate BarraCuda 5TB SATA 6Gb/s 128MB Cache 2.5-Inch 15mm
1X Supermicro MCP-220-51401-0N Dual 2.5" Fixed HDD Bracket
1X Seasonic 250SU 250W 80Plus 1U Server Power Supply
2X Supermicro AOC-SGP-I4 QP 1Gbps Ethernet Controller
1X Ameri-rack ARC1-PELY423-C5V3 PCIe bifurcation riser card
1X Thermaltake Engine 27
1X Logic Supply MK100 1U Rackmount Case



Mounted in front of:
1X CyberPower OR700LCDRM1U UPS 700VA 400W



Roles:    NAS, PFSense (bridged LAN ports), Plex Server (Docker), Unifi Management (Docker)

Idle Power of Server + PoE AP + Cable Modem = 52W



On 4/7/2019 at 11:06 PM, Hsolo said:

I'll bite...



Recently consolidated Unraid Server:
1X Intel Core i7 8700T
1X Gigabyte Z370N WIFI
2X Supermicro VLP 16GB ECC Unbuffered DDR4 2666
2X Corsair Force MP510 M.2 480GB NVME SSD
2X Seagate BarraCuda 5TB SATA 6Gb/s 128MB Cache 2.5-Inch 15mm
1X Supermicro MCP-220-51401-0N Dual 2.5" Fixed HDD Bracket
1X Seasonic 250SU 250W 80Plus 1U Server Power Supply
2X Supermicro AOC-SGP-I4 QP 1Gbps Ethernet Controller
1X Ameri-rack ARC1-PELY423-C5V3 PCIe bifurcation riser card
1X Thermaltake Engine 27
1X Logic Supply MK100 1U Rackmount Case



Mounted in front of:
1X CyberPower OR700LCDRM1U UPS 700VA 400W



Roles:    NAS, PFSense (bridged LAN ports), Plex Server (Docker), Unifi Management (Docker)

Idle Power of Server + PoE AP + Cable Modem = 52W



Where does one find the t processors? I see you have an 8700t and I’m interested in finding one.

On 5/10/2019 at 12:57 PM, monano said:

Where does one find the t processors? I see you have an 8700t and I’m interested in finding one.

I bought it from Amazon (US) but shipped from a different seller in Korea.  Shipping was about $31 so I had to pay higher than MSRP.  However, I did get the non Engineering Sample so I'm happy with it.  😃

I bought it from Amazon (US) but shipped from a different seller in Korea.  Shipping was about $31 so I had to pay higher than MSRP.  However, I did get the non Engineering Sample so I'm happy with it.  [emoji2]

Thanks for that. I’ll take a look:)


Sent from my iPhone using Tapatalk

Just upgraded my server. Signature was no longer current as I had upgraded the CPU about 2 years ago to an i7-3770 but upgrades as follows for my 8 year old server:



From This:

Lian Li Q25, Zotac H67ITX-C-E, Intel G630, 8GB Ram, 1x4TB Seagate Parity, 1x4TB + 2x3TB + 1x2TB WD Red Array, 1x2TB Seagate Array, 1x2TB Samsung Array, 1x120GB Kingston SSDNow Cache

To This:

1 x 10TB WD Parity drive shucked.

1 x 10TB WD drive

1 x 4TB WD Red

2 x 3TB WD Red

Corsair SF450 PSU (finally free'd up some space in for airflow)

1 x Kingston A2000 250GB M.2 (2280) PCIe NVMe SSD cache drive

Noctua NH-L9x65

2 x 16GB Patriot Viper Steel Series DDR4 3200MHz Memory

Intel Core i9-9900K

ASRock Z390-M-ITX/ac

Hauppauge TV-quadHD DVB (not configured yet)



Eventual plan is to upgrade the rest of the drives to 10TB or more

Edited April 21, 20206 yr by kavo

Current PC's in the rack:
Unraid:
Intel i7 3770k
Gigabyte GA-H77-DS3H motherboard

32GB Ram

1* 8TB WD Red Parity drive

1* 8TB Seagate SMR archive drive

2* 4TB WD Red

3* 6TB WD Red (Yes these are the new SMR versions)

1* 1TB Samsung SSD as cache

I plan on upgrading the PC to a Ryzen 5 3600 or similar, along with 32GB of RAM (As 2 16GB Sticks so I can upgrade to 64GB later), and something like an MSI X470 or B450-A Pro motherboard

Dell R610:
Dual Quad Core Xeon 5500's,
64GB of RAM

GT710 video card (For hardware transcoding only)

This is my Plex/Airvideo server, along with the home automation system running Home Assistant. Once the main Unraid PC is upgraded, I'll probably move Plex over to it as well.

How well does the GT710 actually do HW transcoding?

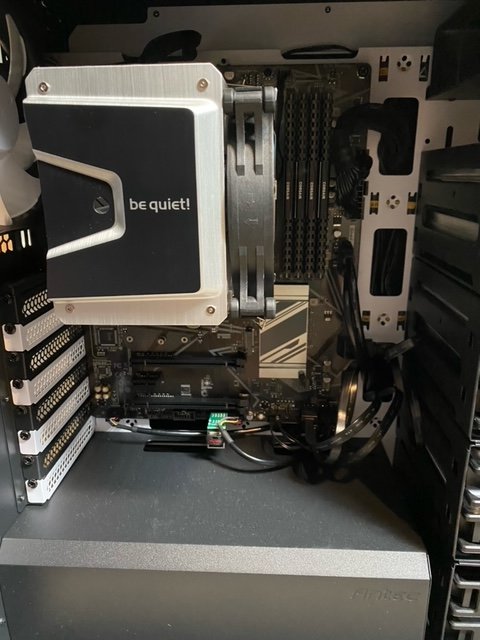

Ryzen 5 2600

16GB DDR4 2666mhz Crucial Ballistix AT

Asus TUF B450-Plus Gaming

512GB Intel NVME for Appdata/dockers

Dell H310 PERC

Be Quiet 750W Power Zone Power Supply Unit

Silverstone SST-FS303B 2*5.25 to 3*3.5 bay adapter

Additional front intake fan Fractal Design Dynamic GP-14

Fractal Define R5 Case



Array:

3*3TB (WD3001FYYG)

3*6TB (WDC_WD60EZRZ)

3*2TB (TOSHIBA_DT01ACA200_63NKVAMKS)

1*2TB (WDC_WD20EZRX)



29TB usable space.



Unassigned (for downloads)

1*2TB (ST32000444SS)



MSI GT710 2GB DDR3 Passthrough to Windows 10 VM

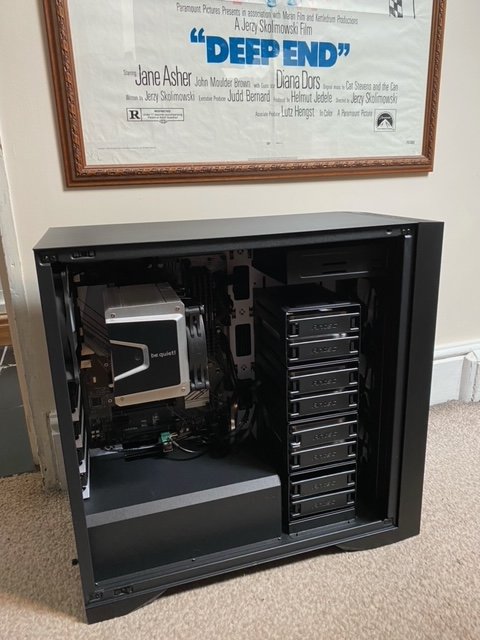

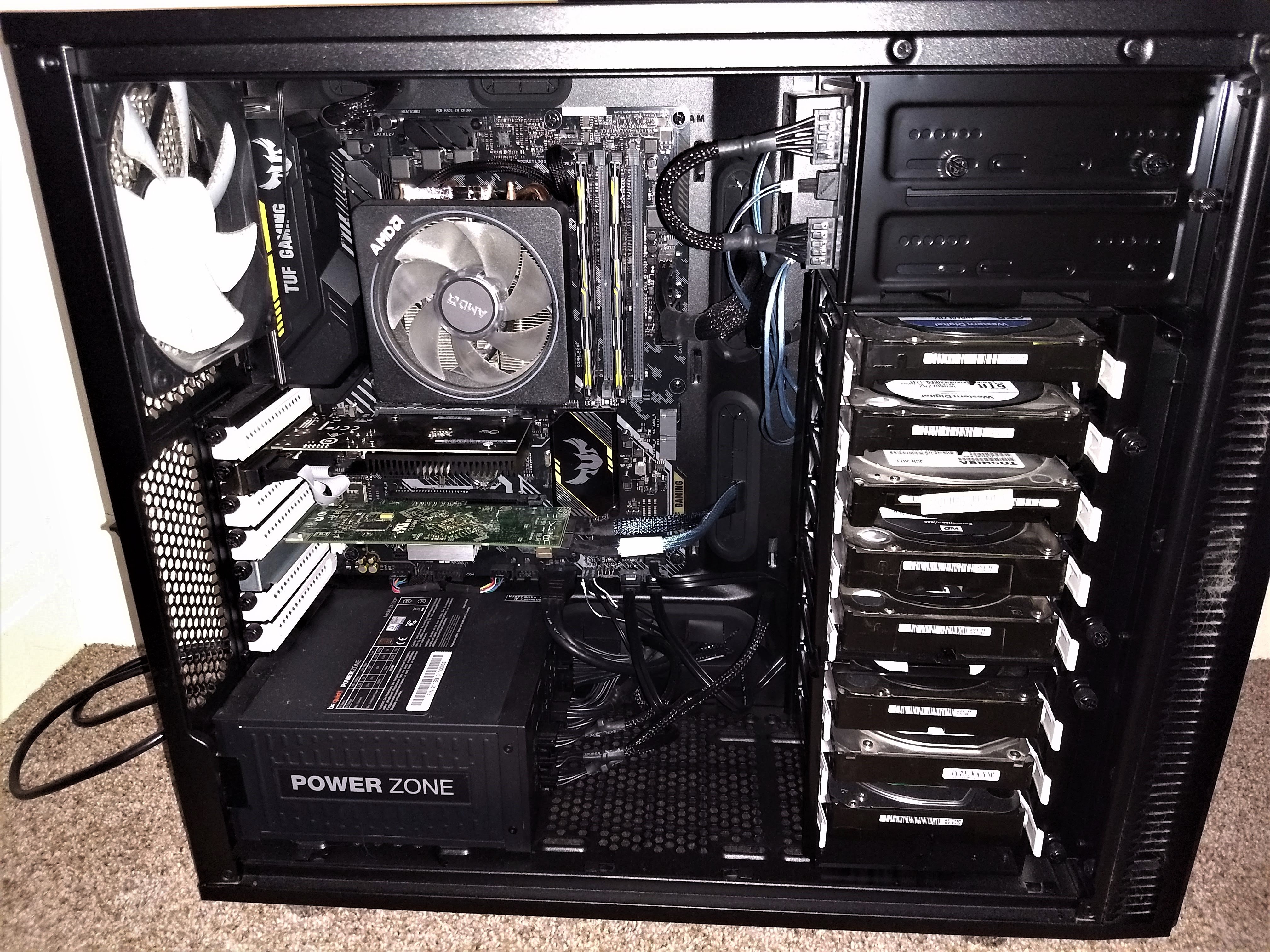

This picture is after 6 months of operation, the dust filters on the front of the case really do their job!



Edited May 26, 20206 yr by Spies

4 hours ago, Spies said:

This picture is after 6 months of operation, the dust filters on the front of the case really do their job!

That's the great thing about having more air flow in than out, positive pressure that keeps dust out.



I really like the BeQuiet case line. I used it in my personal "Clu" build based on the Tron: Legacy movie



https://www.facebook.com/john.bartlett/media_set?set=a.10154927934780590&type=3

Oh yeah, I forgot to say it's a Fractal Define R5 case.

- Main unRaid Server
Dual Xeon E5-2650L-v4 (14c28t each - 28c56t total)
256gb DDR4
Supermicro X10-DRH-C
Supermicro CSE-847 36 3.5" + 2 2.5" bay 4U chassis
Quadro P2000
Hauppauge QuadHD TVTuner
SolarFlare dual port 10gb SFP+
Adaptec ASR-71605 16port HBA
1TB Sabrent Rocket NVMe
2x 1TB WD Green SATA SSD
6x 14TB WD Red
5x 12TB WD Red
10x 10TB WD Red
~~~230TB Main Array
~~~2TB SSD Pool
~~~1TB Cache drive



- backup unRaid Server
Chenbro case
Jetway NF9J-Q87  ITX motherboard
Intel Core i3-4130T
32gb DDR3 SoDIMM

Quadro P2000

4x 16tb WD Red
2x 2TB WD SSD

256gb mSATA
~~~48TB Main Array

~~~2TB SSD Pool
~~~256GB Cache drive

- Switch
MikroTik 24port POE switch with 4 10gb SFP+

- PFSense Router
Supermicro CSE-203B 1U case
Supermicro A1SRi-2758F 8core Atom cpu
32gb DDR4 ECC SoDIMM
Chelsio T520CR 10gb SFP+ dual port

- Battery Backup
Dell 2700W with EBM

-Test Server
ASRock J1900D2Y Mini ITX
32gb DDR3
2x 256gb SSD

- Gaming Rig
Gigabyte Aurus G17-YC
i7-10870H 8c16t
32gb ddr4
GeForce RTX 3080
1tb NVMe
2tb NVMe
2.5gb nic
full RGB mechanical keyboard
2x Samsung U32H85x
Logitech G703 with PowerPlay Mat
Logitech G915 TKL LightSpeed
Samsung HK850 soundbar

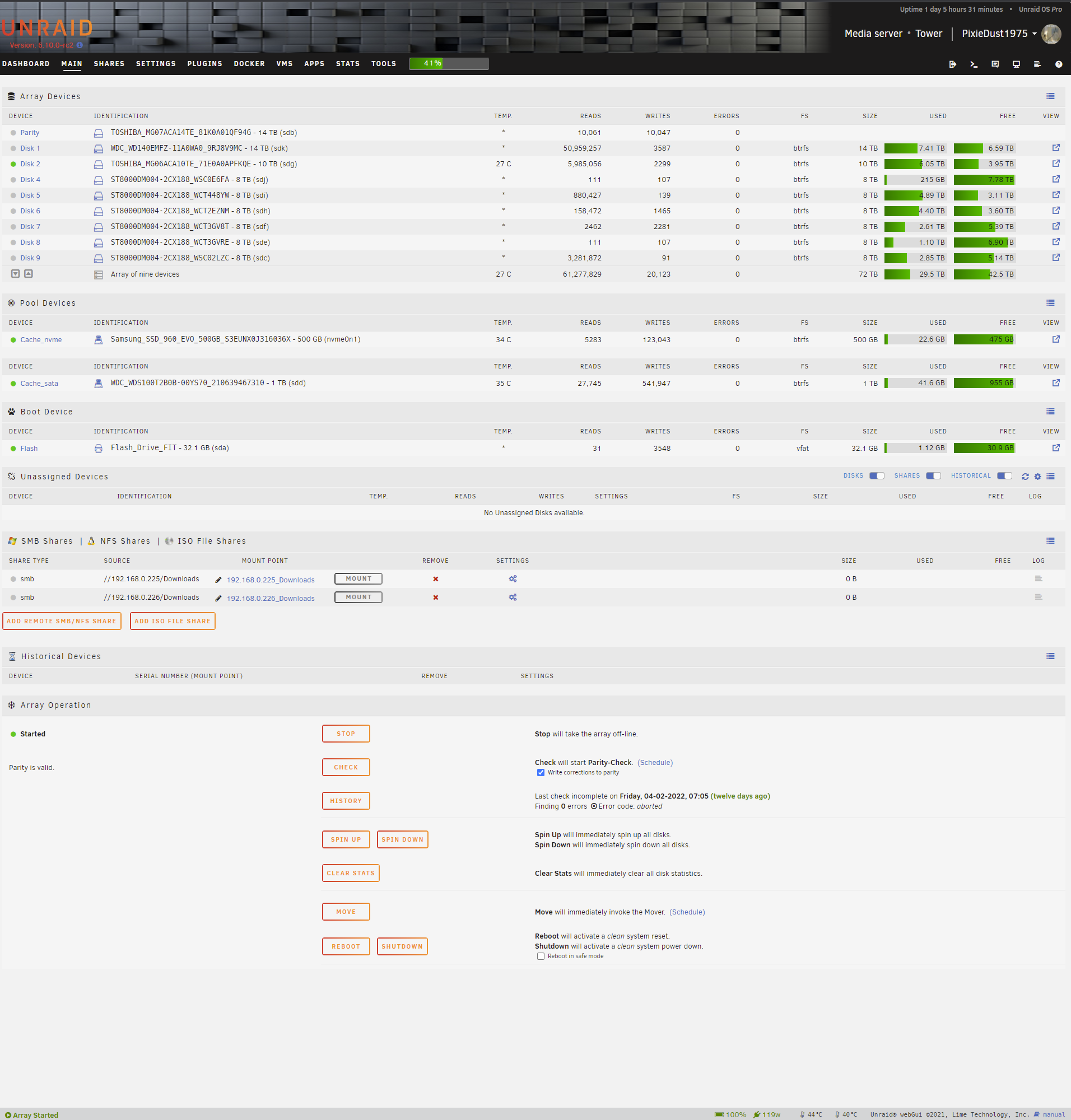

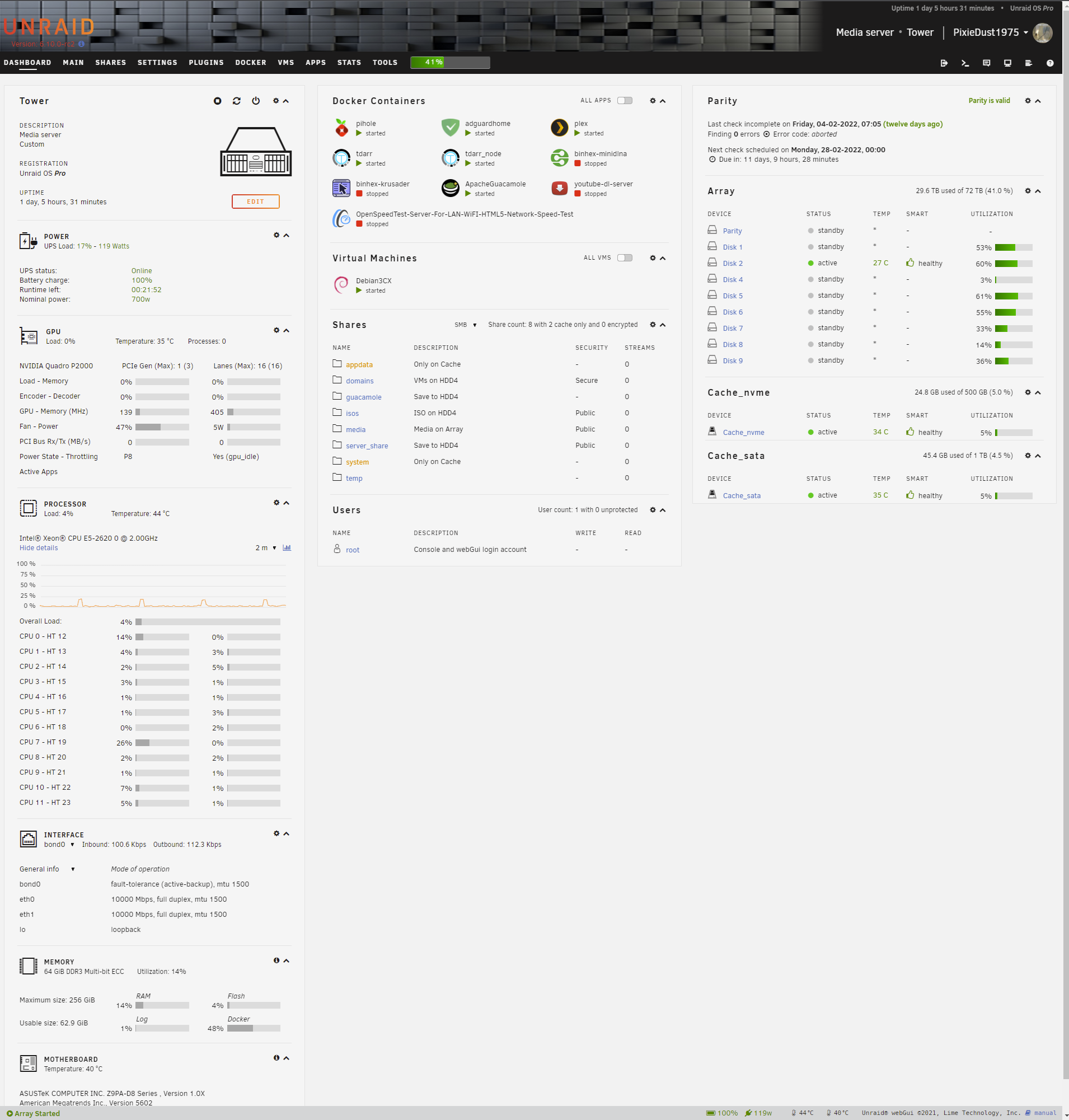

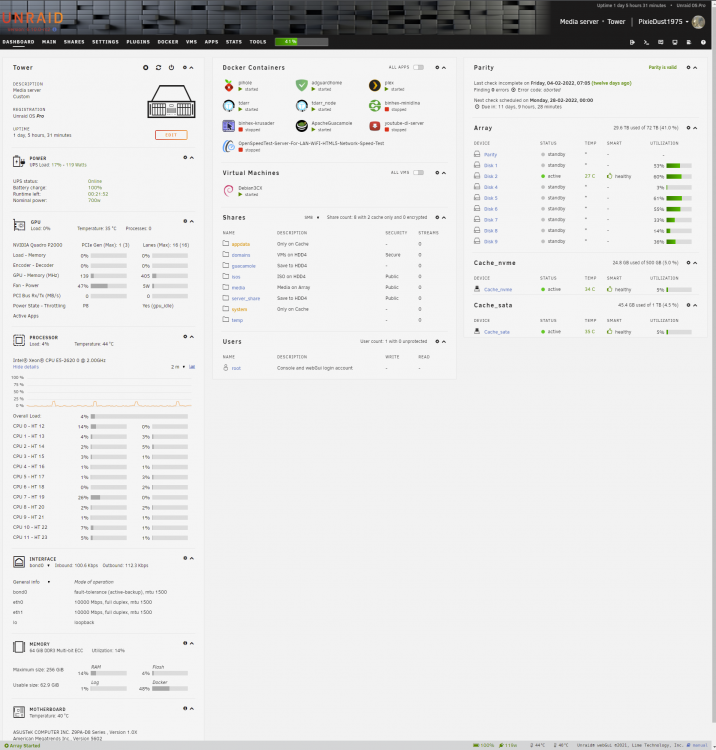

unRAID Plex Server Parts Used.
unRAID -> unraid.net/pricing
Intel Dual E5-2620 -> ark.intel.com/content/www/us/en/ark/products/64594/intel-xeon-processor-e5-2620-15m-cache-2-00-ghz-7-20-gt-s-intel-qpi.html
Cooler master Hyper H412R -> www.coolermaster.com/catalog/coolers/cpu-air-coolers/hyper-h412r/
Asus Z9PA-D8 - > www.asus.com/Commercial-Servers-Workstations/Z9PAD8/
DDR3 64GB 1866Mhz ECC ->  www.ebay.co.uk/itm/HP-16GB-1x16GB-PC3-14900R-2Rx4-RDIMM-1866MHz-DDR3-ECC-REG-708641-B21/324236588512?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649
Logic Case SC-4550MG-2 -> www.logic-case.com/products/rackmount-chassis/4u/4u-gpu-enhanced-standard-chassis-4x-35-hdd-+-6x-525-bays---8x-full-height-slots-for-4x-double-width-gpu-sc-4550mg-2/
Rivo PCIe SATA Card -> www.amazon.co.uk/gp/product/B0828FY1B2/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1
SilverStone 2x FS305-12G -> www.silverstonetek.com/product.php?pid=885&area=en
EVGA 600 W1 600W PSU -> www.evga.com/products/specs/psu.aspx?pn=94de5174-74e7-4aac-876b-62db540ec176
PNY P2000 -> www.pny.com/nvidia-quadro-p2000
APC Backup-UPS 1400VA -> www.apc.com/shop/my/en/products/APC-Back-UPS-1400VA-230V-AVR-Universal-and-IEC-Sockets/P-BX1400U-MS
Mellanox MCX312B-XCCT -> store.mellanox.com/products/mellanox-mcx312b-xcct-connectx-3-pro-en-network-interface-card-10gbe-dual-port-sfp-pcie3-0-x8-8gt-s-rohs-r6.html
Samsung 960 EVO (500GB Cache) ->  www.samsung.com/semiconductor/minisite/ssd/product/consumer/960evo/
WD Blue M.2 SATA (1TB) -> shop.westerndigital.com/en-gb/products/internal-drives/wd-blue-sata-m-2-ssd#WDS100T2B0B
MG07ACA14TE (1x14TB parity) -> toshiba.semicon-storage.com/eu/storage/product/data-center-enterprise/cloud-scale-capacity/articles/mg07acaxxx.html
MG06ACA10TE (1x10TB) -> toshiba.semicon-storage.com/eu/storage/product/data-center-enterprise/enterprise-capacity/articles/mg06acaxxxx.html
Seagate ST8000DM004 (6x8TB)-> www.seagate.com/gb/en/internal-hard-drives/hdd/barracuda/



I though I'd contribute with my build

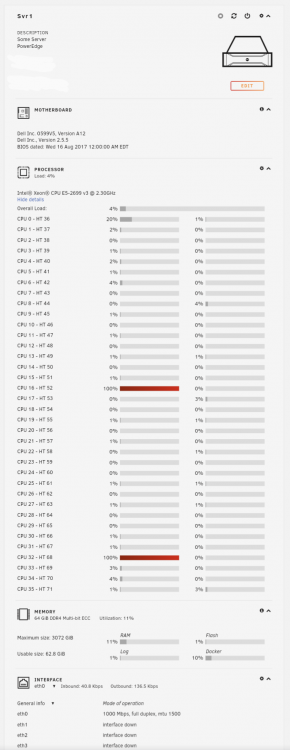

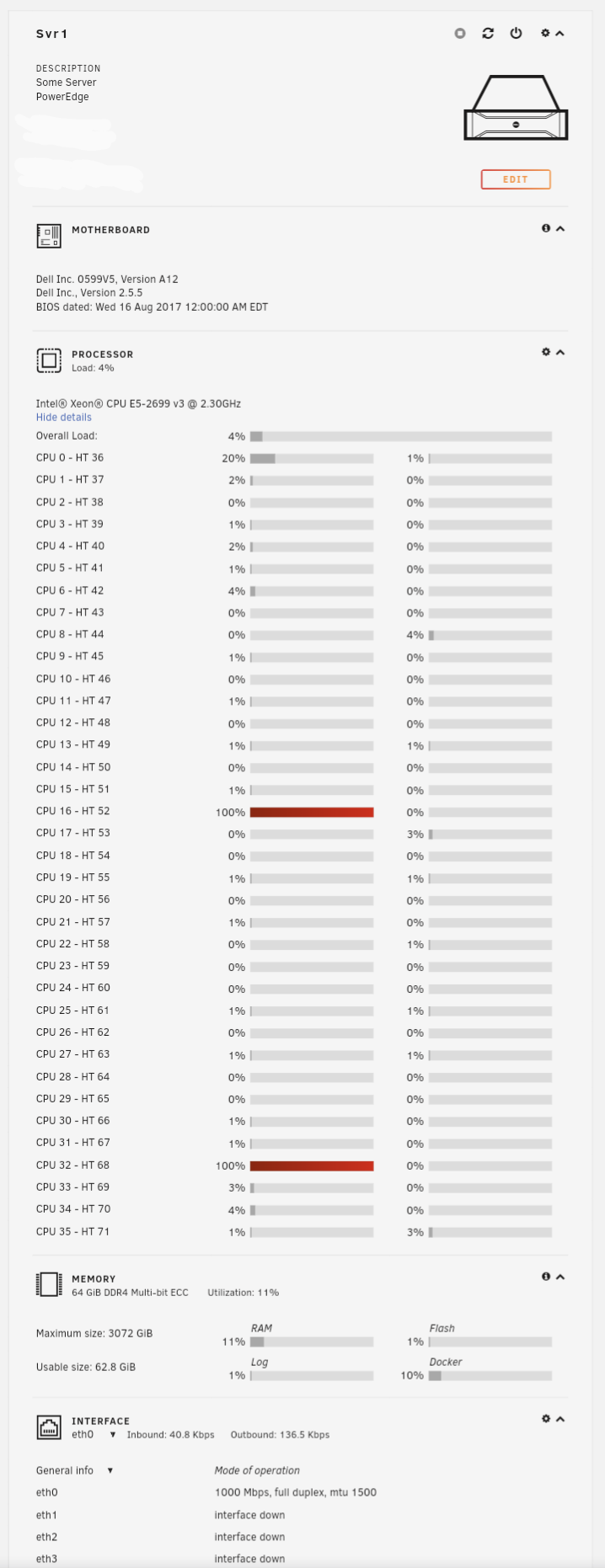

I've bought myself a used Dell PowerEdge r730xd powered by;

2 x Xeon E5-2699 (2.3-3.6ghz) (18/36)

64gb ddr4 2133mhz of ram

Currently hosting 12tb + 8tb parity.

It also has 4 x 1gb network port.



Cheers!



On 3/14/2021 at 6:52 PM, Steve-0 said:

- Main unRaid Server
Dual Xeon E5-2650L-v4 (14c28t each - 28c56t total)
256gb DDR4
Supermicro X10-DRH-C
Supermicro CSE-847 36 3.5" + 2 2.5" bay 4U chassis
Quadro P2000
Hauppauge QuadHD TVTuner
SolarFlare dual port 10gb SFP+
Adaptec ASR-71605 16port HBA
1TB Sabrent Rocket NVMe
2x 1TB WD Green SATA SSD
6x 14TB WD Red
5x 12TB WD Red
10x 10TB WD Red
~~~230TB Main Array
~~~2TB SSD Pool
~~~1TB Cache drive



- backup unRaid Server
Chenbro case
Jetway NF9J-Q87  ITX motherboard
Intel Core i3-4130T
32gb DDR3 SoDIMM

Quadro P2000

4x 16tb WD Red
2x 2TB WD SSD

256gb mSATA
~~~48TB Main Array

~~~2TB SSD Pool
~~~256GB Cache drive

- Switch
MikroTik 24port POE switch with 4 10gb SFP+

- PFSense Router
Supermicro CSE-203B 1U case
Supermicro A1SRi-2758F 8core Atom cpu
32gb DDR4 ECC SoDIMM
Chelsio T520CR 10gb SFP+ dual port

- Battery Backup
Dell 2700W with EBM

-Test Server
ASRock J1900D2Y Mini ITX
32gb DDR3
2x 256gb SSD

- Gaming Rig
Gigabyte Aurus G17-YC
i7-10870H 8c16t
32gb ddr4
GeForce RTX 3080
1tb NVMe
2tb NVMe
2.5gb nic
full RGB mechanical keyboard
2x Samsung U32H85x
Logitech G703 with PowerPlay Mat
Logitech G915 TKL LightSpeed
Samsung HK850 soundbar

Are you using your Hauppauge QuadHD TVTuner for Plex/emby live tv? If so, how have you got this set up?

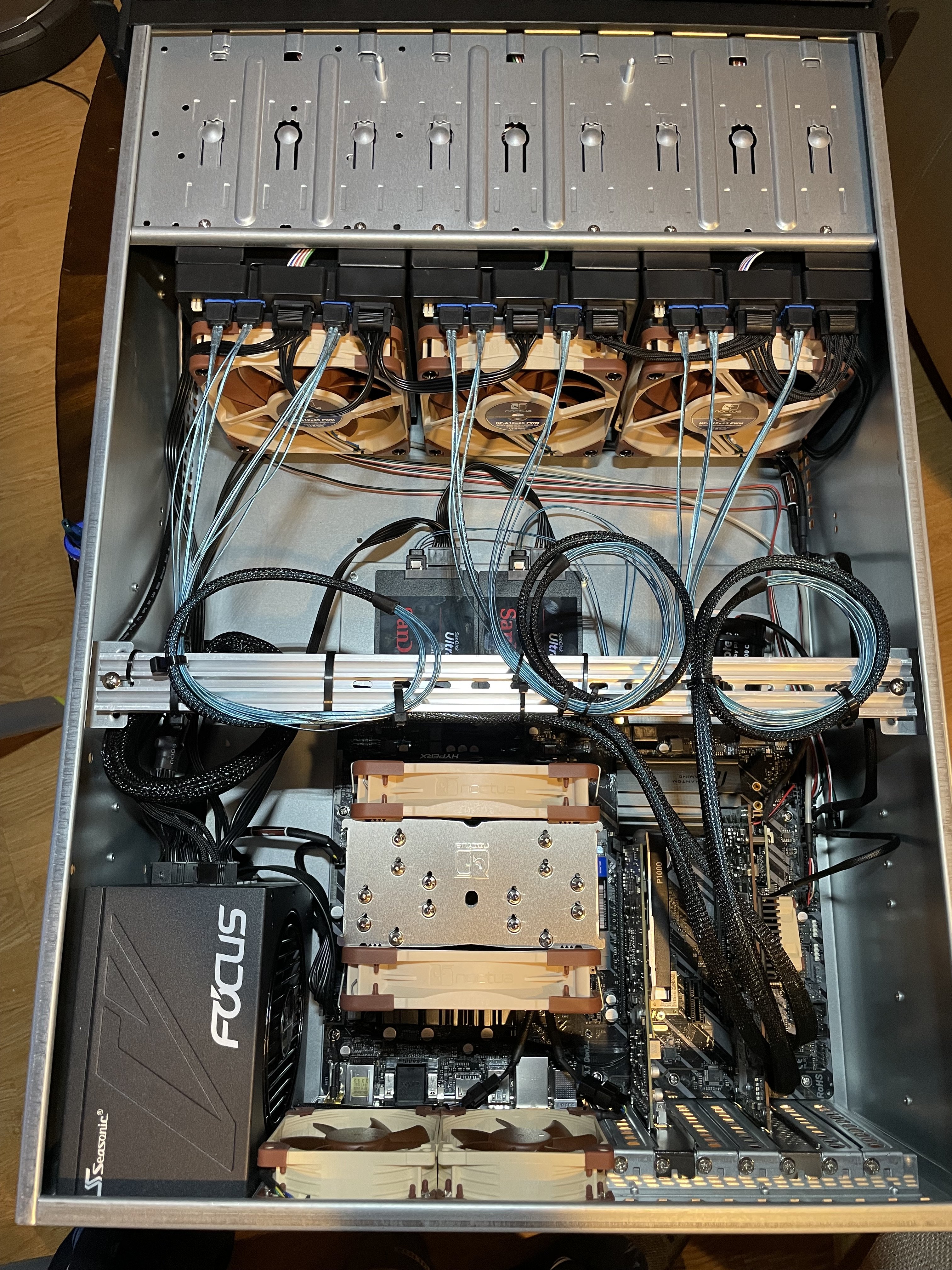

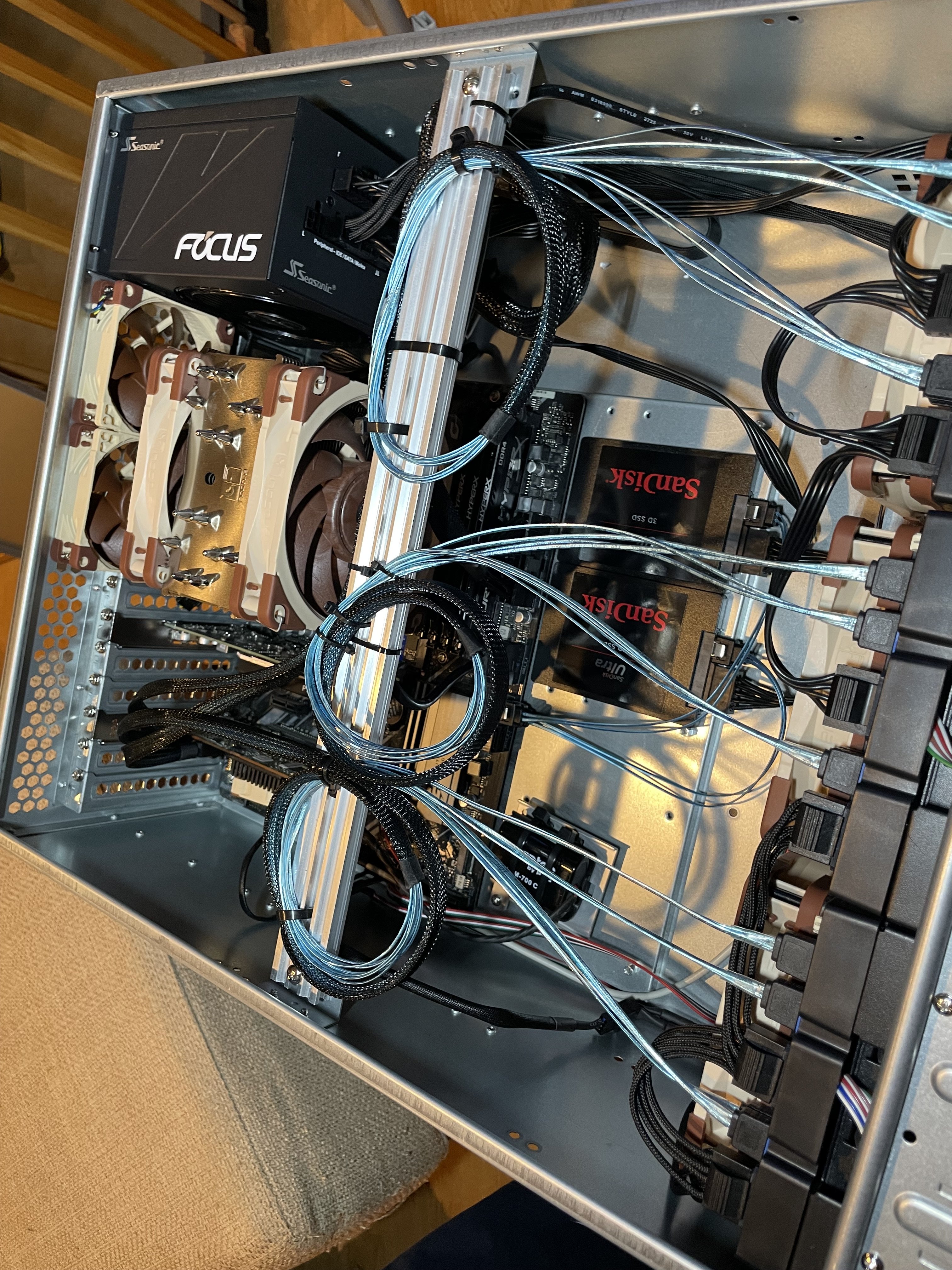

Unraid Pro

i7 9700k

ASRock Z390 Phantom Gaming-4 CB   CB = Custom build, the mobo and cpu came out of a prebuilt gaming computer.

32GB DDR4 2133 MT/s

Adaptec ASR 71605 16 Port HBA

Quadro P1000

Dual port Gigabit NIC 82575EB chipset, both ports wired to Netgear SXK80 in LAG (NIC not pictured added it after the initial build)

Rosewill RSV-L4412U

2x SanDisk Ultra 3d NAND 1TB SSD's for cache (wired to mobo)

1x WD Blue 1TB NVME

2x 12TB Shucked WDC_WD120EDBZ

1x 4 TB Seagate Ironwolf

Seasonic FOCUS PX-750

Noctua NH-U12A

Noctua fans everywhere, on the HBA too, the stock one was very loud



I just finished setting up Unraid with some of the PC parts I was not using -



Primarly use it as NAS for photos and file, docker containers and VMs



1. Ryzen 7 3700x

2. Nvdia RTX 2080 Super

3. 2 1 TB NVME Drives

4. 4 HDD 8 TB, 3 HDD 16 TB Array and 1 16TB Parity

5. Fractal Define 7 Case with Storage Layout

6. Seasonic 750W Platinum

7. 10G Networking card with SFP+ port.

8. 64 GB 3200 CL16 - GSkill RAM

9. MSI Gaming Edge Wifi x570 Motherboard

Edited October 5, 20223 yr by darkcatalist

On 5/26/2020 at 8:12 AM, Spies said:

Ryzen 5 2600

16GB DDR4 2666mhz Crucial Ballistix AT

Asus TUF B450-Plus Gaming

512GB Intel NVME for Appdata/dockers

Dell H310 PERC

Be Quiet 750W Power Zone Power Supply Unit

Silverstone SST-FS303B 2*5.25 to 3*3.5 bay adapter

Additional front intake fan Fractal Design Dynamic GP-14

Fractal Define R5 Case



Array:

3*3TB (WD3001FYYG)

3*6TB (WDC_WD60EZRZ)

3*2TB (TOSHIBA_DT01ACA200_63NKVAMKS)

1*2TB (WDC_WD20EZRX)



29TB usable space.



Unassigned (for downloads)

1*2TB (ST32000444SS)



MSI GT710 2GB DDR3 Passthrough to Windows 10 VM



This picture is after 6 months of operation, the dust filters on the front of the case really do their job!



Members

10

Posted just now

I have an R5 case and an R4 case. The R4 is very similar to the R5 in most instances. I see you used the Silverstone SST-FS303B 2x 5.25 to 3x 3.5 SATA HDD/SSD Hot Swap Cage. It looks like you put that in the 2 upper 5.5 bays. How is that fitting, and how is it working out for you? thanks.

Edited November 6, 20223 yr by ingeborgdot
Forgot post

Thought it was about time I got in on the Quick Sync thing so made a new server to replace my trusty old Ryzen 5 2600 set up (in a Be Quiet Silent Base 800 case).



Went with the following (purely used for Plex and Roonserver)....

Antec P101 Silent case
Gigabyte Z590 D motherboard
Intel Core i5-11500 CPU
Be Quiet Shadow Rock 3 CPU cooler
Corsair Vengeance LPX 3200Mhz 4x 8GB
Corsair P3 m.2 PCIE Gen. 4 NVME 1TBx1

Be Quiet System Power 9 600w semi-modular PSU

Seagate Exos 16TB x5
WD 14TB shucker x1
unRAID OS Plus



Managed to follow the guides for setting up the iGPU to hardware transcode. It seemed daunting but really was a breeze.

Thanks to the people who shared the knowledge.



I'll harvest the hard drives from the old server and hopefully sell it on locally as a "just add storage and OS USB". Not sure what interest there will be in deepest Devon but we'll see. I already have

a 15 bay front loader for back ups so can't justify keeping it.









Edited April 23, 20233 yr by nobladeofgrass
