This is the support thread for the NVIDIA NIM Single Unraid template. Made this for my personal use so I could use NVIDIA-NIM with Unraid and my AnythingLLM container.

GitHub Repo

Template

Readme

This guide explains how to run NVIDIA NIM containers on Unraid using a consumer NVIDIA GPU.
NIM provides optimized inference servers with an OpenAI-compatible API, making it easy to connect tools like AnythingLLM or Open WebUI.

Tested environment:

• RTX 3060 12 GB

• Unraid 6.12+

• NIM 1.10.1

---

Prerequisites

You will need the following:

• Unraid 6.12 or later

• NVIDIA GPU (Turing architecture or newer)
  Examples: RTX 20xx, RTX 30xx, RTX 40xx

• NVIDIA drivers installed in Unraid

  • Community Applications → NerdTools or GPU Statistics plugin

• Free NVIDIA NGC account
  https://build.nvidia.com

• NGC API key generated from your NGC dashboard

---

Model Selection

NIM uses pre-optimized engine profiles, which are primarily designed for data center GPUs.
Consumer GPUs require smaller models and reduced context windows.

Example models

Model	VRAM Required	Fits 12 GB GPU
meta/llama-3.2-3b-instruct	~6 GB	✅ Recommended
microsoft/phi-3-mini-4k-instruct	~8 GB	✅ Yes
nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1	~10 GB	✅ Yes
mistralai/mistral-7b-instruct-v0.3	~14 GB fp16	❌ OOM
meta/llama-3.1-8b-instruct	~22 GB bf16	❌ OOM
meta/llama-3.1-70b-instruct	~80 GB	❌ Multi-GPU

If you want to run 7B+ models on a 12GB GPU, consider Ollama, which supports quantized weights.

---

NGC Registry Login

⚠️ This must be done before Unraid can pull NIM images.

NIM images are hosted on NVIDIA's private registry (nvcr.io), not Docker Hub.

Run this one time in the Unraid terminal:

docker login nvcr.io

Login credentials:

Username: $oauthtoken
Password: YOUR_NGC_API_KEY

⚠️ Important:

• docker login → allows pulling the container image

• NGC_API_KEY → allows downloading model weights at runtime

Both are required.

---

Cache Directory Permissions

Before starting the container, create the cache directory with the correct permissions.

NIM runs inside the container as UID/GID 1000.
If the cache directory is owned by root, the container will fail to start.

Run:

chown -R 1000:1000 /mnt/user/appdata/nvidia-nim/cache
chmod 775 /mnt/user/appdata/nvidia-nim/cache

---

Environment Variables

Variable	Value	Notes
NGC_API_KEY	your_ngc_api_key	Required. Used to download model weights
NIM_MODEL_NAME	meta/llama-3.2-3b-instruct	Must match the image tag
NIM_MAX_MODEL_LEN	16384	Required for consumer GPUs
NIM_CACHE_PATH	/opt/nim/.cache	Cache directory
CUDA_VISIBLE_DEVICES	0	Use 0 for single GPU
PYTORCH_CUDA_ALLOC_CONF	expandable_segments:True	Reduces memory fragmentation

---

First Run

On the first startup, NIM downloads the model weights to the cache directory.

Example size:

• ~6 GB for llama-3.2-3b

This can take several minutes depending on your internet connection.

You can verify the container is running with:

curl http://localhost:8000/v1/models

---

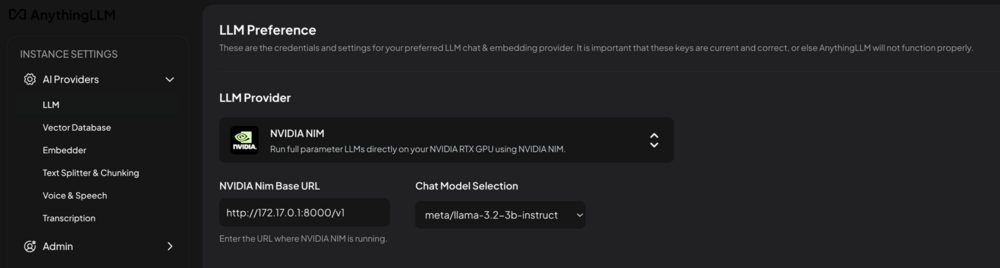

Connecting Clients

NIM exposes an OpenAI-compatible API, so most AI clients work out of the box.

Connection settings

Setting	Value

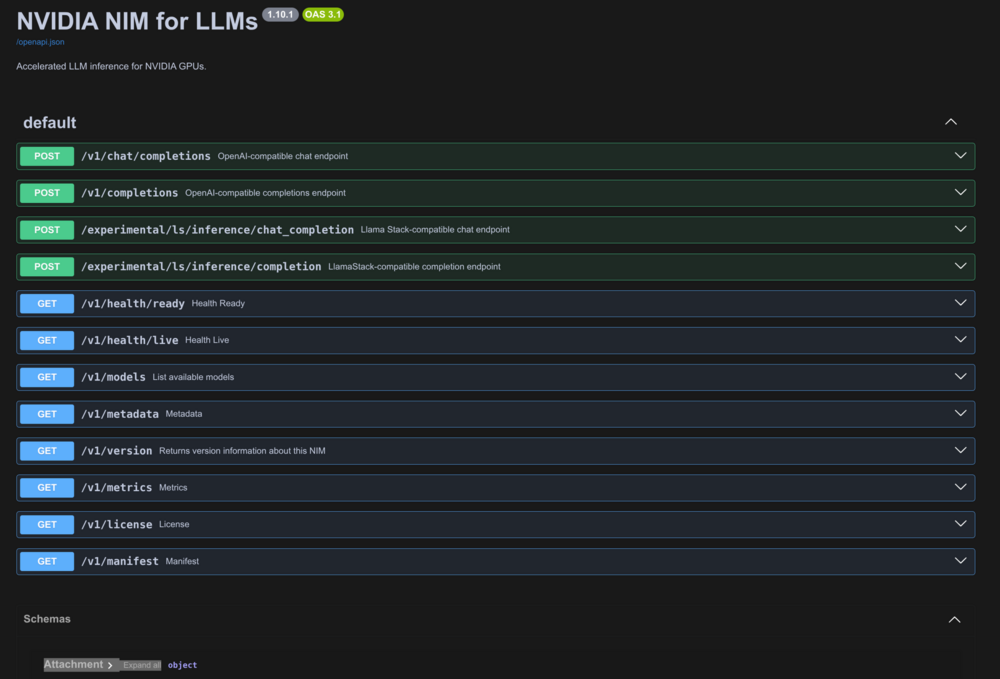

Docs	http://[unraid-ip]:8000/docs
Base URL	http://[unraid-ip]:8000/v1
API Key	Any non-empty string (e.g. nim)
Model	meta/llama-3.2-3b-instruct

Compatible clients

• AnythingLLM

• Open WebUI

• LangChain

• LlamaIndex

• Cursor (custom OpenAI base URL)

• Any application with configurable OpenAI endpoints

---

Switching Models

Currently the template uses model-specific container images.

To switch models:

1. Stop the container

2. Change the Repository field
   Example:

nvcr.io/nim/microsoft/phi-3-mini-4k-instruct:latest

3. Update the model variable:

NIM_MODEL_NAME=microsoft/phi-3-mini-4k-instruct

4. Start the container

To run multiple models, create additional containers on different ports:

8000
8001
8002

They can share the same cache directory — weights will not be duplicated.

---

Troubleshooting

Cache Permission Error

If the container fails with:

PermissionError: [Errno 13] Permission denied: '/opt/nim/.cache/local_cache'

Run:

chown -R 1000:1000 /mnt/user/appdata/nvidia-nim/cache
chmod 775 /mnt/user/appdata/nvidia-nim/cache

---

KV Cache Size Error

Example error:

ValueError: The model's max seq len (131072) is larger than the maximum number of tokens that can be stored in KV cache

Fix:

NIM_MAX_MODEL_LEN=16384

If needed, try:

8192

Consumer GPUs cannot handle the full context window used by data center profiles.

---

Common Errors

Error	Cause	Fix
401 Unauthorized	Not logged into nvcr.io	Run docker login nvcr.io
ValueError: invalid literal 'all'	CUDA_VISIBLE_DEVICES=all	Change to 0
PermissionError on .cache	Wrong permissions	Fix cache directory permissions
max seq len > KV cache	Context window too large	Set NIM_MAX_MODEL_LEN=16384
CUDA out of memory	Model too large	Use a smaller model
No compatible profiles	GPU too old	Requires RTX 20xx or newer
nvfp4 unsupported warning	Consumer GPU limitation	Safe to ignore

---

XML Template

This repository includes an Unraid Community Applications-compatible template:

nvidia-nim-single.xml

To install manually:

/boot/config/plugins/dockerMan/templates-user/

After copying the file there, it will appear in the Unraid Docker template list.
