March 31Mar 31 Free cookie to whoever can hold my hand making my VM boot correctly!Things I want.Essentially I want a VM that I can fire up when I want to play some games. Normally I would do this on my Windows 11 Pro PC but I have since ditched Windows and only have my Linux daily driver laptop. I still have the gaming pc that I used to game on but now its installed with Unraid. :)Passthrough support for my periphals like keyboard, mouse, xbox controller, etc. as if I was playing on a regular PC.Things I have tried. 1. Every video I found on Youtube that was relevant. 2. Searched and read multiple guides on the internet.Problems I mostly run into. 1. I cant get any VM's to work. I have tried the stated Windows, Steam OS, and a Linux VM and none will work on my Unraid. 2. VM creation error: internal error: Failed to start QEMU binary /usr/local/sbin/qemu for probing: Start/autostart is disabled in VM settings.I have verified that VM's are enabled etc.Who wants a cookie?Thanks!
April 7Apr 7 Author I am able to get Windows 11 Pro VM to boot to the install but it doesnt find any drives. I want to install it to my m.2 drive but the installer sees no drives. I created the VM container itself large enough as well in case it had to be installed there. I am able to go through the steps of installing Windows 11 Pro and put in my key then at basically the last part it ask where to install and my m.2 drive isnt shown and actually no drives are shown.Thanks
April 7Apr 7 Author 15 minutes ago, imrobertcampbell said:I am able to get Windows 11 Pro VM to boot to the install but it doesnt find any drives. I want to install it to my m.2 drive but the installer sees no drives. I created the VM container itself large enough as well in case it had to be installed there. I am able to go through the steps of installing Windows 11 Pro and put in my key then at basically the last part it ask where to install and my m.2 drive isnt shown and actually no drives are shown.ThanksI currently have (2) seperate m.2 drives and (3) SSD drives in the machine. The (3) SSD's are in an array for NAS files. the small m.2 is the OS/VM drive and the large m.2 was where all my games and files were kept when it was a Windows 11 only machine.How do I properly add these m.2 drives to the VM?Thanks

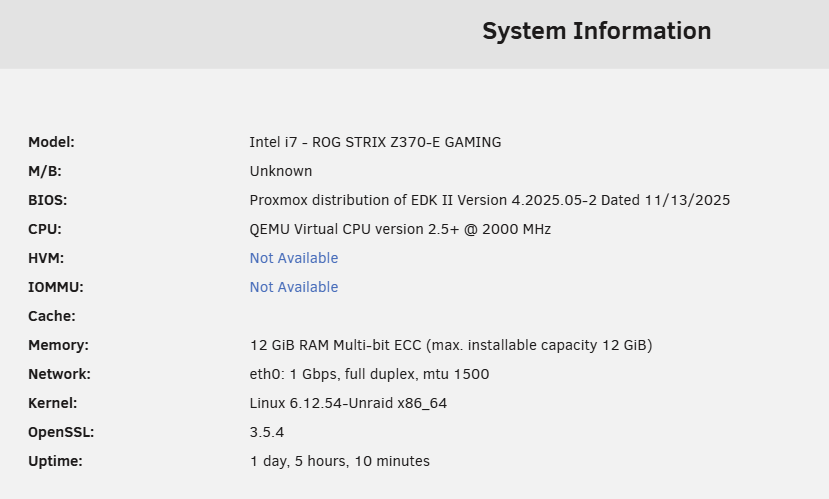

April 7Apr 7 what level of hardware is being passed and used in the vm?there are a few plugins to help mange usb devices. But ultimately if you have the pcie bandwith its best to pass a iommu nvme, g card and usb contorler into the VM. all can require a bit of high-level knowledge.unraids vm sytems have been updated but is mostly the same... use libvirt qemu kvm hyper v in domain xml code foramt for implementation. https://libvirt.org/formatdomain.htmlSo I would requrie a diag file to verify lspci and devices you have. so what hardware are you runnign and what hardware do you have for use to pass keyboard mouse etc...for gcards:https://www.youtube.com/watch?v=QlTVANDndpMFor hd and other devices:https://www.youtube.com/watch?v=QaB9HhpbDAIas I run PVE for better VM hardware host access and virtualize Unriad. giveing PVE host dutions as a Hyper V for more VM and easeir GUI options in passing devices.First we need to make sure bios settings are correct adn taht IOMMU is enabled.in unraid clcic the pc square and open sytem inforamtionwe need to know if your HAve iommu enabled first and for most. Iommu is the heart of passing pcie hardware like a Gcard into a VM.and ultimatle we will need a xml file of the VM to show and make edits. to run this on unraid. THer are other tempaltes onthe forum as well.see also:https://www.youtube.com/watch?v=WF6Psns9Zt0
April 8Apr 8 Author Hi,Ill get that information but I have been adjusting settings and I can get the VM to boot into the install and go through the process but I cant get any of my drives to show up as an option to install the Windows onto.I want to use the entire (or remaining entire) m.2 for the Windows install like I had it when it was being used as the Gaming PC only. I have seperate SSD's running fine in an array for my storage of actual files.I guess I can try to include screenshots of what options I chose while creating the VM if that would help?Regards
April 8Apr 8 Author Drives that I have are:Samsung 970 Pro 250 GB (Formerly Windows 11 Pro OS in the same machine without Unraid; want it to run in a VM within Unraid)Samsung 970 Pro 2TB (Formerly Windows 11 Pro Games/Storage Folder) - still formatted in NTFS not used/passedthrough until Windows 11 VM gets completed.My Storage Drives - (3) Samsung 870 Evo (1 TB) for a total capacity of (2 Tb)SSD drives work fine in the array for storage. VM boots fine but neither m.2 gets detected in Windows VM so essentially it shows I have no where to install the Windows 11 Pro VM.Whew; Thanks
April 8Apr 8 Author [4:0:0:0] disk ATA Samsung SSD 870 2B6Q /dev/sdb 1.00TB[7:0:0:0] disk ATA Samsung SSD 870 2B6Q /dev/sdc 1.00TB[8:0:0:0] disk ATA Samsung SSD 870 2B6Q /dev/sdd 1.00TB[9:0:0:0] disk SanDisk Cruzer 1.20 /dev/sda 16.0GB[N:0:4:1] disk Samsung SSD 970 EVO Plus 250GB__1 /dev/nvme0n1 250GB[N:1:4:1] disk Samsung SSD 970 EVO Plus 2TB__1 /dev/nvme1n1 2.00TB
April 8Apr 8 Author <?xml version="1.0" standalone="yes" ?> <!-- generated by lshw-B.02.20 --> <!-- GCC 15.2.0 --> <!-- Linux 6.12.54-Unraid #1 SMP PREEMPT_DYNAMIC Tue Oct 21 15:58:46 PDT 2025 x86_64 --> <!-- GNU libc 2 (glibc 2.42) --> <node id="computer" claimed="true" class="system" handle="DMI:0001"> <description>Desktop Computer</description> <product>MS-7C37 (To be filled by O.E.M.)</product> <vendor>Micro-Star International Co., Ltd.</vendor> <version>2.0</version> <serial>[REMOVED]</serial> <width units="bits">64</width> <configuration> <setting id="boot" value="normal" /> <setting id="chassis" value="desktop" /> <setting id="family" value="To be filled by O.E.M." /> <setting id="sku" value="To be filled by O.E.M." /> <setting id="uuid" value="[REMOVED]" /> </configuration> <capabilities> <capability id="smbios-2.8" >SMBIOS version 2.8</capability> <capability id="dmi-2.8" >DMI version 2.8</capability> <capability id="smp" >Symmetric Multi-Processing</capability> <capability id="vsyscall32" >32-bit processes</capability> </capabilities> <hints> <hint name="icon" value="desktopcomputer" /> </hints> <node id="core" claimed="true" class="bus" handle="DMI:0002"> <description>Motherboard</description> <product>MPG X570 GAMING PLUS (MS-7C37)</product> <vendor>Micro-Star International Co., Ltd.</vendor> <physid>0</physid> <version>2.0</version> <serial>[REMOVED]</serial> <slot>To be filled by O.E.M.</slot> <hints> <hint name="icon" value="motherboard" /> </hints> <node id="firmware" claimed="true" class="memory"> <description>BIOS</description> <vendor>American Megatrends International, LLC.</vendor> <physid>0</physid> <version>A.Q0</version> <date>09/03/2025</date> <size units="bytes">65536</size> <capacity units="bytes">33554432</capacity> <capabilities> <capability id="pci" >PCI bus</capability> <capability id="upgrade" >BIOS EEPROM can be upgraded</capability> <capability id="shadowing" >BIOS shadowing</capability> <capability id="cdboot" >Booting from CD-ROM/DVD</capability> <capability id="bootselect" >Selectable boot path</capability> <capability id="socketedrom" >BIOS ROM is socketed</capability> <capability id="edd" >Enhanced Disk Drive extensions</capability> <capability id="int13floppynec" >NEC 9800 floppy</capability> <capability id="int13floppytoshiba" >Toshiba floppy</capability> <capability id="int13floppy360" >5.25" 360KB floppy</capability> <capability id="int13floppy1200" >5.25" 1.2MB floppy</capability> <capability id="int13floppy720" >3.5" 720KB floppy</capability> <capability id="int13floppy2880" >3.5" 2.88MB floppy</capability> <capability id="int5printscreen" >Print Screen key</capability> <capability id="int9keyboard" >i8042 keyboard controller</capability> <capability id="int14serial" >INT14 serial line control</capability> <capability id="int17printer" >INT17 printer control</capability> <capability id="int10video" >INT10 CGA/Mono video</capability> <capability id="usb" >USB legacy emulation</capability> <capability id="biosbootspecification" >BIOS boot specification</capability> <capability id="uefi" >UEFI specification is supported</capability> </capabilities> <hints> <hint name="icon" value="chip" /> </hints> </node> <node id="memory" claimed="true" class="memory" handle="DMI:0011"> <description>System Memory</description> <physid>11</physid> <slot>System board or motherboard</slot> <size units="bytes">68719476736</size> <hints> <hint name="icon" value="memory" /> </hints> <node id="bank:0" claimed="true" class="memory" handle="DMI:0019"> <description>2667 MHz (0.4 ns) [empty]</description> <product>Unknown</product> <vendor>Unknown</vendor> <physid>0</physid> <serial>[REMOVED]</serial> <slot>DIMM 0</slot> <clock units="Hz">2667000000</clock> <hints> <hint name="icon" value="memory" /> </hints> </node> <node id="bank:1" claimed="true" class="memory" handle="DMI:001B"> <description>DIMM DDR4 Synchronous Unbuffered (Unregistered) 2667 MHz (0.4 ns)</description> <product>3600 C20 Series</product> <vendor>Unknown</vendor> <physid>1</physid> <serial>[REMOVED]</serial> <slot>DIMM 1</slot> <size units="bytes">34359738368</size> <width units="bits">64</width> <clock units="Hz">2667000000</clock> <hints> <hint name="icon" value="memory" /> </hints> </node> <node id="bank:2" claimed="true" class="memory" handle="DMI:001E"> <description>2667 MHz (0.4 ns) [empty]</description> <product>Unknown</product> <vendor>Unknown</vendor> <physid>2</physid> <serial>[REMOVED]</serial> <slot>DIMM 0</slot> <clock units="Hz">2667000000</clock> <hints> <hint name="icon" value="memory" /> </hints> </node> <node id="bank:3" claimed="true" class="memory" handle="DMI:0020"> <description>DIMM DDR4 Synchronous Unbuffered (Unregistered) 2667 MHz (0.4 ns)</description> <product>3600 Series</product> <vendor>Unknown</vendor> <physid>3</physid> <serial>[REMOVED]</serial> <slot>DIMM 1</slot> <size units="bytes">34359738368</size> <width units="bits">64</width> <clock units="Hz">2667000000</clock> <hints> <hint name="icon" value="memory" /> </hints> </node> </node> <node id="cache:0" claimed="true" class="memory" handle="DMI:0014"> <description>L1 cache</description> <physid>14</physid> <slot>L1 - Cache</slot> <size units="bytes">393216</size> <capacity units="bytes">393216</capacity> <clock units="Hz">1000000000</clock> <configuration> <setting id="level" value="1" /> </configuration> <capabilities> <capability id="pipeline-burst" >Pipeline burst</capability> <capability id="internal" >Internal</capability> <capability id="write-back" >Write-back</capability> <capability id="unified" >Unified cache</capability> </capabilities> </node> <node id="cache:1" claimed="true" class="memory" handle="DMI:0015"> <description>L2 cache</description> <physid>15</physid> <slot>L2 - Cache</slot> <size units="bytes">3145728</size> <capacity units="bytes">3145728</capacity> <clock units="Hz">1000000000</clock> <configuration> <setting id="level" value="2" /> </configuration> <capabilities> <capability id="pipeline-burst" >Pipeline burst</capability> <capability id="internal" >Internal</capability> <capability id="write-back" >Write-back</capability> <capability id="unified" >Unified cache</capability> </capabilities> </node> <node id="cache:2" claimed="true" class="memory" handle="DMI:0016"> <description>L3 cache</description> <physid>16</physid> <slot>L3 - Cache</slot> <size units="bytes">33554432</size> <capacity units="bytes">33554432</capacity> <clock units="Hz">1000000000</clock> <configuration> <setting id="level" value="3" /> </configuration> <capabilities> <capability id="pipeline-burst" >Pipeline burst</capability> <capability id="internal" >Internal</capability> <capability id="write-back" >Write-back</capability> <capability id="unified" >Unified cache</capability> </capabilities> </node> <node id="cpu" claimed="true" class="processor" handle="DMI:0017"> <description>CPU</description> <product>AMD Ryzen 5 3600 6-Core Processor</product> <vendor>Advanced Micro Devices [AMD]</vendor> <physid>17</physid> <businfo>cpu@0</businfo> <version>23.113.0</version> <serial>[REMOVED]</serial> <slot>AM4</slot> <size units="Hz">4196182000</size> <capacity units="Hz">4208000000</capacity> <width units="bits">64</width> <clock units="Hz">100000000</clock> <configuration> <setting id="cores" value="6" /> <setting id="enabledcores" value="6" /> <setting id="microcode" value="141561909" /> <setting id="threads" value="12" /> </configuration> <capabilities> <capability id="lm" >64bits extensions (x86-64)</capability> <capability id="fpu" >mathematical co-processor</capability> <capability id="fpu_exception" >FPU exceptions reporting</capability> <capability id="wp" /> <capability id="vme" >virtual mode extensions</capability> <capability id="de" >debugging extensions</capability> <capability id="pse" >page size extensions</capability> <capability id="tsc" >time stamp counter</capability> <capability id="msr" >model-specific registers</capability> <capability id="pae" >4GB+ memory addressing (Physical Address Extension)</capability> <capability id="mce" >machine check exceptions</capability> <capability id="cx8" >compare and exchange 8-byte</capability> <capability id="apic" >on-chip advanced programmable interrupt controller (APIC)</capability> <capability id="sep" >fast system calls</capability> <capability id="mtrr" >memory type range registers</capability> <capability id="pge" >page global enable</capability> <capability id="mca" >machine check architecture</capability> <capability id="cmov" >conditional move instruction</capability> <capability id="pat" >page attribute table</capability> <capability id="pse36" >36-bit page size extensions</capability> <capability id="clflush" /> <capability id="mmx" >multimedia extensions (MMX)</capability> <capability id="fxsr" >fast floating point save/restore</capability> <capability id="sse" >streaming SIMD extensions (SSE)</capability> <capability id="sse2" >streaming SIMD extensions (SSE2)</capability> <capability id="ht" >HyperThreading</capability> <capability id="syscall" >fast system calls</capability> <capability id="nx" >no-execute bit (NX)</capability> <capability id="mmxext" >multimedia extensions (MMXExt)</capability> <capability id="fxsr_opt" /> <capability id="pdpe1gb" /> <capability id="rdtscp" /> <capability id="x86-64" >64bits extensions (x86-64)</capability> <capability id="constant_tsc" /> <capability id="rep_good" /> <capability id="nopl" /> <capability id="xtopology" /> <capability id="nonstop_tsc" /> <capability id="cpuid" /> <capability id="extd_apicid" /> <capability id="aperfmperf" /> <capability id="rapl" /> <capability id="pni" /> <capability id="pclmulqdq" /> <capability id="monitor" /> <capability id="ssse3" /> <capability id="fma" /> <capability id="cx16" /> <capability id="sse4_1" /> <capability id="sse4_2" /> <capability id="x2apic" /> <capability id="movbe" /> <capability id="popcnt" /> <capability id="aes" /> <capability id="xsave" /> <capability id="avx" /> <capability id="f16c" /> <capability id="rdrand" /> <capability id="lahf_lm" /> <capability id="cmp_legacy" /> <capability id="svm" /> <capability id="extapic" /> <capability id="cr8_legacy" /> <capability id="abm" /> <capability id="sse4a" /> <capability id="misalignsse" /> <capability id="3dnowprefetch" /> <capability id="osvw" /> <capability id="ibs" /> <capability id="skinit" /> <capability id="wdt" /> <capability id="tce" /> <capability id="topoext" /> <capability id="perfctr_core" /> <capability id="perfctr_nb" /> <capability id="bpext" /> <capability id="perfctr_llc" /> <capability id="mwaitx" /> <capability id="cpb" /> <capability id="cat_l3" /> <capability id="cdp_l3" /> <capability id="hw_pstate" /> <capability id="ssbd" /> <capability id="mba" /> <capability id="ibpb" /> <capability id="stibp" /> <capability id="vmmcall" /> <capability id="fsgsbase" /> <capability id="bmi1" /> <capability id="avx2" /> <capability id="smep" /> <capability id="bmi2" /> <capability id="cqm" /> <capability id="rdt_a" /> <capability id="rdseed" /> <capability id="adx" /> <capability id="smap" /> <capability id="clflushopt" /> <capability id="clwb" /> <capability id="sha_ni" /> <capability id="xsaveopt" /> <capability id="xsavec" /> <capability id="xgetbv1" /> <capability id="cqm_llc" /> <capability id="cqm_occup_llc" /> <capability id="cqm_mbm_total" /> <capability id="cqm_mbm_local" /> <capability id="clzero" /> <capability id="irperf" /> <capability id="xsaveerptr" /> <capability id="rdpru" /> <capability id="wbnoinvd" /> <capability id="arat" /> <capability id="npt" /> <capability id="lbrv" /> <capability id="svm_lock" /> <capability id="nrip_save" /> <capability id="tsc_scale" /> <capability id="vmcb_clean" /> <capability id="flushbyasid" /> <capability id="decodeassists" /> <capability id="pausefilter" /> <capability id="pfthreshold" /> <capability id="avic" /> <capability id="v_vmsave_vmload" /> <capability id="vgif" /> <capability id="v_spec_ctrl" /> <capability id="umip" /> <capability id="rdpid" /> <capability id="overflow_recov" /> <capability id="succor" /> <capability id="smca" /> <capability id="sev" /> <capability id="sev_es" /> <capability id="cpufreq" >CPU Frequency scaling</capability> </capabilities> <hints> <hint name="cpu family" value="0x17" /> <hint name="icon" value="cpu" /> <hint name="model" value="0x71" /> <hint name="stepping" value="0x0" /> </hints> </node> <node id="pci:0" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001480sv00001462sd00007C37bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse Root Complex</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>100</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:00:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1480" /> <hint name="pci.subdevice" value="0x7C37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="generic" class="generic" handle="PCI:0000:00:00.2" modalias="pci:v00001022d00001481sv00001022sd00001481bc08sc06i00"> <description>IOMMU</description> <product>Starship/Matisse IOMMU</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0.2</physid> <subproduct>Starship/Matisse IOMMU</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:00:00.2</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <hints> <hint name="pci.class" value="0x806" /> <hint name="pci.device" value="0x1481" /> <hint name="pci.subdevice" value="0x1481" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:0" claimed="true" class="bridge" handle="PCIBUS:0000:01" modalias="pci:v00001022d00001483sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Starship/Matisse GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>1.1</physid> <businfo>pci@0000:00:01.1</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="27" /> <resource type="memory" value="fcb00000-fcbfffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x1483" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="nvme" claimed="true" class="storage" handle="PCI:0000:01:00.0"> <description>NVMe device</description> <product>Samsung SSD 970 EVO Plus 250GB</product> <vendor>Samsung Electronics Co Ltd</vendor> <physid>0</physid> <subproduct>S4LN058A01[SSUBX] AHCI SSD Controller (Apple slot)</subproduct> <subvendor>Samsung Electronics Co Ltd</subvendor> <businfo>pci@0000:01:00.0</businfo> <logicalname>/dev/nvme0</logicalname> <version>2B2QEXM7</version> <serial>[REMOVED]</serial> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="nvme" /> <setting id="latency" value="0" /> <setting id="nqn" value="nqn.2014.08.org.nvmexpress:144d144dS59BNMFNA01542T Samsung SSD 970 EVO Plus 250GB" /> <setting id="state" value="live" /> </configuration> <capabilities> <capability id="nvme" /> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msix" >MSI-X</capability> <capability id="nvm_express" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="41" /> <resource type="memory" value="fcb00000-fcb03fff" /> </resources> <hints> <hint name="icon" value="disc" /> <hint name="pci.class" value="0x108" /> <hint name="pci.device" value="0xA808" /> <hint name="pci.subdevice" value="0xA801" /> <hint name="pci.subvendor" value="0x144D" /> <hint name="pci.vendor" value="0x144D" /> </hints> <node id="namespace:0" claimed="true" class="disk"> <description>NVMe disk</description> <physid>0</physid> <logicalname>hwmon0</logicalname> </node> <node id="namespace:1" claimed="true" class="disk"> <description>NVMe disk</description> <physid>2</physid> <logicalname>/dev/ng0n1</logicalname> <hints> <hint name="icon" value="disc" /> </hints> </node> <node id="namespace:2" claimed="true" class="disk"> <description>NVMe disk</description> <physid>1</physid> <businfo>nvme@0:1</businfo> <logicalname>/dev/nvme0n1</logicalname> <size units="bytes">250059350016</size> <configuration> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> <setting id="signature" value="0f6083d9" /> <setting id="wwid" value="eui.0025385a01ae9059" /> </configuration> <capabilities> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:dos" >MS-DOS partition table</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> <node id="volume" claimed="true" class="volume"> <description>EXT4 volume</description> <vendor>Linux</vendor> <physid>1</physid> <businfo>nvme@0:1,1</businfo> <logicalname>/dev/nvme0n1p1</logicalname> <dev>259:2</dev> <version>1.0</version> <serial>[REMOVED]</serial> <size units="bytes">250058301440</size> <capacity>250058301440</capacity> <configuration> <setting id="created" value="2026-03-27 22:18:09" /> <setting id="filesystem" value="ext4" /> <setting id="modified" value="2026-04-06 20:58:53" /> <setting id="mounted" value="2026-04-06 20:56:29" /> <setting id="state" value="clean" /> </configuration> <capabilities> <capability id="primary" >Primary partition</capability> <capability id="journaled" /> <capability id="extended_attributes" >Extended Attributes</capability> <capability id="large_files" >4GB+ files</capability> <capability id="huge_files" >16TB+ files</capability> <capability id="dir_nlink" >directories with 65000+ subdirs</capability> <capability id="64bit" >64bit filesystem</capability> <capability id="extents" >extent-based allocation</capability> <capability id="ext4" /> <capability id="ext2" >EXT2/EXT3 volume</capability> <capability id="initialized" >initialized volume</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> </node> </node> </node> </node> <node id="pci:1" claimed="true" class="bridge" handle="PCIBUS:0000:20" modalias="pci:v00001022d00001483sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Starship/Matisse GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>1.2</physid> <businfo>pci@0000:00:01.2</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="28" /> <resource type="ioport" value="d000(size=8192)" /> <resource type="memory" value="fc200000-fc8fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x1483" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="pci" claimed="true" class="bridge" handle="PCIBUS:0000:21" modalias="pci:v00001022d000057ADsv00000000sd00000000bc06sc04i00"> <description>PCI bridge</description> <product>Matisse Switch Upstream</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <businfo>pci@0000:20:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="24" /> <resource type="ioport" value="d000(size=8192)" /> <resource type="memory" value="fc200000-fc8fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57AD" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="pci:0" claimed="true" class="bridge" handle="PCIBUS:0000:22" modalias="pci:v00001022d000057A3sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <businfo>pci@0000:21:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="33" /> <resource type="memory" value="fc800000-fc8fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A3" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="nvme" claimed="true" class="storage" handle="PCI:0000:22:00.0"> <description>NVMe device</description> <product>Samsung SSD 970 EVO Plus 2TB</product> <vendor>Samsung Electronics Co Ltd</vendor> <physid>0</physid> <subproduct>S4LN058A01[SSUBX] AHCI SSD Controller (Apple slot)</subproduct> <subvendor>Samsung Electronics Co Ltd</subvendor> <businfo>pci@0000:22:00.0</businfo> <logicalname>/dev/nvme1</logicalname> <version>2B2QEXM7</version> <serial>[REMOVED]</serial> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="nvme" /> <setting id="latency" value="0" /> <setting id="nqn" value="nqn.2014.08.org.nvmexpress:144d144dS59CNZFNA29436K Samsung SSD 970 EVO Plus 2TB" /> <setting id="state" value="live" /> </configuration> <capabilities> <capability id="nvme" /> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msix" >MSI-X</capability> <capability id="nvm_express" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="24" /> <resource type="memory" value="fc800000-fc803fff" /> </resources> <hints> <hint name="icon" value="disc" /> <hint name="pci.class" value="0x108" /> <hint name="pci.device" value="0xA808" /> <hint name="pci.subdevice" value="0xA801" /> <hint name="pci.subvendor" value="0x144D" /> <hint name="pci.vendor" value="0x144D" /> </hints> <node id="namespace:0" claimed="true" class="disk"> <description>NVMe disk</description> <physid>0</physid> <logicalname>hwmon1</logicalname> </node> <node id="namespace:1" claimed="true" class="disk"> <description>NVMe disk</description> <physid>2</physid> <logicalname>/dev/ng1n1</logicalname> <hints> <hint name="icon" value="disc" /> </hints> </node> <node id="namespace:2" claimed="true" class="disk" handle="GUID:5a130efb-9754-4e45-a45f-6719481d4f01"> <description>NVMe disk</description> <physid>1</physid> <businfo>nvme@1:1</businfo> <logicalname>/dev/nvme1n1</logicalname> <size units="bytes">2000398934016</size> <configuration> <setting id="guid" value="5a130efb-9754-4e45-a45f-6719481d4f01" /> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> <setting id="wwid" value="eui.0025385a01ad05d7" /> </configuration> <capabilities> <capability id="gpt-1.00" >GUID Partition Table version 1.00</capability> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:gpt" >GUID partition table</capability> </capabilities> <hints> <hint name="guid" value="5a130efb-9754-4e45-a45f-6719481d4f01" /> <hint name="icon" value="disc" /> <hint name="partitions" value="0x80" /> </hints> <node id="volume:0" claimed="true" class="volume" handle="GUID:11551e06-1489-4d58-a46f-824023641d79"> <description>reserved partition</description> <vendor>Windows</vendor> <physid>1</physid> <businfo>nvme@1:1,1</businfo> <logicalname>/dev/nvme1n1p1</logicalname> <dev>259:3</dev> <serial>[REMOVED]</serial> <capacity>16759296</capacity> <configuration> <setting id="name" value="Microsoft reserved partition" /> </configuration> <capabilities> <capability id="nofs" >No filesystem</capability> </capabilities> <hints> <hint name="guid" value="11551e06-1489-4d58-a46f-824023641d79" /> <hint name="type" value="e3c9e316-0b5c-4db8-817d-f92df00215ae" /> </hints> </node> <node id="volume:1" claimed="true" class="volume" handle="GUID:66f2ee4c-0175-420e-a745-7faf7c7e37fc"> <description>Windows NTFS volume</description> <vendor>Windows</vendor> <physid>2</physid> <businfo>nvme@1:1,2</businfo> <logicalname>/dev/nvme1n1p2</logicalname> <dev>259:4</dev> <version>3.1</version> <serial>[REMOVED]</serial> <size units="bytes">2000364240384</size> <capacity>2000381017600</capacity> <configuration> <setting id="clustersize" value="4096" /> <setting id="created" value="2023-02-20 03:31:27" /> <setting id="filesystem" value="ntfs" /> <setting id="label" value="GAMES" /> <setting id="name" value="Basic data partition" /> <setting id="state" value="clean" /> </configuration> <capabilities> <capability id="ntfs" >Windows NTFS volume</capability> <capability id="initialized" >initialized volume</capability> </capabilities> <hints> <hint name="guid" value="66f2ee4c-0175-420e-a745-7faf7c7e37fc" /> <hint name="type" value="ebd0a0a2-b9e5-4433-87c0-68b6b72699c7" /> </hints> </node> </node> </node> </node> <node id="pci:1" claimed="true" class="bridge" handle="PCIBUS:0000:26" modalias="pci:v00001022d000057A3sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>4</physid> <businfo>pci@0000:21:04.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="34" /> <resource type="ioport" value="e000(size=4096)" /> <resource type="memory" value="fc700000-fc7fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A3" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="sata" claimed="true" class="storage" handle="PCI:0000:26:00.0" modalias="pci:v00001B21d00000612sv00001B21sd00001060bc01sc06i01"> <description>SATA controller</description> <product>ASM1061/ASM1062 Serial ATA Controller</product> <vendor>ASMedia Technology Inc.</vendor> <physid>0</physid> <subproduct>ASMedia Technology Inc.</subproduct> <subvendor>ASMedia Technology Inc.</subvendor> <businfo>pci@0000:26:00.0</businfo> <version>02</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="ahci" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="sata" /> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="ahci_1.0" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="44" /> <resource type="ioport" value="e050(size=8)" /> <resource type="ioport" value="e040(size=4)" /> <resource type="ioport" value="e030(size=8)" /> <resource type="ioport" value="e020(size=4)" /> <resource type="ioport" value="e000(size=32)" /> <resource type="memory" value="fc700000-fc7001ff" /> </resources> <hints> <hint name="icon" value="disc" /> <hint name="pci.class" value="0x106" /> <hint name="pci.device" value="0x612" /> <hint name="pci.subdevice" value="0x1060" /> <hint name="pci.subvendor" value="0x1B21" /> <hint name="pci.vendor" value="0x1B21" /> </hints> </node> </node> <node id="pci:2" claimed="true" class="bridge" handle="PCIBUS:0000:27" modalias="pci:v00001022d000057A3sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>5</physid> <businfo>pci@0000:21:05.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="35" /> <resource type="ioport" value="d000(size=4096)" /> <resource type="memory" value="fc600000-fc6fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A3" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="network" claimed="true" class="network" handle="PCI:0000:27:00.0" modalias="pci:v000010ECd00008168sv00001462sd00007C37bc02sc00i00"> <description>Ethernet interface</description> <product>RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller</product> <vendor>Realtek Semiconductor Co., Ltd.</vendor> <physid>0</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:27:00.0</businfo> <logicalname>eth0</logicalname> <version>15</version> <serial>[REMOVED]</serial> <size units="bit/s">1000000000</size> <capacity>1000000000</capacity> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="autonegotiation" value="on" /> <setting id="broadcast" value="yes" /> <setting id="driver" value="r8169" /> <setting id="driverversion" value="6.12.54-Unraid" /> <setting id="duplex" value="full" /> <setting id="firmware" value="rtl8168h-2_0.0.2 02/26/15" /> <setting id="latency" value="0" /> <setting id="link" value="yes" /> <setting id="multicast" value="yes" /> <setting id="port" value="twisted pair" /> <setting id="slave" value="yes" /> <setting id="speed" value="1Gbit/s" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msix" >MSI-X</capability> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> <capability id="ethernet" /> <capability id="physical" >Physical interface</capability> <capability id="tp" >twisted pair</capability> <capability id="mii" >Media Independent Interface</capability> <capability id="10bt" >10Mbit/s</capability> <capability id="10bt-fd" >10Mbit/s (full duplex)</capability> <capability id="100bt" >100Mbit/s</capability> <capability id="100bt-fd" >100Mbit/s (full duplex)</capability> <capability id="1000bt-fd" >1Gbit/s (full duplex)</capability> <capability id="autonegotiation" >Auto-negotiation</capability> </capabilities> <resources> <resource type="irq" value="37" /> <resource type="ioport" value="d000(size=256)" /> <resource type="memory" value="fc604000-fc604fff" /> <resource type="memory" value="fc600000-fc603fff" /> </resources> <hints> <hint name="icon" value="network" /> <hint name="pci.class" value="0x200" /> <hint name="pci.device" value="0x8168" /> <hint name="pci.subdevice" value="0x7C37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x10EC" /> </hints> </node> </node> <node id="pci:3" claimed="true" class="bridge" handle="PCIBUS:0000:2a" modalias="pci:v00001022d000057A4sv00001022sd00001484bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>8</physid> <businfo>pci@0000:21:08.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="36" /> <resource type="memory" value="fc200000-fc3fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A4" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="generic" class="generic" handle="PCI:0000:2a:00.0" modalias="pci:v00001022d00001485sv00001022sd00001485bc13sc00i00"> <description>Non-Essential Instrumentation</description> <product>Starship/Matisse Reserved SPP</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <subproduct>Starship/Matisse Reserved SPP</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2a:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <hints> <hint name="pci.class" value="0x1300" /> <hint name="pci.device" value="0x1485" /> <hint name="pci.subdevice" value="0x1485" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="usb:0" claimed="true" class="bus" handle="PCI:0000:2a:00.1" modalias="pci:v00001022d0000149Csv00001022sd00001486bc0Csc03i30"> <description>USB controller</description> <product>Matisse USB 3.0 Host Controller</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0.1</physid> <subproduct>Starship/Matisse Cryptographic Coprocessor PSPCPP</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2a:00.1</businfo> <version>00</version> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="xhci_hcd" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="xhci" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="62" /> <resource type="memory" value="fc300000-fc3fffff" /> </resources> <hints> <hint name="icon" value="usb" /> <hint name="pci.class" value="0xC03" /> <hint name="pci.device" value="0x149C" /> <hint name="pci.subdevice" value="0x1486" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="usbhost:0" claimed="true" class="bus" handle="USB:1:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>0</physid> <businfo>usb@1</businfo> <logicalname>usb1</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="6" /> <setting id="speed" value="480Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x1" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x2" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> <node id="usb:0" claimed="true" class="multimedia" handle="USB:1:2" modalias="input:b0003v046Dp0A1Fe0101-e0,1,4,k72,73,A3,A4,A5,100,ram4,lsfw"> <description>Audio device</description> <product>Logitech Logitech G930 Headset Consumer Control</product> <vendor>Logitech</vendor> <physid>2</physid> <businfo>usb@1:2</businfo> <logicalname>input25</logicalname> <logicalname>/dev/input/event8</logicalname> <version>1.00</version> <configuration> <setting id="driver" value="usbhid" /> <setting id="maxpower" value="100mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-1.10" >USB 1.1</capability> <capability id="audio-control" >Control device</capability> <capability id="usb" >USB</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0xA1F" /> <hint name="usb.idVendor" value="0x46D" /> </hints> </node> <node id="usb:1" claimed="true" class="storage" handle="USB:1:3"> <description>Mass storage device</description> <product>Cruzer</product> <vendor>SanDisk</vendor> <physid>5</physid> <businfo>usb@1:5</businfo> <logicalname>scsi9</logicalname> <version>1.03</version> <serial>[REMOVED]</serial> <configuration> <setting id="driver" value="usb-storage" /> <setting id="maxpower" value="200mA" /> <setting id="speed" value="480Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> <capability id="scsi" >SCSI</capability> <capability id="emulated" >Emulated device</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x5530" /> <hint name="usb.idVendor" value="0x781" /> </hints> <node id="disk" claimed="true" class="disk" handle="SCSI:09:00:00:00"> <description>SCSI Disk</description> <product>Cruzer</product> <vendor>SanDisk</vendor> <physid>0.0.0</physid> <businfo>scsi@9:0.0.0</businfo> <logicalname>/dev/sda</logicalname> <dev>8:0</dev> <version>1.20</version> <serial>[REMOVED]</serial> <size units="bytes">16008609792</size> <configuration> <setting id="ansiversion" value="5" /> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> </configuration> <capabilities> <capability id="removable" >support is removable</capability> </capabilities> <hints> <hint name="bus.icon" value="scsi" /> <hint name="icon" value="disc" /> </hints> <node id="medium" claimed="true" class="disk"> <physid>0</physid> <logicalname>/dev/sda</logicalname> <dev>8:0</dev> <size units="bytes">16008609792</size> <configuration> <setting id="signature" value="ea1401e7" /> </configuration> <capabilities> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:dos" >MS-DOS partition table</capability> </capabilities> <node id="volume" claimed="true" class="volume"> <description>Windows FAT volume</description> <vendor>SYSLINUX</vendor> <physid>1</physid> <logicalname>/dev/sda1</logicalname> <logicalname>/boot</logicalname> <dev>8:1</dev> <version>FAT32</version> <serial>[REMOVED]</serial> <size units="bytes">16006496256</size> <capacity>16007561216</capacity> <configuration> <setting id="FATs" value="2" /> <setting id="filesystem" value="fat" /> <setting id="label" value="UNRAID" /> <setting id="mount.fstype" value="vfat" /> <setting id="mount.options" value="rw,noatime,nodiratime,fmask=0177,dmask=0077,codepage=437,iocharset=iso8859-1,shortname=mixed,flush,errors=remount-ro" /> <setting id="state" value="mounted" /> </configuration> <capabilities> <capability id="primary" >Primary partition</capability> <capability id="bootable" >Bootable partition (active)</capability> <capability id="fat" >Windows FAT volume</capability> <capability id="initialized" >initialized volume</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> </node> </node> </node> </node> </node> <node id="usbhost:1" claimed="true" class="bus" handle="USB:2:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>1</physid> <businfo>usb@2</businfo> <logicalname>usb2</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="4" /> <setting id="speed" value="10000Mbit/s" /> </configuration> <capabilities> <capability id="usb-3.10" /> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x3" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x3" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> </node> </node> <node id="usb:1" claimed="true" class="bus" handle="PCI:0000:2a:00.3" modalias="pci:v00001022d0000149Csv00001022sd0000148Cbc0Csc03i30"> <description>USB controller</description> <product>Matisse USB 3.0 Host Controller</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0.3</physid> <subproduct>Starship USB 3.0 Host Controller</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2a:00.3</businfo> <version>00</version> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="xhci_hcd" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="msix" >MSI-X</capability> <capability id="xhci" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="39" /> <resource type="memory" value="fc200000-fc2fffff" /> </resources> <hints> <hint name="icon" value="usb" /> <hint name="pci.class" value="0xC03" /> <hint name="pci.device" value="0x149C" /> <hint name="pci.subdevice" value="0x148C" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="usbhost:0" claimed="true" class="bus" handle="USB:3:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>0</physid> <businfo>usb@3</businfo> <logicalname>usb3</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="6" /> <setting id="speed" value="480Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x1" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x2" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> <node id="usb:0" claimed="true" class="bus" handle="USB:3:2"> <description>USB hub</description> <product>BCM2046B1</product> <vendor>Broadcom</vendor> <physid>1</physid> <businfo>usb@3:1</businfo> <version>1.00</version> <configuration> <setting id="driver" value="hub" /> <setting id="maxpower" value="94mA" /> <setting id="slots" value="3" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x4500" /> <hint name="usb.idVendor" value="0xA5C" /> </hints> <node id="usb:0" claimed="true" class="input" handle="USB:3:4" modalias="input:b0003v0A5Cp4502e0111-e0,1,4,11,14,k71,72,73,74,75,77,79,7A,7B,7C,7D,7E,7F,80,81,82,83,84,85,86,87,88,89,8A,B7,B8,B9,BA,BB,BC,BD,BE,BF,C0,C1,C2,F0,ram4,l0,1,2,sfw"> <description>Keyboard</description> <product>HID 0a5c:4502</product> <vendor>Broadcom Corp.</vendor> <physid>1</physid> <businfo>usb@3:1.1</businfo> <logicalname>input18</logicalname> <logicalname>/dev/input/event3</logicalname> <logicalname>input18::capslock</logicalname> <logicalname>input18::numlock</logicalname> <logicalname>input18::scrolllock</logicalname> <version>1.00</version> <configuration> <setting id="driver" value="usbhid" /> <setting id="maxpower" value="2mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> <capability id="usb" >USB</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x4502" /> <hint name="usb.idVendor" value="0xA5C" /> </hints> </node> <node id="usb:1" claimed="true" class="input" handle="USB:3:5" modalias="input:b0003v0A5Cp4503e0111-e0,1,2,4,k110,111,112,r0,1,am4,lsfw"> <description>Mouse</description> <product>HID 0a5c:4503 Mouse</product> <vendor>Broadcom Corp.</vendor> <physid>2</physid> <businfo>usb@3:1.2</businfo> <logicalname>input16</logicalname> <logicalname>/dev/input/event2</logicalname> <logicalname>/dev/input/mouse0</logicalname> <version>1.00</version> <configuration> <setting id="driver" value="usbhid" /> <setting id="maxpower" value="2mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> <capability id="usb" >USB</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x4503" /> <hint name="usb.idVendor" value="0xA5C" /> </hints> </node> <node id="usb:2" claimed="true" class="communication" handle="USB:3:6"> <description>Bluetooth wireless interface</description> <product>BCM92046DG-CL1ROM</product> <vendor>Broadcom Corp</vendor> <physid>3</physid> <businfo>usb@3:1.3</businfo> <version>8.18</version> <serial>[REMOVED]</serial> <configuration> <setting id="driver" value="btusb" /> <setting id="maxpower" value="2mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="bluetooth" >Bluetooth wireless radio</capability> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="icon" value="bluetooth" /> <hint name="usb.bDeviceClass" value="0xE0" /> <hint name="usb.bDeviceProtocol" value="0x1" /> <hint name="usb.bDeviceSubClass" value="0x1" /> <hint name="usb.idProduct" value="0x2148" /> <hint name="usb.idVendor" value="0xA5C" /> </hints> </node> </node> <node id="usb:1" claimed="true" class="input" handle="USB:3:3" modalias="input:b0003v046DpC534e0111-e0,1,4,k74,8E,8F,ram4,lsfw"> <description>Keyboard</description> <product>Logitech USB Receiver System Control</product> <vendor>Logitech</vendor> <physid>2</physid> <businfo>usb@3:2</businfo> <logicalname>input19</logicalname> <logicalname>/dev/input/event4</logicalname> <logicalname>input19::capslock</logicalname> <logicalname>input19::compose</logicalname> <logicalname>input19::kana</logicalname> <logicalname>input19::numlock</logicalname> <logicalname>input19::scrolllock</logicalname> <logicalname>input20</logicalname> <logicalname>/dev/input/event5</logicalname> <logicalname>/dev/input/mouse1</logicalname> <logicalname>input21</logicalname> <logicalname>/dev/input/event6</logicalname> <logicalname>input22</logicalname> <logicalname>/dev/input/event7</logicalname> <version>51.00</version> <configuration> <setting id="driver" value="usbhid" /> <setting id="maxpower" value="98mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> <capability id="usb" >USB</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0xC534" /> <hint name="usb.idVendor" value="0x46D" /> </hints> </node> <node id="usb:2" claimed="true" class="input" handle="USB:3:11" modalias="input:b0003v1462p7C37e0110-e0,3,kra28,mlsfw"> <description>Human interface device</description> <product>MSI MYSTIC LIGHT</product> <vendor>MSI</vendor> <physid>5</physid> <businfo>usb@3:5</businfo> <logicalname>input15</logicalname> <logicalname>/dev/input/event1</logicalname> <version>0.01</version> <serial>[REMOVED]</serial> <configuration> <setting id="driver" value="usbhid" /> <setting id="maxpower" value="500mA" /> <setting id="speed" value="12Mbit/s" /> </configuration> <capabilities> <capability id="usb-1.10" >USB 1.1</capability> <capability id="usb" >USB</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x0" /> <hint name="usb.bDeviceProtocol" value="0x0" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x7C37" /> <hint name="usb.idVendor" value="0x1462" /> </hints> </node> <node id="usb:3" claimed="true" class="bus" handle="USB:3:12"> <description>USB hub</description> <product>USB2.0 Hub</product> <vendor>Genesys Logic, Inc.</vendor> <physid>6</physid> <businfo>usb@3:6</businfo> <version>60.70</version> <configuration> <setting id="driver" value="hub" /> <setting id="maxpower" value="100mA" /> <setting id="slots" value="4" /> <setting id="speed" value="480Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x1" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x608" /> <hint name="usb.idVendor" value="0x5E3" /> </hints> </node> </node> <node id="usbhost:1" claimed="true" class="bus" handle="USB:4:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>1</physid> <businfo>usb@4</businfo> <logicalname>usb4</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="4" /> <setting id="speed" value="10000Mbit/s" /> </configuration> <capabilities> <capability id="usb-3.10" /> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x3" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x3" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> </node> </node> </node> <node id="pci:4" claimed="true" class="bridge" handle="PCIBUS:0000:2b" modalias="pci:v00001022d000057A4sv00001022sd00001484bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>9</physid> <businfo>pci@0000:21:09.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="38" /> <resource type="memory" value="fc500000-fc5fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A4" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="sata" claimed="true" class="storage" handle="PCI:0000:2b:00.0" modalias="pci:v00001022d00007901sv00001022sd00007901bc01sc06i01"> <description>SATA controller</description> <product>FCH SATA Controller [AHCI mode]</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <subproduct>FCH SATA Controller [AHCI mode]</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2b:00.0</businfo> <version>51</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="ahci" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="sata" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ahci_1.0" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="45" /> <resource type="memory" value="fc500000-fc5007ff" /> </resources> <hints> <hint name="icon" value="disc" /> <hint name="pci.class" value="0x106" /> <hint name="pci.device" value="0x7901" /> <hint name="pci.subdevice" value="0x7901" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> </node> <node id="pci:5" claimed="true" class="bridge" handle="PCIBUS:0000:2c" modalias="pci:v00001022d000057A4sv00001022sd00001484bc06sc04i00"> <description>PCI bridge</description> <product>Matisse PCIe GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>a</physid> <businfo>pci@0000:21:0a.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="40" /> <resource type="memory" value="fc400000-fc4fffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x57A4" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="sata" claimed="true" class="storage" handle="PCI:0000:2c:00.0" modalias="pci:v00001022d00007901sv00001022sd00007901bc01sc06i01"> <description>SATA controller</description> <product>FCH SATA Controller [AHCI mode]</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <subproduct>FCH SATA Controller [AHCI mode]</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2c:00.0</businfo> <logicalname>scsi4</logicalname> <logicalname>scsi7</logicalname> <logicalname>scsi8</logicalname> <version>51</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="ahci" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="sata" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ahci_1.0" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> <capability id="emulated" >Emulated device</capability> </capabilities> <resources> <resource type="irq" value="46" /> <resource type="memory" value="fc400000-fc4007ff" /> </resources> <hints> <hint name="icon" value="disc" /> <hint name="pci.class" value="0x106" /> <hint name="pci.device" value="0x7901" /> <hint name="pci.subdevice" value="0x7901" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="disk:0" claimed="true" class="disk" handle="SCSI:04:00:00:00"> <description>ATA Disk</description> <product>Samsung SSD 870</product> <physid>0</physid> <businfo>scsi@4:0.0.0</businfo> <logicalname>/dev/sdb</logicalname> <dev>8:16</dev> <version>2B6Q</version> <serial>[REMOVED]</serial> <size units="bytes">1000204886016</size> <configuration> <setting id="ansiversion" value="5" /> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> </configuration> <capabilities> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:dos" >MS-DOS partition table</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> <node id="volume" claimed="true" class="volume"> <description>Linux filesystem partition</description> <physid>1</physid> <businfo>scsi@4:0.0.0,1</businfo> <logicalname>/dev/sdb1</logicalname> <dev>8:17</dev> <capacity>1000203837440</capacity> <capabilities> <capability id="primary" >Primary partition</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> </node> </node> <node id="disk:1" claimed="true" class="disk" handle="SCSI:07:00:00:00"> <description>ATA Disk</description> <product>Samsung SSD 870</product> <physid>1</physid> <businfo>scsi@7:0.0.0</businfo> <logicalname>/dev/sdc</logicalname> <dev>8:32</dev> <version>2B6Q</version> <serial>[REMOVED]</serial> <size units="bytes">1000204886016</size> <configuration> <setting id="ansiversion" value="5" /> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> </configuration> <capabilities> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:dos" >MS-DOS partition table</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> <node id="volume" claimed="true" class="volume"> <description>Linux filesystem partition</description> <physid>1</physid> <businfo>scsi@7:0.0.0,1</businfo> <logicalname>/dev/sdc1</logicalname> <dev>8:33</dev> <capacity>1000203837440</capacity> <capabilities> <capability id="primary" >Primary partition</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> </node> </node> <node id="disk:2" claimed="true" class="disk" handle="SCSI:08:00:00:00"> <description>ATA Disk</description> <product>Samsung SSD 870</product> <physid>0.0.0</physid> <businfo>scsi@8:0.0.0</businfo> <logicalname>/dev/sdd</logicalname> <dev>8:48</dev> <version>2B6Q</version> <serial>[REMOVED]</serial> <size units="bytes">1000204886016</size> <configuration> <setting id="ansiversion" value="5" /> <setting id="logicalsectorsize" value="512" /> <setting id="sectorsize" value="512" /> </configuration> <capabilities> <capability id="partitioned" >Partitioned disk</capability> <capability id="partitioned:dos" >MS-DOS partition table</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> <node id="volume" claimed="true" class="volume"> <description>Linux filesystem partition</description> <physid>1</physid> <businfo>scsi@8:0.0.0,1</businfo> <logicalname>/dev/sdd1</logicalname> <dev>8:49</dev> <capacity>1000203837440</capacity> <capabilities> <capability id="primary" >Primary partition</capability> </capabilities> <hints> <hint name="icon" value="disc" /> </hints> </node> </node> </node> </node> </node> </node> <node id="pci:2" claimed="true" class="bridge" handle="PCIBUS:0000:2d" modalias="pci:v00001022d00001483sv00001022sd00001453bc06sc04i00"> <description>PCI bridge</description> <product>Starship/Matisse GPP Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>3.1</physid> <businfo>pci@0000:00:03.1</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="29" /> <resource type="ioport" value="f000(size=4096)" /> <resource type="memory" value="fb000000-fc0fffff" /> <resource type="ioport" value="7fe0000000(size=301989888)" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x1483" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="display" claimed="true" class="display" handle="PCI:0000:2d:00.0" modalias="pci:v000010DEd00001B80sv00001043sd000085AAbc03sc00i00"> <description>VGA compatible controller</description> <product>GP104 [GeForce GTX 1080]</product> <vendor>NVIDIA Corporation</vendor> <physid>0</physid> <subproduct>ASUSTeK Computer Inc.</subproduct> <subvendor>ASUSTeK Computer Inc.</subvendor> <businfo>pci@0000:2d:00.0</businfo> <logicalname>/dev/fb0</logicalname> <version>a1</version> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="depth" value="32" /> <setting id="latency" value="0" /> <setting id="resolution" value="1920,1080" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="vga_controller" /> <capability id="cap_list" >PCI capabilities listing</capability> <capability id="fb" >framebuffer</capability> </capabilities> <resources> <resource type="iomemory" value="7f0-7ef" /> <resource type="iomemory" value="7f0-7ef" /> <resource type="memory" value="fb000000-fbffffff" /> <resource type="memory" value="7fe0000000-7fefffffff" /> <resource type="memory" value="7ff0000000-7ff1ffffff" /> <resource type="ioport" value="f000(size=128)" /> <resource type="memory" value="fc000000-fc07ffff" /> </resources> <hints> <hint name="icon" value="display" /> <hint name="pci.class" value="0x300" /> <hint name="pci.device" value="0x1B80" /> <hint name="pci.subdevice" value="0x85AA" /> <hint name="pci.subvendor" value="0x1043" /> <hint name="pci.vendor" value="0x10DE" /> </hints> </node> <node id="multimedia" class="multimedia" handle="PCI:0000:2d:00.1" modalias="pci:v000010DEd000010F0sv00001043sd000085AAbc04sc03i00"> <description>Audio device</description> <product>GP104 High Definition Audio Controller</product> <vendor>NVIDIA Corporation</vendor> <physid>0.1</physid> <subproduct>ASUSTeK Computer Inc.</subproduct> <subvendor>ASUSTeK Computer Inc.</subvendor> <businfo>pci@0000:2d:00.1</businfo> <version>a1</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="hda_compatible" /> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="memory" value="fc080000-fc083fff" /> </resources> <hints> <hint name="pci.class" value="0x403" /> <hint name="pci.device" value="0x10F0" /> <hint name="pci.subdevice" value="0x85AA" /> <hint name="pci.subvendor" value="0x1043" /> <hint name="pci.vendor" value="0x10DE" /> </hints> </node> </node> <node id="pci:3" claimed="true" class="bridge" handle="PCIBUS:0000:2e" modalias="pci:v00001022d00001484sv00001022sd00001484bc06sc04i00"> <description>PCI bridge</description> <product>Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>7.1</physid> <businfo>pci@0000:00:07.1</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="31" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x1484" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="generic" class="generic" handle="PCI:0000:2e:00.0" modalias="pci:v00001022d0000148Asv00001022sd0000148Abc13sc00i00"> <description>Non-Essential Instrumentation</description> <product>Starship/Matisse PCIe Dummy Function</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <subproduct>Starship/Matisse PCIe Dummy Function</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2e:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <hints> <hint name="pci.class" value="0x1300" /> <hint name="pci.device" value="0x148A" /> <hint name="pci.subdevice" value="0x148A" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> </node> <node id="pci:4" claimed="true" class="bridge" handle="PCIBUS:0000:2f" modalias="pci:v00001022d00001484sv00001022sd00001484bc06sc04i00"> <description>PCI bridge</description> <product>Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B]</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>8.1</physid> <businfo>pci@0000:00:08.1</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="pcieport" /> </configuration> <capabilities> <capability id="pci" /> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="ht" >HyperTransport</capability> <capability id="normal_decode" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="32" /> <resource type="memory" value="fc900000-fcafffff" /> </resources> <hints> <hint name="pci.class" value="0x604" /> <hint name="pci.device" value="0x1484" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="generic" class="generic" handle="PCI:0000:2f:00.0" modalias="pci:v00001022d00001485sv00001022sd00001485bc13sc00i00"> <description>Non-Essential Instrumentation</description> <product>Starship/Matisse Reserved SPP</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0</physid> <subproduct>Starship/Matisse Reserved SPP</subproduct> <subvendor>Advanced Micro Devices, Inc. [AMD]</subvendor> <businfo>pci@0000:2f:00.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <hints> <hint name="pci.class" value="0x1300" /> <hint name="pci.device" value="0x1485" /> <hint name="pci.subdevice" value="0x1485" /> <hint name="pci.subvendor" value="0x1022" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="usb" claimed="true" class="bus" handle="PCI:0000:2f:00.3" modalias="pci:v00001022d0000149Csv00001462sd00007C37bc0Csc03i30"> <description>USB controller</description> <product>Matisse USB 3.0 Host Controller</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0.3</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:2f:00.3</businfo> <version>00</version> <width units="bits">64</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="xhci_hcd" /> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="msix" >MSI-X</capability> <capability id="xhci" /> <capability id="bus_master" >bus mastering</capability> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="irq" value="71" /> <resource type="memory" value="fc900000-fc9fffff" /> </resources> <hints> <hint name="icon" value="usb" /> <hint name="pci.class" value="0xC03" /> <hint name="pci.device" value="0x149C" /> <hint name="pci.subdevice" value="0x7C37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="usbhost:0" claimed="true" class="bus" handle="USB:5:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>0</physid> <businfo>usb@5</businfo> <logicalname>usb5</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="4" /> <setting id="speed" value="480Mbit/s" /> </configuration> <capabilities> <capability id="usb-2.00" >USB 2.0</capability> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x1" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x2" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> </node> <node id="usbhost:1" claimed="true" class="bus" handle="USB:6:1"> <product>xHCI Host Controller</product> <vendor>Linux 6.12.54-Unraid xhci-hcd</vendor> <physid>1</physid> <businfo>usb@6</businfo> <logicalname>usb6</logicalname> <version>6.12</version> <configuration> <setting id="driver" value="hub" /> <setting id="slots" value="4" /> <setting id="speed" value="10000Mbit/s" /> </configuration> <capabilities> <capability id="usb-3.10" /> </capabilities> <hints> <hint name="bus.icon" value="usb" /> <hint name="usb.bDeviceClass" value="0x9" /> <hint name="usb.bDeviceProtocol" value="0x3" /> <hint name="usb.bDeviceSubClass" value="0x0" /> <hint name="usb.idProduct" value="0x3" /> <hint name="usb.idVendor" value="0x1D6B" /> </hints> </node> </node> <node id="multimedia" class="multimedia" handle="PCI:0000:2f:00.4" modalias="pci:v00001022d00001487sv00001462sd0000EC37bc04sc03i00"> <description>Audio device</description> <product>Starship/Matisse HD Audio Controller</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>0.4</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:2f:00.4</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="pm" >Power Management</capability> <capability id="pciexpress" >PCI Express</capability> <capability id="msi" >Message Signalled Interrupts</capability> <capability id="hda_compatible" /> <capability id="cap_list" >PCI capabilities listing</capability> </capabilities> <resources> <resource type="memory" value="fca00000-fca07fff" /> </resources> <hints> <hint name="pci.class" value="0x403" /> <hint name="pci.device" value="0x1487" /> <hint name="pci.subdevice" value="0xEC37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> </node> <node id="serial" claimed="true" class="bus" handle="PCI:0000:00:14.0" modalias="pci:v00001022d0000790Bsv00001462sd00007C37bc0Csc05i00"> <description>SMBus</description> <product>FCH SMBus Controller</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>14</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:00:14.0</businfo> <version>61</version> <width units="bits">32</width> <clock units="Hz">66000000</clock> <configuration> <setting id="driver" value="piix4_smbus" /> <setting id="latency" value="0" /> </configuration> <resources> <resource type="irq" value="0" /> </resources> <hints> <hint name="pci.class" value="0xC05" /> <hint name="pci.device" value="0x790B" /> <hint name="pci.subdevice" value="0x7C37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="isa" claimed="true" class="bridge" handle="PCI:0000:00:14.3" modalias="pci:v00001022d0000790Esv00001462sd00007C37bc06sc01i00"> <description>ISA bridge</description> <product>FCH LPC Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>14.3</physid> <subproduct>Micro-Star International Co., Ltd. [MSI]</subproduct> <subvendor>Micro-Star International Co., Ltd. [MSI]</subvendor> <businfo>pci@0000:00:14.3</businfo> <version>51</version> <width units="bits">32</width> <clock units="Hz">66000000</clock> <configuration> <setting id="latency" value="0" /> </configuration> <capabilities> <capability id="isa" /> <capability id="bus_master" >bus mastering</capability> </capabilities> <hints> <hint name="pci.class" value="0x601" /> <hint name="pci.device" value="0x790E" /> <hint name="pci.subdevice" value="0x7C37" /> <hint name="pci.subvendor" value="0x1462" /> <hint name="pci.vendor" value="0x1022" /> </hints> <node id="pnp00:00" claimed="true" class="system"> <product>System Board</product> <physid>0</physid> <configuration> <setting id="driver" value="system" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> <node id="pnp00:01" claimed="true" class="system"> <product>Motherboard registers</product> <physid>1</physid> <configuration> <setting id="driver" value="system" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> <node id="pnp00:02" claimed="true" class="system"> <product>AT Real-Time Clock</product> <physid>2</physid> <configuration> <setting id="driver" value="rtc_cmos" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> <node id="pnp00:03" claimed="true" class="system"> <product>Motherboard registers</product> <physid>3</physid> <configuration> <setting id="driver" value="system" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> <node id="pnp00:04" claimed="true" class="communication"> <product>16550A-compatible COM port</product> <physid>4</physid> <configuration> <setting id="driver" value="serial" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> <node id="pnp00:05" claimed="true" class="system"> <product>Motherboard registers</product> <physid>5</physid> <configuration> <setting id="driver" value="system" /> </configuration> <capabilities> <capability id="pnp" /> </capabilities> </node> </node> </node> <node id="pci:1" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>101</physid> <businfo>pci@0000:00:01.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:2" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>102</physid> <businfo>pci@0000:00:02.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:3" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>103</physid> <businfo>pci@0000:00:03.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:4" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>104</physid> <businfo>pci@0000:00:04.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:5" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>105</physid> <businfo>pci@0000:00:05.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:6" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>106</physid> <businfo>pci@0000:00:07.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:7" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001482sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Starship/Matisse PCIe Dummy Host Bridge</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>107</physid> <businfo>pci@0000:00:08.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1482" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:8" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001440sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 0</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>108</physid> <businfo>pci@0000:00:18.0</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1440" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:9" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001441sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 1</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>109</physid> <businfo>pci@0000:00:18.1</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1441" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:10" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001442sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 2</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10a</physid> <businfo>pci@0000:00:18.2</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1442" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:11" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001443sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 3</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10b</physid> <businfo>pci@0000:00:18.3</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <configuration> <setting id="driver" value="k10temp" /> </configuration> <resources> <resource type="irq" value="0" /> </resources> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1443" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:12" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001444sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 4</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10c</physid> <businfo>pci@0000:00:18.4</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1444" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:13" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001445sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 5</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10d</physid> <businfo>pci@0000:00:18.5</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1445" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:14" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001446sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 6</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10e</physid> <businfo>pci@0000:00:18.6</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1446" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> <node id="pci:15" claimed="true" class="bridge" handle="PCIBUS:0000:00" modalias="pci:v00001022d00001447sv00000000sd00000000bc06sc00i00"> <description>Host bridge</description> <product>Matisse/Vermeer Data Fabric: Device 18h; Function 7</product> <vendor>Advanced Micro Devices, Inc. [AMD]</vendor> <physid>10f</physid> <businfo>pci@0000:00:18.7</businfo> <version>00</version> <width units="bits">32</width> <clock units="Hz">33000000</clock> <hints> <hint name="pci.class" value="0x600" /> <hint name="pci.device" value="0x1447" /> <hint name="pci.vendor" value="0x1022" /> </hints> </node> </node> <node id="input:0" claimed="true" class="input" modalias="input:b0010v001Fp0001e0100-e0,12,kramls1,2,fw"> <product>PC Speaker</product> <physid>1</physid> <logicalname>input0</logicalname> <logicalname>/dev/input/event0</logicalname> <capabilities> <capability id="isa" >ISA bus</capability> </capabilities> </node> <node id="input:1" claimed="true" class="input" modalias="input:b0019v0000p0001e0000-e0,1,k74,8F,ramlsfw"> <product>Power Button</product> <physid>2</physid> <logicalname>input13</logicalname> <logicalname>/dev/input/event9</logicalname> <capabilities> <capability id="platform" /> </capabilities> </node> <node id="input:2" claimed="true" class="input" modalias="input:b0019v0000p0001e0000-e0,1,k74,8F,ramlsfw"> <product>Power Button</product> <physid>3</physid> <logicalname>input14</logicalname> <logicalname>/dev/input/event10</logicalname> <capabilities> <capability id="platform" /> </capabilities> </node> </node>
April 8Apr 8 Author I did a little digging, reading, and alot of praying. Seems like my VM is currently updating Windos 11 Pro right now. Hopefully I get good performance. I still need to remove bloatware though (shouldve used that .xml that includes that lol.)Thanks everyone.
