June 6Jun 6 hi i am new to unraid and i just setup my first unraid server now onto the issues at hand 1.when i am tranferring some media files like a tv show from my pc to my ugreen nas dxp4800plus i am getting around 113 mbps tranfer speed. i am having my internet in bridge mode and using my own router ie asus gt-ax 6000 running the latest asus merlin. i am using cat8 cables for connection and made sure that both the nas and my pc are connected to 2.5g port(there are 2) on my router also my pc has 1gbps nic(tp link tg-3468) .i have a ugreen ups after watching some youtube i got know about this Network UPS Tools plugin which i have installed but now it fails to start everytime.i am not tech savy person so please guide me what should i do to fix this. thanks and my regards
June 6Jun 6 Community Expert Please post the diagnostics for the 1st issue, for the 2nd one, you should post it in the existing plugin support thread.
June 6Jun 6 Community Expert NIC is linking at 2.5GbE, where are you transferring the files to? Array or a pool?Also run an iperf test in both directions between the server and the PC you are copying from and post the results.

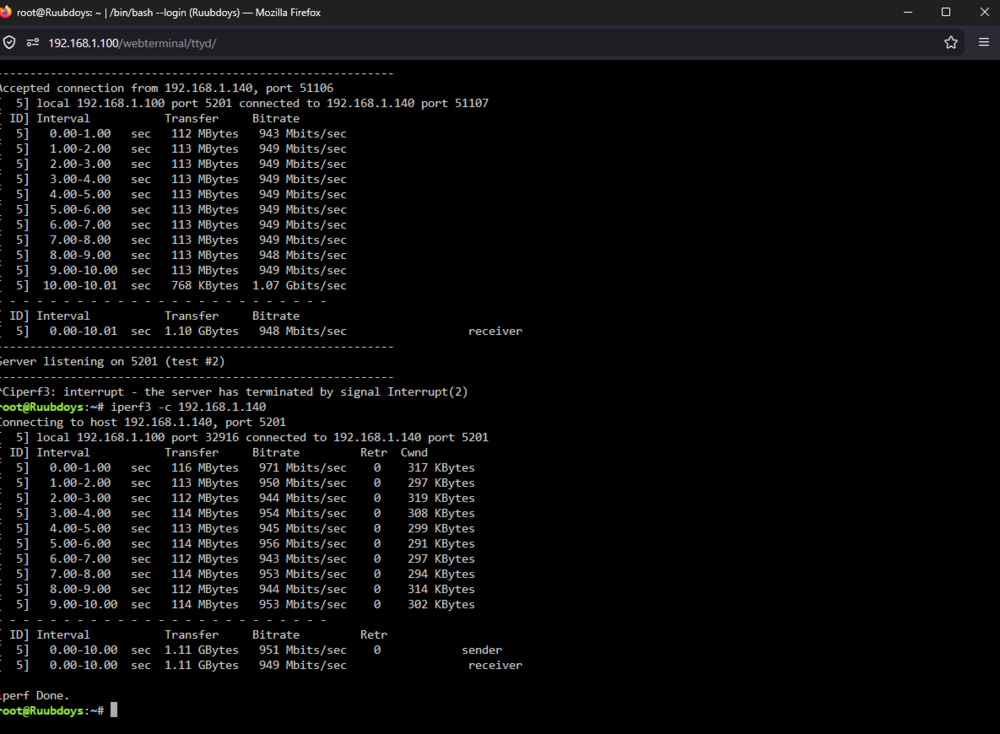

June 7Jun 7 Author the files are going from ssd cache pool to my array, please find the iperf3 tests below as requested.
June 7Jun 7 Community Expert Iperf confirms it's a LAN problem; there's possibly some gigabit segment on the it, limiting the speed.
June 7Jun 7 Community Expert You will need to find out which segment of the network is limiting the speed.
