Currently my unRAID has been running into issues with the array going offline.

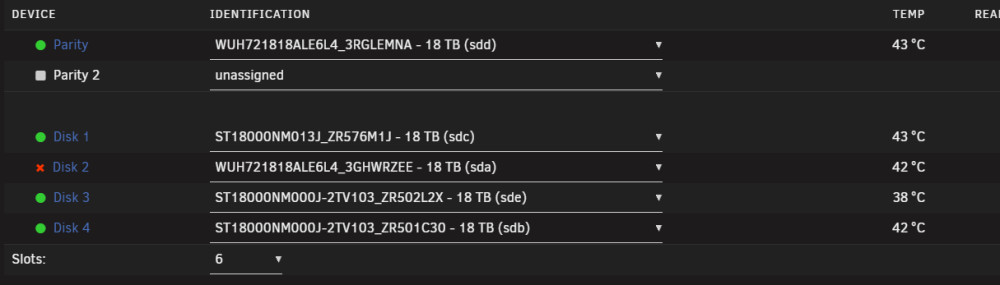

My setup consists of 5x 18TB with single drive for parity.

Parity: WD HC550

Parity S.M.A.R.T. Data

=== START OF INFORMATION SECTION ===

Model Family: Western Digital Ultrastar DC HC550

Device Model: WUH721818ALE6L4

Serial Number: 3RGLEMNA

LU WWN Device Id: 5 000cca 2c3c861dc

Add. Product Id: 202127

Firmware Version: PCGAW232

User Capacity: 18,000,207,937,536 bytes [18.0 TB]

Sector Sizes: 512 bytes logical, 4096 bytes physical

Rotation Rate: 7200 rpm

Form Factor: 3.5 inches

Device is: In smartctl database 7.5/6178

ATA Version is: ACS-4 published, ANSI INCITS 529-2018

SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is: Fri Aug 28 02:15:09 2026 UTC

SMART support is: Available - device has SMART capability.

SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED

General SMART Values:

Offline data collection status: (0x82) Offline data collection activity

was completed without error.

Auto Offline Data Collection: Enabled.

Self-test execution status: ( 0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 101) seconds.

Offline data collection

capabilities: (0x5b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

No Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities: (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability: (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: ( 2) minutes.

Extended self-test routine

recommended polling time: (1937) minutes.

SCT capabilities: (0x003d) SCT Status supported.

SCT Error Recovery Control supported.

SCT Feature Control supported.

SCT Data Table supported.

SMART Attributes Data Structure revision number: 16

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE

1 Raw_Read_Error_Rate 0x000b 100 100 001 Pre-fail Always - 0

2 Throughput_Performance 0x0005 136 136 054 Pre-fail Offline - 96

3 Spin_Up_Time 0x0007 087 087 001 Pre-fail Always - 230 (Average 299)

4 Start_Stop_Count 0x0012 097 097 000 Old_age Always - 1326

5 Reallocated_Sector_Ct 0x0033 100 100 001 Pre-fail Always - 0

7 Seek_Error_Rate 0x000b 100 100 001 Pre-fail Always - 0

8 Seek_Time_Performance 0x0005 140 140 020 Pre-fail Offline - 15

9 Power_On_Hours 0x0012 095 095 000 Old_age Always - 41695

10 Spin_Retry_Count 0x0013 100 100 001 Pre-fail Always - 0

12 Power_Cycle_Count 0x0032 081 081 000 Old_age Always - 1325

22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100

184 End-to-End_Error 0x0033 100 100 097 Pre-fail Always - 0

188 Command_Timeout 0x0032 100 100 000 Old_age Always - 1

192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 3465

193 Load_Cycle_Count 0x0012 100 100 000 Old_age Always - 3465

194 Temperature_Celsius 0x0002 050 050 000 Old_age Always - 43 (Min/Max 13/55)

196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0

197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0

198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0

199 UDMA_CRC_Error_Count 0x000a 100 100 000 Old_age Always - 0

241 Total_LBAs_Written 0x0012 100 100 000 Old_age Always - 301107236639

242 Total_LBAs_Read 0x0012 100 100 000 Old_age Always - 2033851625438

SMART Error Log Version: 1

No Errors Logged

SMART Self-test log structure revision number 1

No self-tests have been logged. [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1

SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS

1 0 0 Not_testing

2 0 0 Not_testing

3 0 0 Not_testing

4 0 0 Not_testing

5 0 0 Not_testing

Selective self-test flags (0x0):

After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

The above only provides legacy SMART information - try 'smartctl -x' for more

*This drives has a lot of errors as of the last failure on my array. 19k errors shows in WebUI.

Disk 1: Seagate Exos X20z

Disk 1 S.M.A.R.T. Data

=== START OF INFORMATION SECTION ===

Device Model: ST18000NM013J

Serial Number: ZR576M1J

LU WWN Device Id: 5 000c50 0e3a4a043

Firmware Version: GH02

User Capacity: 18,000,207,937,536 bytes [18.0 TB]

Sector Sizes: 512 bytes logical, 4096 bytes physical

Rotation Rate: 7200 rpm

Form Factor: 3.5 inches

Device is: Not in smartctl database 7.5/6178

ATA Version is: ACS-4 (minor revision not indicated)

SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is: Fri Aug 28 02:11:59 2026 UTC

SMART support is: Available - device has SMART capability.

SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED

General SMART Values:

Offline data collection status: (0x82) Offline data collection activity

was completed without error.

Auto Offline Data Collection: Enabled.

Self-test execution status: ( 0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 567) seconds.

Offline data collection

capabilities: (0x7b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities: (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability: (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: ( 2) minutes.

Extended self-test routine

recommended polling time: (1573) minutes.

Conveyance self-test routine

recommended polling time: ( 3) minutes.

SCT capabilities: (0x50b9) SCT Status supported.

SCT Error Recovery Control supported.

SCT Feature Control supported.

SCT Data Table supported.

SMART Attributes Data Structure revision number: 10

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE

1 Raw_Read_Error_Rate 0x000f 083 064 044 Pre-fail Always - 217632563

3 Spin_Up_Time 0x0003 094 090 000 Pre-fail Always - 0

4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 917

5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0

7 Seek_Error_Rate 0x000f 090 060 045 Pre-fail Always - 968172836

9 Power_On_Hours 0x0032 068 068 000 Old_age Always - 28542

10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0

12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 599

184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0

187 Reported_Uncorrect 0x0032 099 099 000 Old_age Always - 1

188 Command_Timeout 0x0032 100 099 000 Old_age Always - 12885098501

190 Airflow_Temperature_Cel 0x0022 057 037 000 Old_age Always - 43 (Min/Max 41/52)

192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 558

193 Load_Cycle_Count 0x0032 099 099 000 Old_age Always - 2031

194 Temperature_Celsius 0x0022 043 063 000 Old_age Always - 43 (0 26 0 0 0)

197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0

198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0

199 UDMA_CRC_Error_Count 0x003e 200 165 000 Old_age Always - 277

200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0

240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 28385 (98 84 0)

241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 238958092354

242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 97633846423793

SMART Error Log Version: 1

ATA Error Count: 1

CR = Command Register [HEX]

FR = Features Register [HEX]

SC = Sector Count Register [HEX]

SN = Sector Number Register [HEX]

CL = Cylinder Low Register [HEX]

CH = Cylinder High Register [HEX]

DH = Device/Head Register [HEX]

DC = Device Command Register [HEX]

ER = Error register [HEX]

ST = Status register [HEX]

Powered_Up_Time is measured from power on, and printed as

DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,

SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 1 occurred at disk power-on lifetime: 2155 hours (89 days + 19 hours)

When the command that caused the error occurred, the device was active or idle.

After command completion occurred, registers were:

ER ST SC SN CL CH DH

-- -- -- -- -- -- --

40 53 00 ff ff ff 0f Error: UNC at LBA = 0x0fffffff = 268435455

Commands leading to the command that caused the error were:

CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name

-- -- -- -- -- -- -- -- ---------------- --------------------

60 00 90 ff ff ff 4f 00 4d+11:39:23.708 READ FPDMA QUEUED

60 00 70 ff ff ff 4f 00 4d+11:39:23.708 READ FPDMA QUEUED

60 00 20 ff ff ff 4f 00 4d+11:39:23.320 READ FPDMA QUEUED

60 00 78 ff ff ff 4f 00 4d+11:39:23.319 READ FPDMA QUEUED

60 00 68 ff ff ff 4f 00 4d+11:39:23.319 READ FPDMA QUEUED

SMART Self-test log structure revision number 1

Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error

# 1 Short offline Completed without error 00% 6067 -

# 2 Extended offline Completed without error 00% 4249 -

# 3 Extended offline Interrupted (host reset) 00% 65535 -

# 4 Extended offline Completed without error 00% 2199 -

# 5 Short offline Completed without error 00% 2166 -

SMART Selective self-test log data structure revision number 1

SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS

1 0 0 Not_testing

2 0 0 Not_testing

3 0 0 Not_testing

4 0 0 Not_testing

5 0 0 Not_testing

Selective self-test flags (0x0):

After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

The above only provides legacy SMART information - try 'smartctl -x' for more

*Disk 1 comes with known S.M.A.R.T. errors, but this drive doesn't get disabled in unRAID.

Disk 2: WD HC550

Disk 2 S.M.A.R.T. Data

=== START OF INFORMATION SECTION ===

Model Family: Western Digital Ultrastar DC HC550

Device Model: WUH721818ALE6L4

Serial Number: 3GHWRZEE

LU WWN Device Id: 5 000cca 2afdab3cb

Add. Product Id: 202117

Firmware Version: PCGAW232

User Capacity: 18,000,207,937,536 bytes [18.0 TB]

Sector Sizes: 512 bytes logical, 4096 bytes physical

Rotation Rate: 7200 rpm

Form Factor: 3.5 inches

Device is: In smartctl database 7.5/6178

ATA Version is: ACS-4 published, ANSI INCITS 529-2018

SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is: Fri Aug 28 02:15:47 2026 UTC

SMART support is: Available - device has SMART capability.

SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED

General SMART Values:

Offline data collection status: (0x82) Offline data collection activity

was completed without error.

Auto Offline Data Collection: Enabled.

Self-test execution status: ( 0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 101) seconds.

Offline data collection

capabilities: (0x5b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

No Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities: (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability: (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: ( 2) minutes.

Extended self-test routine

recommended polling time: (1955) minutes.

SCT capabilities: (0x003d) SCT Status supported.

SCT Error Recovery Control supported.

SCT Feature Control supported.

SCT Data Table supported.

SMART Attributes Data Structure revision number: 16

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE

1 Raw_Read_Error_Rate 0x000b 100 100 001 Pre-fail Always - 0

2 Throughput_Performance 0x0005 137 137 054 Pre-fail Offline - 92

3 Spin_Up_Time 0x0007 093 093 001 Pre-fail Always - 152 (Average 148)

4 Start_Stop_Count 0x0012 097 097 000 Old_age Always - 1282

5 Reallocated_Sector_Ct 0x0033 100 100 001 Pre-fail Always - 0

7 Seek_Error_Rate 0x000b 100 100 001 Pre-fail Always - 0

8 Seek_Time_Performance 0x0005 140 140 020 Pre-fail Offline - 15

9 Power_On_Hours 0x0012 095 095 000 Old_age Always - 37832

10 Spin_Retry_Count 0x0013 100 100 001 Pre-fail Always - 0

12 Power_Cycle_Count 0x0032 082 082 000 Old_age Always - 1281

22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100

184 End-to-End_Error 0x0033 100 100 097 Pre-fail Always - 0

188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0

192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 7725

193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 7725

194 Temperature_Celsius 0x0002 051 051 000 Old_age Always - 42 (Min/Max 12/56)

196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0

197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0

198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0

199 UDMA_CRC_Error_Count 0x000a 100 100 000 Old_age Always - 0

241 Total_LBAs_Written 0x0012 100 100 000 Old_age Always - 261618795174

242 Total_LBAs_Read 0x0012 100 100 000 Old_age Always - 1886195353700

SMART Error Log Version: 1

No Errors Logged

SMART Self-test log structure revision number 1

No self-tests have been logged. [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1

SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS

1 0 0 Not_testing

2 0 0 Not_testing

3 0 0 Not_testing

4 0 0 Not_testing

5 0 0 Not_testing

Selective self-test flags (0x0):

After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

The above only provides legacy SMART information - try 'smartctl -x' for more

*Disk 2 always gets disabled if the array errors out. Error count as my last failure stayed at 2 in the WebUI.

Disk 3: Seagate Exos X18

Disk 3 S.M.A.R.T. Data

=== START OF INFORMATION SECTION ===

Model Family: Seagate Exos X18

Device Model: ST18000NM000J-2TV103

Serial Number: ZR502L2X

LU WWN Device Id: 5 000c50 0c691c15a

Firmware Version: ZZF2

User Capacity: 18,000,207,937,536 bytes [18.0 TB]

Sector Sizes: 512 bytes logical, 4096 bytes physical

Rotation Rate: 7200 rpm

Form Factor: 3.5 inches

Device is: In smartctl database 7.5/6178

ATA Version is: ACS-4 (minor revision not indicated)

SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is: Fri Aug 28 02:16:46 2026 UTC

SMART support is: Available - device has SMART capability.

SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED

General SMART Values:

Offline data collection status: (0x82) Offline data collection activity

was completed without error.

Auto Offline Data Collection: Enabled.

Self-test execution status: ( 0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 567) seconds.

Offline data collection

capabilities: (0x7b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities: (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability: (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: ( 1) minutes.

Extended self-test routine

recommended polling time: (1537) minutes.

Conveyance self-test routine

recommended polling time: ( 2) minutes.

SCT capabilities: (0x70bd) SCT Status supported.

SCT Error Recovery Control supported.

SCT Feature Control supported.

SCT Data Table supported.

SMART Attributes Data Structure revision number: 10

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE

1 Raw_Read_Error_Rate 0x000f 075 064 044 Pre-fail Always - 0/32446438

3 Spin_Up_Time 0x0003 094 089 000 Pre-fail Always - 0

4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 642

5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0

7 Seek_Error_Rate 0x000f 089 061 045 Pre-fail Always - 0/778777188

9 Power_On_Hours 0x0032 054 054 000 Old_age Always - 40592

10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0

12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 622

18 Head_Health 0x000b 100 100 050 Pre-fail Always - 0

187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0

188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 0 0

190 Airflow_Temperature_Cel 0x0022 062 027 000 Old_age Always - 38 (Min/Max 36/43)

192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 433

193 Load_Cycle_Count 0x0032 077 077 000 Old_age Always - 47613

194 Temperature_Celsius 0x0022 038 073 000 Old_age Always - 38 (0 24 0 0 0)

197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0

198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0

199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0

200 Pressure_Limit 0x0023 100 100 001 Pre-fail Always - 0

240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 31596h+03m+56.578s

241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 304737319673

242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 1756349076170

SMART Error Log Version: 1

No Errors Logged

SMART Self-test log structure revision number 1

Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error

# 1 Vendor (0x41) Completed without error 00% 1034 -

# 2 Vendor (0x41) Completed without error 00% 992 -

# 3 Short captive Completed without error 00% 992 -

# 4 Short captive Completed without error 00% 970 -

# 5 Vendor (0x41) Completed without error 00% 943 -

# 6 Short captive Completed without error 00% 943 -

# 7 Short captive Completed without error 00% 921 -

# 8 Vendor (0x41) Completed without error 00% 893 -

# 9 Short captive Completed without error 00% 893 -

#10 Short captive Completed without error 00% 871 -

#11 Vendor (0x41) Completed without error 00% 844 -

#12 Short captive Completed without error 00% 844 -

#13 Short captive Completed without error 00% 822 -

#14 Vendor (0x41) Completed without error 00% 794 -

#15 Short captive Completed without error 00% 794 -

#16 Short captive Completed without error 00% 772 -

#17 Vendor (0x41) Completed without error 00% 745 -

#18 Short captive Completed without error 00% 744 -

#19 Short captive Completed without error 00% 722 -

#20 Vendor (0x41) Completed without error 00% 695 -

#21 Short captive Completed without error 00% 695 -

SMART Selective self-test log data structure revision number 1

SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS

1 0 0 Not_testing

2 0 0 Not_testing

3 0 0 Not_testing

4 0 0 Not_testing

5 0 0 Not_testing

Selective self-test flags (0x0):

After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

The above only provides legacy SMART information - try 'smartctl -x' for more

*No issues with this drive.

Disk 4: Seagate Exos X18

Disk 4 S.M.A.R.T. Data

=== START OF INFORMATION SECTION ===

Model Family: Seagate Exos X18

Device Model: ST18000NM000J-2TV103

Serial Number: ZR501C30

LU WWN Device Id: 5 000c50 0c6306e86

Firmware Version: ZZF2

User Capacity: 18,000,207,937,536 bytes [18.0 TB]

Sector Sizes: 512 bytes logical, 4096 bytes physical

Rotation Rate: 7200 rpm

Form Factor: 3.5 inches

Device is: In smartctl database 7.5/6178

ATA Version is: ACS-4 (minor revision not indicated)

SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)

Local Time is: Fri Aug 28 02:18:23 2026 UTC

SMART support is: Available - device has SMART capability.

SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED

General SMART Values:

Offline data collection status: (0x82) Offline data collection activity

was completed without error.

Auto Offline Data Collection: Enabled.

Self-test execution status: ( 0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 559) seconds.

Offline data collection

capabilities: (0x7b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities: (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability: (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: ( 1) minutes.

Extended self-test routine

recommended polling time: (1543) minutes.

Conveyance self-test routine

recommended polling time: ( 2) minutes.

SCT capabilities: (0x70bd) SCT Status supported.

SCT Error Recovery Control supported.

SCT Feature Control supported.

SCT Data Table supported.

SMART Attributes Data Structure revision number: 10

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE

1 Raw_Read_Error_Rate 0x000f 082 064 044 Pre-fail Always - 0/165824220

3 Spin_Up_Time 0x0003 094 089 000 Pre-fail Always - 0

4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 248

5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0

7 Seek_Error_Rate 0x000f 089 061 045 Pre-fail Always - 0/849199151

9 Power_On_Hours 0x0032 053 053 000 Old_age Always - 41345

10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0

12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 221

18 Head_Health 0x000b 100 100 050 Pre-fail Always - 0

187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0

188 Command_Timeout 0x0032 100 099 000 Old_age Always - 0 0 1

190 Airflow_Temperature_Cel 0x0022 058 028 000 Old_age Always - 42 (Min/Max 36/47)

192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 83

193 Load_Cycle_Count 0x0032 082 082 000 Old_age Always - 36526

194 Temperature_Celsius 0x0022 042 072 000 Old_age Always - 42 (0 24 0 0 0)

197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0

198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0

199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0

200 Pressure_Limit 0x0023 100 100 001 Pre-fail Always - 0

240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 33822h+44m+29.965s

241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 352697653497

242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 1790707067506

SMART Error Log Version: 1

No Errors Logged

SMART Self-test log structure revision number 1

Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error

# 1 Vendor (0x41) Completed without error 00% 1289 -

# 2 Vendor (0x41) Completed without error 00% 1231 -

# 3 Short captive Completed without error 00% 1231 -

# 4 Short captive Completed without error 00% 1209 -

# 5 Vendor (0x41) Completed without error 00% 1181 -

# 6 Short captive Completed without error 00% 1181 -

# 7 Short captive Completed without error 00% 1159 -

# 8 Vendor (0x41) Completed without error 00% 1131 -

# 9 Short captive Completed without error 00% 1131 -

#10 Short captive Completed without error 00% 1109 -

#11 Vendor (0x41) Completed without error 00% 1081 -

#12 Short captive Completed without error 00% 1081 -

#13 Short captive Completed without error 00% 1059 -

#14 Vendor (0x41) Completed without error 00% 1031 -

#15 Short captive Completed without error 00% 1031 -

#16 Short captive Completed without error 00% 1009 -

#17 Vendor (0x41) Completed without error 00% 981 -

#18 Short captive Completed without error 00% 981 -

#19 Short captive Completed without error 00% 959 -

#20 Vendor (0x41) Completed without error 00% 931 -

#21 Short captive Completed without error 00% 931 -

SMART Selective self-test log data structure revision number 1

SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS

1 0 0 Not_testing

2 0 0 Not_testing

3 0 0 Not_testing

4 0 0 Not_testing

5 0 0 Not_testing

Selective self-test flags (0x0):

After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

The above only provides legacy SMART information - try 'smartctl -x' for more

*No issues with this drive.

This is after I changed out my LSI HBA 9300-8i on 16.00.11.00 firmware to a new LSI HBA 9300-8i running 16.00.16.00 firmware, and I changed out a SAS-8643 to SAS-8643 24 bay backplane to a SAS-8643 to 4x SATA adapter. But the issues persists across the two different setup. I also don't use any 1x SATA to multi SATA splitter, it's all connected to SATA power cables directly from my PSU.

Is this just plain drive issues or is there something more serious going on with my hardware? I run unRAID in a virtualized environment but I passthrough my LSI fully directly to my VM and it's not shared with my hypervisor.

I've tried to dump the logs into LLM for it to do some basic diagnostics but it just turns back blaming a power supply is the issue or cabling but I've swapped all I can so far.

I will be attaching two different diagnostics zip as the latest one doesn't show much info pertaining to the errors. The bigger zip file is what happens when a drive falls out and locks up my whole instance and render it unusable and inaccessible until a reset is performed.

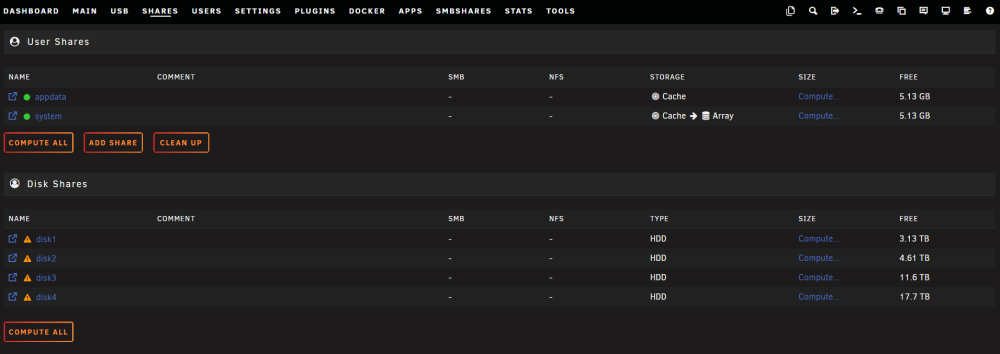

*Adding on, seems like my shares are currently all gone. But the data is still in the drives if I open it manually from the main tab.

unraidvm-diagnostics-20260727-2237.zip unraidvm-diagnostics-20260828-1021.zip

Edited 2 hours ago2 hr by chocin
Added proper formatting

That last diagnostics was taken without the array started in normal (not maintenance) mode, so can't tell anything about filesystems since they aren't mounted.

Start the array in normal mode and post new diagnostics
