Trying to resurrect an old thread... I have a Dell Poweredge 2950 Server Gen III and trying to get network interface working on UnRaid 5.0 RC14, without any luck, IPMI interface works fine, but no Unraid Web or unmenu...



Here's what was in the original thread, but no resolution....



With 4.7 everything works perfectly.



With 5.0 RC8a the network controller does not appear to work correctly.  When I type ifconfig at the console eth0 does not show up.  Using ethtool I am able to see the eth0, and eth1 interface, but neither have an IP.  When I downgrade back to 4.7, the network interface works without issue.



Any ideas?



Have you tried other 5.0 betas or RCs? What nic sits in the dell? Might be u r missing a driver in RC8a.



Thanks for any feedback or help....

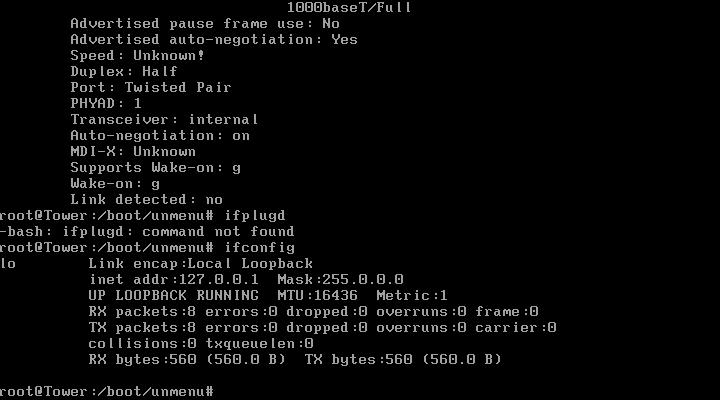

"ethtool eth0 ouput"

Looking here:

http://www.dell.com/downloads/global/products/pedge/en/pe_2950_III_spec_sheet.pdf

They say it uses "Dual embedded Broadcom® NetXtreme II™ 5708 Gigabit Ethernet

NIC".



Those drivers are definitely built-in to unRaid linux kernel.  I guess you've tested both RJ45's?  Maybe set up bonding?  Here's the 'network.cfg' file for one of my servers that happens to have a fixed IP address but uses bonding:



USE_DHCP="no"
IPADDR="192.168.1.10"
NETMASK="255.255.255.0"
GATEWAY="192.168.1.1"
DHCP_KEEPRESOLV="no"
DNS_SERVER1="192.168.1.1"
DNS_SERVER2=""
DNS_SERVER3=""
BONDING="yes"
BONDING_MODE="1"



As always a syslog would be nice.  From console copy to flash:



cp /var/log/syslog /boot/syslog.txt



Then remove flash, plug into PC and post syslog.txt.

Tried the network.cfg settings with bonding on, and was able to assign an ip but still no connectivity.



Here's the syslog with the bonding enabled...

syslog.txt

Problem is missing firmware for your NIC:  bnx2-mips-06-6.2.3.fw



Apparently this is a known issue in the linux kernel, don't know why no one has ever fixed it.  I'll include in next release.  In meantime you can try this:

1. download the firmware from here:

https://github.com/cernekee/linux-firmware/blob/master/bnx2/bnx2-mips-06-6.2.3.fw



2. Copy the file to your flash.



3. From unRaid command line, type:



cp /boot/bnx2-mips-06-6.2.3.fw /lib/firmware/bnx2
rmmod bnx2
modprobe bnx2
/etc/rc.d/rc.inet1 restart



If this works, you can put those lines at the top of your 'go' file to repeat upon next reboot.



Copied firmware to flash drive and tried the code below:



cp /boot/bnx2-mips-06-6.2.3.fw /lib/firmware/bnx2
rmmod bnx2
modprobe bnx2
/etc/rc.d/rc.inet1 restart



Heres the ouput:



Master 'bond0' , Slave  'eth0' : Error : Enslave failed

Master 'bond0' , Slave  'eth1' : Error : Enslave failed



Attached is a copy of the syslog when I tried the above code...



BTW - I really appreciate the help, thank you

syslog.txt

The syslog says: bnx2: Firmware file "bnx2/bnx2-mips-06-6.2.3.fw" is invalid



This should have worked, the size of bnx2-mips-06-6.2.3.fw should be 92824 bytes on the flash, is that what you show?

It was not that size re-downloaded and trying again now will post back in a few

That did the trick what do i have to add to the go / network.cfg to come up automatically on each reboot?

That did the trick what do i have to add to the go / network.cfg to come up automatically on each reboot?

Put that sequence of commands at the top of your 'go' file (before emhttp is invoked).  I also added that f/w to the next build so it will be there in the next release and then you can get rid of those lines.

I really appreciate the help...  thanks for the quick assistance.....
