Recommended Posts

---- START NOTIFICATION ----

Nov 16 20:26:39 Tower sSMTP[19808]: Set Root="*****@gmail.com"
Nov 16 20:26:39 Tower sSMTP[19808]: Set MailHub="outgoing.verizon.net"
Nov 16 20:26:39 Tower sSMTP[19808]: Set RemotePort="587"
Nov 16 20:26:39 Tower sSMTP[19808]: Set RewriteDomain="outgoing.verizon.net"
Nov 16 20:26:39 Tower sSMTP[19808]: Set FromLineOverride="False"
Nov 16 20:26:39 Tower sSMTP[19808]: Set UseTLS="False"
Nov 16 20:26:39 Tower sSMTP[19808]: Set UseSTARTTLS="False"
Nov 16 20:26:39 Tower sSMTP[19808]: Set UseTLSCert="False"
Nov 16 20:26:39 Tower sSMTP[19808]: Set TLSCert=""
Nov 16 20:26:39 Tower sSMTP[19808]: Set AuthMethod="login"
Nov 16 20:26:39 Tower sSMTP[19808]: Set AuthUser="*****"
Nov 16 20:26:39 Tower sSMTP[19808]: Set AuthPass="*****"
Nov 16 20:26:39 Tower sSMTP[19808]: 220 vms173009.mailsrvcs.net -- Server ESMTP (Oracle Communications Messaging Server 7.0.5.32.0 64bit (built Jul 16 2014))
Nov 16 20:26:39 Tower sSMTP[19808]: EHLO Tower
Nov 16 20:26:39 Tower sSMTP[19808]: 250 SIZE 20971520
Nov 16 20:26:39 Tower sSMTP[19808]: AUTH LOGIN
Nov 16 20:26:39 Tower sSMTP[19808]: 334 VXNlcm5hbWU6
Nov 16 20:26:39 Tower sSMTP[19808]: ZXRvbG96YQ==
Nov 16 20:26:39 Tower sSMTP[19808]: 334 UGFzc3dvcmQ6
Nov 16 20:26:39 Tower sSMTP[19808]: YXNkZjE5MDE=
Nov 16 20:26:40 Tower sSMTP[19808]: 235 2.7.0 LOGIN authentication successful.
Nov 16 20:26:40 Tower sSMTP[19808]: MAIL FROM:<[email protected]>
Nov 16 20:26:40 Tower sSMTP[19808]: 250 2.5.0 Address Ok.
Nov 16 20:26:40 Tower sSMTP[19808]: RCPT TO:<*****@gmail.com>
Nov 16 20:26:40 Tower sSMTP[19808]: 250 2.1.5 *****@gmail.com OK.
Nov 16 20:26:40 Tower sSMTP[19808]: DATA
Nov 16 20:26:40 Tower sSMTP[19808]: 354 Enter mail, end with a single ".".
Nov 16 20:26:40 Tower sSMTP[19808]: Received: by Tower (sSMTP sendmail emulation); Sun, 16 Nov 2014 20:26:39 -0500
Nov 16 20:26:40 Tower sSMTP[19808]: From: "Console and webGui login account" <[email protected]>
Nov 16 20:26:40 Tower sSMTP[19808]: To: *****@verizon.net
Nov 16 20:26:40 Tower sSMTP[19808]: Date: Sun, 16 Nov 2014 20:26:39 -0500
Nov 16 20:26:40 Tower sSMTP[19808]: Subject: unRAID Status Report: unRaid is OK
Nov 16 20:26:40 Tower sSMTP[19808]:
Nov 16 20:26:40 Tower sSMTP[19808]: This message is a status update for unRAID  Tower
Nov 16 20:26:40 Tower sSMTP[19808]: -----------------------------------------------------------------
Nov 16 20:26:40 Tower sSMTP[19808]: Server Name: Tower
Nov 16 20:26:40 Tower sSMTP[19808]: IP: 192.168.1.2
Nov 16 20:26:40 Tower sSMTP[19808]: Status: unRaid is OK
Nov 16 20:26:40 Tower sSMTP[19808]: Date: Sun Nov 16 20:26:39 EST 2014
Nov 16 20:26:40 Tower sSMTP[19808]:
Nov 16 20:26:40 Tower sSMTP[19808]: Disk Temperature Status
Nov 16 20:26:40 Tower sSMTP[19808]: -----------------------------------------------------------------
Nov 16 20:26:40 Tower sSMTP[19808]: Parity Disk [sdg]: 27C (DiskId: ST2000DL003-9VT166_5YD6S2ZN)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 1 [sdi]: 26C (DiskId: ST2000DL003-9VT166_5YD6VX16)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 2 [sdd]: 25C (DiskId: WDC_WD20EARX-00PASB0_WD-WCAZAL574391)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 3 [sdb]: 25C (DiskId: ST2000DL003-9VT166_5YD6X0CT)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 4 [sde]: 30C (DiskId: MAXTOR_STM3320620AS_6QF15BV4)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 5 [sdl]: 22C (DiskId: ST2000DL004_HD204UI_S2H7J9FC300254)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 6 [sdh]: 23C (DiskId: WDC_WD20EZRX-00D8PB0_WD-WMC4M1176436)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 7 [sdk]: 23C (DiskId: Hitachi_HDT721010SLA360_STF604MH0SJ5HB)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 8 [sdc]: 24C (DiskId: WDC_WD20EZRX-00D8PB0_WD-WCC4M2389819)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 9 [sdf]: 24C (DiskId: WDC_WD20EZRX-00D8PB0_WD-WMC4N2459216)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 10 [sdj1]: 29C (DiskId: WDC_WD5000AAKS-00YGA0_WD-WMAS80094431)
Nov 16 20:26:40 Tower sSMTP[19808]:
Nov 16 20:26:40 Tower sSMTP[19808]: Disk SMART Health Status
Nov 16 20:26:40 Tower sSMTP[19808]: -----------------------------------------------------------------
Nov 16 20:26:40 Tower sSMTP[19808]: Parity Disk PASSED (DiskId: ST2000DL003-9VT166_5YD6S2ZN)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 1 PASSED (DiskId: ST2000DL003-9VT166_5YD6VX16)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 2 PASSED (DiskId: WDC_WD20EARX-00PASB0_WD-WCAZAL574391)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 3 PASSED (DiskId: ST2000DL003-9VT166_5YD6X0CT)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 4 PASSED (DiskId: MAXTOR_STM3320620AS_6QF15BV4)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 5 PASSED (DiskId: ST2000DL004_HD204UI_S2H7J9FC300254)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 6 PASSED (DiskId: WDC_WD20EZRX-00D8PB0_WD-WMC4M1176436)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 7 PASSED (DiskId: Hitachi_HDT721010SLA360_STF604MH0SJ5HB)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 8 PASSED (DiskId: WDC_WD20EZRX-00D8PB0_WD-WCC4M2389819)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 9 PASSED (DiskId: WDC_WD20EZRX-00D8PB0_WD-WMC4N2459216)
Nov 16 20:26:40 Tower sSMTP[19808]: Disk 10 PASSED (DiskId: WDC_WD5000AAKS-00YGA0_WD-WMAS80094431)
Nov 16 20:26:40 Tower sSMTP[19808]:
Nov 16 20:26:41 Tower sSMTP[19808]: .

---- END NOTIFICATION ---


---- START TEST ----

Nov 16 20:27:03 Tower sSMTP[20594]: Set Root="*****@gmail.com"
Nov 16 20:27:03 Tower sSMTP[20594]: Set MailHub="outgoing.verizon.net"
Nov 16 20:27:03 Tower sSMTP[20594]: Set RemotePort="587"
Nov 16 20:27:03 Tower sSMTP[20594]: Set RewriteDomain="outgoing.verizon.net"
Nov 16 20:27:03 Tower sSMTP[20594]: Set FromLineOverride="False"
Nov 16 20:27:03 Tower sSMTP[20594]: Set UseTLS="False"
Nov 16 20:27:03 Tower sSMTP[20594]: Set UseSTARTTLS="False"
Nov 16 20:27:03 Tower sSMTP[20594]: Set UseTLSCert="False"
Nov 16 20:27:03 Tower sSMTP[20594]: Set TLSCert=""
Nov 16 20:27:03 Tower sSMTP[20594]: Set AuthMethod="login"
Nov 16 20:27:03 Tower sSMTP[20594]: Set AuthUser="*****"
Nov 16 20:27:03 Tower sSMTP[20594]: Set AuthPass="*****"
Nov 16 20:27:04 Tower sSMTP[20594]: 220 vms173013.mailsrvcs.net -- Server ESMTP (Oracle Communications Messaging Server 7.0.5.32.0 64bit (built Jul 16 2014))
Nov 16 20:27:04 Tower sSMTP[20594]: EHLO Tower
Nov 16 20:27:04 Tower sSMTP[20594]: 250 SIZE 20971520
Nov 16 20:27:04 Tower sSMTP[20594]: AUTH LOGIN
Nov 16 20:27:04 Tower sSMTP[20594]: 334 VXNlcm5hbWU6
Nov 16 20:27:04 Tower sSMTP[20594]: ZXRvbG96YQ==
Nov 16 20:27:04 Tower sSMTP[20594]: 334 UGFzc3dvcmQ6
Nov 16 20:27:04 Tower sSMTP[20594]: YXNkZjE5MDE=
Nov 16 20:27:04 Tower sSMTP[20594]: 235 2.7.0 LOGIN authentication successful.
Nov 16 20:27:04 Tower sSMTP[20594]: MAIL FROM:<[email protected]>
Nov 16 20:27:04 Tower sSMTP[20594]: 250 2.5.0 Address Ok.
Nov 16 20:27:04 Tower sSMTP[20594]: RCPT TO:<*****@gmail.com>
Nov 16 20:27:04 Tower sSMTP[20594]: 250 2.1.5 *****@gmail.com OK.
Nov 16 20:27:04 Tower sSMTP[20594]: DATA
Nov 16 20:27:04 Tower sSMTP[20594]: 354 Enter mail, end with a single ".".
Nov 16 20:27:04 Tower sSMTP[20594]: Received: by Tower (sSMTP sendmail emulation); Sun, 16 Nov 2014 20:27:03 -0500
Nov 16 20:27:04 Tower sSMTP[20594]: From: "Console and webGui login account" <[email protected]>
Nov 16 20:27:04 Tower sSMTP[20594]: Date: Sun, 16 Nov 2014 20:27:03 -0500
Nov 16 20:27:04 Tower sSMTP[20594]: To: *****@gmail.com
Nov 16 20:27:04 Tower sSMTP[20594]: Subject: unRAID SMTP Test
Nov 16 20:27:04 Tower sSMTP[20594]:
Nov 16 20:27:04 Tower sSMTP[20594]: Dynamix SSMTP test message has arrived!
Nov 16 20:27:04 Tower sSMTP[20594]:
Nov 16 20:27:05 Tower sSMTP[20594]: .
Nov 16 20:27:05 Tower sSMTP[20594]: 250 2.5.0 Ok.
Nov 16 20:27:05 Tower sSMTP[20594]: QUIT
Nov 16 20:27:05 Tower sSMTP[20594]: 221 2.3.0 Bye received. Goodbye.
Nov 16 20:27:05 Tower sSMTP[20594]: Sent mail for [email protected] (221 2.3.0 Bye received. Goodbye.) uid=0 username=root outbytes=431
Nov 16 20:27:24 Tower avahi-daemon[9869]: Invalid response packet from host 192.168.1.5.

---- END TEST ----



above is my log data when i try to send an email. the first section is a forced notification (modifying email settings page seems to force an email to be started). the next section is the test email.



test email works fine 10 times out of 10. the actual notification email does not appear to get the OK message after ending the email a single period (.). nothing comes in after that.. eventually it'll time out and i'll get



Nov 16 20:36:41 Tower sSMTP[19808]: Connection lost in middle of processing



everything before the message are the same based on visual compare



any thoughts?



bump please!

Link to comment
  • Replies 1.3k
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

Hello,



Can anyone offer any help as to how to get SOAP working with the Dynamix Webserver plugin?



I'm trying to run phpvirtualbox and can not log into the web console due to SOAP extensions not being configured.



Any help or pointers please?





Link to comment

Hello,



Can anyone offer any help as to how to get SOAP working with the Dynamix Webserver plugin?



I'm trying to run phpvirtualbox and can not log into the web console due to SOAP extensions not being configured.



Any help or pointers please?



go to /boot/config/plugins/dynamix and edit dynamix.php.cfg.

look for a line ";extension=soap.so", remove the semicolons at the beginning, save the file and stop then start the web server plugin...

Link to comment

Hello,



Can anyone offer any help as to how to get SOAP working with the Dynamix Webserver plugin?



I'm trying to run phpvirtualbox and can not log into the web console due to SOAP extensions not being configured.



Any help or pointers please?



go to /boot/config/plugins/dynamix and edit dynamix.php.cfg.

look for a line ";extension=soap.so", remove the semicolons at the beginning, save the file and stop then start the web server plugin...





Thank you , worked a treat.... now to create some VM's. :-)

Link to comment

I just installed the 5.0.6 version from scratch after having played around with a 5.0 beta version. Had to do a lot of catching up since I previously used simple features.



I must say, you have done a terrific job of adding to and improving the simple features functionality!



The only issue I have run into thus far is a browser page freezing problem on Chrome when making changes to the Email Notifications utility.  Running version 2.1.3 of that plugin.  All other plugins work very well and have not had any other issues.



Well done, and thank you.





Link to comment

I just got back to unRaid as I need to do some work on it, I.e. Set up nfs on a few shares. My unRaid system has been up and running for over 450 days without a stop, issue or problem. I am running 5.0 rc11 with simple features 1.0.11. I use unRaid to store all my movies, music, backups, etc.



I would like to upgrade to dynamix and have been to the github and read the  Readme.  I just have one question.



Do I have to do anything to get rid of simple features?  And if so what.



As I said I have not touched my system in a long time and at my age one forgets a lot.







Link to comment

I just got back to unRaid as I need to do some work on it, I.e. Set up nfs on a few shares. My unRaid system has been up and running for over 450 days without a stop, issue or problem. I am running 5.0 rc11 with simple features 1.0.11. I use unRaid to store all my movies, music, backups, etc.



I would like to upgrade to dynamix and have been to the github and read the  Readme.  I just have one question.



Do I have to do anything to get rid of simple features?  And if so what.



As I said I have not touched my system in a long time and at my age one forgets a lot.



I just finished doing exactly this yesterday.  I had 5.0 beta14 installed and am now running 5.0.6.



So as to not get off topic, you might review my post here: http://lime-technology.com/forum/index.php?topic=36837.0

Link to comment

Wow, over 450 days non-stop, very impressive :)



There are two possible routes to follow for your upgrade path and in both cases you need to uninstall SimpleFeatures:



a) Upgrade to unRAID v5.0.6 - this requires additional installation of Dynamix (and optional plugins)



b) Upgrade to unRAID v6b12 - this has Dynamix webGui built-in, optional plugins need to be installed separately



To remove SimpleFeatures do the following steps



1) Telnet into your system

2) rm -rf /boot/plugins/simpleFeatures

3) rm -rf /boot/config/simpleFeatures

4) If you are not running any other plugins it is safe to remove /boot/packes otherwise do a selective clean-up or jusr leave it alone

5) Reboot your system from the webGui (stop array -> reboot)



This brings back the stock webGui of unRAID. From here you can choose your upgrade path (see options above).







Link to comment

Thank you both for the speedy replies. The only reason the unRaid system has only been up for only 450 days is I had to change out a UPS, and that required me to shutdown the rack. Only Commercial UPS's seem to have a methodology for swapping out a UPS with out a power interruption.  Not an easy task as AC systems have to be synchronized if I remember my Power labs in EE school.



I will look into the 5.0.6 upgrade.  I am assuming that is the final 5.0.x release or the current stable one.



As I said the only reason I want to do this is for nfs support so I can try XBMC with nfs instead of smb.  The consensus seems to be that nfs is significantly faster and will provide a smoother video stream.





Link to comment

As I said the only reason I want to do this is for nfs support so I can try XBMC with nfs instead of smb.  The consensus seems to be that nfs is significantly faster and will provide a smoother video stream.



My experience is that the latest versions of SMB have reduced the overhead to the point where you can't tell any difference between the two.  NFS is a bit more difficult to set up on both ends as you have to have stable IP addresses.  (Of course, if you are running an older version of SMB on the non unRAID end, unRAID SMB will fall back to that version...)

Link to comment

Today I have experienced some odd problems with Dynamix.  Some of the pages, such as e-mail and s-3, cause the GUI to freeze and I have to reboot UnRaid.  Since this is a new install, I decided to re-install the system from scratch, get a good 5.0.6 working GUI and then upgrade to Dynamix, carefully following the instructions on the bergware page.



The basic Dynamix GUI comes up just fine and works well.



I then added the plugin control module and plan to add other plugins from that module.

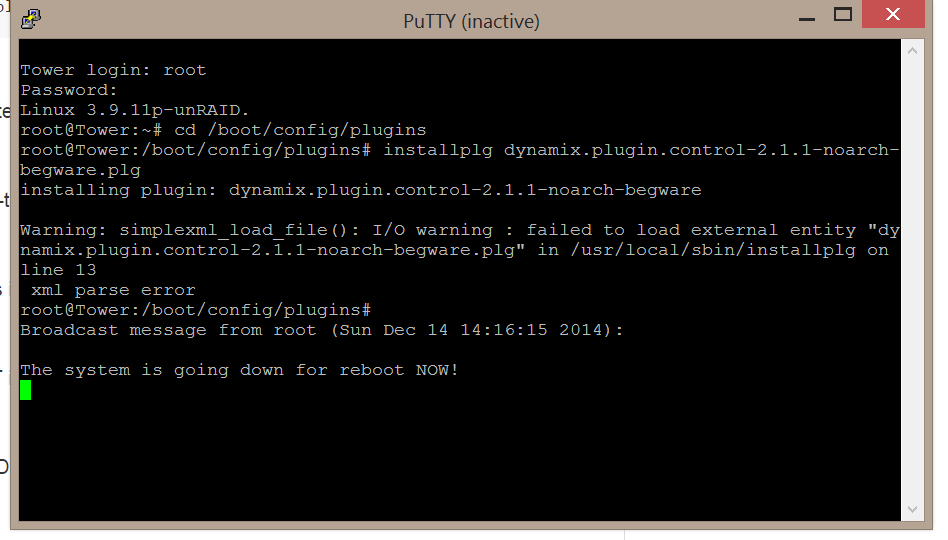

During the installation of the plugin control module, I get an error message in the Telnet session that indicates a Warning and a problem loading something.  I am attaching a screenshot.



Will this cause any problems?  I have now rebooted and do see the plugin control module.


Link to comment

This error means the downloaded plugin file is in the wrong format.



When getting files from github you need to download a "raw" version.



Go to the PLG file you want to download and have it opened in github, then right-click on the button "raw" and select "save link as".



Link to comment

This error means the downloaded plugin file is in the wrong format.



When getting files from github you need to download a "raw" version.



Go to the PLG file you want to download and have it opened in github, then right-click on the button "raw" and select "save link as".



I started again from just the GUI and did as you instructed.  That time, the installation went well and completed with no errors.  Not sure what I did wrong the first time. I followed the instructions under the heading "Optional Plugins" and right clicked, save as, the link listed.



Thank you.

Link to comment

Well, spoke too soon....again.



The GUI and plugin module installation and operation was fine.  I then proceeded to install a few of the plugins, via the Dynamix console and started having freezing with the GUI again.  The problems has started for me when making changes in the e-mail, cache directories, and S-3 modules.  Not always, not at the same time....strange.



I have been at this process for over a day and am worn our trying to get everything to work properly.  For now I'm waving the white flag.



For the time being have gone back to the basic 5.0.6 GUI and the array is working just fine.  Not sure where the problem lies, but taking too much time. Lot's of those features in Dynamix seem nice to have, but on my system it has been troublesome to get it to work properly.



Thank you for your help.  I'll revisit this option at a later date.

Link to comment

Maybe easiest is to download these two zip files



1. webGui                https://github.com/bergware/dynamix/raw/master/download/dynamix.webgui.zip

2. plugin control      https://github.com/bergware/dynamix/raw/master/download/dynamix.plugin.control.zip



Unzip (1) and place the file in /boot/plugins

Unzip (2) and place the file in /boot/config/plugins



Reboot your system and both webGui and plugin control should get installed. From plugin control you can install other optional plugins using the GUI.



Link to comment

Maybe easiest is to download these two zip files



1. webGui                https://github.com/bergware/dynamix/raw/master/download/dynamix.webgui.zip

2. plugin control      https://github.com/bergware/dynamix/raw/master/download/dynamix.plugin.control.zip



Unzip (1) and place the file in /boot/plugins

Unzip (2) and place the file in /boot/config/plugins



Reboot your system and both webGui and plugin control should get installed. From plugin control you can install other optional plugins using the GUI.



I had been able to install those to files successfully.  It was later in the process, when installing other plugins via the Dynamix GUI console that I had problems.  Thank you for all your help.

Link to comment

I just did the upgrade to version 5.0.6 with the dynamix plugin installed as per the instructions I found (downloaded two zip files from github and put the contents of one in /boot/plugins, and one in /boot/config/plugins)  During the boot process the console reported a lot of warning messages pertaining to certificate names and authority, but the boot completed by finally running my GO script.



I http'ed into the Tower and was greeted by the Dynamix system.  Very Nice!!  It took me a few minutes to feel my way around but no issues



I am just curious about all the warning messages. I assume they might be in the syslog and if someone tells me how to retrieve them I can post them.



Thanks for all the assistance



Barry

Link to comment

I just did the upgrade to version 5.0.6 with the dynamix plugin installed as per the instructions I found (downloaded two zip files from github and put the contents of one in /boot/plugins, and one in /boot/config/plugins)  During the boot process the console reported a lot of warning messages pertaining to certificate names and authority, but the boot completed by finally running my GO script.



I http'ed into the Tower and was greeted by the Dynamix system.  Very Nice!!  It took me a few minutes to feel my way around but no issues



I am just curious about all the warning messages. I assume they might be in the syslog and if someone tells me how to retrieve them I can post them.



Thanks for all the assistance



Barry



If they were all certificate related, then they were harmless.

Link to comment
  • Squid locked this topic
Guest
This topic is now closed to further replies.
