mount problem is still happening any ideas badger? its been booted for 4+ hours.



Do you have an ip address?



ip add



Can you ping "tower"?



ping tower



Can you ping the ip address of "tower"?



ping X.X.X.X <--- Whatever that is



If you have an IP and can ping the IP Address of "Tower"...



showmount -e <--- Whatever that is



Post back with what you find.



Link to comment

@Badger and Shortbus, Thanx for the reply's!



I just changed my unraid network.cfg and arch.cfg to  reflect "br0" instead of "xenbr0"  and rebooted the unraid machine.  (figured maybe it didnt link xenbr0...)



Same problem see below:



login as: root
root@192.168.2.111's password:
Last login: Mon Feb  3 17:52:11 2014 from office

               +                OS: Arch Linux x86_64
               #                Hostname: ArchApplianceVM
              ###               Kernel Release: 3.12.9-2-ARCH
             #####              Uptime: 0:01
             ######             WM: None
            ; #####;            DE: None
           +##.#####            Packages: 159
          +##########           RAM: 121 MB / 1998 MB
         #############;         Processor Type: Six-Core AMD Opteron(tm) Processor 2419 EE
        ###############+        $EDITOR: nano
       #######   #######        Root: 1.2G / 14G (8%) (ext4)
     .######;     ;###;`".
    .#######;     ;#####.
    #########.   .########`
   ######'           '######
  ;####                 ####;
  ##'                     '##
#'                         `#

[root@ArchApplianceVM ~]# showmount tower -e
clnt_create: RPC: Unknown host
[root@ArchApplianceVM ~]# ping google.com
PING google.com (74.125.224.166) 56(84) bytes of data.
64 bytes from lax02s01-in-f6.1e100.net (74.125.224.166): icmp_seq=1 ttl=55 time=30.7 ms
64 bytes from lax02s01-in-f6.1e100.net (74.125.224.166): icmp_seq=2 ttl=55 time=27.5 ms
^C
--- google.com ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 27.512/29.111/30.711/1.608 ms
[root@ArchApplianceVM ~]# ping 192.168.2.1
PING 192.168.2.1 (192.168.2.1) 56(84) bytes of data.
64 bytes from 192.168.2.1: icmp_seq=1 ttl=64 time=0.383 ms
64 bytes from 192.168.2.1: icmp_seq=2 ttl=64 time=0.383 ms
^C
--- 192.168.2.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.383/0.383/0.383/0.000 ms
[root@ArchApplianceVM ~]# ping 192.168.2.4
PING 192.168.2.4 (192.168.2.4) 56(84) bytes of data.
64 bytes from 192.168.2.4: icmp_seq=1 ttl=64 time=0.075 ms
64 bytes from 192.168.2.4: icmp_seq=2 ttl=64 time=0.119 ms
^C
--- 192.168.2.4 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 999ms
rtt min/avg/max/mdev = 0.075/0.097/0.119/0.022 ms
[root@ArchApplianceVM ~]# ping tower
ping: unknown host tower
[root@ArchApplianceVM ~]# showmount -e
Export list for ArchApplianceVM:
[root@ArchApplianceVM ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.111/24 brd 192.168.2.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::216:3eff:fe01:4578/64 scope link
       valid_lft forever preferred_lft forever
[root@ArchApplianceVM ~]# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
[root@ArchApplianceVM ~]#



FYI i dont know if its helpfull but i do have 2 nics in the host unraid machine.

root@Tower:/mnt/cache/.custom/VMs/ArchVM# ifconfig
br0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.2.4  netmask 255.255.255.0  broadcast 192.168.2.255
        ether 00:30:48:c5:e3:c8  txqueuelen 0  (Ethernet)
        RX packets 10241  bytes 2687045 (2.5 MiB)
        RX errors 0  dropped 113  overruns 0  frame 0
        TX packets 12878  bytes 5581053 (5.3 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth0: flags=4419<UP,BROADCAST,RUNNING,PROMISC,MULTICAST>  mtu 1500
        ether 00:30:48:c5:e3:c8  txqueuelen 1000  (Ethernet)
        RX packets 10771  bytes 3001577 (2.8 MiB)
        RX errors 0  dropped 1  overruns 0  frame 0
        TX packets 13683  bytes 5627081 (5.3 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1: flags=4419<UP,BROADCAST,RUNNING,PROMISC,MULTICAST>  mtu 1500
        ether 00:30:48:c5:e3:c9  txqueuelen 1000  (Ethernet)
        RX packets 1439  bytes 242719 (237.0 KiB)
        RX errors 0  dropped 1  overruns 0  frame 0
        TX packets 1  bytes 52 (52.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        loop  txqueuelen 0  (Local Loopback)
        RX packets 21971  bytes 7254946 (6.9 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 21971  bytes 7254946 (6.9 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

vif1.0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        ether fe:ff:ff:ff:ff:ff  txqueuelen 32  (Ethernet)
        RX packets 972  bytes 139063 (135.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1509  bytes 244965 (239.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



Link to comment

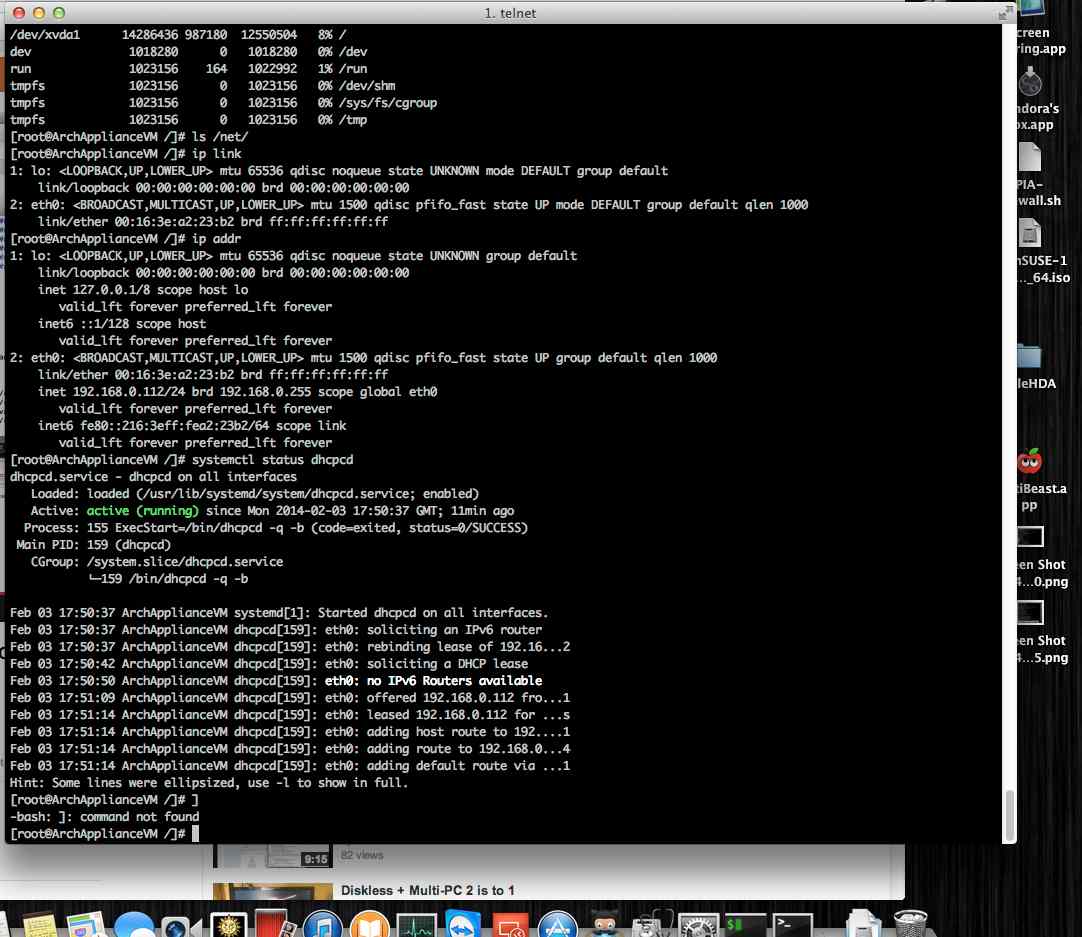

Hi,



DL the ArchVM_020114.zip



Its booted fine, but I do not see anything on /net



And this command ]  not work, maybe I use swedish keyboard, need to use ctrl key.....





config file

root@tower:/mnt/cache/Xen/ArchVM# more arch.cfg
name = "archVM"
bootloader = "pygrub"
memory = 2048
#vcpus = 2
disk = [
        'phy:/mnt/cache/Xen/ArchVM/arch.img,xvda,w',
#       'phy:/mnt/user/Movie/,xvdb,w'
        ]
vif = [ 'mac=00:16:3e:a2:23:b2,bridge=xenbr0' ]
bootloader = "pygrub"


Link to comment

Hi,



DL the ArchVM_020114.zip



Its booted fine, but I do not see anything on /net



And this command ]  not work, maybe I use swedish keyboard, need to use ctrl key.....





config file

root@tower:/mnt/cache/Xen/ArchVM# more arch.cfg
name = "archVM"
bootloader = "pygrub"
memory = 2048
#vcpus = 2
disk = [
        'phy:/mnt/cache/Xen/ArchVM/arch.img,xvda,w',
#       'phy:/mnt/user/Movie/,xvdb,w'
        ]
vif = [ 'mac=00:16:3e:a2:23:b2,bridge=xenbr0' ]
bootloader = "pygrub"



1. It is Ctrl + ] to escape the VM console.



2. You won't see anything under /net until you tell it where to look.



ls /net/Tower/  <--- this will show you /mnt if it worked

Link to comment

[root@ArchApplianceVM ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.111/24 brd 192.168.2.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::216:3eff:fe01:4578/64 scope link
       valid_lft forever preferred_lft forever



What am I missing? Does it not have an IP of 192.168.2.111 ? Looks like it works to me...

Link to comment

it does have a ip of 192.168.2.111 yes



[root@ArchApplianceVM ~]# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAU  group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP  de DEFAULT group default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
[root@ArchApplianceVM ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group defa t
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP  oup default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.111/24 brd 192.168.2.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::216:3eff:fe01:4578/64 scope link
       valid_lft forever preferred_lft forever

Link to comment

FYI smbclient see the shares...



[root@ArchApplianceVM ~]# smbclient -L 192.168.2.4 -U%
params.c:OpenConfFile() - Unable to open configuration file "/etc/samba/smb.conf":
        No such file or directory
smbclient: Can't load /etc/samba/smb.conf - run testparm to debug it
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Sharename       Type      Comment
        ---------       ----      -------
        BIN             Disk
        flash           Disk      Flash share
        disk1           Disk      Disk share
        disk2           Disk      Disk share
        disk3           Disk      Disk share
        cache           Disk      Disk share
        Data            Disk
        IPC$            IPC       IPC Service (Media server)
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Server               Comment
        ---------            -------
        TOWER                Media server

        Workgroup            Master
        ---------            -------
        WORKGROUP
[root@ArchApplianceVM ~]#

Link to comment

it does have a ip of 192.168.2.111 yes



[root@ArchApplianceVM ~]# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAU  group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP  de DEFAULT group default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
[root@ArchApplianceVM ~]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group defa t
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP  oup default qlen 1000
    link/ether 00:16:3e:01:45:78 brd ff:ff:ff:ff:ff:ff
    inet 192.168.2.111/24 brd 192.168.2.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::216:3eff:fe01:4578/64 scope link
       valid_lft forever preferred_lft forever



So, forgive me. But what's the problem?

Link to comment

Thanks, now I see my share  :D



//Peter

@ironicbadger

It show my NFS share, but now I like to see my samba share, but thats maybe is not implemented yet  ;)



Thanks for exelent WORK!

//Peter



I've been consumed with XBMC today, but if you want to have a go at doing it yourself and then sharing the resulting auto.master file I can add it to the next build.



https://wiki.archlinux.org/index.php/autofs#Samba

Link to comment

I thought the Arch img was supposed to auto mount the shares?



I can manually mount it via

[root@ArchApplianceVM ~]# smbclient -L 192.168.2.4 -U%
params.c:OpenConfFile() - Unable to open configuration file "/etc/samba/smb.conf":
        No such file or directory
smbclient: Can't load /etc/samba/smb.conf - run testparm to debug it
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Sharename       Type      Comment
        ---------       ----      -------
        BIN             Disk
        flash           Disk      Flash share
        disk1           Disk      Disk share
        disk2           Disk      Disk share
        disk3           Disk      Disk share
        cache           Disk      Disk share
        Data            Disk
        IPC$            IPC       IPC Service (Media server)
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Server               Comment
        ---------            -------
        TOWER                Media server

        Workgroup            Master
        ---------            -------
        WORKGROUP
[root@ArchApplianceVM ~]# showmount -e
Export list for ArchApplianceVM:
[root@ArchApplianceVM ~]# mkdir /mnt/tower
[root@ArchApplianceVM ~]# ls
[root@ArchApplianceVM ~]# mount -t cifs //Tower/Data/ /mnt/tower/ -o user=jsviverette,workgroup=WORKGROUP,ip=192.168.2.4
Password for jsviverette@//Tower/Data/:
[root@ArchApplianceVM ~]# cd /mnt/tower/
[root@ArchApplianceVM tower]# ls
Android  Apps  Books  Games  Misc  Movies  Music  Pictures and Home Vids  TV
[root@ArchApplianceVM tower]#



But isnt it supposed to do this for me?  The part 4 video guide covered nothing about manually mounting it, in the end its mounted and im happy but just seems like something is off / shoutmount = broken "clnt_create: RPC: Unknown host"

Link to comment

IronicBadger, thanks again for providing the ArchVM image! It may not be mandatory, I just went through the process of changing LOCALE and Time Zone on the image you created. Others may want to do likewise; if so here's the poop scoop:



For LOCALE: https://wiki.archlinux.org/index.php/Beginners'_Guide#Locale

the image is set for en_GB and one can use ^W while in nano to search for the string



For TIME ZONE: https://wiki.archlinux.org/index.php/Beginners'_Guide#Time_zone

since there's already a symbolic link in the image use "rm /etc/localtime" before adding the one for your time zone. I believe there's no reason to worry about HW clock

Link to comment

I thought the Arch img was supposed to auto mount the shares?



I can manually mount it via

[root@ArchApplianceVM ~]# smbclient -L 192.168.2.4 -U%
params.c:OpenConfFile() - Unable to open configuration file "/etc/samba/smb.conf":
        No such file or directory
smbclient: Can't load /etc/samba/smb.conf - run testparm to debug it
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Sharename       Type      Comment
        ---------       ----      -------
        BIN             Disk
        flash           Disk      Flash share
        disk1           Disk      Disk share
        disk2           Disk      Disk share
        disk3           Disk      Disk share
        cache           Disk      Disk share
        Data            Disk
        IPC$            IPC       IPC Service (Media server)
Domain=[WORKGROUP] OS=[unix] Server=[samba 4.0.9]

        Server               Comment
        ---------            -------
        TOWER                Media server

        Workgroup            Master
        ---------            -------
        WORKGROUP
[root@ArchApplianceVM ~]# showmount -e
Export list for ArchApplianceVM:
[root@ArchApplianceVM ~]# mkdir /mnt/tower
[root@ArchApplianceVM ~]# ls
[root@ArchApplianceVM ~]# mount -t cifs //Tower/Data/ /mnt/tower/ -o user=jsviverette,workgroup=WORKGROUP,ip=192.168.2.4
Password for jsviverette@//Tower/Data/:
[root@ArchApplianceVM ~]# cd /mnt/tower/
[root@ArchApplianceVM tower]# ls
Android  Apps  Books  Games  Misc  Movies  Music  Pictures and Home Vids  TV
[root@ArchApplianceVM tower]#



But isnt it supposed to do this for me?  The part 4 video guide covered nothing about manually mounting it, in the end its mounted and im happy but just seems like something is off / shoutmount = broken "clnt_create: RPC: Unknown host"



It doesn't yet auto mount samba. It does automount NFS.



You could edit the VMs /etc/fstab file to make the samba stick between reboots. I installed the relevant samba utils, just didn't configure them to automount. That's why it works manually.

Link to comment

Tracking, how do i get it to automount NFS. I used samba as a work around because i could not get NFS to work.



cd /net/Tower/mnt/user/nameofshare



Update Tower to match your servers name. Also to see what shares are available run



showmount Tower -e



Example...



root@Tower:~# showmount unraid -e
Export list for unraid:
/mnt/user/Media *

Link to comment

thats whats not working



[root@ArchApplianceVM .custom]# showmount Tower -e
clnt_create: RPC: Unknown host
[root@ArchApplianceVM .custom]# cd /net/Tower/mnt/user/Data
-bash: cd: /net/Tower/mnt/user/Data: No such file or directory
[root@ArchApplianceVM .custom]# cd /net/Tower/
-bash: cd: /net/Tower/: No such file or directory



tower is my server name =)

Link to comment

No just arch.img not sure what the zip file was called, i downloaded it last night...



also



1. i have my plex lib on my unraid cache drive, do you have a good example on how to symlink the databases with the pacman installed version of plex?

2. Is there a way to make the arch img bigger (expand it)



Link to comment

No just arch.img



also



1. i have my plex lib on my unraid cache drive, do you have a good example on how to symlink the databases?

2. Is there a way to make the arch img bigger (expand it)



Symlink is



ln -sf <source> <target>



The Arch img is fixed. I can make a bigger one if you want, but I'm also experimenting with making the /home directory independent of the rootfs (the OS) so you could potentially mount the /home dir via NFS to an unraid share. Not sure how well that'll work due to the network delay at start (same for every VM regardless of VM).

Link to comment
Guest
This topic is now closed to further replies.
