Select safe mode in the boot menu.

On 7/2/2023 at 8:44 AM, PicPoc said:

Hi !
I use Dynamix System Stats and it's a really nice program ! thanks.
I wanted to know how change values of bars for discs :
-On a machine I have only one disc and it looks like this :

-I wanted to see bigger like this :

Is it possible ?
Thanks !



I'm on unraid v6.9.2.

Bonienl doesn't read this thread : How can I hack to modify this app ?

Where are files ?

Thanks !

Edited October 11, 20233 yr by PicPoc

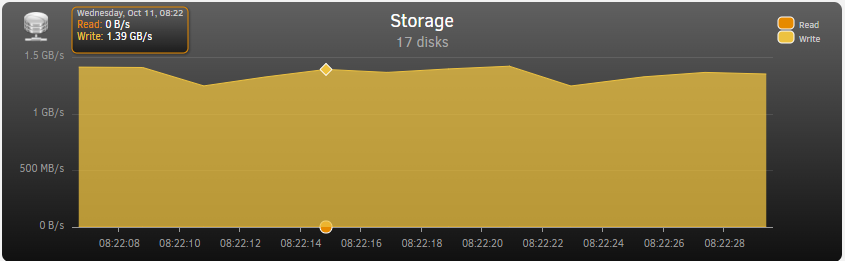

Write seems to be read on the storage plot and read is always zero. It shows this:

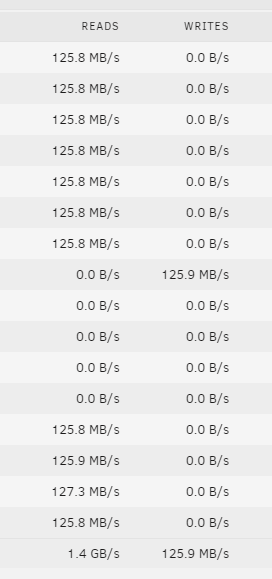

But my array is doing this:



My Installed Version is 2023.02.14.

Bonienl doesn't read this thread : How can I hack to modify this app ?
Where are files ?
Thanks !

First of all there is no need to HACK here! These plugins are all open source. If you look on page 1 there is a link to the repo, download the plugin (not app) and modify away

System Temp - Would it be possible to add the ability to label the fans? So the tooltips hover info says a custom word.



For example for me only 1x of these fans is the array. The others are CPU, HBA & Exhaust Fan.

On 7/2/2023 at 8:44 AM, PicPoc said:

Hi !
I use Dynamix System Stats and it's a really nice program ! thanks.
I wanted to know how change values of bars for discs :
-On a machine I have only one disc and it looks like this :

-I wanted to see bigger like this :

Is it possible ?
Thanks !



I'm on unraid v6.9.2.

I think it's here, but how can I modify it ?

# vi /usr/local/emhttp/plugins/dynamix.system.stats/SystemDisks.page

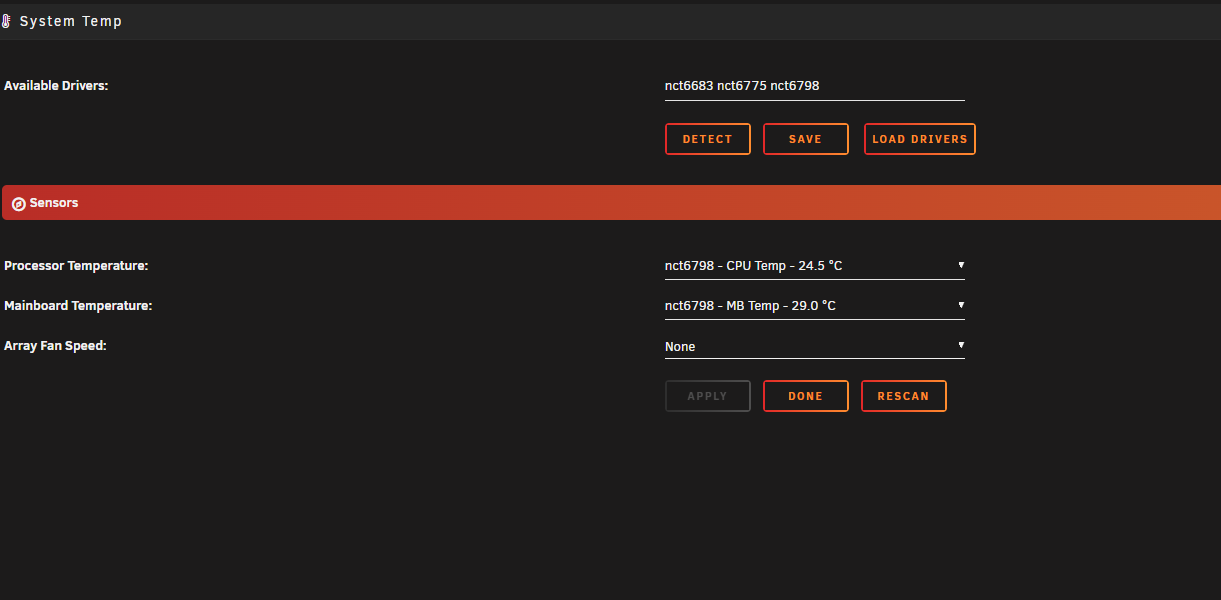

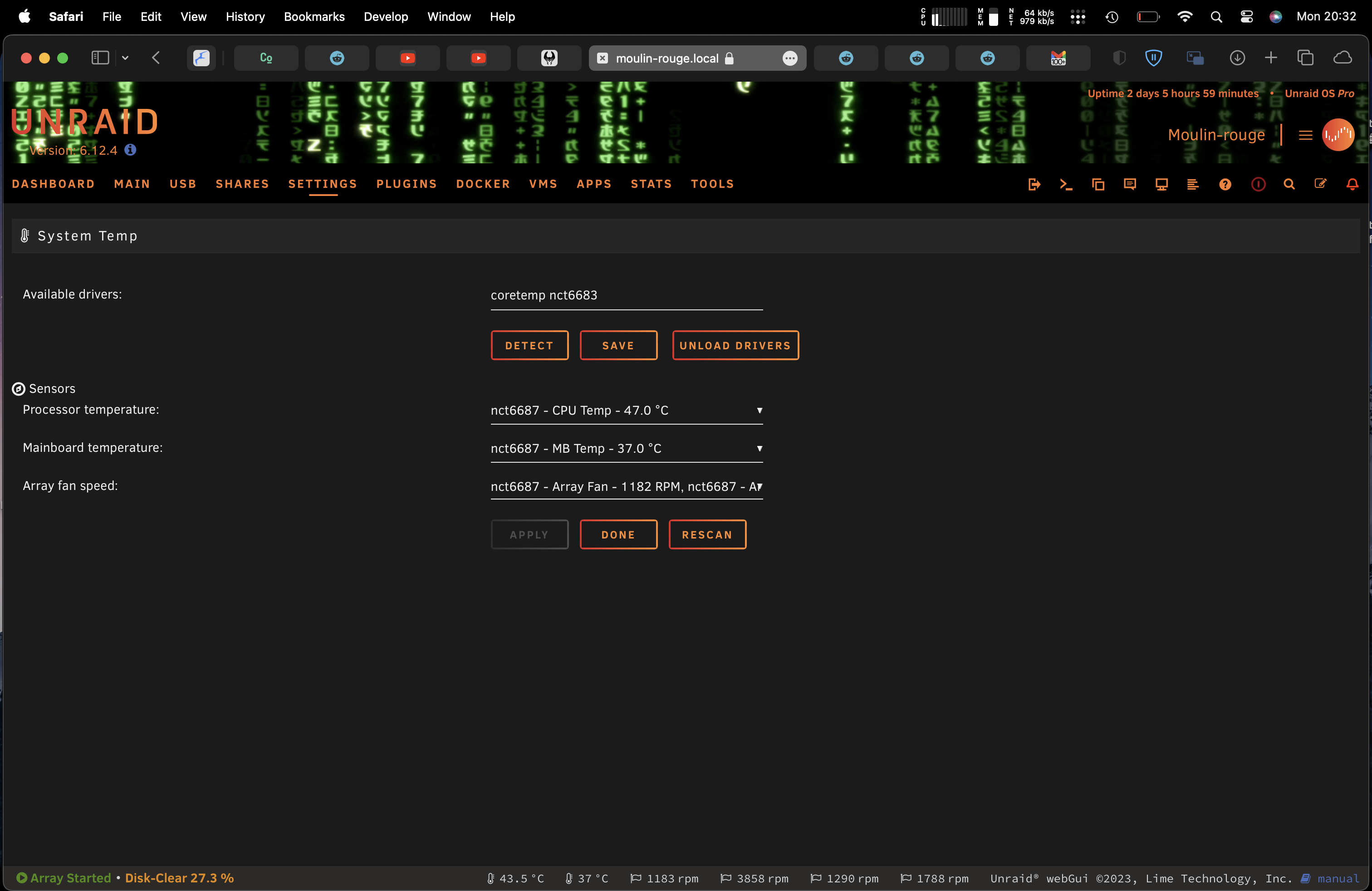

Hello Everybody,

I´ve a little stuck with a System Temp and Auto Fan Control on a B550 Taichi from Asrock. Maybe someone has already done it with this bord because after I changed from a MSI X470 nothing is working anymore  . The Problem is that the Fans are not shown in the “System temp” Plugin and that is needed to add the fans to the fan control plugin. With the old bord it was working perfectly but sadly now I only can control the fans in BIOS. Actually for the CPU Fan thats ok but i need to controll the HDD fans.



What I’ve done until now.

• reinstalled the System Temp Plugin (alot)
• reinstall Nerd Pack
• tipped Sensor Detect in the console and added the sensors with Mudprobe in the go file
• changed Bios fan settings to every possible setting
• Installed the Nuvoton NCT 6687 Driver pack

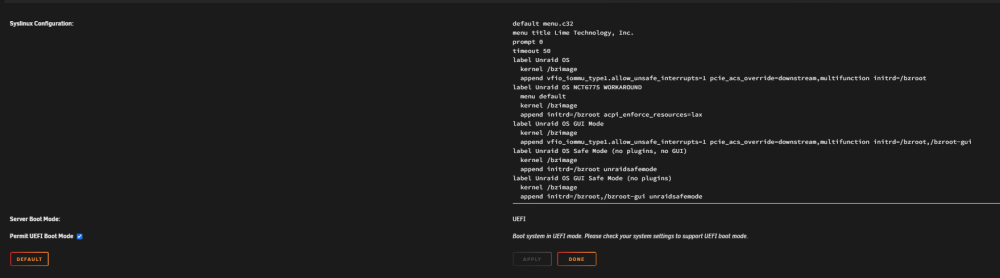

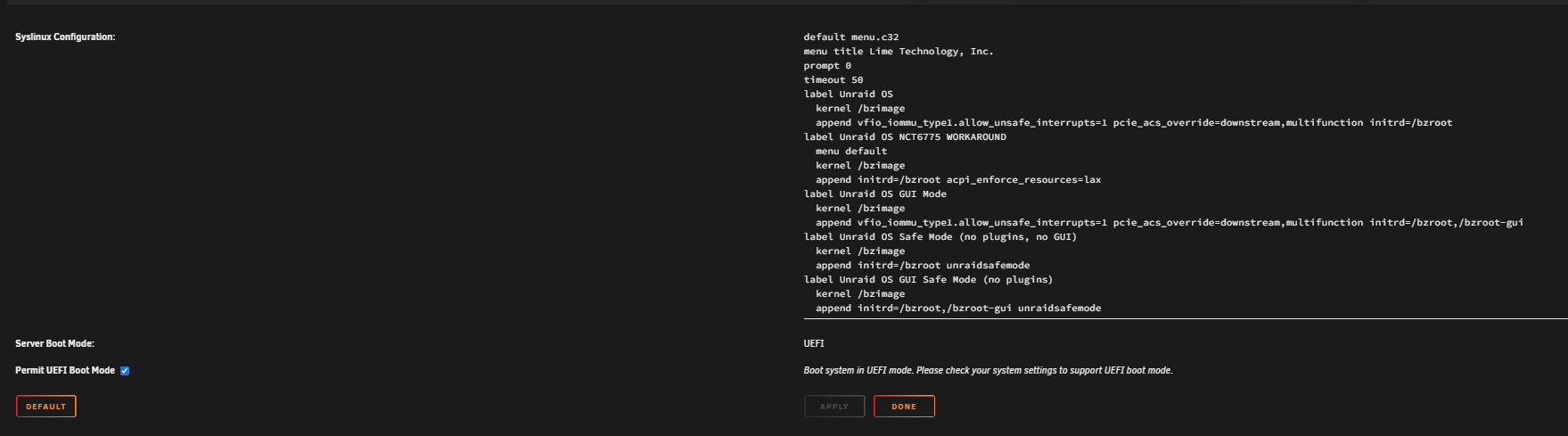

• Added "append initrd=/bzroot acpi_enforce_resources=lax" in the start sequenz of the flash drive
• Ask in the German forum
• Googled a lot.
• Attempt this workaround
• now asking in the Dynamx support Forum



Would be nice, if someone has some advice and could help me. I´m realy out of ideas









hanasselnas-diagnostics-20231029-1741.7z sensors-detect.txt

not sure why any of that is in your go file, not needed!



in system temp mlugin you need to hit save then load. then the fans should appear

i have said this a thousand times and i'll say it again NOT EVERY board will work! support depends on hwmon. BEFORE buying a new board make sure it has support!!!



older boards will be more likely to be supported!

Greetings.



I am attempting to get the System Temp and System Autofan to work for my ASUS Prime B450M motherboard. The program appears to be able to detect my CPU and SSD probes, but the MOBO temperature and fan controller is not appearing. I have tried to read through the topic in this rather dense form as well as I can but am hitting a barrier.



Running

sensors-detect

yields the following

Now follows a summary of the probes I have just done.
Just press ENTER to continue: y

Driver `to-be-written':
  * ISA bus, address 0x290
    Chip `ITE IT8655E Super IO Sensors' (confidence: 9)

Driver `k10temp' (autoloaded):
  * Chip `AMD Family 17h thermal sensors' (confidence: 9)

Note: there is no driver for ITE IT8655E Super IO Sensors yet.
Check https://hwmon.wiki.kernel.org/device_support_status for updates.

No modules to load, skipping modules configuration.



While it says that the IT8655E has no driver, I found a post in this thread showing that the it87 driver actually does support that chip. So I placed it87 and k10temp as lines in the drver.conf on the boot device for this plugin and now it87 & k10temp both show up under available drivers.



Unfortunately still no results for the fan controller or MOBO temperature. I also tried running this in the terminal

modprobe it87 ignore_resource_conflict=1



but I get the response

modprobe: ERROR: could not insert 'it87': No such device

Did I mess something up or miss a step here? I have not seen anyone else have that kind of response to that query.



Thank You,

Alex



Edit:

Nevermind - right after posting this I noticed that the IT87 driver was not listed in system drivers. After installing the it87 driver plugin it works. I'll leave this here in case it helps someone else though.

Edited November 4, 20232 yr by prophetic-honour1787

15 hours ago, spl147 said:

not sure why any of that is in your go file, not needed!



in system temp mlugin you need to hit save then load. then the fans should appear

Hey

The reason is that I have tried several different solutions before I ask in the forum. That's also the reason why my go file is filled with some stuff.

And Of course I tried to click save in the plugin and restart and so on. But still nothing.

15 hours ago, spl147 said:

i have said this a thousand times and i'll say it again NOT EVERY board will work! support depends on hwmon. BEFORE buying a new board make sure it has support!!!



older boards will be more likely to be supported!

That's totally understandable that not every board is working. No need to pronounce it in big. Could only be that someone In the whole unraid world has the same board and an advice or an idea to help.

On 9/25/2023 at 12:40 PM, alturismo said:

either you use your BIOS Fan Curve ... OR ... you use fan speed control here ...



so, if you dont use fan speed control here, your BIOS curve will follow its rules ... or you override your BIOS with this application (plugin). sample, your CPU Fan should only be setted in the BIOS as CPU Temp is no function of this plugin, on your array fans you CAN use it or you leave it ...

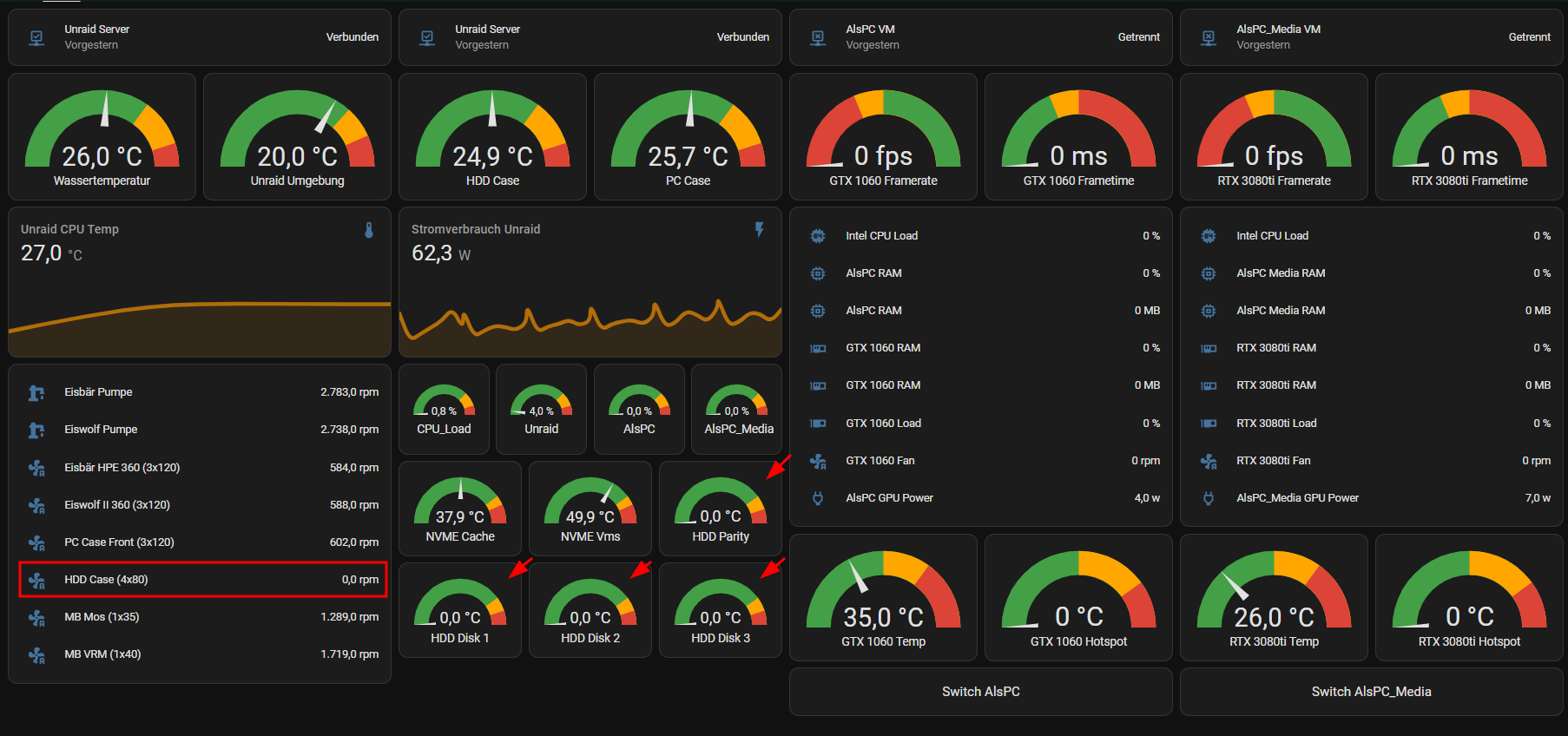

sample usage in my usecase, my HDD disks are in chamber nr. 2, i buildin 4 fans there (2x in, 2x out) and i wanted them to stop while my HDD's are in spindown ... no fan cooling necessarry in my case there.



sample as of now (array disks are in spindown and fans are off, controlled by autofan ...)



while all other fans here are not controlled by autofan as they have no reference to the HDD Temps ...



so in the end, its your choice ... just read what it does, think about it what you want and setup the way you want ...



How did you get all those readings into hassio? Did you make an endpoint/api in unraid to gather them from within hassio using a custom entity. I really would like to have something like that too - esp temp drive/cpu temps and if also if mover or parity check is active. Could you share (if not already - thread kinda huge) them?

10 hours ago, sjoerd said:

How did you get all those readings into hassio? Did you make an endpoint/api in unraid to gather them from within hassio using a custom entity. I really would like to have something like that too - esp temp drive/cpu temps and if also if mover or parity check is active. Could you share (if not already - thread kinda huge) them?

actually its a self made script using only buildin tools, i came up with this idea after i added HA on my Server, so i thought the important majot stuff can also be showed off in HA anyway instead using grafana (which i used before).

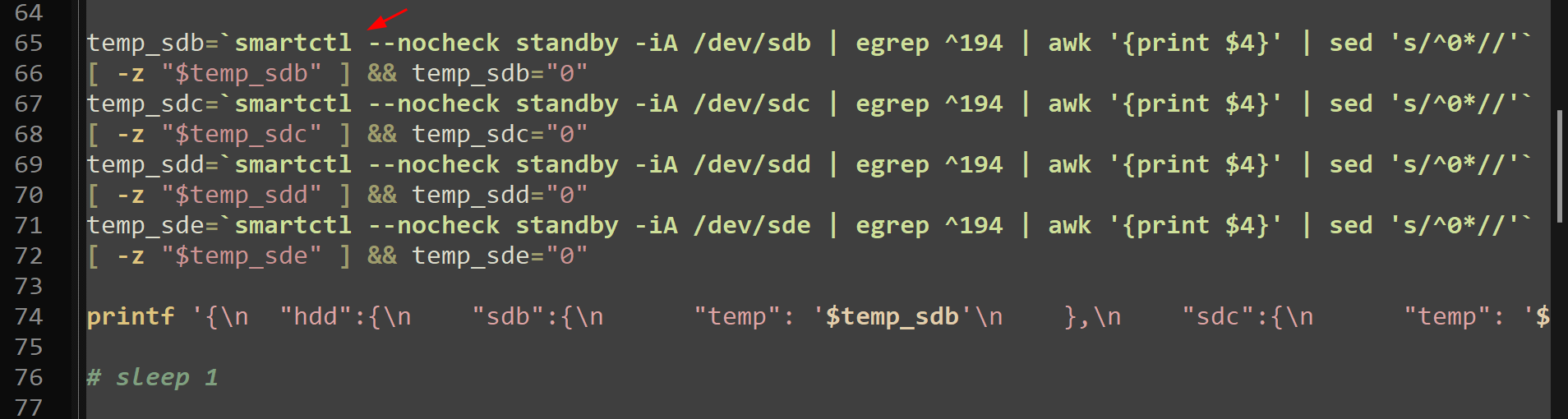

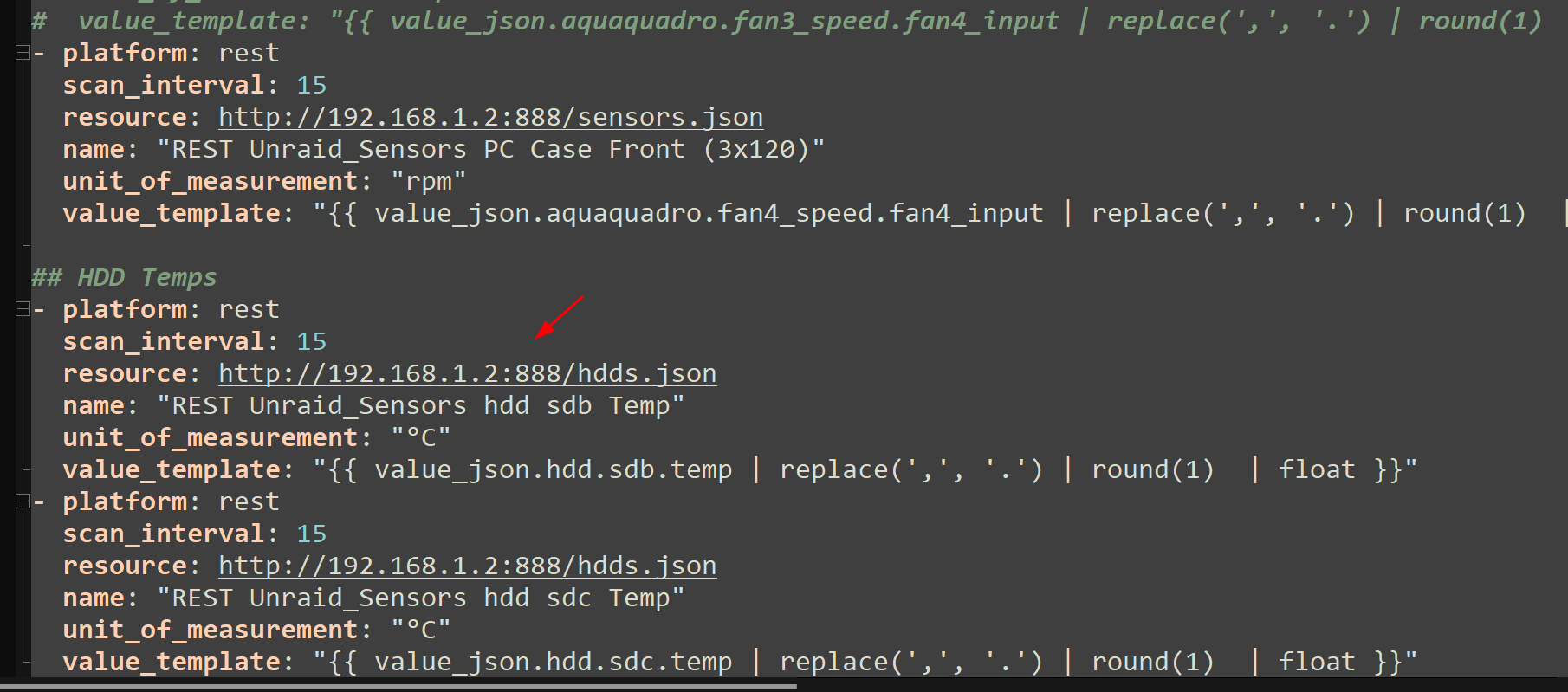

sample part about hdd temps, i use smartctl ... and write them into a json





which i then read in HA as sensors





so yes, already had some questions about this ... i need to find some time to make a readme, a sample and a bit more user friendly  then i could post it completely ...



in the end, its all done by a script with only standard unraid onboard utilities ...

Ahh yeah - I figured you did something like that, so I tried to find some documentation on that but failed (or my search failed). Thanks - Thx for the code-snippets. Good boilerplate to start with. I assume your unraid gui runs on 888 ?

Would be nice tho if you could post it when it's more user friendly.



Would also be awesome if the entire dashboard- and main-page are available in json format by default. Imagine what you can do with that. Not just for home assistant but also for arduino/esp you name it.



Edited November 8, 20232 yr by sjoerd

On 10/11/2023 at 7:25 AM, manofoz said:

Write seems to be read on the storage plot and read is always zero. It shows this:





But my array is doing this:



My Installed Version is 2023.02.14.



Same problem. Write is showing read speeds, and Read is always zero.



This is for the System Stats plugin

Edited November 10, 20232 yr by positronicP

New to unraid but have a basic configured box now.
Sensor to show me temps would be very handy, I know they are there on the .. don't laugh B75 chipset board .. .as I saw them when playing with OMV pre the decision to go with unraid.

On install the plugin gives me ##'s which I think means I need a config file "sensors.conf" and put it into "/boot/config" ??
? Does this file exist post install or do I need to write it
If not whats the format for it?

I'm assuming on the lines of


##############################################

chip "coretemp-*"



                label      temp1                  "CPU Chip Temperature"

                label      temp2                  "CPU Core 1 Temperature"

                label      temp3                  "CPU Core 2 Temperature





##############################################



And so on for the sensors required for display.



Thanks for any thoughts/guidance on this

15 hours ago, NickJ said:

Thanks for any thoughts/guidance on this

may start with unraid terminal



sensors-detect



just go through there ... and hope your sensors are recognized, beware, not all sensors are working nativ ...

is there a chance to modify the temperature script so it shows negative numbers?

My server is located outside in a shed and every winter i can not see the temperature because it goes below 0° celsius.

On 11/18/2023 at 6:22 PM, Aparass said:

My server is located outside in a shed and every winter i can not see the temperature because it goes below 0° celsius.

If you allow drives to spin down in the extreme cold, there is a risk of failure when they spin back up at those extremes. You need to insulate the server so that the case and drive internal temperatures stay moderate, or risk multi drive failure. Drives don't like extremes, too cold is just as bad as too hot.

3 hours ago, JonathanM said:

If you allow drives to spin down in the extreme cold, there is a risk of failure when they spin back up at those extremes. You need to insulate the server so that the case and drive internal temperatures stay moderate, or risk multi drive failure. Drives don't like extremes, too cold is just as bad as too hot.

This never spins down and the disks never go under 7° so that has not been any problem so far.

The machine runs fine in down to -20° and has done so for the last years but it only bothers me not to be able to see the cpu and motherboard temp when it goes below zero.

On 11/18/2023 at 8:22 PM, Aparass said:

is there a chance to modify the temperature script so it shows negative numbers?

My server is located outside in a shed and every winter i can not see the temperature because it goes below 0° celsius.

I was thinking about a backup to another physical location like my shed also but I have the opposite problem. Gets too hot from Nov-May.
Probably 50-60c inside easily on a hot sunny day.
One of those American plastic type ones. (I'm in the southern hemisphere)
Right next to the shed I have lan and power for the pool so would have been a good place apart from the extreme heat.
Super dry inside also.


On 11/3/2023 at 7:57 PM, Tidus1307 said:

Hello Everybody,

I´ve a little stuck with a System Temp and Auto Fan Control on a B550 Taichi from Asrock. Maybe someone has already done it with this bord because after I changed from a MSI X470 nothing is working anymore  . The Problem is that the Fans are not shown in the “System temp” Plugin and that is needed to add the fans to the fan control plugin. With the old bord it was working perfectly but sadly now I only can control the fans in BIOS. Actually for the CPU Fan thats ok but i need to controll the HDD fans.



What I’ve done until now.

• reinstalled the System Temp Plugin (alot)
• reinstall Nerd Pack
• tipped Sensor Detect in the console and added the sensors with Mudprobe in the go file
• changed Bios fan settings to every possible setting
• Installed the Nuvoton NCT 6687 Driver pack
• Added "append initrd=/bzroot acpi_enforce_resources=lax" in the start sequenz of the flash drive
• Ask in the German forum
• Googled a lot.
• Attempt this workaround
• now asking in the Dynamx support Forum



Would be nice, if someone has some advice and could help me. I´m realy out of ideas









hanasselnas-diagnostics-20231029-1741.7z 72.26 kB · 1 download sensors-detect.txt 10.64 kB · 3 downloads

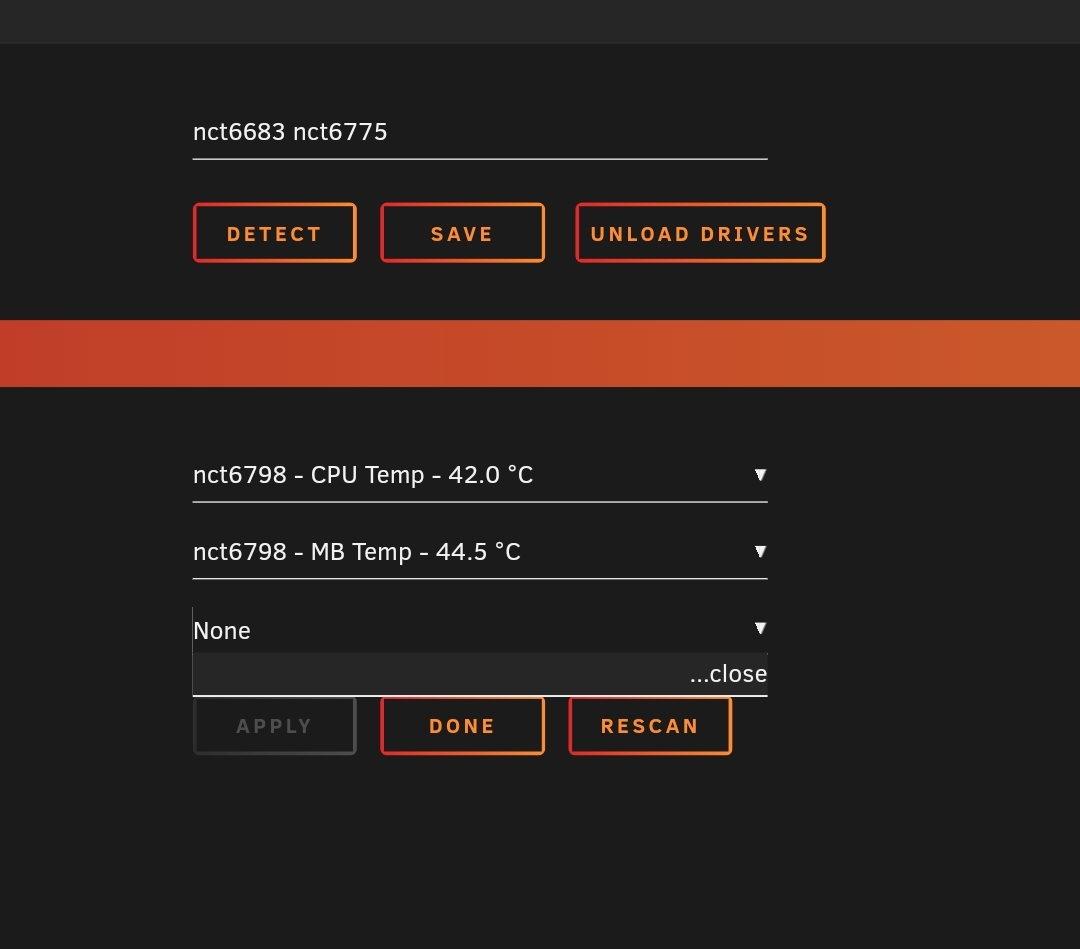

Got it runing, after the alot of trying.



Actually the BIOS was the issu. I testet 4 Versions but only 1,9 and lower worked out

My system log is filled with this message (every minute):

crond[1489]: exit status 255 from user root /usr/local/emhttp/plugins/dynamix/scripts/monitor &> /dev/null



I can't figure out what is causing it. I had a number of dynamix plugins but I've remove all of them except for Dynamix File Manager. Currently running 6.12.4. I can't say whether this was happening on 6.11 because I never looked at the log.



Any thought would be appreciated!





monitor is a built-in script and runs every minute.  You should create a new thread and include your diagnostics

is there support for the corsair core xt fan controller with AutoFan ?
