I'm following the sticky at the top of this sub "[Guide] Create a Windows 7 VM with Xen on unRAID 6"



Everything goes fine until after step 7.  I connect with VNC to see the VM trying to boot but failing to find a boot device.  The screen shows "Booting from cd/dvd" "Boot Failed: Could not read from CDROM (code 0004)".  It continues to look for a hard drive, network boot, fails, then retries in 60 seconds.  So it never boots off the Win7 iso so I can install windows.  I've tested the iso and it appears to be ok.  I presume I have a typo in a path or something but I can't find it.  I believe I named everything exactly the same as in the guide.





Here are my settings



unRAID v6.0b12



From inside putty

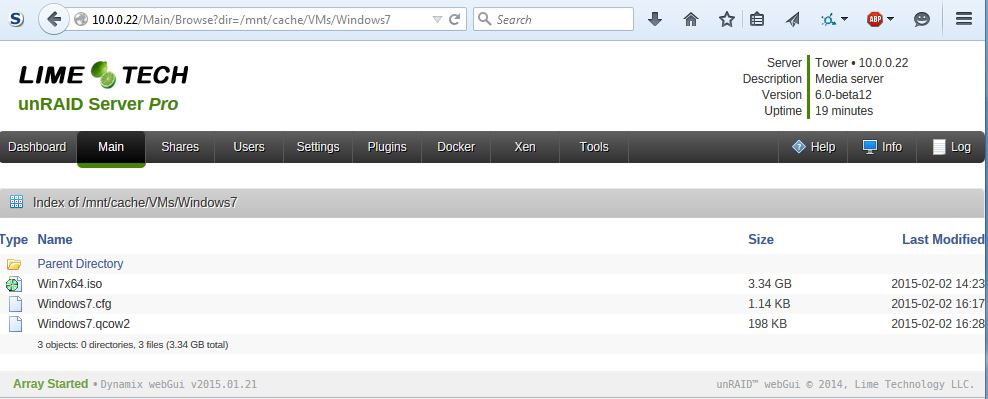

root@Tower:/mnt/cache/VMs/Windows7# dir
Win7x64.iso  Windows7.cfg  Windows7.qcow2



Windows7.cfg

name = "Windows7"
builder = "hvm"
# kernel = 'hvmloader' not needed.
# device_model_version = "qemu-xen-traditional" deprecated.

# You can adjust the vcpu and memory lines if you wish.
vcpus = 2
memory = 4096

# Win7x64.iso is the name of my ISO, change it to whatever yours is named.
# When your Windows 7 installation is complete, you can delete the reference to your ISO image below, which is this part:
#  , 'file:/mnt/cache/VMs/Windows7/Win7x64.iso,hdc:cdrom,r'
disk = ['qcow2:/mnt/cache/VMs/Windows7/Windows7.qcow2,hda,w' , 'file:/mnt/cache/VMs/Windows7/Win7x64.iso,hdc:cdrom,r']

# Note: Your bridge name (br0) needs to match the bridge name in the unRAID network settings.
vif = [ 'mac=00:16:3e:01:01:01,bridge=br0' ]

# When your Windows 7 installation is complete, change this to "c" so you don't boot with the DVD.
boot = "dc"

acpi = '1'
apic = '1'
viridian = '1'
xen_platform_pci = '1'
sdl = '0'
vnc = '1'

# This is the IP address of your unRAID server.
vnclisten = '10.0.0.22'

vncpasswd = 'fire'
stdvga=1
usb = '1'
usbdevice = 'tablet'
localtime = 1
on_poweroff = "destroy"
on_reboot = "restart"
on_crash = "destroy"

Nevermind



I used a different program, remade the iso, and I'm now installing windows
