unRAID OS Version: V6 RC 5



Description: When upgrading the UNRAID plugin in the WebGUI from RC3 to RC4, or RC5, after rebooting, VM manager shows that the VM's did not start. When you try to start the VM I get the following error: "Error: invalid argument: could not find capabilities for arch=x86_64 domaintype=(null)"

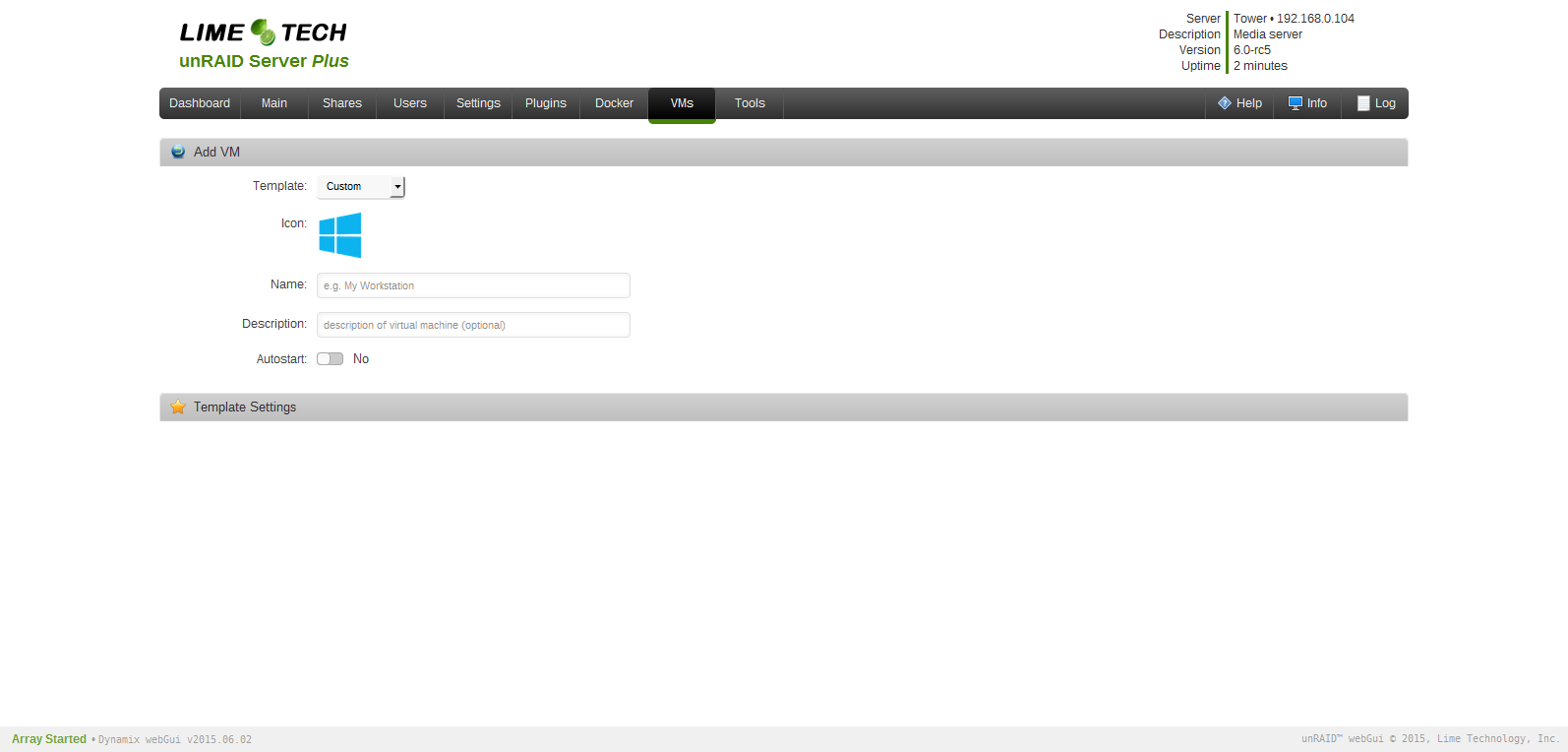

If you then try to add a new VM, the naming portion of the WebGUI is present, but the template section is blank (see attached Screen Capture). The only way I could resolve was to go back to RC3.



How to reproduce:

- Have RC3 running with VM running (windows 7)

- upgrade using WebGUI to RC4 or RC5

- reboot UNRAID

- VM's will not boot

- Cannot add VM's either



Expected results: VM's would run, and new VM's could be added.



Actual results: VM's won't run, can't add new VM's



Other information: VM XML:

<domain type='kvm'>
  <name>WIN7_SERVER</name>
  <uuid>898ae8b5-ae3b-dfb7-cd2b-fc27b125da15</uuid>
  <metadata>
    <vmtemplate name="Custom" icon="windows7.png" os="windows7"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <locked/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.3'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/bin/qemu-system-x86_64</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='none' io='native'/>
      <source file='/mnt/cache/appdata/vbox/WIN7_SERVER/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/Media/ISOs/en_windows_7_professional_x64_dvd_X15-65805.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/Media/ISOs/virtio-win-0.1.96.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='pci' index='1' model='pci-bridge'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </controller>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:19:0f:c8'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target port='0'/>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/WIN7_SERVER.org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'/>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='vmvga' vram='16384' heads='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <hostdev mode='subsystem' type='usb' managed='yes'>
      <source>
        <vendor id='0x051d'/>
        <product id='0x0002'/>
      </source>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='yes'>
      <source>
        <vendor id='0x03f0'/>
        <product id='0x2a12'/>
      </source>
    </hostdev>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
</domain>

syslog please

Attached...

syslog.txt

Upon removing all plugins, the VM's are now loading, as are the template settings in VM Manager. I am slowing adding plugins back until I get the same result. Will post back.

Your syslog indicates you had control panel plugin installed. Don't install that again. And don't install any 32-bit plugins.

Thanks trurl,



Control panel had been left over from a previous setup and I had not removed it correctly.



Everything seems to be working now
