AOC-SAS2LP-MV8 no recognizing drives in unRaid

gillman99
in Storage Devices and Controllers

Featured Replies

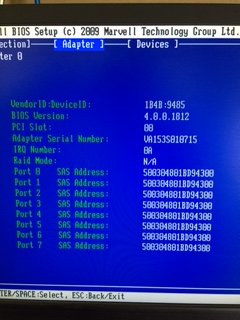

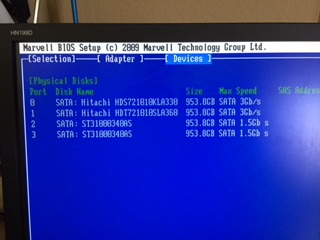

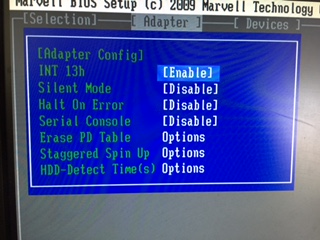

I just bought an AOC-SAS2LP-MV8 to replace a x4 card and was hoping it was plug and play.  It looks like the SuperMicro card recognizes the drives, but unraid does not.  I've attached some screenshots of the card BIOS.  Any ideas where to look to resolve this?






  • Quote
    • Author

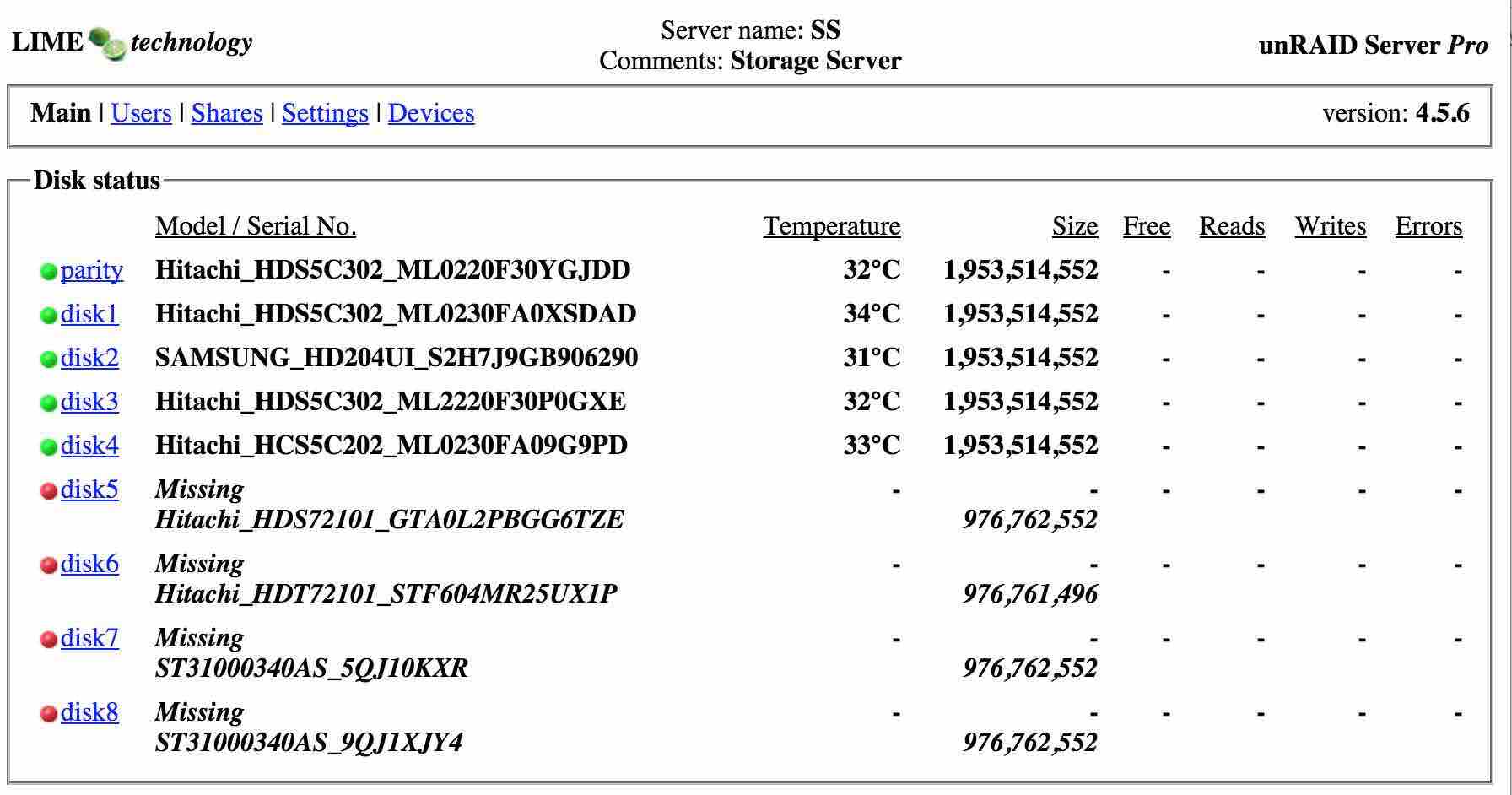

    Some additional information on my box.  I'm using a forward breakout cable to connect to individual drives.  Attached is my raid configuration and you'll notice disk5 - 8 are not recognized.


  • Quote

    You need to upgrade to v5 or v6, v4 doesn't support that card.



  • Quote

    • Archived

    This topic is now archived and is closed to further replies.
