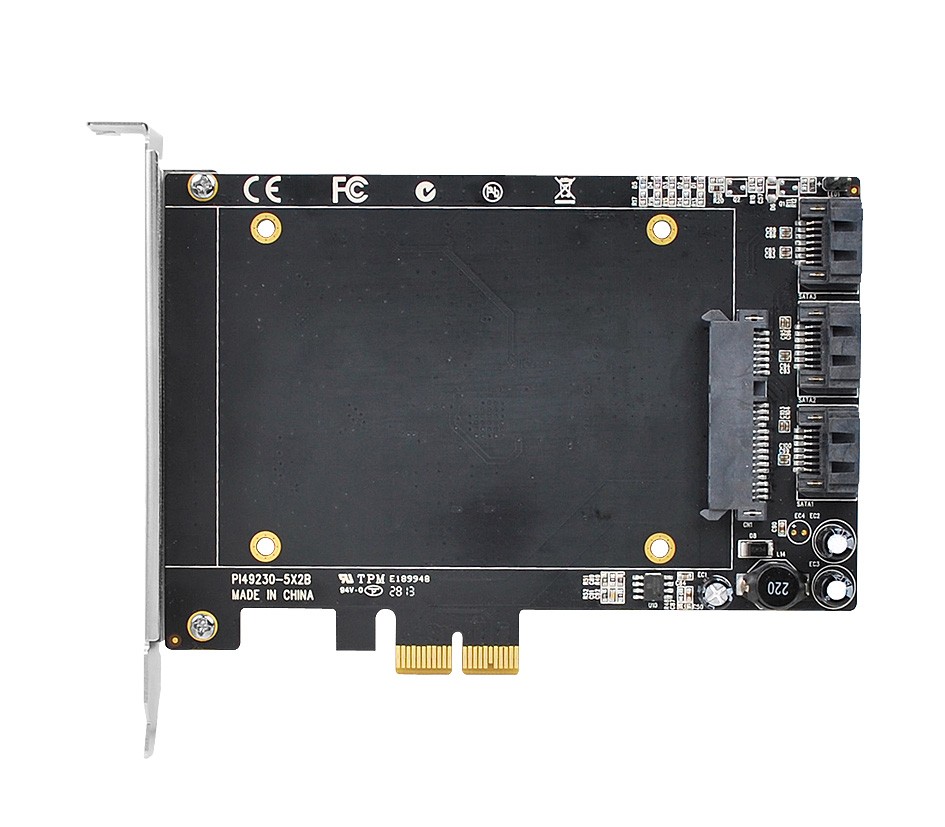

July 18, 201510 yr Description: 3+1 port sata3 pcie controller card with ssd mount as the 4th port, supports up to 4tb drives Price: $79.97 Chipset: Marvell 88SE9230 Tested Unraid Version: unRAID Server Pro version 5.0.4 Manufacturer URL: http://www.siig.com/it-products/controllers-storage/serialata/pcie/sata-6gb-s-3i-1-ssd-hybrid-pcie.html Purchase URL: http://www.frys.com/product/8142495?site=sr:SEARCH:MAIN_RSLT_PG unRAID v5.0.4: Required Configuration: None, worked out of the box Notes: no configuration needed for JBOD, plugged the card and drives in and turned on the server, done. unRAID v6.0.1: Required Configuration: Disable IOMMU in the bios. Notes: Turned off the directed I/O portion of virtualization, VT-d on Intel and AMD-Vi on AMD. or in my case "IOMMU". Please see "http://lime-technology.com/forum/index.php?topic=40683.0" and "https://bugzilla.kernel.org/show_bug.cgi?id=42679" for more information on the bug. TLDR; 3/+1 SSD port sata3 PCIe controller card working out of the box as JBOD with no configuration needed for unRAID 5.0.4 and minimal bios configuration for 6.0.1
