Openelec install issue

[rhinoman]

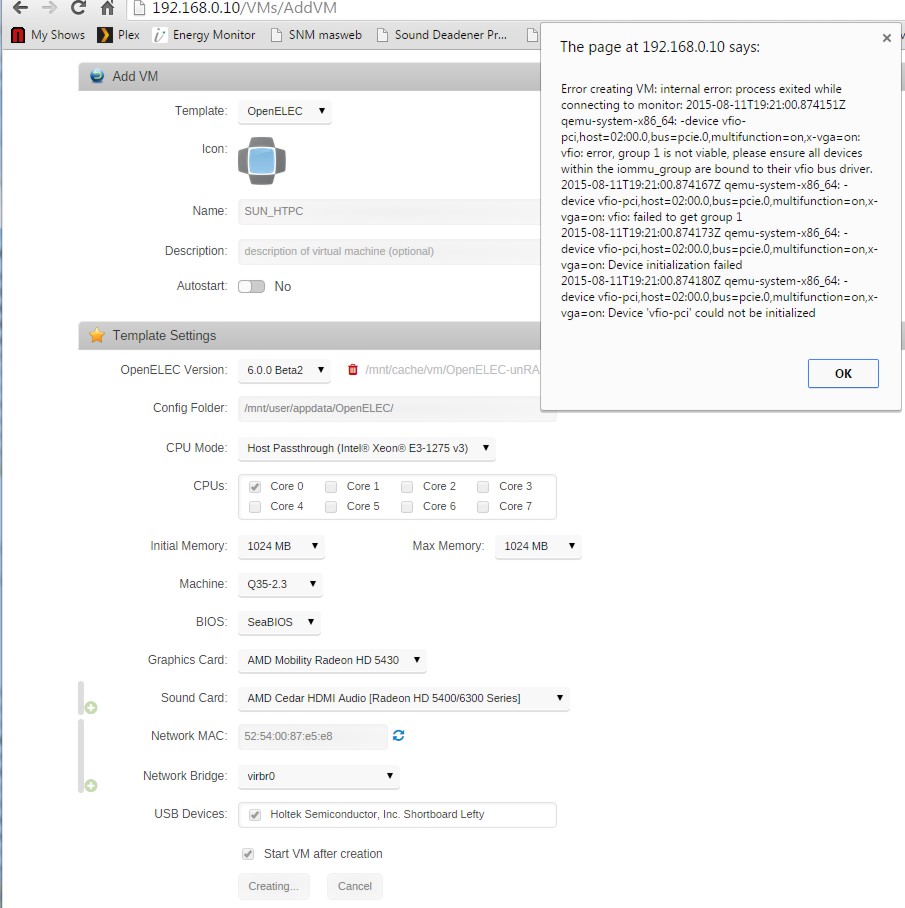

Trying to install the official Limetech Openelec VM and I'm getting an error creating the VM, jpeg is attached. Is this my graphics card not compatible?

[saarg]

Your graphics card is in a group with other devices, so you aren't able to pass it through it looks like. You have to turn on PCIe ACS Override in Settings --> VM Manager.

After you enable the setting you have to reboot your server.

[rhinoman]

Many thanks, works perfectly now.

[saarg]

Great to hear

[rhinoman]

Ok, I'm new to VM's and Kodi....



I'm all running but the IP address of the Kodi install is DHCP and an "odd" ip as in not from my routers range. Can I change that to one in my routers range manually or is this a hard coded VM thing, (I'm trying to achive control from my iphone which cant find it because the ip is in the wrong range)

[saarg]

You must change network to br0 to get up from your router.

Using virbr0 you only get an internal ip from unraid and can't connect to the vm.

[rhinoman]

Thanks for the reply, Under Network bridge in the VM settings I only have two options , virbr0 and docker0



virbr0 gives me the odd address

docker0 comes up link not connected.

[saarg]

Then you have to activate network bridge in settings. After that you should be able to choose br0 (I think that is the default name for the bridge) when you edit the vm.

[rhinoman]

Thanks again.



Tried the setup bridge mode to yes, applied the settings and then lost connectivity to the server web console. Had access to the flash from my windows server machine so edited the network config with bridging back to no and rebooted and its back.



Do I need to do something else as well as the setup bridge?



I have



Enable bonding - No

Bonding mode - active backup (1)

setup bridge - no

bridge enable stp - yes

bridge name - br0

bridge forward delay - 0



and then my normal fixed ip netwrok settings

[saarg]

You shouldn't loose connectivity permanently, but I guess it might be lost when unraid configures the bridge.

There isn't anything else you're supposed to do to get the bridge to work.

[BobPhoenix]

setup bridge - no

Shouldn't that be 'yes'?

[rhinoman]

setup bridge - no

Shouldn't that be 'yes'?



That was the setting that once changed and applied I lost connectivity to the web console.

[rhinoman]

Tried it again with



Enable bonding - NoYES

Bonding mode - active backup (1)

setup bridge - YES

bridge enable stp - yes

bridge name - br0

bridge forward delay - 0



So, this time changed enable bonding to yes as well as setup bridge to yes and then the web console came straight backup.

[saarg]

You do not need to set bonding to yes. This is only if you want to connect multiple interfaces to your switch from unraid.

If you push help in the webgui, you'll get some help about the different options.

If you could access the flash share unraid still had network connection, so it might be that you didn't have enough patience, or there is something that kills the webgui.

[rhinoman]

You do not need to set bonding to yes. This is only if you want to connect multiple interfaces to your switch from unraid.

If you push help in the webgui, you'll get some help about the different options.

If you could access the flash share unraid still had network connection, so it might be that you didn't have enough patience, or there is something that kills the webgui.



Could well be lacking patience Didn't know about the help....only been here since version 1

[saarg]

You do not need to set bonding to yes. This is only if you want to connect multiple interfaces to your switch from unraid.

If you push help in the webgui, you'll get some help about the different options.

If you could access the flash share unraid still had network connection, so it might be that you didn't have enough patience, or there is something that kills the webgui.



Could well be lacking patience Didn't know about the help....only been here since version 1

That happens to us all sometimes
