Using the Ubuntu template I can't seem to complete an install.



I get to disk partitioning and I get the error:



"failed to partition selected disk" with no apparent way to mitigate it. I have tried swapping bios types, bumping the disk size to 1G etc but no joy.



Anyone else having this issue?

So I grabbed a CentOS ISO and it had the same issues. The installers can't seem to actually access the virtual disk for some reason.



Any pointers would be appreciated, I am sure I am missing something obvious. However I have explored all the options I can seem to find for the VM.

If you post your XML it might be easier to help you.

are you attempting to install desktop or server?  I was never able to successfully install desktop back in the xen days... however installing server and adding a liteweight desktop from the command line post install did work.



Ubuntu LTS 12.04 has the ability to display RDP so long as

1- basic ubuntu server is installed

2 - ubuntu desktop is installed

3 - sudo apt-get update

4 - sudo apt-get install xrdp



Ubuntu LTS 14.04 has these RDP and 2D desktop components REMOVED, but they may be added back.  I was unable to get VNC working on 14.04

1-  basic ubuntu server is installed

2 - ubuntu desktop is installed

3 - sudo apt-get install  xrdp

4 - sudo apt-get install xubuntu-desktop

5 - echo "xfce4-session" > ~/.xsession

6 - sudo /etc/init.d/xrdp restart

This take a little longer for the screen to come up - and it is not as pretty as the Ubuntu desktop, but it WORKS.

If you post your XML it might be easier to help you.



Sure! Below is the complete XML. I am attempting to install Ubuntu server LTS 14.04. I am not doing anything special or strange in the install (like changing default FS type or anything).

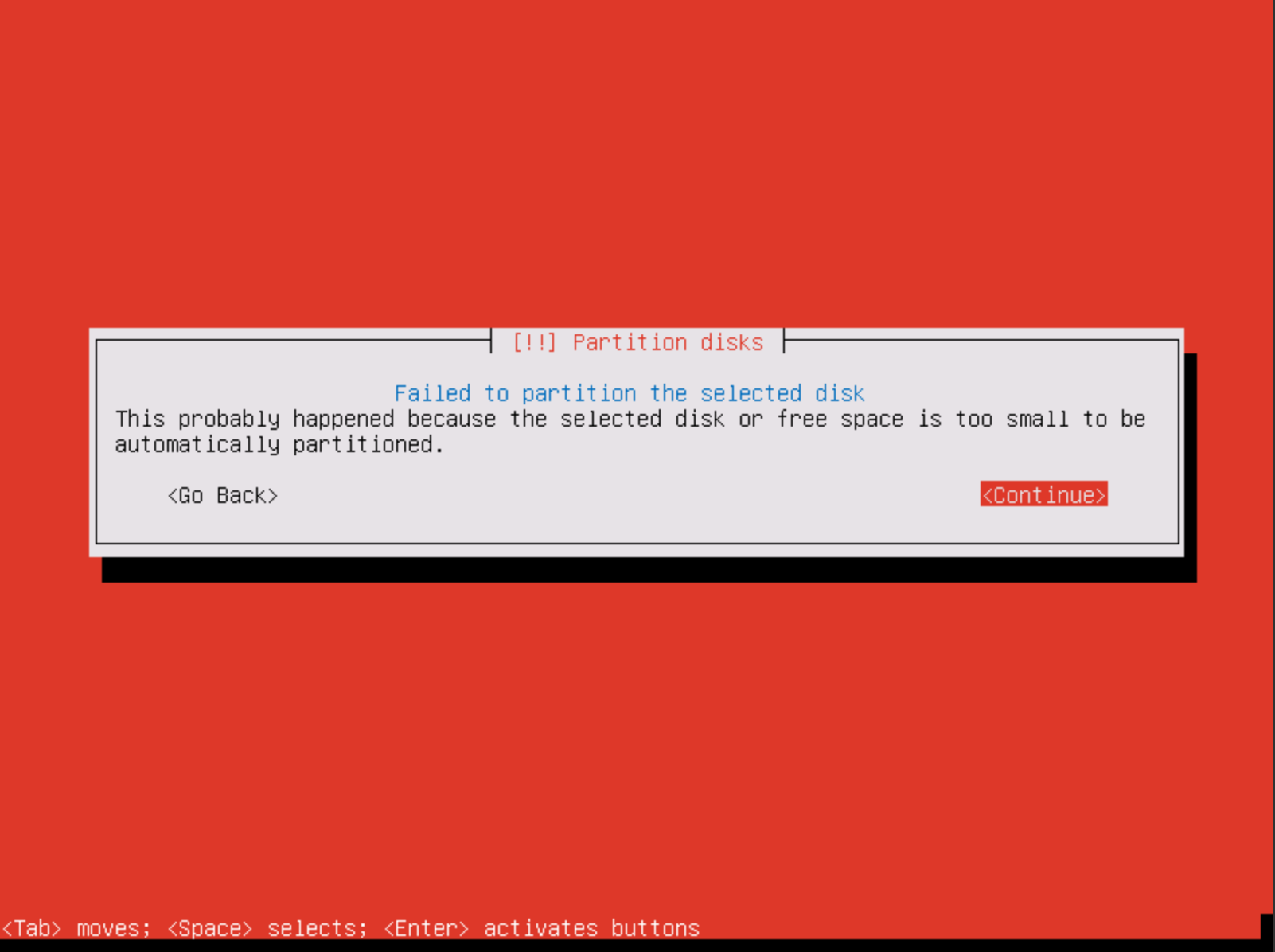

I have also attached a screenshot of the exact error.



I am finishing up a homelab server this week and really want to take a hard look at unraid 6 pro as the install (vs Proxmox). So any help you can give would be very welcome.



<domain type='kvm' id='2'>
  <name>ubuntu</name>
  <uuid>75030645-c465-958e-a77a-0bc77f197b2d</uuid>
  <metadata>
    <vmtemplate name="Custom" icon="ubuntu.png" os="ubuntu"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <locked/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-2.3'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/bin/qemu-system-x86_64</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/VMs/ubuntu/vdisk1.img'/>
      <backingStore/>
      <target dev='hdb' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk1'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/ubuntu-14.04.3-server-amd64.iso'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='dmi-to-pci-bridge'>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:52:f8:e2'/>
      <source bridge='virbr0'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target port='0'/>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/ubuntu.org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='vmvga' vram='16384' heads='1'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/>
    </memballoon>
  </devices>
</domain>

How big is your vdisk1.img?  Sounds like you're running out of space...



I thought Ubuntu needed a minimum of 5GB

So I zapped the VM and recreated it with a 10G virtual disk and it installed fine... I knew it would be something painfully obvious like that.



Thanks!
