Hello.  I just installed DelugeVPN and it seemed to work.  Just to make sure it is working, the webui will not start if the VPN is not working, right? Also, can I add the privoxy from DelugeVPN to sabnzbd (non VPN)?



Never mind, I just used sabnzdb VPN instead.  Can I point Deluge to use the host IP and port number from sabnzbd VPN?

Edited by Otacon
Link to comment

Hi,

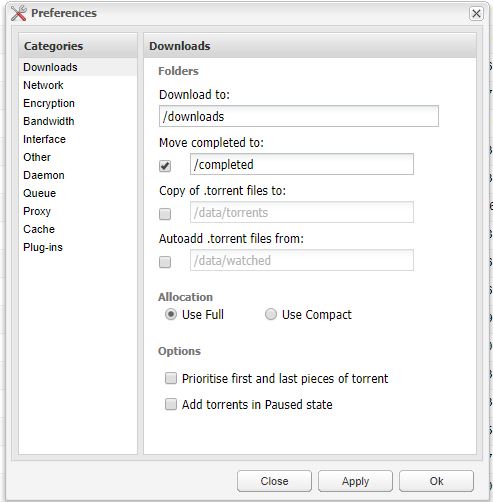

Can anyone point me in the right direction as to why deluge might not be moving completed downloads the completed downloads just sit in the downloads directory



As far as I can see there is no problem with my config, I cannot find a logfile to tell me any different?



Many Thanks!









Edited by mbc0
Link to comment
On 2/16/2018 at 10:16 PM, CedarMadness said:

Fri Feb 16 16:07:25 2018 ERROR: Linux route add command failed: external program exited with error status: 2 Fri Feb 16 16:07:25 2018 /usr/bin/ip route add 0.0.0.0/1 via 10.4.0.1





I think this is the issue. But please post the entire supervisord.log file with debug enabled. Be sure to remove your vpn user/pass

Link to comment
8 hours ago, mbc0 said:

Hi,



Can anyone point me in the right direction as to why deluge might not be moving completed downloads the completed downloads just sit in the downloads directory



As far as I can see there is no problem with my config, I cannot find a logfile to tell me any different?



Many Thanks!

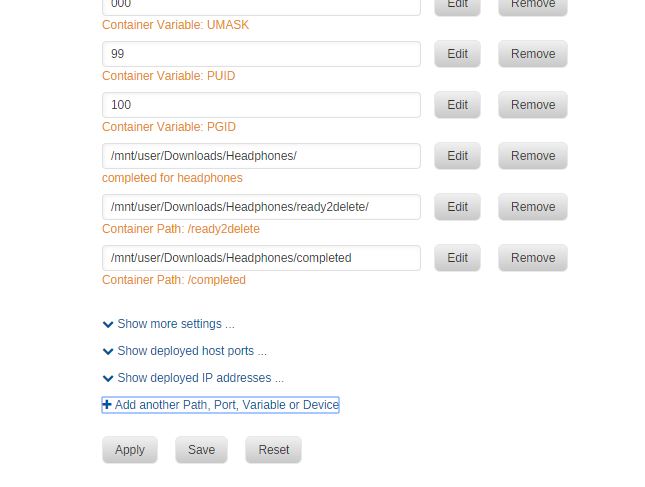

From what I can see from your config /downloads isn't mapped to anything. So how can deluge move anything from /downloads when it isn't mapped in your config?



Edit: or it's: completed for headphones in your config? I can't see the container mapping so I don't know

Edited by strike
Link to comment

Hi, as i was looking for an simple VPN connect docker as proxy i came across this docker, tested and its working as it should.



may i ask cause i dont need the bitorrent client if the openVPN part is also available as standalone package with privoxy feature.



i tested before the openvpn AS but there i couldnt figure out the config to use as outgoing vpn and internal proxy out.



if theres a "lighter" way ... for an tip, thanks ahead.

Link to comment

I don't understand your question. OpenVPN AS and DelugeVPN are used for completely different purposes. OpenVPN AS is for connecting a vpn tunnel between a remote location to your home network, so you can access your network securely. DelugeVPN is torent client with built-in vpn for creating a vpn tunnel from your home network to a (usually paid) vpn subscription for hiding you real IP adress. Which are you trying to accomplish?



Edit: I think I understand now after reading your post again. You just want to use the privoxy  feature  to be able to route an app through the vpn  tunnel? Then no, I don't think there is a "lighter way". The easiest way is to use one of binhex's vpn containers to do that.

Edited by strike
Link to comment

i guess thats exactly what im looking for ;) lets see if i get this working with my credentials, thanks for the tip.



as im using a different provider and i need my own pem files i guess im out of luck here, but thanks anyway ;)



i stick now with the complete deluge container for now.

Edited by alturismo
Link to comment
On 2/16/2018 at 10:16 PM, CedarMadness said:

2018-02-16 16:07:23,967 DEBG 'start-script' stdout output: Fri Feb 16 16:07:23 2018 WARNING: 'link-mtu' is used inconsistently, local='link-mtu 1590', remote='link-mtu 1558' Fri Feb 16 16:07:23 2018 WARNING: 'tun-mtu' is used inconsistently, local='tun-mtu 1532', remote='tun-mtu 1500'



I also spotted this in your log when reading it a second time and it might be why you have connection issues. On the airvpn forums there are several posts mentioning NOT to use  tun-mtu directive but instead use the "mssfix"



Quote

 Do not change TUN MTU size with directives "tun-mtu" and/or "fragment"! Without a corresponding change on the server side, doing that would have unpredictable effects and might also prevent a connection. Change it by using "mssfix" only. Start with "mssfix 1350" and test, then increase or decrease the size with little steps, re-testing each time. Please note (important) that mssfix directive makes sense only in UDP mode. On the www you can find also good methods which help you determine the correct value in order to speed up the trial-and-error process. See for example here for some more information and details http://www.dslreports.com/faq/695 Once again: do not touch the MTU of your physical or virtual network cards (unless you exactly know what you're doing), just operate through the OpenVPN directive mssfix.

6



Link to comment
12 hours ago, strike said:

Don't think so. Just run both vpn containers, but enable privoxy one just one of them



I tried doing what you suggested, but when I tried to start WebUI for Deluge VPN, I get a server error. Does that mean both can’t use the same VPN server? I found a proxy setting in Deluge. Can I use the “HTTP with Auth” from the drop down? I can enter my host IP with port 8118.

Link to comment
18 hours ago, Otacon said:



I tried doing what you suggested, but when I tried to start WebUI for Deluge VPN, I get a server error. Does that mean both can’t use the same VPN server? I found a proxy setting in Deluge. Can I use the “HTTP with Auth” from the drop down? I can enter my host IP with port 8118.



You should be able to run both containers and use the same vpn provider, I've seen several people say they run both. I wouldn't recommend using the proxy with the non-vpn deluge container due to the fact there is no iptables rules in place to stop deluge from using your normal connection when the tunnel drops and then your IP could leak.

Link to comment
On 2/18/2018 at 4:41 AM, strike said:

I think this is the issue. But please post the entire supervisord.log file with debug enabled. Be sure to remove your vpn user/pass



On 2/18/2018 at 10:22 AM, strike said:

I also spotted this in your log when reading it a second time and it might be why you have connection issues. On the airvpn forums there are several posts mentioning NOT to use  tun-mtu directive but instead use the "mssfix"



I removed tun-mtu and tried with mssfix at various values as well as leaving it off and still no luck. It's almost always exactly 30 seconds for it to restart, but sometimes it lasts 1 minute or 1:30. Here is the first part of my log below:



Created by...
___.   .__       .__
\_ |__ |__| ____ |  |__   ____ ___  ___
 | __ \|  |/    \|  |  \_/ __ \\  \/  /
 | \_\ \  |   |  \   Y  \  ___/ >    <
 |___  /__|___|  /___|  /\___  >__/\_ \
     \/        \/     \/     \/      \/
   https://hub.docker.com/u/binhex/

2018-02-19 11:30:03.142687 [info] System information Linux 68e037700d87 4.2.8 #1 SMP Tue Feb 13 01:43:29 CST 2018 x86_64 GNU/Linux
2018-02-19 11:30:03.231792 [info] PUID defined as '911'
2018-02-19 11:30:03.350080 [info] PGID defined as '1000'
2018-02-19 11:30:03.437476 [info] UMASK defined as '000'
2018-02-19 11:30:03.505382 [info] Permissions already set for volume mappings
2018-02-19 11:30:03.588286 [info] VPN_ENABLED defined as 'yes'
2018-02-19 11:30:03.872091 [info] OpenVPN config file (ovpn extension) is located at /config/openvpn/AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn
dos2unix: converting file /config/openvpn/AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn to Unix format...
2018-02-19 11:30:03.947324 [info] VPN remote line defined as '199.19.94.12 443'
2018-02-19 11:30:04.012750 [info] VPN_REMOTE defined as '199.19.94.12'
2018-02-19 11:30:04.078367 [info] VPN_PORT defined as '443'
2018-02-19 11:30:04.150602 [info] VPN_PROTOCOL defined as 'udp'
2018-02-19 11:30:04.220178 [info] VPN_DEVICE_TYPE defined as 'tun0'
2018-02-19 11:30:04.289099 [info] VPN_PROV defined as 'airvpn'
2018-02-19 11:30:04.358946 [info] LAN_NETWORK defined as '10.11.12.0/24'
2018-02-19 11:30:04.431508 [info] NAME_SERVERS defined as '8.8.8.8,37.235.1.174,37.235.1.177,209.244.0.3,64.6.64.6,4.2.2.2,8.8.4.4,208.67.222.222,209.222.18.218'
2018-02-19 11:30:04.498166 [info] VPN_OPTIONS not defined (via -e VPN_OPTIONS)
2018-02-19 11:30:04.570766 [info] ENABLE_PRIVOXY defined as 'NO'
2018-02-19 11:30:04.639653 [info] Setting permissions on files/folders inside container...
2018-02-19 11:30:04.736066 [info] Starting Supervisor...
2018-02-19 11:30:05,323 CRIT Set uid to user 0
2018-02-19 11:30:05,323 INFO Included extra file "/etc/supervisor/conf.d/delugevpn.conf" during parsing
2018-02-19 11:30:05,333 INFO supervisord started with pid 6
2018-02-19 11:30:06,336 INFO spawned: 'start-script' with pid 117
2018-02-19 11:30:06,338 INFO spawned: 'deluge-script' with pid 118
2018-02-19 11:30:06,341 INFO spawned: 'deluge-web-script' with pid 119
2018-02-19 11:30:06,344 INFO spawned: 'privoxy-script' with pid 120
2018-02-19 11:30:06,345 INFO reaped unknown pid 7
2018-02-19 11:30:06,354 DEBG 'deluge-script' stdout output:
[info] Deluge config file already exists, skipping copy

2018-02-19 11:30:06,355 INFO success: start-script entered RUNNING state, process has stayed up for > than 0 seconds (startsecs)
2018-02-19 11:30:06,355 INFO success: deluge-script entered RUNNING state, process has stayed up for > than 0 seconds (startsecs)
2018-02-19 11:30:06,355 INFO success: deluge-web-script entered RUNNING state, process has stayed up for > than 0 seconds (startsecs)
2018-02-19 11:30:06,355 INFO success: privoxy-script entered RUNNING state, process has stayed up for > than 0 seconds (startsecs)
2018-02-19 11:30:06,356 DEBG 'deluge-script' stdout output:
[info] VPN is enabled, checking VPN tunnel local ip is valid

2018-02-19 11:30:06,356 DEBG 'deluge-script' stdout output:
[debug] Waiting for valid IP address from tunnel...

2018-02-19 11:30:06,360 DEBG 'privoxy-script' stdout output:
[info] Privoxy set to disabled

2018-02-19 11:30:06,361 DEBG fd 22 closed, stopped monitoring <POutputDispatcher at 140379986381280 for <Subprocess at 140379995430712 with name privoxy-script in state RUNNING> (stdout)>
2018-02-19 11:30:06,361 DEBG fd 26 closed, stopped monitoring <POutputDispatcher at 140379986381712 for <Subprocess at 140379995430712 with name privoxy-script in state RUNNING> (stderr)>
2018-02-19 11:30:06,362 INFO exited: privoxy-script (exit status 0; expected)
2018-02-19 11:30:06,362 DEBG received SIGCLD indicating a child quit
2018-02-19 11:30:06,400 DEBG 'start-script' stdout output:
[info] VPN is enabled, beginning configuration of VPN
[debug] Environment variables defined as follows
BASH=/bin/bash
BASHOPTS=cmdhist:complete_fullquote:extquote:force_fignore:hostcomplete:interactive_comments:progcomp:promptvars:sourcepath
BASH_ALIASES=()
BASH_ARGC=()
BASH_ARGV=()
BASH_CMDS=()

2018-02-19 11:30:06,401 DEBG 'start-script' stdout output:
BASH_LINENO=([0]="0")
BASH_SOURCE=([0]="/root/start.sh")
BASH_VERSINFO=([0]="4" [1]="4" [2]="12" [3]="1" [4]="release" [5]="x86_64-unknown-linux-gnu")
BASH_VERSION='4.4.12(1)-release'
DEBUG=true
DIRSTACK=()
ENABLE_PRIVOXY=NO
EUID=0
GROUPS=()
HOME=/home/nobody
HOSTNAME=68e037700d87
HOSTTYPE=x86_64
IFS=$' \t\n'
LANG=en_GB.UTF-8
LAN_NETWORK=10.11.12.0/24
MACHTYPE=x86_64-unknown-linux-gnu
NAME_SERVERS=8.8.8.8,37.235.1.174,37.235.1.177,209.244.0.3,64.6.64.6,4.2.2.2,8.8.4.4,208.67.222.222,209.222.18.218
OPTERR=1
OPTIND=1
OSTYPE=linux-gnu
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
PGID=1000
PIPESTATUS=([0]="0")
PPID=6
PS4='+ '
PUID=911
PWD=/
SHELL=/bin/bash
SHELLOPTS=braceexpand:hashall:interactive-comments
SHLVL=1
SUPERVISOR_ENABLED=1
SUPERVISOR_GROUP_NAME=start-script
SUPERVISOR_PROCESS_NAME=start-script
TERM=xterm
UID=0
UMASK=000
VPN_CONFIG=/config/openvpn/AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn
VPN_DEVICE_TYPE=tun0
VPN_ENABLED=yes
VPN_OPTIONS=
VPN_PORT=443
VPN_PROTOCOL=udp
VPN_PROV=airvpn
VPN_REMOTE=199.19.94.12
_='[debug] Environment variables defined as follows'
vpn_remote_line='199.19.94.12 443'
[debug] Directory listing of files in /config/openvpn as follows

2018-02-19 11:30:06,420 DEBG 'start-script' stdout output:
total 7564
drwxrwxr-x+ 4 nobody users    4096 Feb 19 11:30 .
drwxrwxr-x+ 7 nobody users    4096 Feb 19 11:30 ..
drwxrwxr-x+ 2 nobody users    4096 Feb 16 14:02 airvpn
-rwxrwxr-x+ 1 nobody users    9155 Feb 19 11:30 AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn
drwxrwxr-x+ 2 nobody users  491520 Feb 16 12:24 configs
-rwxrwxr-x+ 1 nobody users 7212234 Feb 16 15:56 openvpn.log

2018-02-19 11:30:06,470 DEBG 'start-script' stdout output:
[debug] Contents of ovpn file /config/openvpn/AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn as follows...

2018-02-19 11:30:06,473 DEBG 'start-script' stdout output:
remote 199.19.94.12 443
# --------------------------------------------------------
# Air VPN | https://airvpn.org | Friday 16th of February 2018 07:43:22 PM
# OpenVPN Client Configuration
# AirVPN_US-Pennsylvania_Metallah_UDP-443
# --------------------------------------------------------

client
dev tun
proto udp
resolv-retry infinite
remote-random
nobind
#mssfix 1400
persist-key
ping 15
ping-restart 60
explicit-exit-notify 3

remote-cert-tls server

#mute 10000

comp-lzo no
verb 3
pull
fast-io
cipher AES-256-CBC
key-direction 1
<ca>
-----BEGIN CERTIFICATE-----
...
-----END CERTIFICATE-----
</ca>
<cert>
-----BEGIN CERTIFICATE-----
...
-----END CERTIFICATE-----
</cert>
<key>
-----BEGIN PRIVATE KEY-----
...
-----END PRIVATE KEY-----
</key>
<tls-auth>
#
# 2048 bit OpenVPN static key
#
-----BEGIN OpenVPN Static key V1-----
...
-----END OpenVPN Static key V1-----
</tls-auth>

2018-02-19 11:30:06,516 DEBG 'start-script' stdout output:
[info] Default route for container is 10.0.3.1

2018-02-19 11:30:06,522 DEBG 'start-script' stdout output:
[info] Adding 8.8.8.8 to /etc/resolv.conf

2018-02-19 11:30:06,529 DEBG 'start-script' stdout output:
[info] Adding 37.235.1.174 to /etc/resolv.conf

2018-02-19 11:30:06,535 DEBG 'start-script' stdout output:
[info] Adding 37.235.1.177 to /etc/resolv.conf

2018-02-19 11:30:06,542 DEBG 'start-script' stdout output:
[info] Adding 209.244.0.3 to /etc/resolv.conf

2018-02-19 11:30:06,548 DEBG 'start-script' stdout output:
[info] Adding 64.6.64.6 to /etc/resolv.conf

2018-02-19 11:30:06,555 DEBG 'start-script' stdout output:
[info] Adding 4.2.2.2 to /etc/resolv.conf

2018-02-19 11:30:06,561 DEBG 'start-script' stdout output:
[info] Adding 8.8.4.4 to /etc/resolv.conf

2018-02-19 11:30:06,567 DEBG 'start-script' stdout output:
[info] Adding 208.67.222.222 to /etc/resolv.conf

2018-02-19 11:30:06,574 DEBG 'start-script' stdout output:
[info] Adding 209.222.18.218 to /etc/resolv.conf

2018-02-19 11:30:06,579 DEBG 'start-script' stdout output:
199.19.94.12

2018-02-19 11:30:06,606 DEBG 'start-script' stdout output:
[info] Attempting to load iptable_mangle module...

2018-02-19 11:30:06,609 DEBG 'start-script' stderr output:
modprobe: FATAL: Module iptable_mangle not found in directory /lib/modules/4.2.8

2018-02-19 11:30:06,610 DEBG 'start-script' stdout output:
[warn] Unable to load iptable_mangle module using modprobe, trying insmod...

2018-02-19 11:30:06,616 DEBG 'start-script' stderr output:
insmod: ERROR: could not load module /lib/modules/iptable_mangle.ko: No such file or directory

2018-02-19 11:30:06,617 DEBG 'start-script' stdout output:
[warn] Unable to load iptable_mangle module, you will not be able to connect to the applications Web UI or Privoxy outside of your LAN
[info] unRAID/Ubuntu users: Please attempt to load the module by executing the following on your host: '/sbin/modprobe iptable_mangle'
[info] Synology users: Please attempt to load the module by executing the following on your host: 'insmod /lib/modules/iptable_mangle.ko'
[debug] Show name servers defined for container

2018-02-19 11:30:06,618 DEBG 'start-script' stdout output:
nameserver 8.8.8.8
nameserver 37.235.1.174
nameserver 37.235.1.177
nameserver 209.244.0.3
nameserver 64.6.64.6
nameserver 4.2.2.2
nameserver 8.8.4.4
nameserver 208.67.222.222
nameserver 209.222.18.218

2018-02-19 11:30:06,619 DEBG 'start-script' stdout output:
[debug] Show name resolution for VPN endpoint 199.19.94.12

2018-02-19 11:30:06,656 DEBG 'start-script' stdout output:
;; ->>HEADER<<- opcode: QUERY, rcode: NXDOMAIN, id: 43339
;; flags: qr rd ra ; QUERY: 1, ANSWER: 0, AUTHORITY: 1, ADDITIONAL: 0
;; QUESTION SECTION:
;; 199.19.94.12.	IN	A

;; ANSWER SECTION:

;; AUTHORITY SECTION:
.	86381	IN	SOA	a.root-servers.net. nstld.verisign-grs.com. 2018021900 1800 900 604800 86400

;; ADDITIONAL SECTION:

;; Query time: 29 msec
;; SERVER: 8.8.8.8
;; WHEN: Mon Feb 19 11:30:06 2018
;; MSG SIZE  rcvd: 105

2018-02-19 11:30:06,657 DEBG 'start-script' stdout output:
[debug] Show contents of hosts file

2018-02-19 11:30:06,658 DEBG 'start-script' stdout output:
127.0.0.1	localhost
::1	localhost ip6-localhost ip6-loopback
fe00::0	ip6-localnet
ff00::0	ip6-mcastprefix
ff02::1	ip6-allnodes
ff02::2	ip6-allrouters
10.0.3.6	68e037700d87

2018-02-19 11:30:06,666 DEBG 'start-script' stdout output:
[info] Adding 10.11.12.0/24 as route via docker eth0

2018-02-19 11:30:06,668 DEBG 'start-script' stdout output:
[info] ip route defined as follows...
--------------------

2018-02-19 11:30:06,670 DEBG 'start-script' stdout output:
default via 10.0.3.1 dev eth0
10.0.3.0/24 dev eth0 proto kernel scope link src 10.0.3.6
10.11.12.0/24 via 10.0.3.1 dev eth0

2018-02-19 11:30:06,670 DEBG 'start-script' stdout output:
--------------------
[debug] Modules currently loaded for kernel

2018-02-19 11:30:06,675 DEBG 'start-script' stdout output:
Module                  Size  Used by
xfrm4_tunnel            1993  0
ipcomp                  2203  0
esp4                    6849  0
ah4                     6547  0
xfrm4_mode_transport     1418  0
xfrm4_mode_tunnel       1936  0
xfrm4_mode_beet         1979  0
af_key                 25926  0
xfrm_ipcomp             3868  1 ipcomp
nf_nat_redirect         1267  0
l2tp_ppp               15362  0
l2tp_eth                3984  0
l2tp_netlink            9274  2 l2tp_eth,l2tp_ppp
l2tp_debugfs            4346  0
l2tp_ip                 6053  0
l2tp_core              18070  5 l2tp_eth,l2tp_ppp,l2tp_debugfs,l2tp_ip,l2tp_netlink
ppp_deflate             3874  0
ppp_async               6850  0
ppp_mppe                6187  0
bsd_comp                5226  0
pppoe                   9430  0
pppox                   1810  2 l2tp_ppp,pppoe
ppp_generic            18543  7 l2tp_ppp,pppoe,pppox,bsd_comp,ppp_mppe,ppp_async,ppp_deflate
slhc                    5235  1 ppp_generic
tunnel4                 2325  1 xfrm4_tunnel
vhost_scsi             21520  0
target_core_mod       392179  1 vhost_scsi
vhost_net              10228  0
vhost                  19160  2 vhost_net,vhost_scsi
macvtap                10877  1 vhost_net
macvlan                13168  1 macvtap
tun                    18961  1 vhost_net
vringh                  8642  0
virtio_scsi            10385  0
virtio_pci             14007  0
virtio_net             21315  0
virtio_mmio             5142  0
virtio_console         17572  0
virtio_blk              8736  0
virtio_balloon          5479  0
virtio_rng              2527  0
virtio_ring             7299  8 virtio_blk,virtio_net,virtio_pci,virtio_rng,virtio_balloon,virtio_console,virtio_mmio,virtio_scsi
virtio                  5273  8 virtio_blk,virtio_net,virtio_pci,virtio_rng,virtio_balloon,virtio_console,virtio_mmio,virtio_scsi
kvm_intel             145614  0
kvm                   307775  1 kvm_intel
xt_nat                  1977  0
rfcomm                 50263  0
iscsi_tcp               8942  0
libiscsi_tcp           12474  1 iscsi_tcp
libiscsi               38257  2 libiscsi_tcp,iscsi_tcp
scsi_transport_iscsi    66567  3 iscsi_tcp,libiscsi
fbdisk                 20441  0
ipt_MASQUERADE          1533  4
iptable_nat             1959  1
nf_nat_masquerade_ipv4     1865  1 ipt_MASQUERADE
nf_nat_ipv4             5147  1 iptable_nat
nf_nat                 11914  4 nf_nat_redirect,nf_nat_ipv4,xt_nat,nf_nat_masquerade_ipv4
xt_policy               2522  0
xt_mark                 1317  0
bonding               114377  0
br_netfilter           13236  0
bridge                 80620  1 br_netfilter
stp                     1693  1 bridge
8021q                  17067  0
ipv6                  311235  2 bridge,l2tp_core
uvcvideo               73142  0
videobuf2_vmalloc       5094  1 uvcvideo
videobuf2_memops        2215  1 videobuf2_vmalloc
videobuf2_core         33372  1 uvcvideo
snd_usb_caiaq          39170  0
snd_usb_audio         139029  0
snd_usbmidi_lib        20836  1 snd_usb_audio
snd_seq_midi            5478  0
snd_rawmidi            18725  3 snd_usb_caiaq,snd_usbmidi_lib,snd_seq_midi
fnotify                27085  2
isofs                  31658  0
sp5100_tco              5952  0
iTCO_wdt                5700  1
vfio_pci               27672  0
vfio_virqfd             2165  1 vfio_pci
vfio_iommu_type1        8294  0
vfio                   14991  2 vfio_iommu_type1,vfio_pci
udf                    77803  1
x53B_pins               3884  0
ufsd                  652732  0
jnl                    27383  1 ufsd
pl2303                 11696  0
usbserial              28885  1 pl2303
qm2_i2c                 3281  6
intel_ips              11476  0
drbd                  331130  4
flashcache            140446  1
dm_tier_hro_algo       14663  1
dm_thin_pool          157769  21 target_core_mod,dm_tier_hro_algo
dm_bio_prison           4372  1 dm_thin_pool
dm_persistent_data     48048  1 dm_thin_pool
hal_netlink             4853  0
k10temp                 3253  0
coretemp                6044  0
tn40xx               1078570  0
r8152                  52531  0
usb
2018-02-19 11:30:06,677 DEBG 'start-script' stdout output:
net                 25199  0
mii                     4035  2 r8152,usbnet
igb                   162846  0
e1000e                198727  0
mpt3sas               275732  0
mpt2sas               169679  0
scsi_transport_sas     24764  2 mpt2sas,mpt3sas
raid_class              3572  2 mpt2sas,mpt3sas
usb_storage            49870  1
xhci_pci                4650  0
xhci_hcd              134237  1 xhci_pci
usblp                  12346  0
uhci_hcd               32595  0
ehci_pci                4359  0
ehci_hcd               60621  1 ehci_pci

2018-02-19 11:30:06,693 DEBG 'start-script' stdout output:
[debug] Docker interface defined as eth0

2018-02-19 11:30:06,700 DEBG 'start-script' stdout output:
[debug] Docker IP defined as 10.0.3.6

2018-02-19 11:30:06,707 DEBG 'start-script' stdout output:
[debug] Docker netmask defined as 255.255.255.0

2018-02-19 11:30:06,727 DEBG 'start-script' stdout output:
[info] Docker network defined as    10.0.3.0/24

2018-02-19 11:30:06,832 DEBG 'start-script' stdout output:
[info] iptables defined as follows...
--------------------

2018-02-19 11:30:06,836 DEBG 'start-script' stdout output:
-P INPUT DROP
-P FORWARD ACCEPT
-P OUTPUT DROP
-A INPUT -i tun0 -j ACCEPT
-A INPUT -s 10.0.3.0/24 -d 10.0.3.0/24 -j ACCEPT
-A INPUT -i eth0 -p udp -m udp --sport 443 -j ACCEPT
-A INPUT -i eth0 -p tcp -m tcp --dport 8112 -j ACCEPT
-A INPUT -i eth0 -p tcp -m tcp --sport 8112 -j ACCEPT
-A INPUT -s 10.11.12.0/24 -i eth0 -p tcp -m tcp --dport 58846 -j ACCEPT
-A INPUT -p icmp -m icmp --icmp-type 0 -j ACCEPT
-A INPUT -i lo -j ACCEPT
-A OUTPUT -o tun0 -j ACCEPT
-A OUTPUT -s 10.0.3.0/24 -d 10.0.3.0/24 -j ACCEPT
-A OUTPUT -o eth0 -p udp -m udp --dport 443 -j ACCEPT
-A OUTPUT -o eth0 -p tcp -m tcp --dport 8112 -j ACCEPT
-A OUTPUT -o eth0 -p tcp -m tcp --sport 8112 -j ACCEPT
-A OUTPUT -d 10.11.12.0/24 -o eth0 -p tcp -m tcp --sport 58846 -j ACCEPT
-A OUTPUT -p icmp -m icmp --icmp-type 8 -j ACCEPT
-A OUTPUT -o lo -j ACCEPT

2018-02-19 11:30:06,837 DEBG 'start-script' stdout output:
--------------------

2018-02-19 11:30:06,838 DEBG 'start-script' stdout output:
[debug] OpenVPN command line:- /usr/bin/openvpn --cd /config/openvpn --config '/config/openvpn/AirVPN_US-Pennsylvania_Metallah_UDP-443.ovpn' --daemon --reneg-sec 0 --mute-replay-warnings --auth-nocache --setenv VPN_PROV 'airvpn' --setenv DEBUG 'true' --setenv VPN_DEVICE_TYPE 'tun0' --setenv VPN_REMOTE '199.19.94.12' --script-security 2 --up /root/openvpnup.sh --up-delay --up-restart --writepid /root/openvpn.pid --remap-usr1 SIGHUP --log-append /dev/stdout --pull-filter ignore 'up' --pull-filter ignore 'down' --pull-filter ignore 'route-ipv6' --pull-filter ignore 'ifconfig-ipv6' --pull-filter ignore 'tun-ipv6' --pull-filter ignore 'persist-tun' --pull-filter ignore 'reneg-sec'
[info] Starting OpenVPN...

2018-02-19 11:30:06,852 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 OpenVPN 2.4.4 x86_64-unknown-linux-gnu [SSL (OpenSSL)] [LZO] [LZ4] [EPOLL] [PKCS11] [MH/PKTINFO] [AEAD] built on Sep 26 2017
Mon Feb 19 11:30:06 2018 library versions: OpenSSL 1.1.0f  25 May 2017, LZO 2.10

2018-02-19 11:30:06,854 DEBG 'start-script' stdout output:
[info] OpenVPN started
Mon Feb 19 11:30:06 2018 NOTE: the current --script-security setting may allow this configuration to call user-defined scripts
[debug] Waiting for valid IP address from tunnel...

2018-02-19 11:30:06,854 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 Outgoing Control Channel Authentication: Using 160 bit message hash 'SHA1' for HMAC authentication
Mon Feb 19 11:30:06 2018 Incoming Control Channel Authentication: Using 160 bit message hash 'SHA1' for HMAC authentication
Mon Feb 19 11:30:06 2018 TCP/UDP: Preserving recently used remote address: [AF_INET]199.19.94.12:443
Mon Feb 19 11:30:06 2018 Socket Buffers: R=[1048576->1048576] S=[1048576->1048576]
Mon Feb 19 11:30:06 2018 UDP link local: (not bound)
Mon Feb 19 11:30:06 2018 UDP link remote: [AF_INET]199.19.94.12:443

2018-02-19 11:30:06,884 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 TLS: Initial packet from [AF_INET]199.19.94.12:443, sid=131d3c23 7399b3ec

2018-02-19 11:30:06,937 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 VERIFY OK: depth=1, C=IT, ST=IT, L=Perugia, O=airvpn.org, CN=airvpn.org CA, emailAddress=info@airvpn.org

2018-02-19 11:30:06,937 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 VERIFY KU OK
Mon Feb 19 11:30:06 2018 Validating certificate extended key usage

2018-02-19 11:30:06,937 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:06 2018 ++ Certificate has EKU (str) TLS Web Server Authentication, expects TLS Web Server Authentication
Mon Feb 19 11:30:06 2018 VERIFY EKU OK
Mon Feb 19 11:30:06 2018 VERIFY OK: depth=0, C=IT, ST=IT, L=Perugia, O=airvpn.org, CN=Almach, emailAddress=info@airvpn.org

2018-02-19 11:30:07,084 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:07 2018 Control Channel: TLSv1.2, cipher TLSv1.2 ECDHE-RSA-AES256-GCM-SHA384, 4096 bit RSA
Mon Feb 19 11:30:07 2018 [Almach] Peer Connection Initiated with [AF_INET]199.19.94.12:443

2018-02-19 11:30:08,160 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 SENT CONTROL [Almach]: 'PUSH_REQUEST' (status=1)

2018-02-19 11:30:08,190 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 PUSH: Received control message: 'PUSH_REPLY,comp-lzo no,redirect-gateway def1 bypass-dhcp,dhcp-option DNS 10.4.0.1,route-gateway 10.4.0.1,topology subnet,ping 10,ping-restart 60,ifconfig 10.4.19.176 255.255.0.0,peer-id 4,cipher AES-256-GCM'
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: timers and/or timeouts modified
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: compression parms modified
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: --ifconfig/up options modified
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: route options modified
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: route-related options modified
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified

2018-02-19 11:30:08,191 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: peer-id set
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: adjusting link_mtu to 1625
Mon Feb 19 11:30:08 2018 OPTIONS IMPORT: data channel crypto options modified
Mon Feb 19 11:30:08 2018 Data Channel: using negotiated cipher 'AES-256-GCM'
Mon Feb 19 11:30:08 2018 Outgoing Data Channel: Cipher 'AES-256-GCM' initialized with 256 bit key
Mon Feb 19 11:30:08 2018 Incoming Data Channel: Cipher 'AES-256-GCM' initialized with 256 bit key
Mon Feb 19 11:30:08 2018 ROUTE_GATEWAY 10.0.3.1/255.255.255.0 IFACE=eth0 HWADDR=02:42:0a:00:03:06
Mon Feb 19 11:30:08 2018 TUN/TAP device tun0 opened
Mon Feb 19 11:30:08 2018 TUN/TAP TX queue length set to 100
Mon Feb 19 11:30:08 2018 do_ifconfig, tt->did_ifconfig_ipv6_setup=0

2018-02-19 11:30:08,191 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /usr/bin/ip link set dev tun0 up mtu 1500

2018-02-19 11:30:08,194 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /usr/bin/ip addr add dev tun0 10.4.19.176/16 broadcast 10.4.255.255

2018-02-19 11:30:08,197 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /root/openvpnup.sh tun0 1500 1553 10.4.19.176 255.255.0.0 init

2018-02-19 11:30:08,202 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /usr/bin/ip route add 199.19.94.12/32 via 10.0.3.1

2018-02-19 11:30:08,208 DEBG 'start-script' stdout output:
[debug] Waiting for valid IP address from tunnel...

2018-02-19 11:30:08,210 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /usr/bin/ip route add 0.0.0.0/1 via 10.4.0.1

2018-02-19 11:30:08,213 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 /usr/bin/ip route add 128.0.0.0/1 via 10.4.0.1

2018-02-19 11:30:08,214 DEBG 'start-script' stdout output:
[debug] Waiting for valid IP address from tunnel...

2018-02-19 11:30:08,217 DEBG 'start-script' stdout output:
Mon Feb 19 11:30:08 2018 Initialization Sequence Completed

2018-02-19 11:30:08,236 DEBG 'start-script' stdout output:
[debug] Valid IP address from tunnel acquired '10.4.19.176'

2018-02-19 11:30:08,334 DEBG 'deluge-script' stdout output:
[debug] Valid IP address from tunnel acquired '10.4.19.176'

2018-02-19 11:30:08,343 DEBG 'start-script' stdout output:
[debug] Valid IP address from tunnel acquired '10.4.19.176'
[debug] Attempting to get external IP using Name Server 'ns1.google.com'...

2018-02-19 11:30:08,344 DEBG 'start-script' stdout output:
[debug] Valid IP address from tunnel acquired '10.4.19.176'

2018-02-19 11:30:08,345 DEBG 'start-script' stdout output:
[debug] VPN provider airvpn is != pia, skipping incoming port detection

2018-02-19 11:30:08,346 DEBG 'deluge-script' stdout output:
[info] Deluge not running
[info] Deluge listening interface IP 0.0.0.0 and VPN provider IP 10.4.19.176 different, marking for reconfigure
[info] Attempting to start Deluge...

2018-02-19 11:30:08,489 DEBG 'start-script' stdout output:
[info] Successfully retrieved external IP address 199.19.94.16

2018-02-19 11:30:08,702 DEBG 'deluge-script' stdout output:
[info] Deluge listening interface currently defined as 10.4.19.176
[info] Deluge listening interface will be changed to 10.4.19.176
[info] Saving changes to Deluge config file /config/core.conf...

2018-02-19 11:30:09,080 DEBG 'deluge-script' stdout output:
[info] Deluge started
[debug] VPN incoming port is
[debug] VPN IP is 10.4.19.176

2018-02-19 11:30:09,080 DEBG 'deluge-script' stdout output:
[debug] Deluge incoming port is
[debug] Deluge IP is 10.4.19.176

2018-02-19 11:30:09,823 DEBG 'deluge-web-script' stdout output:
[info] Starting Deluge webui...

2018-02-19 11:30:38,251 DEBG 'start-script' stdout output:
[warn] OpenVPN process terminated, restarting OpenVPN...



Link to comment

Hello, I may have stumbled onto a small bug regarding VPN passwords.



The password I'm using with my VPN servicer contains a "&". The reason I think it may be the password is that every time I enter the password and try to pull the container down, I get this message:

Warning: SimpleXMLElement::addChild(): unterminated entity reference <my_pw_after_the_&> in /usr/local/emhttp/plugins/dynamix.docker.manager/include/CreateDocker.php on line 211



Every time I edit the docker again, the password field has been reset to the default. Additionally, I don't know if it's that error throwing the whole docker off but I also get this line right underneath:

Removing container: binhex-delugevpn
Successfully removed container 'binhex-delugevpn'

After that, the docker log keeps repeating this message no matter what I do:

2018-02-20 01:00:24,953 DEBG received SIGCLD indicating a child quit
e":"No such container: 4ca46b76cce4"}



Hopefully more capable people will be able to tell me whether it's my set up that's incorrect or something with the code. I followed spaceinvaderone's video for the set up.



Ninja edit: I found a workaround(?) by editing the pw field through the edit button and typing in the pw in quotes. Just typing it in quotes directly into the field did not yield the same results. I am able to launch the Web UI now with VPN enabled.

Edited by crazykidguy
Link to comment
5 hours ago, crazykidguy said:

The password I'm using with my VPN servicer contains a "&".

Change the password. In the current world of computers and hacking, the complexity of a single character is insignificant. Length is much more important. aa is just as secure as &&, and aaa is more secure. If you want to increase your password security, add characters instead of using complex characters that confuse parsing algorithms.

Link to comment
11 hours ago, jonathanm said:

Change the password. In the current world of computers and hacking, the complexity of a single character is insignificant. Length is much more important. aa is just as secure as &&, and aaa is more secure. If you want to increase your password security, add characters instead of using complex characters that confuse parsing algorithms.



Thanks for the tip. The password was generated and it just happened to coincide with this little issue. Will take note of that in the future.

Link to comment

I'm having problems using PIA. When it's enabled it forced Deluge to quit right after it started.



Quote

2018-02-22 07:56:56.925375 [info] Host is running unRAID
2018-02-22 07:56:57.004076 [info] System information Linux 30a231255616 4.14.16-unRAID #1 SMP PREEMPT Wed Jan 31 08:51:39 PST 2018 x86_64 GNU/Linux
2018-02-22 07:56:57.107625 [info] PUID defined as '99'
2018-02-22 07:56:57.191243 [info] PGID defined as '100'
2018-02-22 07:56:57.298573 [info] UMASK defined as '000'
2018-02-22 07:56:57.368057 [info] Permissions already set for volume mappings
2018-02-22 07:56:57.447427 [info] VPN_ENABLED defined as 'yes'
2018-02-22 07:56:57.528400 [info] OpenVPN config file (ovpn extension) is located at /config/openvpn/._Netherlands.ovpn
dos2unix: Binary symbol 0x00 found at line 1
dos2unix: Skipping binary file /config/openvpn/._Netherlands.ovpn
2018-02-22 07:56:57.606292 [crit] VPN configuration file /config/openvpn/._Netherlands.ovpn does not contain 'remote' line, showing contents of file before exit...
Mac OS X            2∞‚ATTRWÄ‚ò9ò9com.apple.quarantine0081;5a8de550;Chrome;CF44E65D-5F4A-4FED-8ABA-35786C5450D8This resource fork intentionally left blank

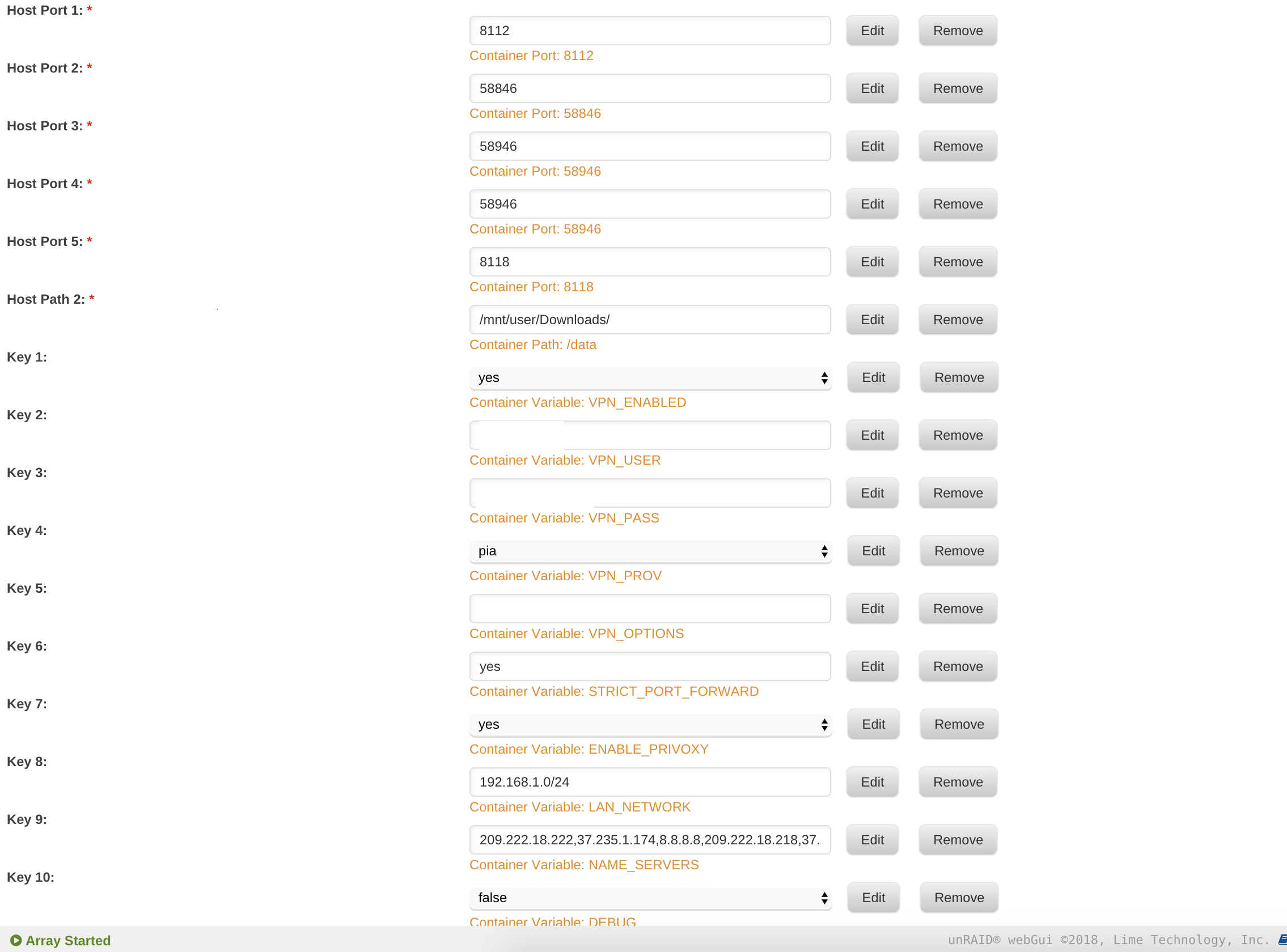

5a8e6a6670bf0_ScreenShot2018-02-22at07_46_10.thumb.png.70f3cbd616fd80eeceb6ceea2f1db509.png

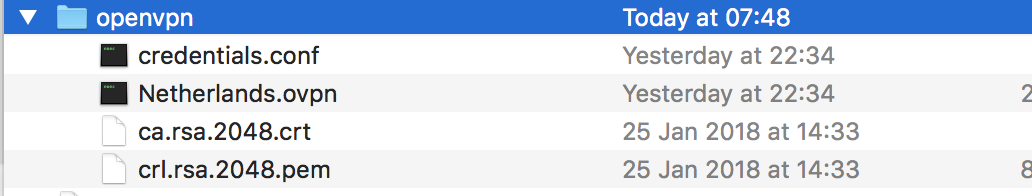

Screen Shot 2018-02-22 at 07.49.10.png

Link to comment
8 minutes ago, strike said:

The built-in antivirus in OSX is quarantining the.ovpn file. Exlude the file in your antivirus app and you should be good



Wow, I actually did not know that OSX had a built in antivirus function!



It might be due to the lack of coffee, but my google searches does not yield any results in how to do that. Thanks for the quick reply though!

Link to comment
5 hours ago, Halvliter said:



Wow, I actually did not know that OSX had a built in antivirus function!



It might be due to the lack of coffee, but my google searches does not yield any results in how to do that. Thanks for the quick reply though!

actually my faq is not correct (sorry strike i know you were quoting from my faq), these are mac os resource fork files being generated, i noticed your post and i have enhanced my code to remove these files as they are basically apple crap, or crapple if you like :-), new image should be up later today, in the meantime you could manually get running by cd /config/openvpn and then run the following command:-

rm -f ._*.ovpn

then restart the container.



p.s removed the entry from the faq as its now handled automagically :-).



p.p.s for those who want to learn a bit more:- http://xahlee.info/UnixResource_dir/macosx.html

Edited by binhex
  • Like 1
Link to comment
1 hour ago, binhex said:

 new image should be up later today, in the meantime you could manually get running by cd /config/openvpn and then run the following command:-


rm -f ._*.ovpn

then restart the container.



p.s removed the entry from the faq as its now handled automagically :-).



p.p.s for those who want to learn a bit more:- http://xahlee.info/UnixResource_dir/macosx.html



Thanks for still updating this awesome docker! :D



I'm quite new to unRAID, so I'm not sure if you mean I should use the terminal in the webUI for unRAId or the terminal in OSX?

  • Like 1
Link to comment
2 minutes ago, Halvliter said:



Thanks for still updating this awesome docker! :D



I'm quite new to unRAID, so I'm not sure if you mean I should use the terminal in the webUI for unRAId or the terminal in OSX?



either :-), if you're new then why not the web ui, its easier eh.

Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
