9 hours ago, mehappy said:

tokens should be generated by sending the POST request to https://privateinternetaccess.com/gtoken/generateToken, rather than 10.0.0.1.

the script does generate tokens from that host you are right, however a PIA developer in conversation when the NextGen stuff came out, said you can also hit 10.0.0.1, which is easier than a hostname which would require name resolution, so i dont believe this is the issue, and 10.0.0.1 has been working since NextGen was introduced (around a year ago).



Also note hitting 10.0.0.1 is only used for port forwarding, the scripts also generatetoken for wireguard, which is also failing intermittently, as shown here:-

https://forums.unraid.net/topic/44109-support-binhex-delugevpn/?do=findComment&comment=977872



i will try the official method of generating token, but i dont hold out much hope.

i just kept restarting my container until it worked - glad to see i'm not the only one having this issue

14 hours ago, mehappy said:

@binhex

According to the scripts included in PIAs documentation on manually getting a port, tokens should be generated by sending the POST request to https://privateinternetaccess.com/gtoken/generateToken, rather than 10.0.0.1. Would updating the arch-int-vpn layer to use that URL fix the issue people have been having today where certain PIA endpoints are not generating tokens?



For me, this worked.  I tried numerous endpoints and it was completely intermittent weighted on the fails.  Once I made this change, I've restarted numerous times and it hasn't failed.



To modify how the docker does this, modify the /root/getvpnport.sh script.

1. Click the delugevpn docker image, select >_ Console
2. nano /root/getvpnport.sh
3. Add the variable in get_incoming_port_nextgen():
   piaTokenUri="https://privateinternetaccess.com/gtoken/generateToken"
4. Replace the line:
   token_json_response=$(curl --interface "${VPN_DEVICE_TYPE}" --silent --insecure -u "${VPN_USER}:${VPN_PASS}" "https://10.0.0.1/authv3/generateToken")

   with:

   token_json_response=$(curl --interface "${VPN_DEVICE_TYPE}" --silent --insecure -u "${VPN_USER}:${VPN_PASS}" ${piaTokenUri})



The top of the get_incoming_port_nextgen function with the changes:

Spoiler

# attempt to get incoming port (pia only)
function get_incoming_port_nextgen() {

	retry_count=12
	retry_wait_secs=10
	#piaTokenUri="https://10.0.0.1/authv3/generateToken"
	piaTokenUri="https://privateinternetaccess.com/gtoken/generateToken"

	while true; do

		# get vpn local ip (not used) and gateway ip
		source /root/getvpnip.sh

		while true; do

			if [ "${retry_count}" -eq "0" ]; then

				echo "[warn] Unable to download PIA json to generate token, exiting script..."
				trigger_failure ; return 1

			fi

			# get token json response AFTER vpn established
			# note binding to the vpn interface (using --interface flag for curl) is required
			# due to users potentially using the 10.x.x.x range for lan, causing failure
			token_json_response=$(curl --interface "${VPN_DEVICE_TYPE}" --silent --insecure -u "${VPN_USER}:${VPN_PASS}" ${piaTokenUri})

			if [ "$(echo "${token_json_response}" | jq -r '.status')" != "OK" ]; then

				echo "[warn] Unable to successfully download PIA json to generate token from URL '${piaTokenUri}'"
				echo "[info] ${retry_count} retries left"
				echo "[info] Retrying in ${retry_wait_secs} secs..."
				retry_count=$((retry_count-1))
				sleep "${retry_wait_secs}"s & wait $!

			else

				echo "[warn] Successfully downloaded PIA json to generate token from URL '${piaTokenUri}'"
				# reset retry count on successful step
				retry_count=12
				break

			fi

		done





Edited April 16, 20215 yr by UnRaid_JAS
Spoiler intro hidden.

I have a weird issue that I don't know how to fix. For some reason I can't reach Deluge when connected remotely to my server over Wireguard. All other dockers work fine, and I know Deluge is running fine, but I just can't seem to reach the UI. Any idea how to troubleshoot this?

42 minutes ago, UnRaid_JAS said:

For me, this worked.  I tried numerous endpoints and it was completely intermittent weighted on the fails.  Once I made this change, I've restarted numerous times and it hasn't failed.

yeah i too have been playing with the alternative way of generating a token and it does seem more stable, so i have made the change for both port assignment and also wireguard, as both require tokens and both are failing, one failing when connecting to 10.0.0.1 and the other failing when connecting to metadata server on certain endpoints, so it def still does look like a pia outage of some type here, but the alternative method of hitting https://privateinternetaccess.com/gtoken/generateToken, seems to be working ok so i have switched over to that, just generating a test image now...



edit - ok test went well, new prod image built, please pull down and try at your convenience.

2 hours ago, binhex said:

yeah i too have been playing with the alternative way of generating a token and it does seem more stable, so i have made the change for both port assignment and also wireguard, as both require tokens and both are failing, one failing when connecting to 10.0.0.1 and the other failing when connecting to metadata server on certain endpoints, so it def still does look like a pia outage of some type here, but the alternative method of hitting https://privateinternetaccess.com/gtoken/generateToken, seems to be working ok so i have switched over to that, just generating a test image now...



edit - ok test went well, new prod image built, please pull down and try at your convenience.

Looks good so far! THANKS!

3 hours ago, binhex said:

yeah i too have been playing with the alternative way of generating a token and it does seem more stable, so i have made the change for both port assignment and also wireguard, as both require tokens and both are failing, one failing when connecting to 10.0.0.1 and the other failing when connecting to metadata server on certain endpoints, so it def still does look like a pia outage of some type here, but the alternative method of hitting https://privateinternetaccess.com/gtoken/generateToken, seems to be working ok so i have switched over to that, just generating a test image now...



edit - ok test went well, new prod image built, please pull down and try at your convenience.

This build has appeared to clear up my issues, thanks!

4 hours ago, Nimrad said:

For some reason I can't reach Deluge when connected remotely to my server over Wireguard.



Look at Q2 in the documentation below. Let us know if that doesn't work for you.



https://github.com/binhex/documentation/blob/master/docker/faq/vpn.md

On 4/15/2021 at 9:22 AM, binhex said:

nothing to do with privileged mode.



Don't you needed privileged mode for Wireguard to function correctly? I've never been able to get it function properly without it. Just want to verify for everyone.

Edited April 16, 20215 yr by Roudy

5 hours ago, Nimrad said:

I have a weird issue that I don't know how to fix. For some reason I can't reach Deluge when connected remotely to my server over Wireguard. All other dockers work fine, and I know Deluge is running fine, but I just can't seem to reach the UI. Any idea how to troubleshoot this?

Have you added your subnet under LAN_Network? Remember you're on a different network when connecting remotely over wireguard.

a little bit of topic:

I have my Sonarr, Jacket, and Radarr all going through delugevpn with no issues, using the new method.

but I have been trying to get my JDownloader to go through the delugeVPN, but to no joy as I am using the same procedure I used for the other dockers.



by placing the ports within deluge and adding the Extra Parameters but when I fire up the docker I am getting the ' New page can be found '



2 hours ago, chris_netsmart said:

using the new method.

Which one is the new method? Is it this one?
https://www.reddit.com/r/unRAID/comments/m7wn5j/guide_routing_containers_through_your_vpns/

3 hours ago, chris_netsmart said:

by placing the ports within deluge and adding the Extra Parameters but when I fire up the docker I am getting the ' New page can be found '



Is there anything in the JDownloader log about not starting? Can you show the docker settings?

3 hours ago, tetrapod said:

Which one is the new method? Is it this one?
https://www.reddit.com/r/unRAID/comments/m7wn5j/guide_routing_containers_through_your_vpns/

no the "  IP leakage under certain circumstances " which @binhex has modify delugevpn

2 hours ago, Roudy said:



Is there anything in the JDownloader log about not starting? Can you show the docker settings?

I have gotten to start again, but uninstalling it and reinstalling it  but I am still now able to webGUI onto it

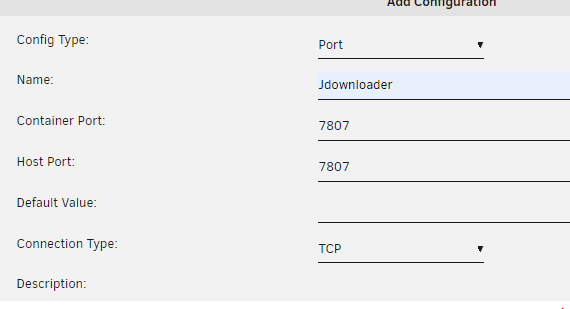

deluge settings







jdownloader

settings



logs



Quote

ErrorWarningSystemArrayLogin

[s6-init] making user provided files available at /var/run/s6/etc...exited 0.
[s6-init] ensuring user provided files have correct perms...exited 0.
[fix-attrs.d] applying ownership & permissions fixes...
[fix-attrs.d] done.
[cont-init.d] executing container initialization scripts...
[cont-init.d] 00-app-niceness.sh: executing...
[cont-init.d] 00-app-niceness.sh: exited 0.
[cont-init.d] 00-app-script.sh: executing...
[cont-init.d] 00-app-script.sh: exited 0.
[cont-init.d] 00-app-user-map.sh: executing...
[cont-init.d] 00-app-user-map.sh: exited 0.
[cont-init.d] 00-clean-logmonitor-states.sh: executing...
[cont-init.d] 00-clean-logmonitor-states.sh: exited 0.
[cont-init.d] 00-clean-tmp-dir.sh: executing...
[cont-init.d] 00-clean-tmp-dir.sh: exited 0.
[cont-init.d] 00-set-app-deps.sh: executing...
[cont-init.d] 00-set-app-deps.sh: exited 0.
[cont-init.d] 00-set-home.sh: executing...
[cont-init.d] 00-set-home.sh: exited 0.
[cont-init.d] 00-take-config-ownership.sh: executing...
[cont-init.d] 00-take-config-ownership.sh: exited 0.
[cont-init.d] 00-xdg-runtime-dir.sh: executing...
[cont-init.d] 00-xdg-runtime-dir.sh: exited 0.
[cont-init.d] 10-certs.sh: executing...
[cont-init.d] 10-certs.sh: exited 0.
[cont-init.d] 10-cjk-font.sh: executing...
[cont-init.d] 10-cjk-font.sh: exited 0.
[cont-init.d] 10-nginx.sh: executing...
[cont-init.d] 10-nginx.sh: exited 0.
[cont-init.d] 10-vnc-password.sh: executing...
[cont-init.d] 10-vnc-password.sh: exited 0.
[cont-init.d] 10-web-index.sh: executing...
[cont-init.d] 10-web-index.sh: exited 0.
[cont-init.d] jdownloader2.sh: executing...
[cont-init.d] jdownloader2.sh: exited 0.
[cont-init.d] done.
[services.d] starting services
[services.d] starting s6-fdholderd...
[services.d] starting certsmonitor...
[services.d] starting nginx...
[services.d] starting xvfb...
[nginx] starting...
[certsmonitor] disabling service: secure connection not enabled.
[xvfb] starting...
[services.d] starting logmonitor...
[services.d] starting statusmonitor...
[logmonitor] no file to monitor: disabling service...
[statusmonitor] no file to monitor: disabling service...
[services.d] starting openbox...
[openbox] starting...
[services.d] starting x11vnc...
[services.d] starting app...
[x11vnc] starting...
[app] starting JDownloader 2...
[services.d] done.
[jdsupervisor] JDownloader2 not started yet. Proceeding...
17/04/2021 18:57:18 passing arg to libvncserver: -rfbport
17/04/2021 18:57:18 passing arg to libvncserver: 5900
17/04/2021 18:57:18 passing arg to libvncserver: -rfbportv6
17/04/2021 18:57:18 passing arg to libvncserver: -1
17/04/2021 18:57:18 passing arg to libvncserver: -httpportv6
17/04/2021 18:57:18 passing arg to libvncserver: -1
17/04/2021 18:57:18 passing arg to libvncserver: -desktop
17/04/2021 18:57:18 passing arg to libvncserver: JDownloader 2
17/04/2021 18:57:18 x11vnc version: 0.9.14 lastmod: 2015-11-14 pid: 5128
17/04/2021 18:57:18 Using X display :0
17/04/2021 18:57:18 rootwin: 0x43 reswin: 0x200001 dpy: 0xe30fbb00
17/04/2021 18:57:18
17/04/2021 18:57:18 ------------------ USEFUL INFORMATION ------------------
17/04/2021 18:57:18 X DAMAGE available on display, using it for polling hints.
17/04/2021 18:57:18 To disable this behavior use: '-noxdamage'
17/04/2021 18:57:18
17/04/2021 18:57:18 Most compositing window managers like 'compiz' or 'beryl'
17/04/2021 18:57:18 cause X DAMAGE to fail, and so you may not see any screen
17/04/2021 18:57:18 updates via VNC. Either disable 'compiz' (recommended) or
17/04/2021 18:57:18 supply the x11vnc '-noxdamage' command line option.
17/04/2021 18:57:18 X COMPOSITE available on display, using it for window polling.
17/04/2021 18:57:18 To disable this behavior use: '-noxcomposite'
17/04/2021 18:57:18
17/04/2021 18:57:18 Wireframing: -wireframe mode is in effect for window moves.
17/04/2021 18:57:18 If this yields undesired behavior (poor response, painting
17/04/2021 18:57:18 errors, etc) it may be disabled:
17/04/2021 18:57:18 - use '-nowf' to disable wireframing completely.
17/04/2021 18:57:18 - use '-nowcr' to disable the Copy Rectangle after the
17/04/2021 18:57:18 moved window is released in the new position.
17/04/2021 18:57:18 Also see the -help entry for tuning parameters.
17/04/2021 18:57:18 You can press 3 Alt_L's (Left "Alt" key) in a row to
17/04/2021 18:57:18 repaint the screen, also see the -fixscreen option for
17/04/2021 18:57:18 periodic repaints.
17/04/2021 18:57:18 GrabServer control via XTEST.
17/04/2021 18:57:18
17/04/2021 18:57:18 Scroll Detection: -scrollcopyrect mode is in effect to
17/04/2021 18:57:18 use RECORD extension to try to detect scrolling windows
17/04/2021 18:57:18 (induced by either user keystroke or mouse input).
17/04/2021 18:57:18 If this yields undesired behavior (poor response, painting
17/04/2021 18:57:18 errors, etc) it may be disabled via: '-noscr'
17/04/2021 18:57:18 Also see the -help entry for tuning parameters.
17/04/2021 18:57:18 You can press 3 Alt_L's (Left "Alt" key) in a row to
17/04/2021 18:57:18 repaint the screen, also see the -fixscreen option for
17/04/2021 18:57:18 periodic repaints.
17/04/2021 18:57:18
17/04/2021 18:57:18 XKEYBOARD: number of keysyms per keycode 7 is greater
17/04/2021 18:57:18 than 4 and 51 keysyms are mapped above 4.
17/04/2021 18:57:18 Automatically switching to -xkb mode.
17/04/2021 18:57:18 If this makes the key mapping worse you can
17/04/2021 18:57:18 disable it with the "-noxkb" option.
17/04/2021 18:57:18 Also, remember "-remap DEAD" for accenting characters.
17/04/2021 18:57:18
17/04/2021 18:57:18 X FBPM extension not supported.
Xlib: extension "DPMS" missing on display ":0".
17/04/2021 18:57:18 X display is not capable of DPMS.
17/04/2021 18:57:18 --------------------------------------------------------
17/04/2021 18:57:18
17/04/2021 18:57:18 Default visual ID: 0x21
17/04/2021 18:57:18 Read initial data from X display into framebuffer.
17/04/2021 18:57:18 initialize_screen: fb_depth/fb_bpp/fb_Bpl 24/32/5120
17/04/2021 18:57:18
17/04/2021 18:57:18 X display :0 is 32bpp depth=24 true color
17/04/2021 18:57:18
17/04/2021 18:57:18 Listening for VNC connections on TCP port 5900
17/04/2021 18:57:18
17/04/2021 18:57:18 Xinerama is present and active (e.g. multi-head).
17/04/2021 18:57:18 Xinerama: number of sub-screens: 1
17/04/2021 18:57:18 Xinerama: no blackouts needed (only one sub-screen)
17/04/2021 18:57:18
17/04/2021 18:57:18 fb read rate: 1577 MB/sec
17/04/2021 18:57:18 fast read: reset -wait ms to: 10
17/04/2021 18:57:18 fast read: reset -defer ms to: 10
17/04/2021 18:57:18 The X server says there are 10 mouse buttons.
17/04/2021 18:57:18 screen setup finished.
17/04/2021 18:57:18

The VNC desktop is: 1fbfa8272a95:0

0

******************************************************************************
Have you tried the x11vnc '-ncache' VNC client-side pixel caching feature yet?

The scheme stores pixel data offscreen on the VNC viewer side for faster
retrieval. It should work with any VNC viewer. Try it by running:

x11vnc -ncache 10 ...

One can also add -ncache_cr for smooth 'copyrect' window motion.
More info: http://www.karlrunge.com/x11vnc/faq.html#faq-client-caching

17/04/2021 18:57:18 passing arg to libvncserver: -rfbport
17/04/2021 18:57:18 passing arg to libvncserver: 5900
17/04/2021 18:57:18 passing arg to libvncserver: -rfbportv6
17/04/2021 18:57:18 passing arg to libvncserver: -1
17/04/2021 18:57:18 passing arg to libvncserver: -httpportv6
17/04/2021 18:57:18 passing arg to libvncserver: -1
17/04/2021 18:57:18 passing arg to libvncserver: -desktop
17/04/2021 18:57:18 passing arg to libvncserver: JDownloader 2
17/04/2021 18:57:18 x11vnc version: 0.9.14 lastmod: 2015-11-14 pid: 5128
17/04/2021 18:57:18 Using X display :0
17/04/2021 18:57:18 rootwin: 0x43 reswin: 0x200001 dpy: 0xe30fbb00
17/04/2021 18:57:18
17/04/2021 18:57:18 ------------------ USEFUL INFORMATION ------------------
17/04/2021 18:57:18 X DAMAGE available on display, using it for polling hints.
17/04/2021 18:57:18 To disable this behavior use: '-noxdamage'
17/04/2021 18:57:18
17/04/2021 18:57:18 Most compositing window managers like 'compiz' or 'beryl'
17/04/2021 18:57:18 cause X DAMAGE to fail, and so you may not see any screen
17/04/2021 18:57:18 updates via VNC. Either disable 'compiz' (recommended) or
17/04/2021 18:57:18 supply the x11vnc '-noxdamage' command line option.
17/04/2021 18:57:18 X COMPOSITE available on display, using it for window polling.
17/04/2021 18:57:18 To disable this behavior use: '-noxcomposite'
17/04/2021 18:57:18
17/04/2021 18:57:18 Wireframing: -wireframe mode is in effect for window moves.
17/04/2021 18:57:18 If this yields undesired behavior (poor response, painting
17/04/2021 18:57:18 errors, etc) it may be disabled:
17/04/2021 18:57:18 - use '-nowf' to disable wireframing completely.
17/04/2021 18:57:18 - use '-nowcr' to disable the Copy Rectangle after the
17/04/2021 18:57:18 moved window is released in the new position.
17/04/2021 18:57:18 Also see the -help entry for tuning parameters.
17/04/2021 18:57:18 You can press 3 Alt_L's (Left "Alt" key) in a row to
17/04/2021 18:57:18 repaint the screen, also see the -fixscreen option for
17/04/2021 18:57:18 periodic repaints.
17/04/2021 18:57:18 GrabServer control via XTEST.
17/04/2021 18:57:18
17/04/2021 18:57:18 Scroll Detection: -scrollcopyrect mode is in effect to
17/04/2021 18:57:18 use RECORD extension to try to detect scrolling windows
17/04/2021 18:57:18 (induced by either user keystroke or mouse input).
17/04/2021 18:57:18 If this yields undesired behavior (poor response, painting
17/04/2021 18:57:18 errors, etc) it may be disabled via: '-noscr'
17/04/2021 18:57:18 Also see the -help entry for tuning parameters.
17/04/2021 18:57:18 You can press 3 Alt_L's (Left "Alt" key) in a row to
17/04/2021 18:57:18 repaint the screen, also see the -fixscreen option for
17/04/2021 18:57:18 periodic repaints.
17/04/2021 18:57:18
17/04/2021 18:57:18 XKEYBOARD: number of keysyms per keycode 7 is greater
17/04/2021 18:57:18 than 4 and 51 keysyms are mapped above 4.
17/04/2021 18:57:18 Automatically switching to -xkb mode.
17/04/2021 18:57:18 If this makes the key mapping worse you can
17/04/2021 18:57:18 disable it with the "-noxkb" option.
17/04/2021 18:57:18 Also, remember "-remap DEAD" for accenting characters.
17/04/2021 18:57:18
17/04/2021 18:57:18 X FBPM extension not supported.
Xlib: extension "DPMS" missing on display ":0".
17/04/2021 18:57:18 X display is not capable of DPMS.
17/04/2021 18:57:18 --------------------------------------------------------
17/04/2021 18:57:18
17/04/2021 18:57:18 Default visual ID: 0x21
17/04/2021 18:57:18 Read initial data from X display into framebuffer.
17/04/2021 18:57:18 initialize_screen: fb_depth/fb_bpp/fb_Bpl 24/32/5120
17/04/2021 18:57:18
17/04/2021 18:57:18 X display :0 is 32bpp depth=24 true color
17/04/2021 18:57:18
17/04/2021 18:57:18 Listening for VNC connections on TCP port 5900
17/04/2021 18:57:18
17/04/2021 18:57:18 Xinerama is present and active (e.g. multi-head).
17/04/2021 18:57:18 Xinerama: number of sub-screens: 1
17/04/2021 18:57:18 Xinerama: no blackouts needed (only one sub-screen)
17/04/2021 18:57:18
17/04/2021 18:57:18 fb read rate: 1577 MB/sec
17/04/2021 18:57:18 fast read: reset -wait ms to: 10
17/04/2021 18:57:18 fast read: reset -defer ms to: 10
17/04/2021 18:57:18 The X server says there are 10 mouse buttons.
17/04/2021 18:57:18 screen setup finished.
17/04/2021 18:57:18

The VNC desktop is: 1fbfa8272a95:0

0

******************************************************************************
Have you tried the x11vnc '-ncache' VNC client-side pixel caching feature yet?

The scheme stores pixel data offscreen on the VNC viewer side for faster
retrieval. It should work with any VNC viewer. Try it by running:

x11vnc -ncache 10 ...

One can also add -ncache_cr for smooth 'copyrect' window motion.
More info: http://www.karlrunge.com/x11vnc/faq.html#faq-client-caching



Hello,
I am using Deluge VPN in Docker. It is configured to be connected to my CyberGhost VPN via OpenVPN with UDP. I don't know if my configuration is correct but here my Deluge doesn't want to download anything anymore, it starts at 50 kbps and ends at 0. I even tested with an official ubuntu torrent and I have 0 kbps. I just created a new deleted VPN account and recomposed my container and I have the same problem. I tested OpenVPN on my PC (Windows) and tried downloading the same torrent and it works fine.



Here my configuration on my docker-compose.yml :



  deluge:
    image: binhex/arch-delugevpn:latest
    container_name: deluge
    restart: unless-stopped
    networks:
      - ${NETWORK}
    cap_add:
      - NET_ADMIN
    ports:
      - 8112:8112
      - 8118:8118
      - 58846:58846
      - 58946:58946
    environment:
      - PUID=${PUID}
      - PGID=${PGID}
      - TZ=Europe/Paris
      - VPN_ENABLED=true
      - VPN_PROV=CUSTOM
      - VPN_USER=${VPN_USER}
      - VPN_PASS=${VPN_PASS}
      - STRICT_PORT_FORWARD=yes
      - ENABLE_PRIVOXY=yes
      - LAN_NETWORK=${LAN_NETWORK}
      - NAME_SERVERS=209.222.18.222,84.200.69.80,37.235.1.174,1.1.1.1,209.222.18.218,37.235.1.177,84.200.70.40,1.0.0.1
      - UMASK=000
      - DEBUG=true


Thank !

Edited April 18, 20215 yr by sebigeli

Having used a few NGINX based reverse proxies, NGINX Proxy Manager is the best by far.

Its clean GUI allows for easier management of hosts and is better if your new to the platform.

However, since its based on GUI and not nitty gritty config files it can make getting troublesome dockers to work.



I struggled to get Deluge working and had little issues with the 10+ other dockers.

Now that I have it working I would like to share the solution.



NGINX Proxy Manager:

If you use the default location settings for most apps its will work fine but for Deluge you will get.



Now you might be inclined to Google your way to the correct custom settings that you can input per location but it will be a long road to nowhere as your actually missing a needed configuration file.

This file is not included with NGINX PM and without it Deluge will not work.

To fix this follow the steps precisely:



1. Create a new location for Deluge. If you have one already, delete it and start new.

2. Set the following settings:

• location: /deluge
• scheme: http
• forward hostname / IP: IP address to your docker + trailing slash i.e. 172.16.0.2/
• forward port: 8112 (unless you have changed the default port)

You must have the trailing slash or it will not work.

You should avoid manually adjusting the .conf file in app folder because NGINX will replace that file if you modify locations via GUI.



3. Now we add the needed config file, I have attached this to the post. proxy-control.conf

Using UNRAID console with root access, copy the file to the app directory.

i.e. cp /location/proxy-control.conf <to the destination> /mnt/user/appdata/NginxProxyManager/nginx

Use ls /app/location to confirm its there.

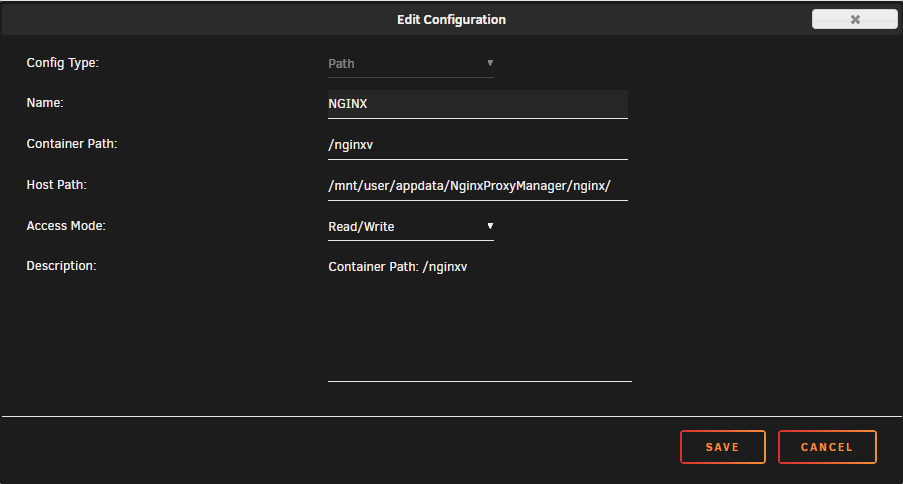

4. Create a custom path to your location within docket template.

i.e.



Or use the built in app location from template /config



5. Now we add the advance settings needed which includes injecting that config file.

In the deluge location click the cog icon to get to the advance settings.



This is the example settings provided by Deluge wiki:

proxy_pass http://localhost:8112/;

proxy_set_header X-Deluge-Base "/deluge/";

include proxy-control.conf;

add_header X-Frame-Options SAMEORIGIN;



However that's assumed for configuration based NGIX instances and PM is GUI based, we need to tweak it to:

proxy_set_header X-Deluge-Base "/deluge/";
include /docker/variable/path/proxy-control.conf;
add_header X-Frame-Options SAMEORIGIN;



Remember to change the "include /docker/variable/path/proxy-control.conf;" to your docker variable path

i.e. /config/nginx/proxy-control.conf;

Or using your custom set variable path



6. Click the save and we should be done.

NGINX does not inject config files until reboot so reboot the container.

Follow the logs and confirm there are no errors, if you encounter one it would will be an issue loading the config file and you will need to check the following to resolve:

• Check your steps for something missed
• Confirm your variable is working using the dockers console to list the file
• Ensure the permissions are such the docker has access. i.e. 775

7. Now if you go to https://domain.com/deluge you should get to your docker.



Hope this helps 🙂

proxy-control.conf

Edited April 18, 20215 yr by ados
Errors

2 hours ago, ados said:

Hope this helps 🙂

Nice write-up! I was struggling with this three weeks ago when starting with reverse proxy. In the end I went with swag and did the job understanding that route. But if I had this information then it could have been different. Maybe it should be copied to other places also?

@tetrapod thanks for the support. It took a lot of hours but if it helps others that's the idea.

It has been posted to all three Deluge repositories and NGNX PM home too.

I looked at swag but seemed like more effort 'at the time'  and I wasn't sure if it supported multi proxy hosts with different SSLs which I need.

 For those wanting to restrict login access to their sub domains or sub-folders from public access through NGINX Proxy Manager I have created a guide to use Organizr.



Its a powerful SSO based platform for accessing multiple resources and allows for configuration using their API to restrict access to URL resources without authentication to Organizr.



Guide:



@tetrapod you might find Organizr interesting, check out the new guide.

Hello. Im trying to setup Deluge Docker with my VPNSecure details and i cant get it to work. It works fine is i turn the VPN off.



Ive used these details:

Key1: yes
Key2: <my username>
Key3: <my password>
Key 4: custom
Key 5: openvpn
Key 6: i've left this blank, i don't know what it is
Key 7: yes



Ive downloaded the .ovpn file i need from VPNSecure and placed it it /appdata/binhex-delugevpn/openvpn

I also placed a few other files supplied by them in there, the folder contains:

myusernam.key

ca.crt

credentials.conf (generated by the Docker)

dh2048.pem

nl1-TCP-myusernam.ovpn

myusernam.crt



When i try to go to the webUi on port 8112, nothing happens.



Im fairly new to this - short of getting a PIA account, can anyone help?



Many thanks.

4 minutes ago, wobblewoo said:

Hello. Im trying to setup Deluge Docker with my VPNSecure details and i cant get it to work. It works fine is i turn the VPN off.



Ive used these details:

Key1: yes
Key2: <my username>
Key3: <my password>
Key 4: custom
Key 5: openvpn
Key 6: i've left this blank, i don't know what it is
Key 7: yes



Ive downloaded the .ovpn file i need from VPNSecure and placed it it /appdata/binhex-delugevpn/openvpn

I also placed a few other files supplied by them in there, the folder contains:

myusernam.key

ca.crt

credentials.conf (generated by the Docker)

dh2048.pem

nl1-TCP-myusernam.ovpn

myusernam.crt



When i try to go to the webUi on port 8112, nothing happens.



Im fairly new to this - short of getting a PIA account, can anyone help?



Many thanks.

do this:- https://github.com/binhex/documentation/blob/master/docker/faq/help.md

Thanks and done. It created (multiple) 10Mb text files with what looked like repeated info, so ive scrubbed alot of it. I can also see an IP address in the Netherlands, which is what i wanted

supervisord.log

Edited April 21, 20215 yr by wobblewoo

7 minutes ago, wobblewoo said:

Thanks and done. It created (multiple) 10Mb text files with what looked like repeated info, so ive scrubbed alot of it. I can also see an IP address in the Netherlands, which is what i wanted

supervisord.log 7.74 kB · 0 downloads

this is the issue, from your log:-

2021-04-21 17:16:11 neither stdin nor stderr are a tty device and you have neither a controlling tty nor systemd - can't ask for 'Enter Private Key Password:'.  If you used --daemon, you need to use --askpass to make passphrase-protected keys work, and you can not use --auth-nocache.
2021-04-21 17:16:11 Exiting due to fatal error

so you have a pass phrase on your private key, but there is no way to enter in the pass phrase, simples solution is to go to vpn provider and remove the pass phrase, make sure you re-download and replace files after this.
