So I have an existing working VM and I also have a .dd image of a bootable USB drive.



How would I go about modifying my existing XML file to boot this .dd image file before my hard drive.



My two use cases are to boot a clover image before going into OS X and my second use case is the need to boot the live gparted .iso file.



Example OS X XML  (In this example I believe I need to delete the kernal line as that is envoking the chameleon bootloader).



<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>OSX-El-Capitan-10.11-VNC</name>
  <uuid>0ba39646-7ba1-4d41-9602-e2968b2fe36d</uuid>
  <metadata>
    <type>None</type>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='1'/>
    <vcpupin vcpu='1' cpuset='2'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-2.3'>hvm</type>
    <kernel>/mnt/user/Vdisks/OSX_10_11/enoch_rev2795_boot</kernel>
    <boot dev='hd'/>
    <bootmenu enable='yes'/>
  </os>
  <features>
    <acpi/>
  </features>
  <cpu mode='custom' match='exact'>
    <model fallback='allow'>core2duo</model>
  </cpu>
  <clock offset='utc'/>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>destroy</on_crash>
  <devices>
    <emulator>/usr/bin/qemu-system-x86_64</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/Vdisks/OSX_10_11/ElCapitan.img'/>
      <target dev='hda' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <controller type='usb' index='0'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='dmi-to-pci-bridge'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
    </controller>
    <controller type='pci' index='2' model='pci-bridge'>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:00:20:30'/>
      <source bridge='br0'/>
      <model type='e1000-82545em'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/>
    </interface>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='vmvga' vram='16384' heads='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='none'/>
  </devices>
  <seclabel type='none' model='none'/>
  <qemu:commandline>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-mouse'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk='/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
  </qemu:commandline>
</domain>

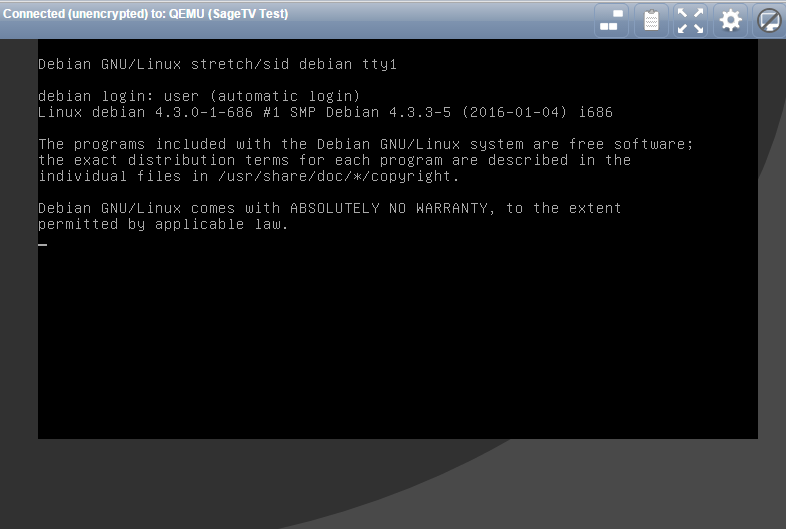

So I have been trying different things...for the gparted .iso case I replaced the ubuntu install .iso with the gparted live cd.iso and changed the boot order accordingly and I am able to boot gparted...however after answering the setup questions, about keyboard, language etc, It gets to video settings and then stops.  Attached is a screenshot of where it ends.  I am using VNC for the graphics...maybe I should try passthrough?



Maybe I am going in the wrong direction.  I created an ubuntu LTS VM and the initial size was 5Gb and its too small.  I want to increase it to 10Gb.  I have made the change in the unraid VM to 10 Gb.  How do I resize my file system to get the additional 5GB I added?  I know how to do this with my windows VMs...I assumed I needed to run gparted to make the change...but could be wrong.



Any suggestions would be greatly appreciated.



Dan
