February 17, 201610 yr hello - unRAID has been running perfectly - until i tried setting up VMs, where it told me IOMMU was disabled. I went through the BIOS however, and IOMMU is definatley enabled, with 1024MB allocated to it. Thoughts? Thanks, Matt
February 17, 201610 yr Community Expert I think you will have to provide a lot more information about your hardware before anyone will even attempt to help with this question.
February 18, 201610 yr You don't normally allocate memory to IOMMU.... At least I've never had to. Like trurl says nobody can help you unless you post your hardware, CPU & Motherboard.
February 18, 201610 yr Tools > Diagnostics > Download (then upload it) and you'll be a superstar in no time (and we'll be able to help in much greater detail) .
February 18, 201610 yr Author hi again. Thanks for all the replies. As requested, here are my specs. Attached is the diagnostics ZIP. Tyan s4985g3nr n4250qe AMD Opteron 9218 (x4) 32Gb Hynix 2Rx4 PC2-5300P-555-12 XFX R9 290 DD thanks again. unmatt-diagnostics-20160218-0003.zip
February 18, 201610 yr I'm going to take a guess that one of your components doesn't support directed I/O for hardware. Your BIOS states this for "IOMMU" (which doesn't mean amd-vi (or more common Intel's vt-d), and I see nowhere else to enable virtualization. IOMMU IOMMU is supported on LINUX based systems to convert 32bit PCI IO address to 64 bits. Enabled / Disabled You can try adding this to your syslinux.cfg file (on your unRAID flash drive): You may only need the iommu=1 part. iommu=pt iommu=1 It would then look something like this: label unRAID OS menu default kernel /bzimage append iommu=pt iommu=1 initrd=/bzroot The problem is your hardware is pretty old, and AMD is difficult to lookup for the needed "AMD-Vi" specification for your CPU. Hopefully it is supported (on both the CPU, the chipset, and in the BIOS), and you're all set, but I'm not too confident as of now.
February 18, 201610 yr Author I'm going to take a guess that one of your components doesn't support directed I/O for hardware. Your BIOS states this for "IOMMU" (which doesn't mean amd-vi (or more common Intel's vt-d), and I see nowhere else to enable virtualization. IOMMU IOMMU is supported on LINUX based systems to convert 32bit PCI IO address to 64 bits. Enabled / Disabled You can try adding this to your syslinux.cfg file (on your unRAID flash drive): You may only need the iommu=1 part. iommu=pt iommu=1 It would then look something like this: label unRAID OS menu default kernel /bzimage append iommu=pt iommu=1 initrd=/bzroot The problem is your hardware is pretty old, and AMD is difficult to lookup for the needed "AMD-Vi" specification for your CPU. Hopefully it is supported (on both the CPU, the chipset, and in the BIOS), and you're all set, but I'm not too confident as of now. hi - I tried that, and managed to get it to boot in safe mode... however, IOMMU was still disabled. When booting in normal mode, it throws up an error, detailed in the photo linked below. I know for certain that AMD-v is supported on the CPUs, so maybe the motherboard is the issue? cheers https://goo.gl/photos/V4UVaSZ55kMgr5B77
February 18, 201610 yr That's a 2007 BIOS, upgrade it if at all possible. Virtualization support has come a long way.
February 18, 201610 yr Author That's a 2007 BIOS, upgrade it if at all possible. Virtualization support has come a long way. thanks for the suggestion - no matter how hard i try, I cant get it to update...
May 6, 20206 yr IOMMU was enabled and now it's showing disabled also. SPECS are i7-4770 CPU 24GB DDR3 [8086:0c00]00:00.0 Host bridge: Intel Corporation 4th Gen Core Processor DRAM Controller (rev 06) [8086:0c01]00:01.0 PCI bridge: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor PCI Express x16 Controller (rev 06) [8086:0412]00:02.0 VGA compatible controller: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor Integrated Graphics Controller (rev 06) [8086:0c0c]00:03.0 Audio device: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor HD Audio Controller (rev 06) [8086:8c31]00:14.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB xHCI (rev 04) [8086:8c3a]00:16.0 Communication controller: Intel Corporation 8 Series/C220 Series Chipset Family MEI Controller #1 (rev 04) [8086:8c2d]00:1a.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #2 (rev 04) [8086:8c20]00:1b.0 Audio device: Intel Corporation 8 Series/C220 Series Chipset High Definition Audio Controller (rev 04) [8086:8c10]00:1c.0 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #1 (rev d4) [8086:8c14]00:1c.2 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #3 (rev d4) [8086:8c1a]00:1c.5 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #6 (rev d4) [8086:8c1e]00:1c.7 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #8 (rev d4) [8086:8c26]00:1d.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #1 (rev 04) [8086:8c44]00:1f.0 ISA bridge: Intel Corporation Z87 Express LPC Controller (rev 04) [8086:8c02]00:1f.2 SATA controller: Intel Corporation 8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode] (rev 04) [8086:8c22]00:1f.3 SMBus: Intel Corporation 8 Series/C220 Series Chipset Family SMBus Controller (rev 04) [1002:6811]01:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Curacao PRO [Radeon R7 370 / R9 270/370 OEM] [1002:aab0]01:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Oland/Hainan/Cape Verde/Pitcairn HDMI Audio [Radeon HD 7000 Series] [10ec:8168]03:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 0c) [1002:6811]04:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Curacao PRO [Radeon R7 370 / R9 270/370 OEM] [1002:aab0]04:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Oland/Hainan/Cape Verde/Pitcairn HDMI Audio [Radeon HD 7000 Series] [168c:0032]05:00.0 Network controller: Qualcomm Atheros AR9485 Wireless Network Adapter (rev 01) Anyone know where this gone wrong. all I did was change a faulty SSD cache drive.
May 7, 20206 yr I have looked all over the bios to find a specific setting, can't find anything specific to IOMMU however Virtualization is on.
May 7, 20206 yr its an old Dell XPS motherboard, there was an i5 4th gen in it, however I upgraded to an i7 4770 to get more virtual cores. As soon as switched the cpu the GFX assignment per VM stopped working in unraid, even after switching the CPU back to i5 still wont allow GFX assignment. I am building this rig for my nephews from spares I had lying around, so they can both game on one machine. I would strongly appreciate any assistance, I am at the end of my rope with this thing, been working on it for a couple of nights now. My last ditch is to find another board, and I have been looking it's not a good alternative.

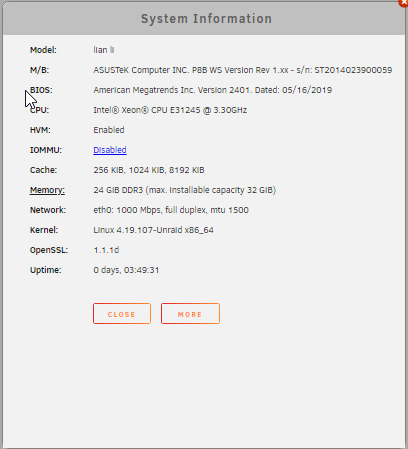

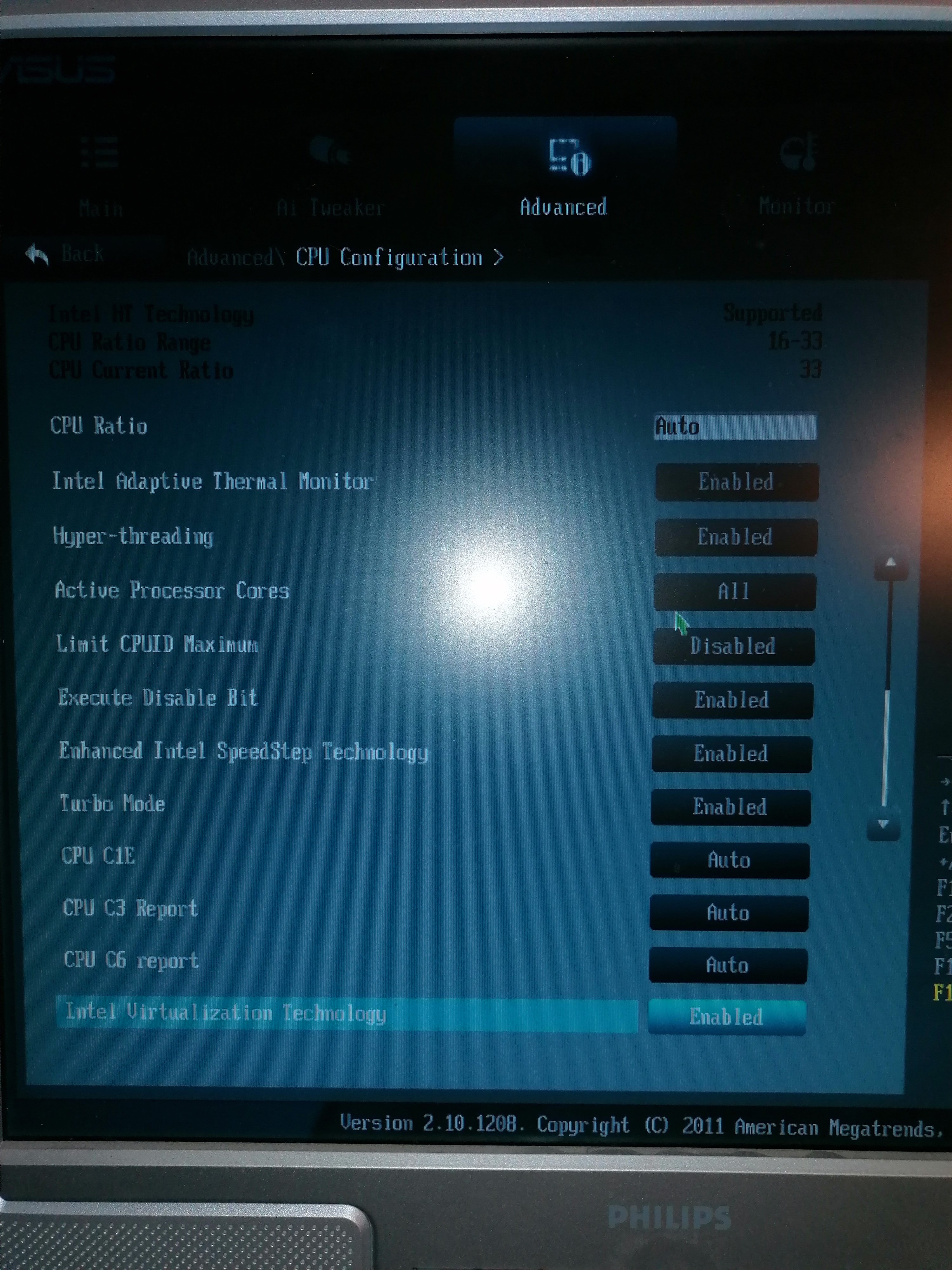

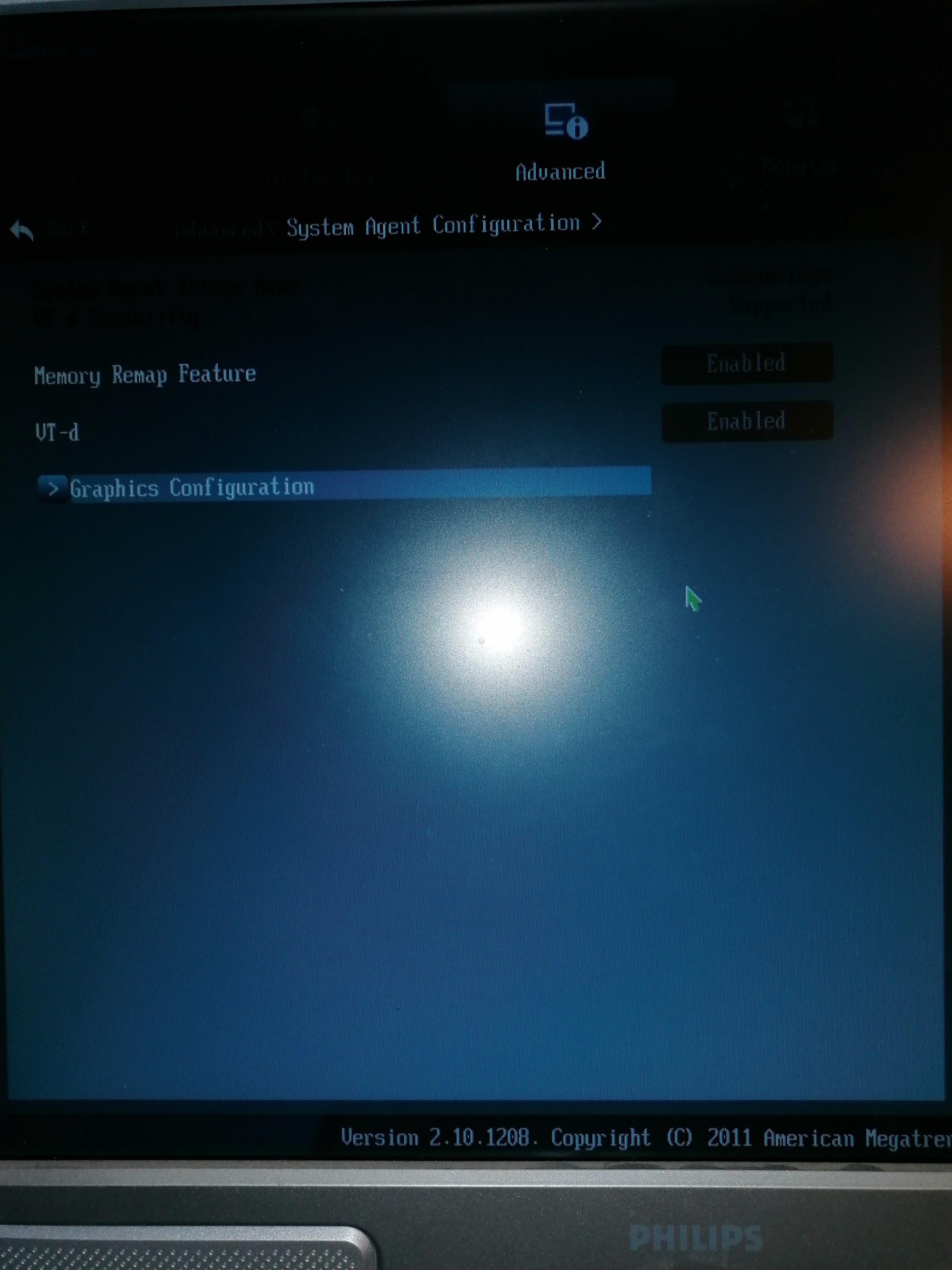

November 22, 20205 yr Hello I have a Asus P8BWS motherboard with VT-x & VT-d enabled. Bios version is last one from 2019. https://www.asus.com/us/supportonly/P8B WS/HelpDesk_BIOS/ CPU is Xeon E3-1245. https://ark.intel.com/content/www/us/en/ark/products/65729/intel-xeon-processor-e3-1245-v2-8m-cache-3-40-ghz.html So everything should be fine in order to pass trough PCIe devices, but IOMMU appears disabled in unraid . Please note that years ago i was able to pass trough devices such as HardDrives to ESXi in RDM mode of vsphere. Is it something not working as expected in Unraid OS version 6.8.3 for IOMMU support? Here enclosed some more info for ur support please any advise welcome tower-diagnostics-20201122-2226.zip
November 22, 20205 yr Community Expert As far as I know Unraid simply goes by what the BIOS reports for IOMMU.
November 22, 20205 yr em... ok so how is it possible that it is stated that IOMMU is disbaled as the VT-d is enabled in BIOS?
November 24, 20205 yr i reply to myself in case it can help other users: issue was inisde my syslinux.cfg file , i had just " label Unraid OS menu default kernel /bzimage append intel_iommu=off initrd=/bzroot " i changed last line in " append intel_iommu=on initrd=/bzroot " and it worked like a charm
April 14, 20233 yr As in the post's title, I'm having the IOMMU always being reported as disabled. Intel Virtualization Technology is switched on in the BIOS. I've already tried adding to syslinux.cfg all the following combinations between append and initrd=/bzroot, one at a time. Still no luck. iommu=pt iommu=1 iommu=pt iommu=1 intel_iommu=on iommu=1 iommu=pt intel_iommu=on Here are my specs (pasted from unraid): Model: Custom M/B: PEGATRON CORPORATION Eureka3 Version 1.02 - s/n: 101578460001374 BIOS: American Megatrends Inc. Version 5.09. Dated: 08/19/2009 CPU: Intel® Core™2 Quad CPU Q9300 @ 2.50GHz HVM: Enabled IOMMU: Disabled Cache: 128 KiB, 6 MB Memory: 8 GiB Other (max. installable capacity 8 GiB) Network: bond0: fault-tolerance (active-backup), mtu 1500 Kernel: Linux 5.19.17-Unraid x86_64 OpenSSL:1.1.1s Uptime: 10 minutes I attach you the diagnostics ZIP in case someone can help me out. Thank you in advance! nas-diagnostics-20230414-1646.zip

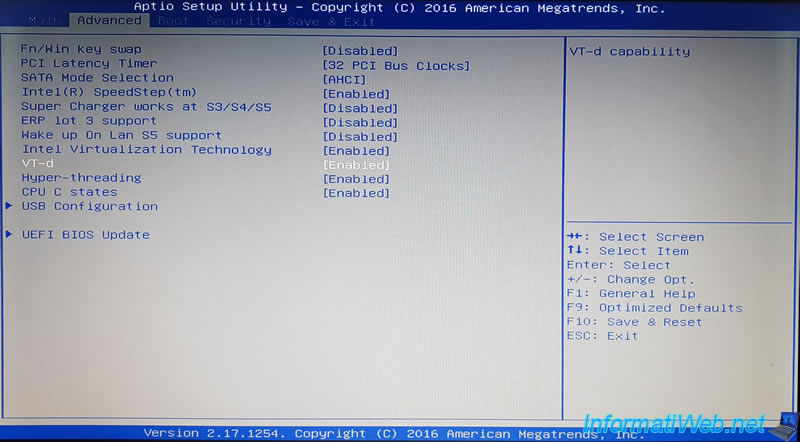

April 14, 20233 yr Community Expert 17 minutes ago, SlavaRublev said: As in the post's title, I'm having the IOMMU always being reported as disabled. Intel Virtualization Technology is switched on in the BIOS. I've already tried adding to syslinux.cfg all the following combinations between append and initrd=/bzroot, one at a time. Still no luck. iommu=pt iommu=1 iommu=pt iommu=1 intel_iommu=on iommu=1 iommu=pt intel_iommu=on Here are my specs (pasted from unraid): Model: Custom M/B: PEGATRON CORPORATION Eureka3 Version 1.02 - s/n: 101578460001374 BIOS: American Megatrends Inc. Version 5.09. Dated: 08/19/2009 CPU: Intel® Core™2 Quad CPU Q9300 @ 2.50GHz HVM: Enabled IOMMU: Disabled Cache: 128 KiB, 6 MB Memory: 8 GiB Other (max. installable capacity 8 GiB) Network: bond0: fault-tolerance (active-backup), mtu 1500 Kernel: Linux 5.19.17-Unraid x86_64 OpenSSL:1.1.1s Uptime: 10 minutes I attach you the diagnostics ZIP in case someone can help me out. Thank you in advance! nas-diagnostics-20230414-1646.zip 116.29 kB · 0 downloads Likely to be a second option for VT-d in bios maybe in the advanced options.

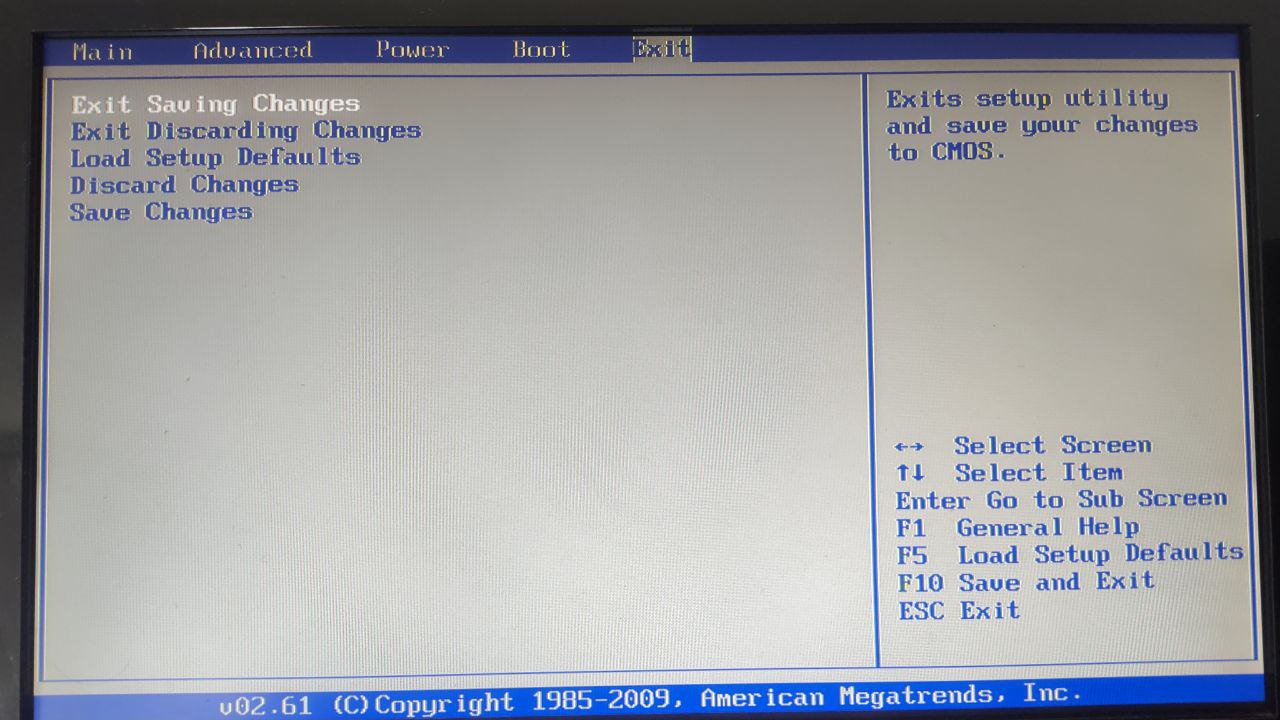

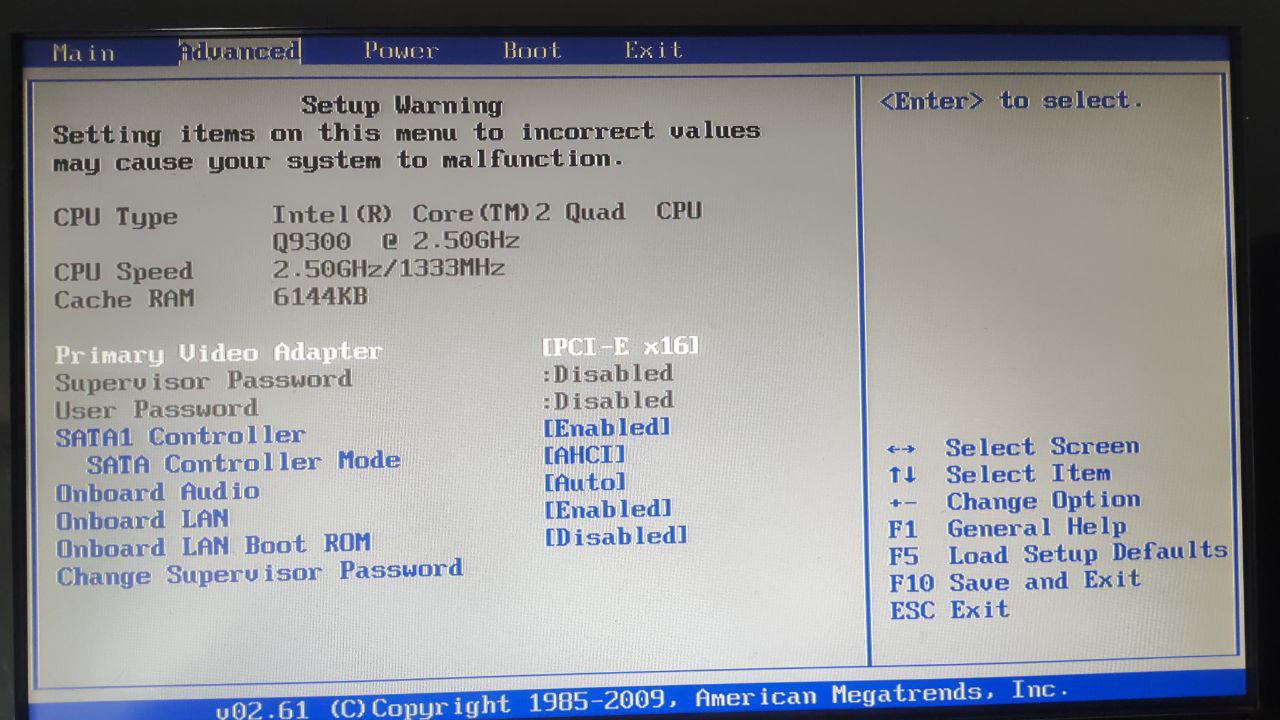

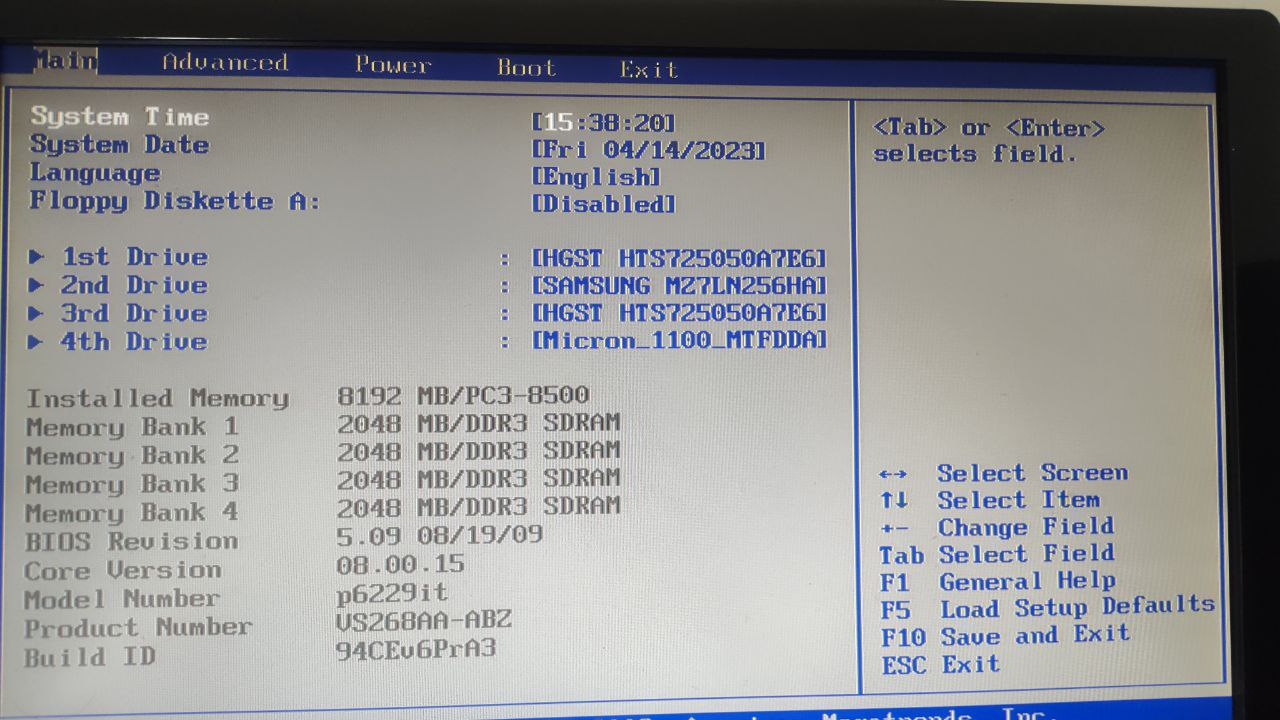

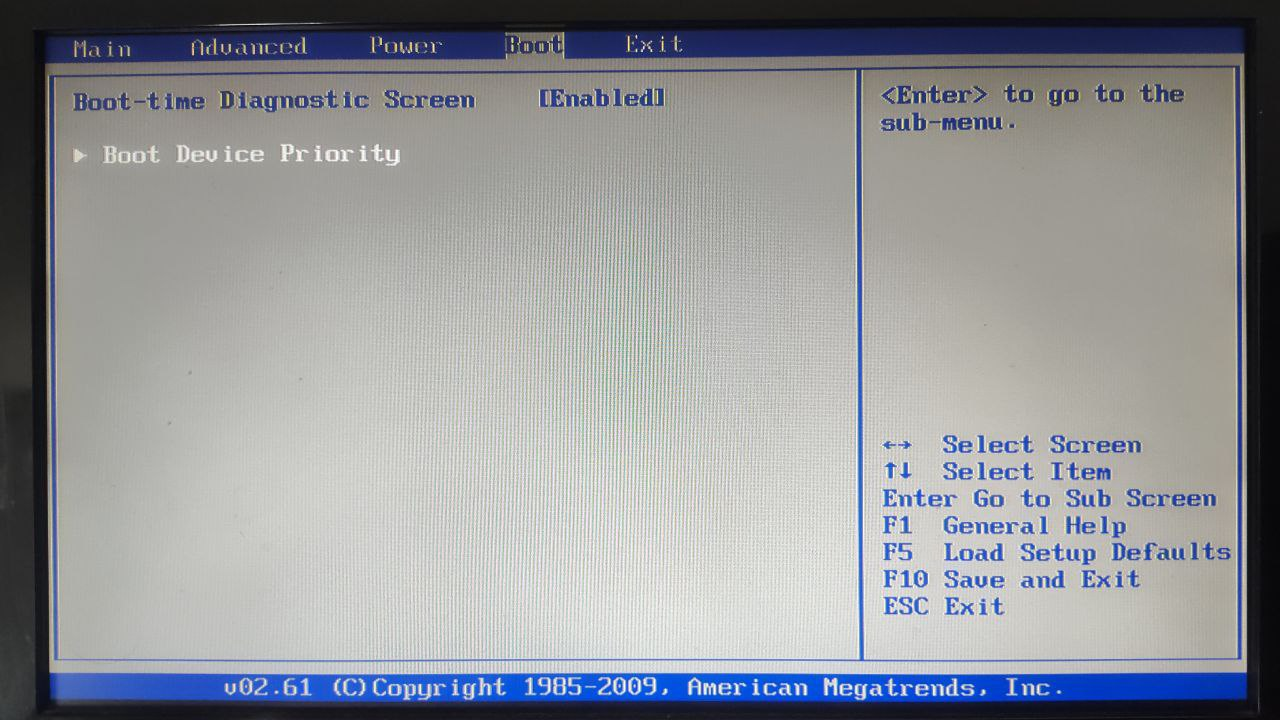

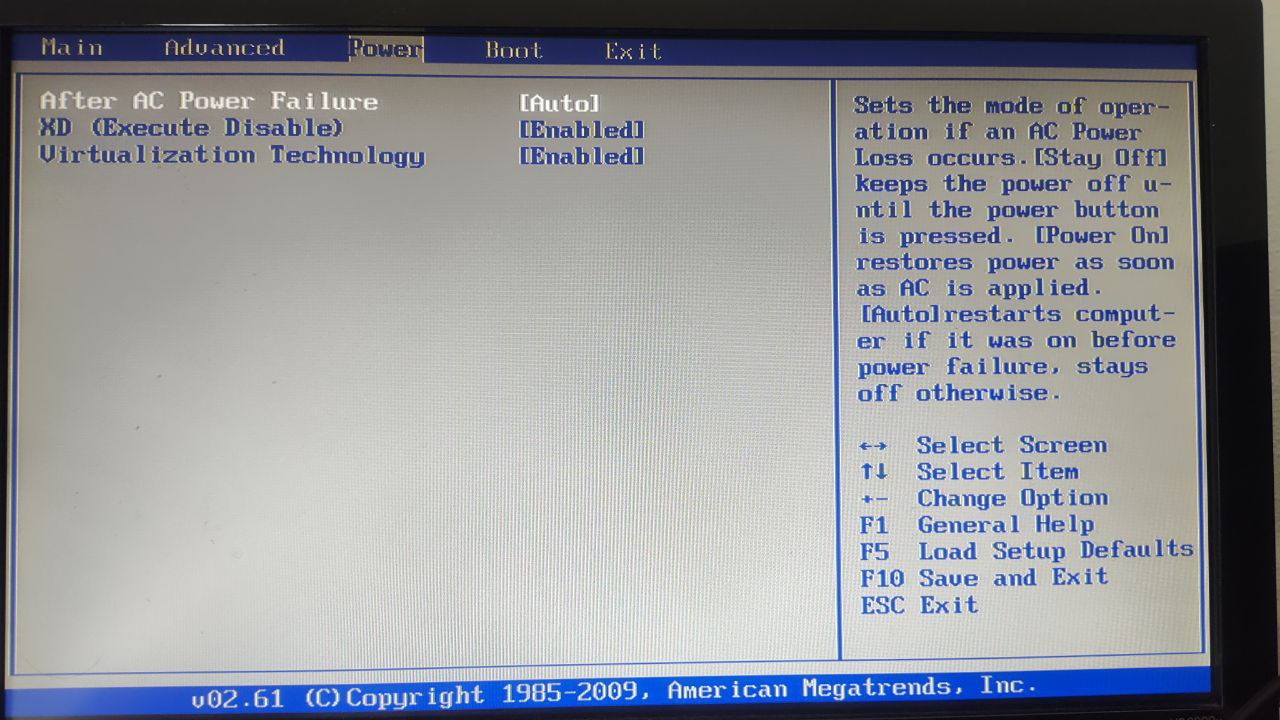

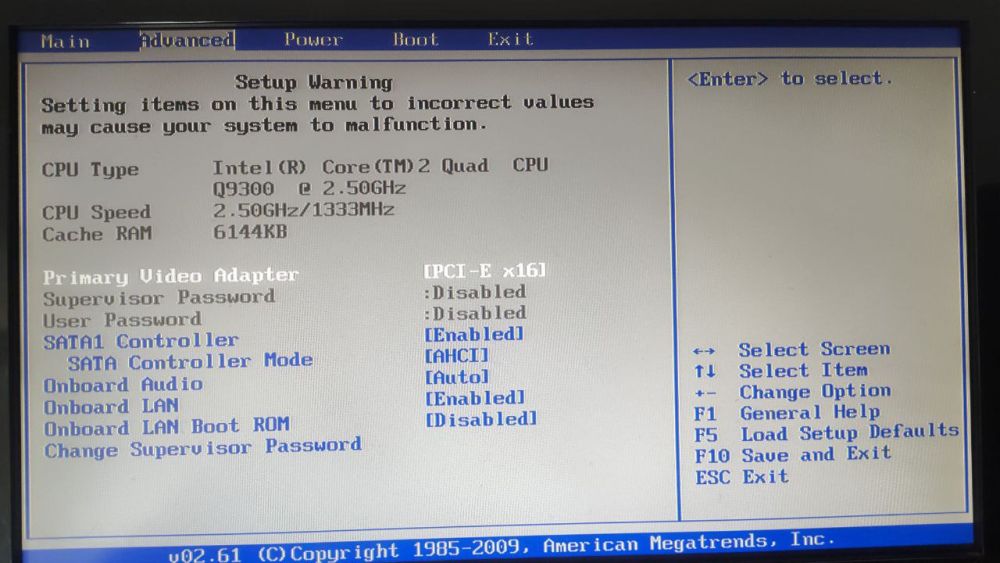

April 14, 20233 yr Community Expert 1 hour ago, SlavaRublev said: I don't have such option in my BIOS. Here are all my menu screens: Looks lie the bios does not support Iommu but I cannot find any manuals for board
