February 26, 201610 yr Hi Everyone, I recently began having issues with on of the drives in my unraid setup. I currently have 5 data sata drives, 1 sata parity drive and an older ide cache drive. within the last 2 weeks i noted that my second drive is listed with the red x next to it. After reading many posts I've tried a few things Stop the array change the bad drive to not installed [restart array stop array change he disk to the disabled drive start array let the rebuild complete The rebuild gets to 20-25% and stops. I have also replaced the sata cable, moved the hdd off the motherboard and onto a pci sata card and still no luck. Any help you can provide would be appreciated Thanks in advance! syslog.txt ST2000DM001-9YN164_S1E0XTBM-20160225-1916.txt
February 26, 201610 yr The SMART you posted is showing the disk isn't really responding. Before attempting to rebuild onto the same disk that failed, you really should have some reason to believe that the disk is still good. Do you have another disk you can use to rebuild? Go to Tools - Diagnostics and post the complete diagnostics zip. For v6 it is very much preferred that you always post the complete diagnostics zip. This contains the syslog, SMART for all drives, and lots of other useful information that will save everyone from having to ask for it a little at a time.
February 26, 201610 yr Author Thanks for the reply. i've attached the full zip. I just assumed that since the rebuild has hit the 35% mark that it was working ok. In the meantime let me see if i have another drive to swap it out with for now. tower-diagnostics-20160225-1916.zip
February 26, 201610 yr disk3 Feb 25 10:20:13 Tower kernel: md: import disk3: [8,80] (sdf) ST2000DM001-9YN164_Z1E0MSVX size: 1953514552 Serial Number: Z1E0MSVX 5 Reallocated_Sector_Ct 0x0033 100 100 036 Pre-fail Always - 1072 Much higher than I would like but none pending or uncorrectable. Keep an eye on this one. cache Feb 25 10:20:13 Tower emhttp: ST3200822A_3LJ17LE5 (sdh) 195360984 Feb 25 10:20:13 Tower emhttp: import 24 cache device: sdh Serial Number: 3LJ17LE5 5 Reallocated_Sector_Ct 0x0033 100 100 036 Pre-fail Always - 6 197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 2 198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 2 Fortunately this one won't be involved in the rebuild but should probably be precleared later to see if you can get the pending to zero. Isn't unRAID giving you any SMART status indication on the dashboard about these other disks?
February 26, 201610 yr Author My dashboard only shows an issue with the 1 drive. the only other drive i have available for testing is a 256 ssd. Would that work or is it too small? Thanks again for your help

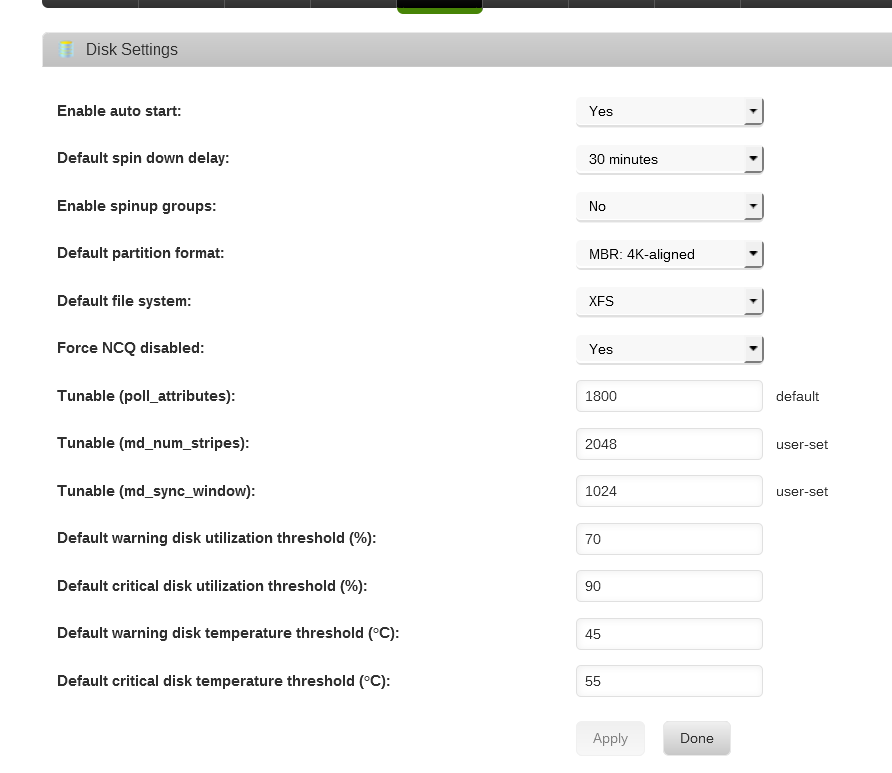

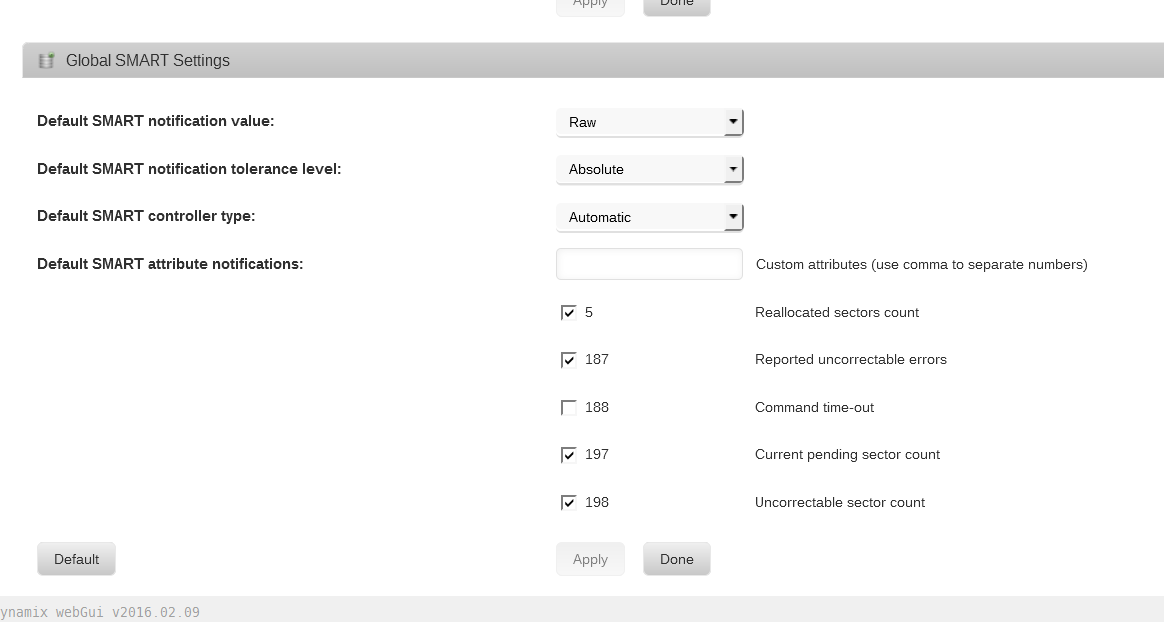

February 26, 201610 yr ... the only other drive i have available for testing is a 256 ssd. Would that work or is it too small?Don't know what you mean to do with that drive. What do you mean "testing". Post a screenshot of your Disk Settings - Global SMART settings.

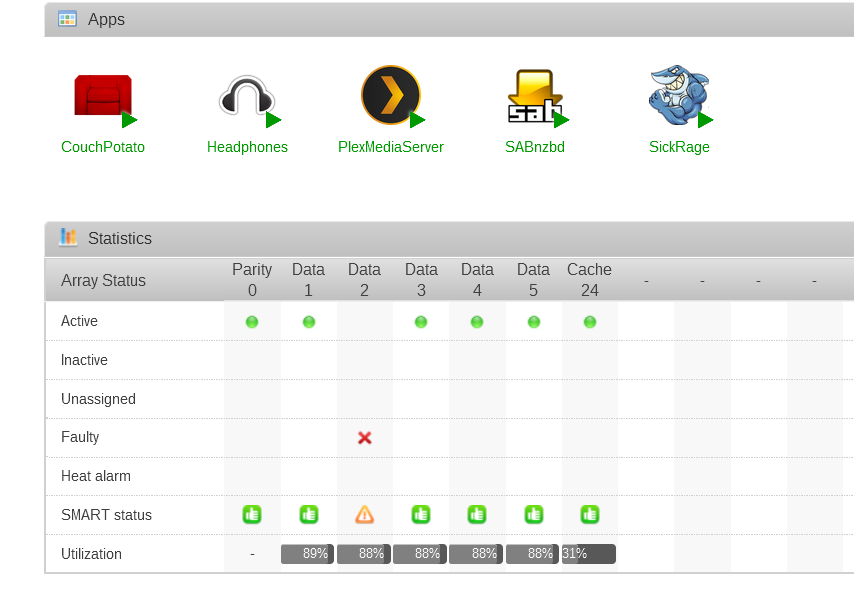

February 26, 201610 yr Author I thought you asked to add a drive to see if it causes any errors. I'll have to wait and get a new 2tb drive for replacement. Attached are the two screen shots
February 26, 201610 yr Do you have notifications setup? Looks like you should be getting at least a thumbs-down on the Dashboard for 5, 197, 198. Maybe try unchecking/rechecking and then Apply to see if it will notice.
February 26, 201610 yr Author Hi All, im now seeing the thumbs down on the cache drive. At this point what are my next steps. Do I need to replace the 2tb drive that is being emulated? should i replace the cache drive as well? Any guidance is appreciated. Thanks in advance.
February 26, 201610 yr Disk 2 dropped offline, there’s no SMART info on the diagnostics, you can try power cycling the server and get a new SMART report, but since the rebuild failed more than once, especially after changing sata cable and controller, I would try to rebuild on a new disk.
February 26, 201610 yr Author is there a way to rebuild and swap the parity at the same time. my parity is set at 2tb and i might as well upgrade the size if i need to get a new drive. Am I stuck having to buy a 2tb replacement drive for now?
February 26, 201610 yr is there a way to rebuild and swap the parity at the same time. my parity is set at 2tb and i might as well upgrade the size if i need to get a new drive. Am I stuck having to buy a 2tb replacement drive for now? It is possible, but it can be a complicated decision to make. See this recent thread.
February 26, 201610 yr Author Thanks for the thread. Looks like I'll but a 2tb for now and justr by a lerger one next time and do a cleaner swap of the parity. As for the cache drive. is this guy a gonner as well?
February 26, 201610 yr Thanks for the thread. Looks like I'll but a 2tb for now and justr by a lerger one next time and do a cleaner swap of the parity. As for the cache drive. is this guy a gonner as well? Do an extended SMART test, if it fails replace it.
February 26, 201610 yr One more thing, I don't know if your disks were re-purposed but all have been very close to or above 60C, that's way too hot, make sure your cooling is adequate, try to keep them below 45C.
February 28, 201610 yr Author All of my drives were re-purposed out of external hdd enclosures which i used for a hdd swap before i built the unraid server. Everything was spare parts but based on the success of the server i think i just might built for purpose now so i can get decent Plex transcoding while keeping temps at bay. I ordered a WD Red 2tb drive to make it a straight forward swap & rebuild. With the high amount of writes its running 12-20 degrees C less than all other drives. The Mrs has given me the thumbs up tp begin replacing the other drives so hopefully that helps with my overall heat issue.
