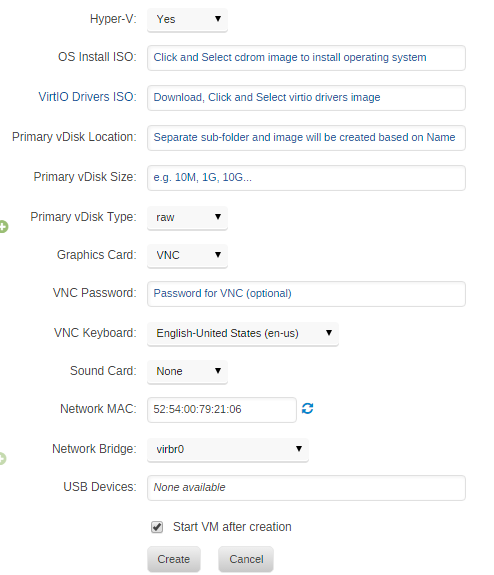

Hi I am trying to setup a VM on unRAID 6.1.8 but when I try to assign a GPU to the VM it only gives me an option to use VNC even though I have 2 GPUs in addition to the one that is builtin to the CPU, and there is no other VM's setup. I attached some photos with more details.



Any thoughts?



Thanks

    Justin

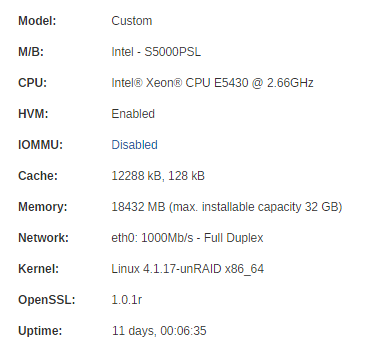

If you click "Info" on the web GUI does it say IOMMU: Enabled?



Also, what motherboard and processor are you using?

no IOMMU is currently disabled

If your hardware support vt-d (requirement to pass through GPUs), you also have to enable it in the bios.

Since you didn't supply any info on the hardware you have, it's hard for us to say if it's going to work or not.

If your hardware support vt-d (requirement to pass through GPUs), you also have to enable it in the bios.

Since you didn't supply any info on the hardware you have, it's hard for us to say if it's going to work or not.



This.

Ok It has 2 Intel Xeon E5430 that supports Intel VT-x (enabled in BIOS) but not VT-x EPT this is on an Intel S5000PSL motherboard with 18GB of ECC DDR2 FB RAM with a NVIDIA 8600 GT and a AMD Radeon 5000 series GPU.

Your motherboard doesn't support vt-d, so no hardware pass through possible.

Ok thanks for letting me know
