I would just like to know if the Dashboard System Status page is showing the CPU cores as physical and hyperthreaded core next to one another, if so would it be a good idea to change the CPU pinning to reflect this. For example my current CPU pinning is setup as follows.

6,7,8,9,10,11 assigned to my VM

0,1 Plex container

2 Sonaar

3 Sab

4,5 unRAID OS



Does it make more sense to use the physical core and its hyperthreaded core for the same Container, ie Plex using

0,6

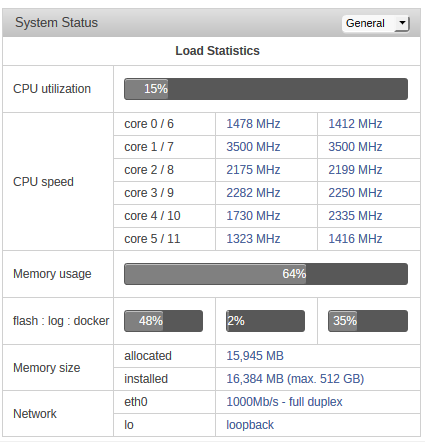

I have attached a screenshot of my Dashboard.

I would just like to know if the Dashboard System Status page is showing the CPU cores as physical and hyperthreaded core next to one another, if so would it be a good idea to change the CPU pinning to reflect this.



Yes, the cores are now grouped appropriately so it would make sense for you to adjust your cpu pinning.

I actually changed the pinning and the performance has decreased. I assigned CPU pinning to the pairs of CPU's and isolated 6 from unRAID and then assigned those to my VM but its not good, stuttering in games and Youtube vids.
