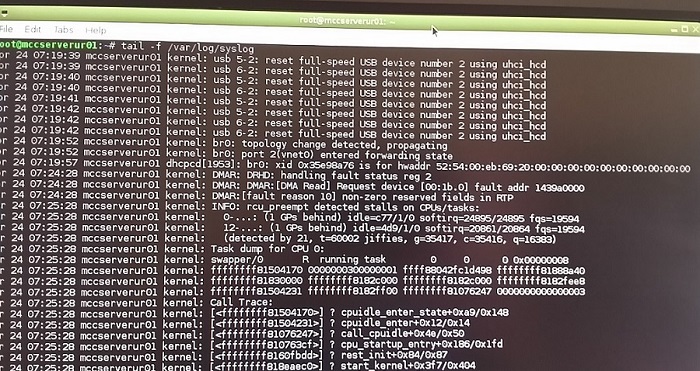

csmccarron Posted April 24, 2016 Share Posted April 24, 2016 Model: unRaid 6.2 Beta M/B: ASUSTeK Computer INC. - Z8PE-D12X) CPU: Intel® Xeon® CPU X5690 @ 3.47GHz GPU: ASUS GTX-680 HVM: Enabled IOMMU: Enabled Cache: 384 kB, 1536 kB, 12288 kB Memory: 32768 MB (max. installable capacity 96 GB) Network: bond0: fault-tolerance (active-backup), mtu 1500 eth0: 100Mb/s, Full Duplex, mtu 1500 eth1: not connected Kernel: Linux 4.4.6-unRAID x86_64 OpenSSL: 1.0.2g Sound: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller Dockers: None VM: 1 (Windows 10 Pro) When I pass through the sound card at random times it causes everything to lock up. As long as the sound card is not mapped, no issues. <domain type='kvm'> <name>csmccarronwx00</name> <uuid>c5158800-f2de-c84f-4581-94eb6d5dccab</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>12582912</memory> <currentMemory unit='KiB'>12582912</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>16</vcpu> <cputune> <vcpupin vcpu='0' cpuset='8'/> <vcpupin vcpu='1' cpuset='9'/> <vcpupin vcpu='2' cpuset='10'/> <vcpupin vcpu='3' cpuset='11'/> <vcpupin vcpu='4' cpuset='12'/> <vcpupin vcpu='5' cpuset='13'/> <vcpupin vcpu='6' cpuset='14'/> <vcpupin vcpu='7' cpuset='15'/> <vcpupin vcpu='8' cpuset='16'/> <vcpupin vcpu='9' cpuset='17'/> <vcpupin vcpu='10' cpuset='18'/> <vcpupin vcpu='11' cpuset='19'/> <vcpupin vcpu='12' cpuset='20'/> <vcpupin vcpu='13' cpuset='21'/> <vcpupin vcpu='14' cpuset='22'/> <vcpupin vcpu='15' cpuset='23'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='8' threads='2'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/vDisks/csmccarronwx00/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISO/Windows10Pro_TH2.iso'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISO/virtio-win-0.1.117.iso'/> <target dev='hdb' bus='sata'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:eb:69:20'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc52b'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1b1c'/> <product id='0x1c00'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </memballoon> </devices> </domain> 00:1a.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37] 00:1a.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38] 00:1a.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c] 00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e] 00:1c.0 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 1 [8086:3a40] 00:1c.4 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 5 [8086:3a48] 00:1c.5 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 6 [8086:3a4a] /sys/kernel/iommu_groups/14/devices/0000:00:16.7 /sys/kernel/iommu_groups/15/devices/0000:00:1a.0 /sys/kernel/iommu_groups/15/devices/0000:00:1a.1 /sys/kernel/iommu_groups/15/devices/0000:00:1a.7 /sys/kernel/iommu_groups/16/devices/0000:00:1b.0 /sys/kernel/iommu_groups/17/devices/0000:00:1c.0 /sys/kernel/iommu_groups/18/devices/0000:00:1c.4 /sys/kernel/iommu_groups/19/devices/0000:00:1c.5 Any suggestions? Thank in advance syslinux.cfg Link to comment
Jimmy90 Posted April 25, 2016 Share Posted April 25, 2016 have you tried passing through your IOMMU in the GO file? IOMMU=PT Is your Board running the latest BIOS or EFI? Have you tried this (unsafe) workaround in the GO file? vfio_iommu_type1.allow_unsafe_interrupts=1 Link to comment
csmccarron Posted April 26, 2016 Author Share Posted April 26, 2016 Board has latest BIOS. I added IOMMU=PT to the syslinux.cfg file. I will undo my changes to syslinux.cfg and make the ghanges in the GO file. syslinux.cfg default /syslinux/menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append intel_iommu=on iommu=pt pcie_acs_override=downstream initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append intel_iommu=on iommu=pt pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label Memtest86+ kernel /memtest Link to comment
csmccarron Posted April 26, 2016 Author Share Posted April 26, 2016 Ok, I was not sure how to add the kernel options to the GO file so I modified syslinux.cfg. It did not effect the virtual machine or unraid, as soon as virtual machine uses the sound card everything locks up. default /syslinux/menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS kernel /bzimage append vfio_iommu_type1.allow_unsafe_interrupts=1 iommu=pt pcie_acs_override=downstream initrd=/bzroot label unRAID OS GUI Mode menu default kernel /bzimage append vfio_iommu_type1.allow_unsafe_interrupts=1 iommu=pt pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label Memtest86+ kernel /memtest GO file ____________________________________ #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & Link to comment
Jimmy90 Posted April 27, 2016 Share Posted April 27, 2016 I meant syslinux.cfg, not the GO file, my mistake, sorry bout that. if you click on INFO, are both the HVM and IOMMU enabled at boot? Link to comment
csmccarron Posted April 27, 2016 Author Share Posted April 27, 2016 Yes both are enabled Link to comment
csmccarron Posted April 27, 2016 Author Share Posted April 27, 2016 So should I be able to pass the system sound card or is this not going to work. 00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e] 00:1a.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37] 00:1a.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38] 00:1a.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c] 00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e] 00:1c.0 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 1 [8086:3a40] 00:1c.4 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 5 [8086:3a48] 00:1c.5 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 6 [8086:3a4a] 00:1d.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34] 00:1d.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35] 00:1d.2 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36] 00:1d.3 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39] 00:1d.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a] 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev 90) 00:1f.0 ISA bridge [0601]: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller [8086:3a16] 00:1f.2 SATA controller [0106]: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22] 00:1f.3 SMBus [0c05]: Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30] 01:01.0 VGA compatible controller [0300]: ASPEED Technology, Inc. ASPEED Graphics Family [1a03:2000] (rev 10) 01:04.0 IDE interface [0101]: Integrated Technology Express, Inc. IT8213 IDE Controller [1283:8213] 02:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3] 03:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3] 04:00.0 PCI bridge [0604]: NEC Corporation uPD720400 PCI Express - PCI/PCI-X Bridge [1033:0125] (rev 06) 04:00.1 PCI bridge [0604]: NEC Corporation uPD720400 PCI Express - PCI/PCI-X Bridge [1033:0125] (rev 06) 06:01.0 Multimedia audio controller [0401]: C-Media Electronics Inc CMI8788 [Oxygen HD Audio] [13f6:8788] 0a:00.0 VGA compatible controller [0300]: NVIDIA Corporation GK104 [GeForce GTX 680] [10de:1180] (rev a1) 0a:00.1 Audio device [0403]: NVIDIA Corporation GK104 HDMI Audio Controller [10de:0e0a] (rev a1) 0c:00.0 USB controller [0c03]: Etron Technology, Inc. EJ188/EJ198 USB 3.0 Host Controller [1b6f:7052] /sys/kernel/iommu_groups/15/devices/0000:00:1a.0 /sys/kernel/iommu_groups/15/devices/0000:00:1a.1 /sys/kernel/iommu_groups/15/devices/0000:00:1a.7 /sys/kernel/iommu_groups/16/devices/0000:00:1b.0 /sys/kernel/iommu_groups/17/devices/0000:00:1c.0 /sys/kernel/iommu_groups/18/devices/0000:00:1c.4 /sys/kernel/iommu_groups/19/devices/0000:00:1c.5 /sys/kernel/iommu_groups/20/devices/0000:00:1d.0 /sys/kernel/iommu_groups/20/devices/0000:00:1d.1 /sys/kernel/iommu_groups/20/devices/0000:00:1d.2 /sys/kernel/iommu_groups/20/devices/0000:00:1d.3 /sys/kernel/iommu_groups/20/devices/0000:00:1d.7 /sys/kernel/iommu_groups/21/devices/0000:00:1e.0 /sys/kernel/iommu_groups/21/devices/0000:01:01.0 /sys/kernel/iommu_groups/21/devices/0000:01:04.0 /sys/kernel/iommu_groups/22/devices/0000:00:1f.0 /sys/kernel/iommu_groups/22/devices/0000:00:1f.2 /sys/kernel/iommu_groups/22/devices/0000:00:1f.3 /sys/kernel/iommu_groups/23/devices/0000:0c:00.0 /sys/kernel/iommu_groups/24/devices/0000:0a:00.0 /sys/kernel/iommu_groups/24/devices/0000:0a:00.1 /sys/kernel/iommu_groups/25/devices/0000:04:00.0 /sys/kernel/iommu_groups/25/devices/0000:04:00.1 /sys/kernel/iommu_groups/25/devices/0000:06:01.0 <domain type='kvm' id='10'> <name>csmccarronwx00</name> <uuid>5ee2b02b-9d90-d9c4-b414-8f8ad0da3b4c</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>11010048</memory> <currentMemory unit='KiB'>11010048</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>16</vcpu> <cputune> <vcpupin vcpu='0' cpuset='8'/> <vcpupin vcpu='1' cpuset='9'/> <vcpupin vcpu='2' cpuset='10'/> <vcpupin vcpu='3' cpuset='11'/> <vcpupin vcpu='4' cpuset='12'/> <vcpupin vcpu='5' cpuset='13'/> <vcpupin vcpu='6' cpuset='14'/> <vcpupin vcpu='7' cpuset='15'/> <vcpupin vcpu='8' cpuset='16'/> <vcpupin vcpu='9' cpuset='17'/> <vcpupin vcpu='10' cpuset='18'/> <vcpupin vcpu='11' cpuset='19'/> <vcpupin vcpu='12' cpuset='20'/> <vcpupin vcpu='13' cpuset='21'/> <vcpupin vcpu='14' cpuset='22'/> <vcpupin vcpu='15' cpuset='23'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='8' threads='2'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISO/Windows10Pro_TH2.iso'/> <backingStore/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISO/virtio-win-0.1.117.iso'/> <backingStore/> <target dev='hdb' bus='sata'/> <readonly/> <alias name='sata0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/disk/by-id/ata-SanDisk_Ultra_II_480GB_161002808956'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='sata' index='0'> <alias name='sata0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:e9:4c:d4'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/1'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/1'> <source path='/dev/pts/1'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-csmccarronwx00/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0a' slot='0x00' function='0x1'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0c' slot='0x00' function='0x0'/> </source> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc52b'/> <address bus='5' device='2'/> </source> <alias name='hostdev4'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1b1c'/> <product id='0x1c00'/> <address bus='6' device='2'/> </source> <alias name='hostdev5'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/> </memballoon> </devices> </domain> I am also trying a PCI-X sound card which is not working apparently because the PCI Bridge is in the same group. This just sucks! http://lime-technology.com/forum/index.php?topic=45450.0 04:00.0 PCI bridge [0604]: NEC Corporation uPD720400 PCI Express - PCI/PCI-X Bridge [1033:0125] (rev 06) 04:00.1 PCI bridge [0604]: NEC Corporation uPD720400 PCI Express - PCI/PCI-X Bridge [1033:0125] (rev 06) 06:01.0 Multimedia audio controller [0401]: C-Media Electronics Inc CMI8788 [Oxygen HD Audio] [13f6:8788] Link to comment
csmccarron Posted May 21, 2016 Author Share Posted May 21, 2016 I resolved this issue but giving up using the motherboard sound card and using a ASUS USB based sound card that is plugged into a USB3 pci express card that is mapped to the virtual machine. Link to comment
