I've been having issues with GPU passthrough with a ATI/AMD HD5450 - See here



I decided to purchase another graphics card, a GTX 960 to try instead. Still having problems though adifferent issue.

When I start the Windows 7 or 10 VM, my monitor changes from 'No Signal' to just a black screen.

Obviously I then can not install Windows, unless I choose VNC.

If I install Windows via VNC, then switch the graphics to the GTX 960 after, I just get 'No Signal'

Graphics card works fine, if I boot to a Windows hard drive instead of the UnRAID USB, so I know that is good (as did the 5450)



A couple of times after the blank screen I get Blue Screen PAGE_FAULT_IN_NON_PAGED_AREA

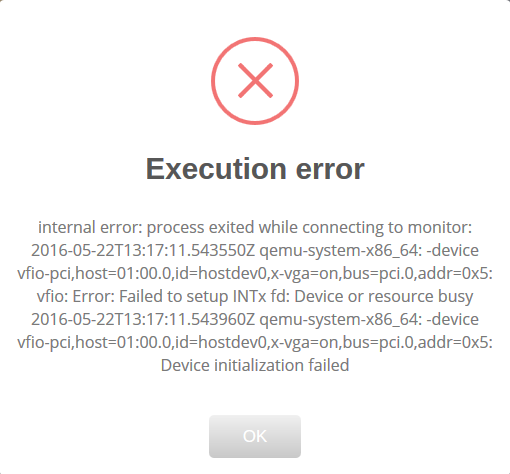

Also have gotten an UnRAID error message a few times, see attachment.



I've read about ACS Override option - should this be Yes or No?





My devices and groups:



00:00.0 Host bridge [0600]: Intel Corporation 4th Gen Core Processor DRAM Controller [8086:0c00] (rev 06)
00:01.0 PCI bridge [0604]: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor PCI Express x16 Controller [8086:0c01] (rev 06)
00:02.0 VGA compatible controller [0300]: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor Integrated Graphics Controller [8086:0412] (rev 06)
00:14.0 USB controller [0c03]: Intel Corporation 8 Series/C220 Series Chipset Family USB xHCI [8086:8c31] (rev 05)
00:16.0 Communication controller [0780]: Intel Corporation 8 Series/C220 Series Chipset Family MEI Controller #1 [8086:8c3a] (rev 04)
00:19.0 Ethernet controller [0200]: Intel Corporation Ethernet Connection I217-V [8086:153b] (rev 05)
00:1a.0 USB controller [0c03]: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #2 [8086:8c2d] (rev 05)
00:1b.0 Audio device [0403]: Intel Corporation 8 Series/C220 Series Chipset High Definition Audio Controller [8086:8c20] (rev 05)
00:1c.0 PCI bridge [0604]: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #1 [8086:8c10] (rev d5)
00:1c.2 PCI bridge [0604]: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #3 [8086:8c14] (rev d5)
00:1c.3 PCI bridge [0604]: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 [8086:8c16] (rev d5)
00:1c.4 PCI bridge [0604]: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #5 [8086:8c18] (rev d5)
00:1d.0 USB controller [0c03]: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #1 [8086:8c26] (rev 05)
00:1f.0 ISA bridge [0601]: Intel Corporation Z87 Express LPC Controller [8086:8c44] (rev 05)
00:1f.2 SATA controller [0106]: Intel Corporation 8 Series/C220 Series Chipset Family 6-port SATA Controller 1 [AHCI mode] [8086:8c02] (rev 05)
00:1f.3 SMBus [0c05]: Intel Corporation 8 Series/C220 Series Chipset Family SMBus Controller [8086:8c22] (rev 05)
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GM206 [GeForce GTX 960] [10de:1401] (rev a1)
01:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fba] (rev a1)
03:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 01)
04:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03)
05:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 01)



/sys/kernel/iommu_groups/0/devices/0000:00:00.0
/sys/kernel/iommu_groups/1/devices/0000:00:01.0
/sys/kernel/iommu_groups/1/devices/0000:01:00.0
/sys/kernel/iommu_groups/1/devices/0000:01:00.1
/sys/kernel/iommu_groups/2/devices/0000:00:02.0
/sys/kernel/iommu_groups/3/devices/0000:00:14.0
/sys/kernel/iommu_groups/4/devices/0000:00:16.0
/sys/kernel/iommu_groups/5/devices/0000:00:19.0
/sys/kernel/iommu_groups/6/devices/0000:00:1a.0
/sys/kernel/iommu_groups/7/devices/0000:00:1b.0
/sys/kernel/iommu_groups/8/devices/0000:00:1c.0
/sys/kernel/iommu_groups/9/devices/0000:00:1c.2
/sys/kernel/iommu_groups/10/devices/0000:00:1c.3
/sys/kernel/iommu_groups/11/devices/0000:00:1c.4
/sys/kernel/iommu_groups/12/devices/0000:00:1d.0
/sys/kernel/iommu_groups/13/devices/0000:00:1f.0
/sys/kernel/iommu_groups/13/devices/0000:00:1f.2
/sys/kernel/iommu_groups/13/devices/0000:00:1f.3
/sys/kernel/iommu_groups/14/devices/0000:03:00.0
/sys/kernel/iommu_groups/15/devices/0000:04:00.0
/sys/kernel/iommu_groups/16/devices/0000:05:00.0



Any help is appreciated, really want to get this working

Yes firstly i would try and enable the acs override. (You will need to reboot server after this.) because you gpu is in iommu group 1

/sys/kernel/iommu_groups/1/devices/0000:00:01.0
/sys/kernel/iommu_groups/1/devices/0000:01:00.0
/sys/kernel/iommu_groups/1/devices/0000:01:00.1



Your graphics card is ( 01:00.0(gpu graphics)  and 01:00.1 (gpu sound)) but there is also a PCI bridge (00:01.0) these need to be broken up and your graphics card (01:00.0 and 01:00.1) in its own group with no other devices present.



Also make sure in your bios that the primary gpu is your onboard graphics not the nvidea. This is important as with nvidea gpus they cant be the primary gpu in the system as unraid needs to use the primary gpu for console. If you try to pass them through as a primary card then you get the black screen as you are getting. (this isnt the case with amd cards they can be passed through as a primary gpu, you just loose the unraid console when they are passed through)



Please try this and report back here

Please try this and report back here



Hello, I have tried the ACS override and still have the same issue. I checked the BIOS and default graphics is set to onboard. The onboard graphics show UnRAID gui on my display.

It's strange because the 5450 was working perfectly on my first ever Windows 10 VM, but since then I can't get anything to work.

Please post your iommu groups and devices after ACS is enabled
