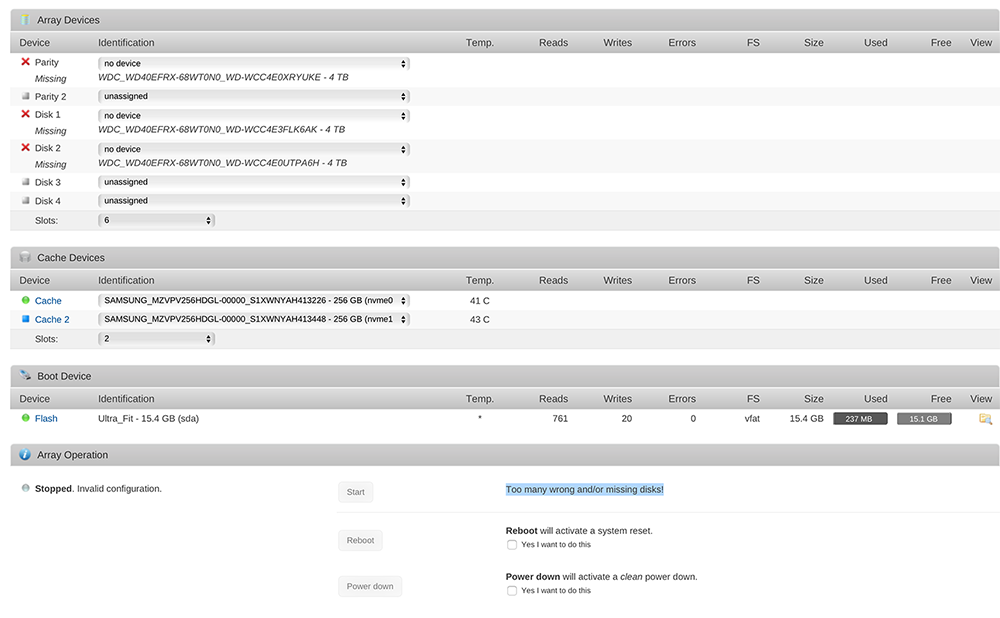

June 9, 201610 yr Hi What should I try to get the array back up and running with new SSD (Cache 2)? I have cleanly shutdown system multiple times and still have the same issue. Thank you 6.2.0-beta21 Gigabyte X170-Extreme ECC Intel® Xeon® CPU E3-1245 v5 @ 3.50GHz 32 GB Samsung 16GB DDR4 2133Mhz ECC
June 9, 201610 yr Assuming you removed the array disks you have to do a new config. Tools > New Config Also, you need at least one disk assigned to the array as a data device, or you won't be able to start unRAID.
June 10, 201610 yr Author Thanks for your fast response, but I found this is more a problem with motherboard then unRAID software. I am having a problem when I try and install a second SSD into the motherboard connector - M2D_32G. I am running a CACHE through connector M2H_32G on a Samsung SM951 M2 NVMe MZVPV256HDG M.2 SSD. However when I install a second identical SSD in the M2D_32G the SATA 0/1/2/3 connectors (and their HHDs) are no longer seen in BIOS. I have no idea how do I get the BIOS to show the HHDs?
June 10, 201610 yr Skylake chipsets share HSIO lanes between m.2 slots and other devices, like SATA ports, sometimes enabling one will disable the other(s), check your MB manual.

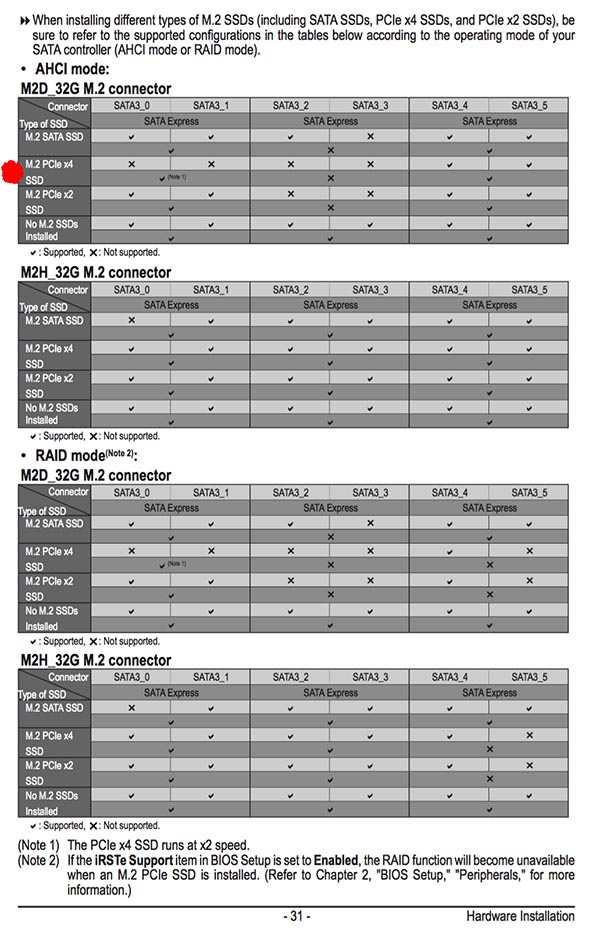

June 10, 201610 yr Author I think that I found in MB manual. This mean I wasted money on buying second M.2 SSD?
June 10, 201610 yr You can use the remaining 2 chipset SATA ports together with the Asmedia controller for 4 HDDs, any more you need a HBA, if you want to keep using both m.2 SSDs.

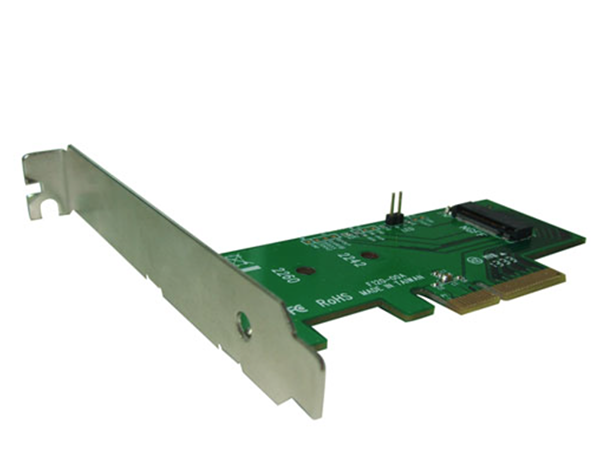

June 10, 201610 yr Author Say if I had used PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD Adaptor Card (Lycom DT-120 M.2 SSD to PCI-E Adapter Card), Because I do not use any Graphics Card would solve the problem, and enabled SATA 0/1/2/3 connectors. And if unRAID will support the card ? Thank you for your help Product Overview PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD Adaptor Card Best & Easy Solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe or PCIe-AHCI M.2 SSD in your Desktop for Enthusiast Gaming and Workstation's. Make High Performance PCIe Gen3 based M.2 NGFF SSD to work in desktop main board with Regular Size & Low Profile PCIe brackets support! Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot PCI Express 3.0 x4 Lane Host adapter Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm SSD M.2 NGFF type 2280-D5-M connector on board Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD Features Supports PCIe 3.0 ,PCIe 2.0 and PCIe 1.0 motherboard o Supports dual-sided SSD module 1.5mm component height on the top and bottom side o Compliant with PCI Express 3.0 o Pin header on board for drive LED connection o Low Profile PCIe Form Factor o Regular size PCIe bracket on board and Low Profile bracket included o Transparent to the operating system and no driver required o Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI o Microsoft (https://support.microsoft.com/en-us/kb/2990941) Update to support NVM Express by using native drivers in Windows 7 or Windows Server 2008 R2 o Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only o Supports operating temperature range: -40 - 80 ºC o M.2 PCIe SSD power from motherboard PCIe bus slot 3.3V o Fully RoHS compliant
June 10, 201610 yr It *should* work, the adapter should be transparent to unRAID, check manual but you probably have to use the top slots, as the bottom slot can also be shared.
June 11, 201610 yr Author johnnie.black Thank you for your help. Expansion card working perfectly with my motherboard and unRAID. And SATA 0/1/2/3 now enabled.
