Hi all,



After i removed a disk from the array and created a new config (whiles following the steps provided by unraid) I saw that one of my drives had the status "Unmountable". After a bit of googling I ran into a post (here on the unraid forum) suggesting to run xfs_repair -v. Xfs_repair didnt work sadly enough and now i dont really know the best way to resolve this issue.

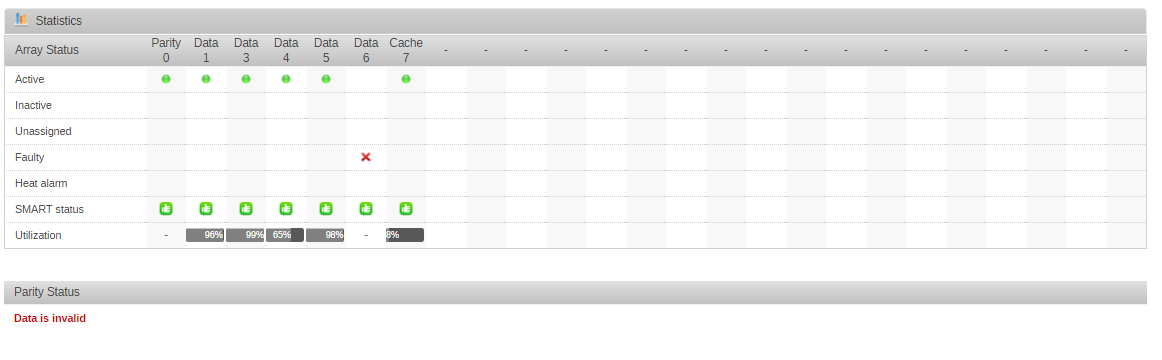

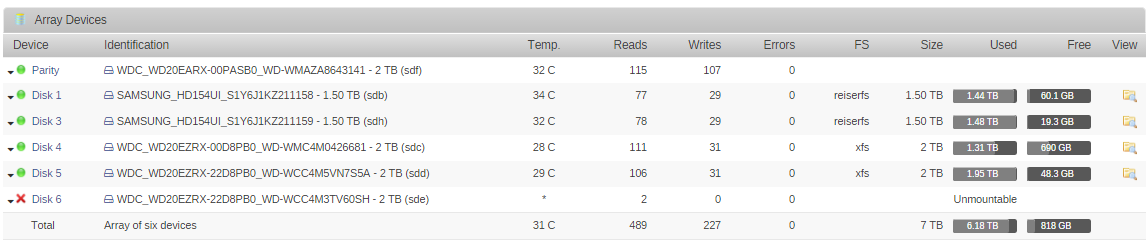

The disk that is currently having issues is disk 6.

XFS_repair output:

Phase 1 - find and verify superblock...
bad primary superblock - bad magic number !!!

attempting to find secondary superblock...
...Sorry, could not find valid secondary superblock
Exiting now.



Hopefully somebody can help me.



Thanks in advance!

Rexl

ark-diagnostics-20160705-1813.zip

ark-smart-20160705-1816-disk6.zip

I didn't look at the diagnostics yet, but if you just did a new config how come disk6 is disable? And are you sure disk6 is not your previous parity?

I didn't look at the diagnostics yet, but if you just did a new config how come disk6 is disable? And are you sure disk6 is not your previous parity?

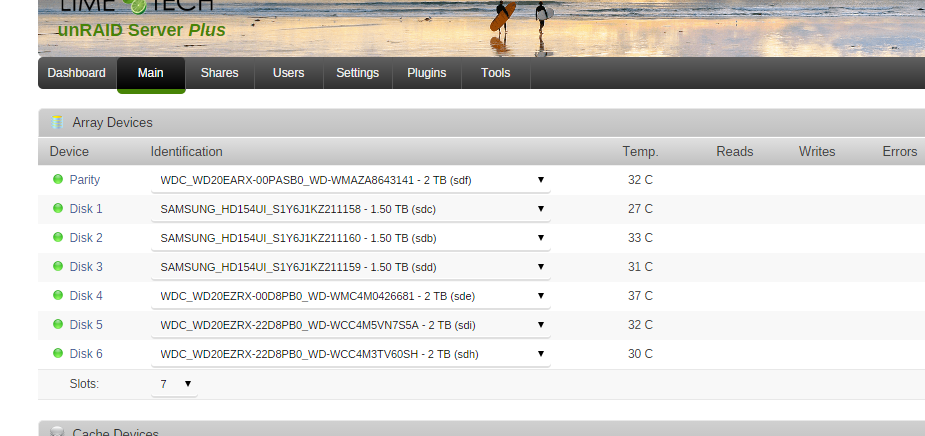

Yes i am sure, i took a screenshot of the disk layout before creating the new config.

OK, can you explain exactly the procedure you fallowed to remove the extra disk and when did disk6 become disable? It happened before the syslog you posted.

OK, can you explain exactly the procedure you fallowed to remove the extra disk and when did disk6 become disable? It happened before the syslog you posted.



I followed this guide line. There is a chapter for v6

http://lime-technology.com/wiki/index.php/Make_unRAID_Trust_the_Parity_Drive,_Avoid_Rebuilding_Parity_Unnecessarily

That procedure does not include removing a disk, if you did that your parity is invalid, also you still didn't say when did disk6 become disable.



Assuming you removed one disk and did the new config while trusting parity, and also assuming disk6 is ok, this is what you have to do:



-Tools > New config

-Re-assign all disks except parity and the one you want removed

-Start array and check if all disks mount

-If all disks mount, stop array, reassign parity, start array to begin a parity sync



That procedure does not include removing a disk, if you did that your parity is invalid, also you still didn't say when did disk6 become disable.



Assuming you removed one disk and did the new config while trusting parity, and also assuming disk6 is ok, this is what you have to do:



-Tools > New config

-Re-assign all disks except parity and the one you want removed

-Start array and check if all disks mount

-If all disks mount, stop array, reassign parity, start array to begin a parity sync



Disk 6 became disabled after setting up the new config. I could assign all the disk with no problem and it was still up then but after setting the new config up the disk became disabled. I will try the steps you provided and report back once it is done.



-If all disks mount, stop array, reassign parity, start array to begin a parity sync



Just to be clear in this step don't check the box "parity is already valid" before starting the array, parity need to be synced.

That procedure does not include removing a disk, if you did that your parity is invalid, also you still didn't say when did disk6 become disable.



Assuming you removed one disk and did the new config while trusting parity, and also assuming disk6 is ok, this is what you have to do:



-Tools > New config

-Re-assign all disks except parity and the one you want removed

-Start array and check if all disks mount

-If all disks mount, stop array, reassign parity, start array to begin a parity sync



Thank you so much! the steps worked wonderful and it is now sync parity. All the disks came back online



Thanks for the quick replies aswell!

Rexl
