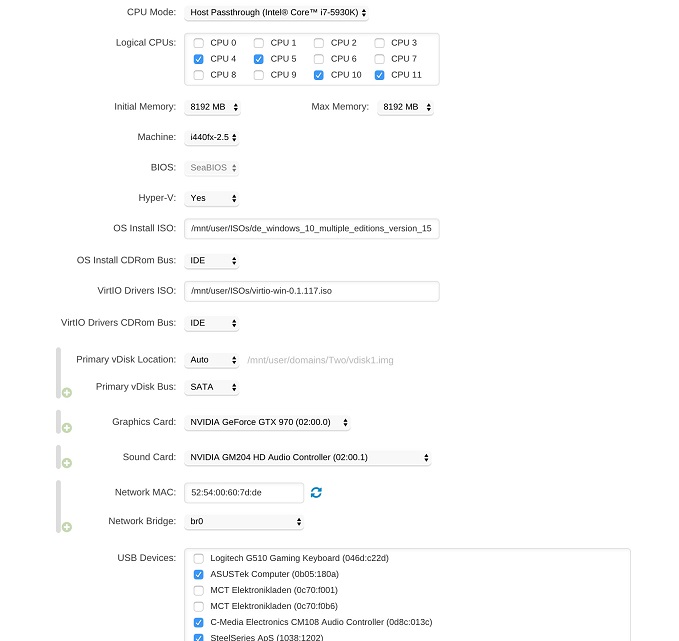

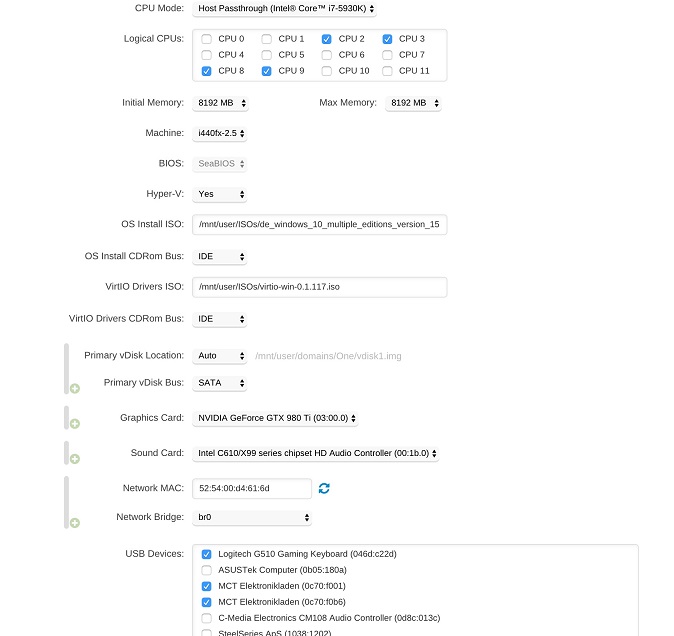

July 26, 20169 yr Hello Guys, a few days ago i update to 6.2.0-rc2 to fix my ingame frame drops. I hoped that 6.2.0 will fix all performance problems but mine are still there. Can you guys check my settings ? Whats wrong with these settings / what i have to change :// MY SYSTEM: INTEL Core i7-5930K Corsair Dominator Platinum 32GB @ 2666Mhz Asus GTX 980 ti Strix Asus GTX 970 Strix ASUS Essence STX II Asus ROG Rampage V Extreme Samsung SSD 850 EVO 500 GB Samsung SSD 840 EVO 500 GB unRAID 6.2.0-rc2 enclosed setting screenshots Syslinux: default /syslinux/menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label Memtest86+ kernel /memtest VM#1 VM#1 <domain type='kvm'> <name>One</name> <uuid>2872c47a-813e-d063-b594-023ed3c3de5c</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='2'/> <vcpupin vcpu='1' cpuset='3'/> <vcpupin vcpu='2' cpuset='8'/> <vcpupin vcpu='3' cpuset='9'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='2' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/One/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/de_windows_10_multiple_editions_version_1511_x64_dvd_7223737.iso.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.117.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:d4:61:6d'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc22d'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf001'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf0b6'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1038'/> <product id='0x1369'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain> VM#2 <domain type='kvm'> <name>Two</name> <uuid>95e56927-c632-a7e6-07e9-d457c14f90e3</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='4'/> <vcpupin vcpu='1' cpuset='5'/> <vcpupin vcpu='2' cpuset='10'/> <vcpupin vcpu='3' cpuset='11'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='2' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Two/vdisk1.img'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/de_windows_10_multiple_editions_version_1511_x64_dvd_7223737.iso.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.117.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:60:7d:de'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x02' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0b05'/> <product id='0x180a'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0d8c'/> <product id='0x013c'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1038'/> <product id='0x1202'/> </source> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1038'/> <product id='0x1384'/> </source> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain> I did 2 gameplay videos. First on native win10: Second on VM win10 Can you please help me to fix these problems? Are there any CPU / Network lags ? Thank you guys!
July 26, 20169 yr EDIT: Sorry I'm going mad. You're already doing what I suggested, so I removed the post...
July 27, 20169 yr Author Update: nothing changed with disabling /enabling Hyper-V and Hyper Threading!
July 27, 20169 yr You will never get the same performance from your vm as bare metal. Remember the bare metal is using all 6 cores of your 5930k Each vm is using 2 cores of the 5930k You maybe able to tune the vm a bit though. On first vm edit xml as below <cputune> <vcpupin vcpu='0' cpuset='2'/> <vcpupin vcpu='1' cpuset='3'/> <vcpupin vcpu='2' cpuset='8'/> <vcpupin vcpu='3' cpuset='9'/> <emulatorpin cpuset='0,6/> </cputune> on second edit xml as below <cputune> <vcpupin vcpu='0' cpuset='4'/> <vcpupin vcpu='1' cpuset='5'/> <vcpupin vcpu='2' cpuset='10'/> <vcpupin vcpu='3' cpuset='11'/> <emulatorpin cpuset='1,7/> </cputune> [/code] As you have 6 cores and are using a total of 4 for your vms you have 2 spare (although will be used for host too) but what the above is doing <emulatorpin cpuset='0,6/> and <emulatorpin cpuset='1,7/> is pinning the emulation calls for each vm on one of the spare cores. Please read this thread for more info http://lime-technology.com/forum/index.php?topic=49051.0 Also i would setup vm as ovmf instead of seabios. Unfortunately this will mean a total reinstall of those vms as you cant switch from seabios to ovmf
July 28, 20169 yr Author Thanks for Info. At first i will try again with 10 thread this evening. than i will see if the cpu is to bad for this. Do you have any problems with you 14 core cpu ? After this i will rebuild the vm wirhout seabios and with emulator pin!
July 28, 20169 yr What benefits does the OVMF Bios yield over SeaBios? Better performance, efi support (no legacy support, you might have to reinstall your OS) and iirc better hardware passthrough support. EDIT: I think its possible to convert a legacy windows install to efi https://encrypted.google.com/#q=windows%20convert%20to%20efi Back up all your data before trying it!!!
July 28, 20169 yr Author Now i tested with these setting: </memoryBacking> <vcpu placement='static'>10</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> <vcpupin vcpu='2' cpuset='3'/> <vcpupin vcpu='3' cpuset='4'/> <vcpupin vcpu='4' cpuset='5'/> <vcpupin vcpu='5' cpuset='7'/> <vcpupin vcpu='6' cpuset='8'/> <vcpupin vcpu='7' cpuset='9'/> <vcpupin vcpu='8' cpuset='10'/> <vcpupin vcpu='9' cpuset='11'/> [b]<emulatorpin cpuset='0,6'/>[/b] </cputune> No difference between 5C/10T and 2C/4T :// Next step will be new machine with OVMF Bios

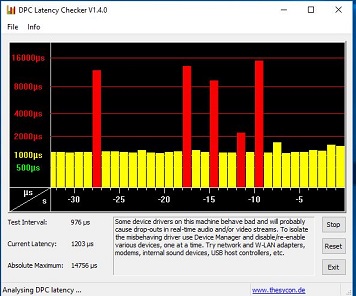

July 29, 20169 yr Author So now i rebuild both VM's with OVMF Bios. I updated to unRAID 6.2 rc3 i tried to setup the VM with: 2C/4T 4C/8T 5C/10T nothing chanced. I tested isolcpus and emulatorpins. I tested Hyperthreading on and off. Nothing chanced. The only thing which is mystery. The task manager shows always 100% on my SSD. And the DPC Checker shows red.... this is my VM ATM: <domain type='kvm' id='17'> <name>One</name> <uuid>9bb73fe7-dfad-0b3f-2d4b-3398055e9cc5</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>6291456</memory> <currentMemory unit='KiB'>6291456</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='2'/> <vcpupin vcpu='1' cpuset='3'/> <vcpupin vcpu='2' cpuset='8'/> <vcpupin vcpu='3' cpuset='9'/> <emulatorpin cpuset='0,6'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/9bb73fe7-dfad-0b3f-2d4b-3398055e9cc5_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='2' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/One/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/de_windows_10_multiple_editions_version_1511_x64_dvd_7223737.iso.iso'/> <backingStore/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <alias name='ide0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.118.iso'/> <backingStore/> <target dev='hdb' bus='ide'/> <readonly/> <alias name='ide0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='ide' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <alias name='sata0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:e3:2c:bb'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-One/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc22d'/> <address bus='3' device='2'/> </source> <alias name='hostdev2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf001'/> <address bus='3' device='10'/> </source> <alias name='hostdev3'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf0b6'/> <address bus='3' device='7'/> </source> <alias name='hostdev4'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1038'/> <product id='0x1369'/> <address bus='3' device='12'/> </source> <alias name='hostdev5'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain>
July 29, 20169 yr So now i rebuild both VM's with OVMF Bios. I updated to unRAID 6.2 rc3 i tried to setup the VM with: 2C/4T 4C/8T 5C/10T nothing chanced. I tested isolcpus and emulatorpins. I tested Hyperthreading on and off. Nothing chanced. The only thing which is mystery. The task manager shows always 100% on my SSD. And the DPC Checker shows red.... this is my VM ATM: <topology sockets='1' cores='2' threads='2'/> Try to change the above line to the below. <topology sockets='1' cores='4' threads='1'/> There is as far as I know no performance gain to use more than one thread. It might weaken the performance.
July 30, 20169 yr Author The DPC-Problem are much better without writing emulaturpins into the XML! The other stuff i'll test tomorrow
July 30, 20169 yr What Nvidia drivers are you using? There is a known DPC Latency bug in older Nvidia drivers. I'm not certain if that only impact the 1060, 1070, 1080 series or if it also impact the 9x0 series.
July 30, 20169 yr Hello Guys, a few days ago i update to 6.2.0-rc2 to fix my ingame frame drops. I hoped that 6.2.0 will fix all performance problems but mine are still there. Can you guys check my settings ? Whats wrong with these settings / what i have to change :// MY SYSTEM: INTEL Core i7-5930K Corsair Dominator Platinum 32GB @ 2666Mhz Asus GTX 980 ti Strix Asus GTX 970 Strix ASUS Essence STX II Asus ROG Rampage V Extreme Samsung SSD 850 EVO 500 GB Samsung SSD 840 EVO 500 GB unRAID 6.2.0-rc2 enclosed setting screenshots I think it's not your CPU or GPU performance slow, maybe the network. I played the Diablo III too, the network can made game drop frames, not only CPU and GPU. maybe you can change the nic type qemu: Supported NIC models: ne2k_pci,i82551,i82557b,i82559er,rtl8139,e1000,pcnet,virtio
July 30, 20169 yr Author I reinstalled the newest nvidia driver yesteday. How can i get better performance on my network? Can i passthrough the mainboard lan to vm1 And i have a usb to gigabit can i passthrough this to my second vm ? What do you guys think is the best vBus Pramary ? IDE oder SATA ? Thanks for helping me
July 30, 20169 yr I reinstalled the newest nvidia driver yesteday. How can i get better performance on my network? Can i passthrough the mainboard lan to vm1 And i have a usb to gigabit can i passthrough this to my second vm ? What do you guys think is the best vBus Pramary ? IDE oder SATA ? Thanks for helping me mainboard nic I don't have try?but I have a 4 nic card (Intel I350-T4) passthrough to VM. maybe you can set nic to E1000 <model type='virtio'/> ############# <model type='e1000'/> <interface type='bridge'> <mac address='52:54:00:60:7d:de'/> <source bridge='br0'/> <model type='e1000'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> NIC models list : ne2k_pci,i82551,i82557b,i82559er,rtl8139,e1000,pcnet,virtio
July 30, 20169 yr Author I think there is something wrong setup with my SSD's or my Network. My CPU chills all time... I think there are wrong settings on my vm's. I have 1x 500GB 850 PRO 1x 500GB 850 EVO 1x 128GB SSD Cache how can i get the beste performance ? all SSD in cache pool and install win10 on cache ? each VM gets one SSD (i thought i did this). But if i do benchmark one my first VM the second gets slower too... can you look at my disk settings something is wrong...
July 30, 20169 yr Author I also have Problems with my network i have two usb 3.0 to gigabit first : https://www.amazon.de/gp/product/B00NPJV4YY/ref=oh_aui_search_detailpage?ie=UTF8&psc=1 second : https://www.amazon.de/gp/product/B00MYTSN18/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1 when im assaining the first device to the vm (usb device) windows starts without any problems. But i cant connect to my unRAID webgui anymore. Does unRAID also switch ethernet access with plugin a new ethernet device ? unRAID should use the onboard device.... anyone knows?
February 14, 20179 yr So now i rebuild both VM's with OVMF Bios. I updated to unRAID 6.2 rc3 i tried to setup the VM with: 2C/4T 4C/8T 5C/10T nothing chanced. I tested isolcpus and emulatorpins. I tested Hyperthreading on and off. Nothing chanced. The only thing which is mystery. The task manager shows always 100% on my SSD. And the DPC Checker shows red.... this is my VM ATM: <domain type='kvm' id='17'> <name>One</name> <uuid>9bb73fe7-dfad-0b3f-2d4b-3398055e9cc5</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>6291456</memory> <currentMemory unit='KiB'>6291456</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='2'/> <vcpupin vcpu='1' cpuset='3'/> <vcpupin vcpu='2' cpuset='8'/> <vcpupin vcpu='3' cpuset='9'/> <emulatorpin cpuset='0,6'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/9bb73fe7-dfad-0b3f-2d4b-3398055e9cc5_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='2' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/One/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/de_windows_10_multiple_editions_version_1511_x64_dvd_7223737.iso.iso'/> <backingStore/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <alias name='ide0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.118.iso'/> <backingStore/> <target dev='hdb' bus='ide'/> <readonly/> <alias name='ide0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='ide' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <alias name='sata0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:e3:2c:bb'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-One/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc22d'/> <address bus='3' device='2'/> </source> <alias name='hostdev2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf001'/> <address bus='3' device='10'/> </source> <alias name='hostdev3'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf0b6'/> <address bus='3' device='7'/> </source> <alias name='hostdev4'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1038'/> <product id='0x1369'/> <address bus='3' device='12'/> </source> <alias name='hostdev5'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain> Could I ask how you got OVMF to work on the R5E? Everytime I try I get no graphic output on the screen although if I use VNC I just get a shell.
