I've added a new drive to the system, completed preclear on it, but it still shows its in "standby" and wont let me add it to the array. Clicking spin up does nothing.



I've tried rebooting, and here is the disk log:



Sep 30 09:57:11 unraid kernel: sd 1:0:0:0: [sdh] 7814037168 512-byte logical blocks: (4.00 TB/3.64 TiB)

Sep 30 09:57:11 unraid kernel: sd 1:0:0:0: [sdh] Write Protect is off

Sep 30 09:57:11 unraid kernel: sd 1:0:0:0: [sdh] Mode Sense: d3 00 10 08

Sep 30 09:57:11 unraid kernel: sd 1:0:0:0: [sdh] Write cache: disabled, read cache: enabled, supports DPO and FUA

Sep 30 09:57:11 unraid kernel: sdh: sdh1

Sep 30 09:57:11 unraid kernel: sd 1:0:0:0: [sdh] Attached SCSI disk

Sep 30 09:57:30 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:57:40 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:57:50 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:58:00 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:58:06 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:58:27 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:58:33 unraid emhttp: MG03SCA400_X4G0A1WIFVL8_350000395d8cb311c (sdh) 3907018532

Sep 30 09:59:22 unraid emhttp: cmd: /usr/local/emhttp/plugins/dynamix/scripts/hd_parm up sdh

Sep 30 09:59:36 unraid emhttp: cmd: /usr/local/emhttp/plugins/dynamix/scripts/hd_parm up sdh

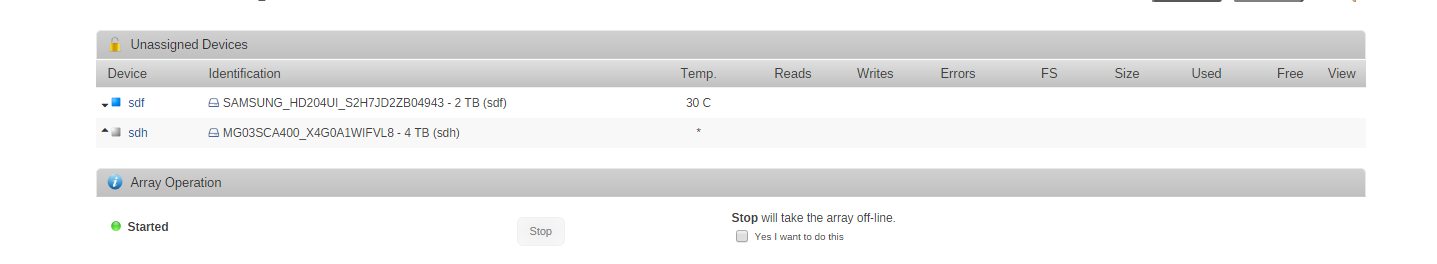

Your screenshot shows the array is started.    You need to stop it before you can add a drive.

Assuming you're on v6.2:



FAQ - I have a new SAS drive.  How do I get unRAID to assign it?

Your screenshot shows the array is started.    You need to stop it before you can add a drive.

Yes, I took the screenshot while array was started to show that it wouldnt spin up.



Assuming you're on v6.2:



FAQ - I have a new SAS drive.  How do I get unRAID to assign it?

Thank you this was it!
