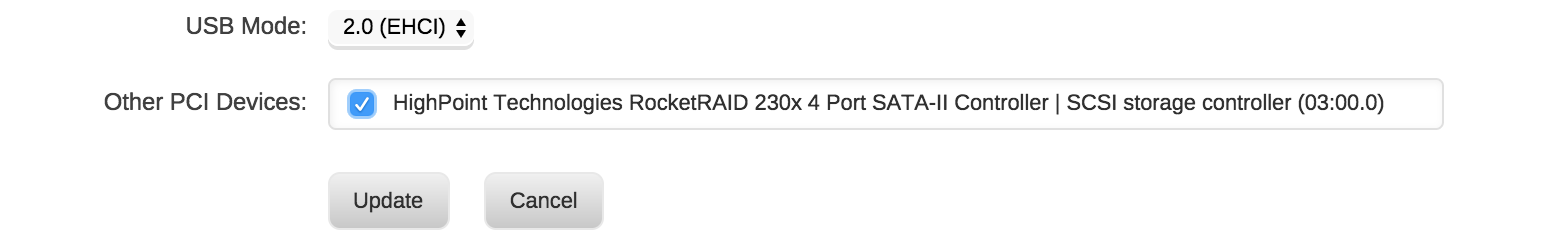

November 3, 20169 yr I have just moved to unRAID 6 on my main machine... yeah I know I am behind the times. It was mostly an "if it aint broke don't fix it" kind of situation. Anyway, I have a windows 7 vm set up and running. I am trying to get a SATA connect optical drive connected to the Windows VM. I have tried a couple of things but can't seem to get it to work. Below are my configs... if I missed some let me know PCI Devices 00:00.0 Host bridge [0600]: Intel Corporation Xeon E3-1200 v2/Ivy Bridge DRAM Controller [8086:0158] (rev 09) 00:01.0 PCI bridge [0604]: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor PCI Express Root Port [8086:0151] (rev 09) 00:01.1 PCI bridge [0604]: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor PCI Express Root Port [8086:0155] (rev 09) 00:06.0 PCI bridge [0604]: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor PCI Express Root Port [8086:015d] (rev 09) 00:16.0 Communication controller [0780]: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 [8086:1c3a] (rev 04) 00:16.1 Communication controller [0780]: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #2 [8086:1c3b] (rev 04) 00:1a.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 [8086:1c2d] (rev 05) 00:1c.0 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 [8086:1c10] (rev b5) 00:1c.6 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 7 [8086:1c1c] (rev b5) 00:1c.7 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 8 [8086:1c1e] (rev b5) 00:1d.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 [8086:1c26] (rev 05) 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev a5) 00:1f.0 ISA bridge [0601]: Intel Corporation C204 Chipset Family LPC Controller [8086:1c54] (rev 05) 00:1f.2 SATA controller [0106]: Intel Corporation 6 Series/C200 Series Chipset Family SATA AHCI Controller [8086:1c02] (rev 05) 00:1f.3 SMBus [0c05]: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller [8086:1c22] (rev 05) 01:00.0 Serial Attached SCSI controller [0107]: LSI Logic / Symbios Logic SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [1000:0072] (rev 03) 02:00.0 Serial Attached SCSI controller [0107]: LSI Logic / Symbios Logic SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [1000:0072] (rev 02) 03:00.0 SCSI storage controller [0100]: HighPoint Technologies, Inc. RocketRAID 230x 4 Port SATA-II Controller [1103:2300] (rev 02) 05:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3] 06:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3] 07:03.0 VGA compatible controller [0300]: Matrox Electronics Systems Ltd. MGA G200eW WPCM450 [102b:0532] (rev 0a) IOMMU Groups /sys/kernel/iommu_groups/0/devices/0000:00:00.0 /sys/kernel/iommu_groups/1/devices/0000:00:01.0 /sys/kernel/iommu_groups/1/devices/0000:00:01.1 /sys/kernel/iommu_groups/1/devices/0000:01:00.0 /sys/kernel/iommu_groups/1/devices/0000:02:00.0 /sys/kernel/iommu_groups/2/devices/0000:00:06.0 /sys/kernel/iommu_groups/2/devices/0000:03:00.0 /sys/kernel/iommu_groups/3/devices/0000:00:16.0 /sys/kernel/iommu_groups/3/devices/0000:00:16.1 /sys/kernel/iommu_groups/4/devices/0000:00:1a.0 /sys/kernel/iommu_groups/5/devices/0000:00:1c.0 /sys/kernel/iommu_groups/6/devices/0000:00:1c.6 /sys/kernel/iommu_groups/7/devices/0000:00:1c.7 /sys/kernel/iommu_groups/8/devices/0000:00:1d.0 /sys/kernel/iommu_groups/9/devices/0000:00:1e.0 /sys/kernel/iommu_groups/9/devices/0000:07:03.0 /sys/kernel/iommu_groups/10/devices/0000:00:1f.0 /sys/kernel/iommu_groups/10/devices/0000:00:1f.2 /sys/kernel/iommu_groups/10/devices/0000:00:1f.3 /sys/kernel/iommu_groups/11/devices/0000:05:00.0 /sys/kernel/iommu_groups/12/devices/0000:06:00.0 SCSI Devices: [0:0:0:0] disk Verbatim STORE N GO 5.00 /dev/sda 8.00GB [4:0:0:0] cd/dvd MATSHITA BD-MLT UJ240AS 1.01 /dev/sr0 - [5:0:0:0] disk ATA Hitachi HDS5C302 A580 /dev/sdg 2.00TB [5:0:1:0] disk ATA Hitachi HDS72202 A20N /dev/sdh 2.00TB [5:0:2:0] disk ATA ST2000DM001-9YN1 CC4C /dev/sdi 2.00TB [5:0:3:0] disk ATA ST2000DM001-9YN1 CC4C /dev/sdj 2.00TB [5:0:4:0] disk ATA Hitachi HDS72202 A20N /dev/sdk 2.00TB [5:0:5:0] disk ATA ST2000DL003-9VT1 CC32 /dev/sdl 2.00TB [6:0:0:0] disk ATA CT960BX200SSD1 .6 /dev/sdb 960GB [7:0:0:0] disk ATA CT960BX200SSD1 .6 /dev/sdc 960GB [9:0:0:0] disk ATA SAMSUNG HD103UJ 1113 /dev/sdd 1.00TB [10:0:0:0] disk ATA ST31000333AS CC1F /dev/sde 1.00TB [11:0:0:0] disk ATA ST6000DX000-1H21 CC48 /dev/sdf 6.00TB [12:0:0:0] disk ATA ST32000542AS CC34 /dev/sdm 2.00TB [12:0:1:0] disk ATA HGST HMS5C4040AL A580 /dev/sdn 4.00TB [12:0:2:0] disk ATA ST31500341AS CC1H /dev/sdo 1.50TB [12:0:3:0] disk ATA ST4000DM000-1F21 CC51 /dev/sdp 4.00TB [12:0:4:0] disk ATA ST31500341AS CC3G /dev/sdq 1.50TB [12:0:5:0] disk ATA WDC WD10EADS-00L 1A01 /dev/sdr 1.00TB The above Matshita drive is the one I would like to get passed into the Windows 7 VM. It is on the HighPoint Technologies, Inc. RocketRAID 230x 4 Port SATA-II Controller listed in the PCI Devices section above. It is the only thing on that card so I guess I could pass that card through if need be. Passing through the card is actually what I am trying to do right now but I would prefer to just pass the optical drive itself. Below is the XML config for the VM. <domain type='kvm'> <name>Windows 7</name> <uuid>f9232898-ac1a-b0ab-9417-3d980469ad88</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 7" icon="windows7.png" os="windows7"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='6'/> <vcpupin vcpu='1' cpuset='7'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.5'>hvm</type> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/vms/Windows 7/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/vms/isos/virtio-win-0.1.118-2.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:c3:73:f5'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='connect'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='cirrus' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain>
