usb pci passthrough GONE

hi all



i first built my new system last night

based on Lenovo s20 workstation

version 6.2.4

xeon e5645 & 24gb ecc ddr3

parity 1x4tb array 1x3tb 2x2tb

2 gpu

1x usb 3.0 pci

1x gigabit nic (onboard nic is not detected by unraid)



on first boot, before mounting disks i went straight to vm manager and checked the usb passthrough options

my usb3.0 pci card WAS there as an option to pass through to a vm



however, after mounting disks and starting a parity check its GONE, the only thing now available to pass through is the nic card

(the gpu's and sound are ok though, they are available to passthrough)



i have shown below my details from system devices, the pci card that i want to pass through is highlighted in red, it is its own iommu group 11

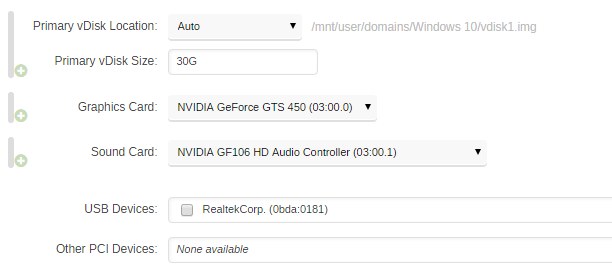

but now is not showing up under usb devices



srangely, the nic card is showing up under a usb device (on first boot, this was showing as being able to passthrough to a vm as a usb device so this has not changed )



is anyone able to help me pass this through correctly?







PCI Devices



00:00.0 Host bridge [0600]: Intel Corporation 5520/5500/X58 I/O Hub to ESI Port [8086:3405] (rev 22)

00:01.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 1 [8086:3408] (rev 22)

00:03.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 3 [8086:340a] (rev 22)

00:07.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 7 [8086:340e] (rev 22)

00:14.0 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers [8086:342e] (rev 22)

00:14.1 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers [8086:3422] (rev 22)

00:14.2 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers [8086:3423] (rev 22)

00:16.0 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3430] (rev 22)

00:16.1 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3431] (rev 22)

00:16.2 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3432] (rev 22)

00:16.3 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3433] (rev 22)

00:16.4 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3429] (rev 22)

00:16.5 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342a] (rev 22)

00:16.6 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342b] (rev 22)

00:16.7 System peripheral [0880]: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342c] (rev 22)

00:1a.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37]

00:1a.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38]

00:1a.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c]

00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e]

00:1d.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34]

00:1d.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35]

00:1d.2 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36]

00:1d.3 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39]

00:1d.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a]

00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev 90)

00:1f.0 ISA bridge [0601]: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller [8086:3a16]

00:1f.2 SATA controller [0106]: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22]

00:1f.3 SMBus [0c05]: Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30]

01:00.0 USB controller [0c03]: Renesas Technology Corp. uPD720202 USB 3.0 Host Controller [1912:0015] (rev 02)

02:00.0 VGA compatible controller [0300]: NVIDIA Corporation GT218 [NVS 300] [10de:10d8] (rev a2)

02:00.1 Audio device [0403]: NVIDIA Corporation High Definition Audio Controller [10de:0be3] (rev a1)

03:00.0 VGA compatible controller [0300]: NVIDIA Corporation GF106 [GeForce GTS 450] [10de:0dc4] (rev a1)

03:00.1 Audio device [0403]: NVIDIA Corporation GF106 High Definition Audio Controller [10de:0be9] (rev a1)

04:0d.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8169 PCI Gigabit Ethernet Controller [10ec:8169] (rev 10)





IOMMU Groups



/sys/kernel/iommu_groups/0/devices/0000:00:00.0

/sys/kernel/iommu_groups/1/devices/0000:00:01.0

/sys/kernel/iommu_groups/2/devices/0000:00:03.0

/sys/kernel/iommu_groups/3/devices/0000:00:07.0

/sys/kernel/iommu_groups/4/devices/0000:00:14.0

/sys/kernel/iommu_groups/4/devices/0000:00:14.1

/sys/kernel/iommu_groups/4/devices/0000:00:14.2

/sys/kernel/iommu_groups/5/devices/0000:00:16.0

/sys/kernel/iommu_groups/5/devices/0000:00:16.1

/sys/kernel/iommu_groups/5/devices/0000:00:16.2

/sys/kernel/iommu_groups/5/devices/0000:00:16.3

/sys/kernel/iommu_groups/5/devices/0000:00:16.4

/sys/kernel/iommu_groups/5/devices/0000:00:16.5

/sys/kernel/iommu_groups/5/devices/0000:00:16.6

/sys/kernel/iommu_groups/5/devices/0000:00:16.7

/sys/kernel/iommu_groups/6/devices/0000:00:1a.0

/sys/kernel/iommu_groups/6/devices/0000:00:1a.1

/sys/kernel/iommu_groups/6/devices/0000:00:1a.7

/sys/kernel/iommu_groups/7/devices/0000:00:1b.0

/sys/kernel/iommu_groups/8/devices/0000:00:1d.0

/sys/kernel/iommu_groups/8/devices/0000:00:1d.1

/sys/kernel/iommu_groups/8/devices/0000:00:1d.2

/sys/kernel/iommu_groups/8/devices/0000:00:1d.3

/sys/kernel/iommu_groups/8/devices/0000:00:1d.7

/sys/kernel/iommu_groups/9/devices/0000:00:1e.0

/sys/kernel/iommu_groups/9/devices/0000:04:0d.0

/sys/kernel/iommu_groups/10/devices/0000:00:1f.0

/sys/kernel/iommu_groups/10/devices/0000:00:1f.2

/sys/kernel/iommu_groups/10/devices/0000:00:1f.3

/sys/kernel/iommu_groups/11/devices/0000:01:00.0

/sys/kernel/iommu_groups/12/devices/0000:02:00.0

/sys/kernel/iommu_groups/12/devices/0000:02:00.1

/sys/kernel/iommu_groups/13/devices/0000:03:00.0

/sys/kernel/iommu_groups/13/devices/0000:03:00.1



USB Devices



Bus 002 Device 002: ID 0781:5571 SanDisk Corp. Cruzer Fit

Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 008 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 007 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 006 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 005 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 001 Device 002: ID 0bda:0181 Realtek Semiconductor Corp.

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub

Bus 009 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 010 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
