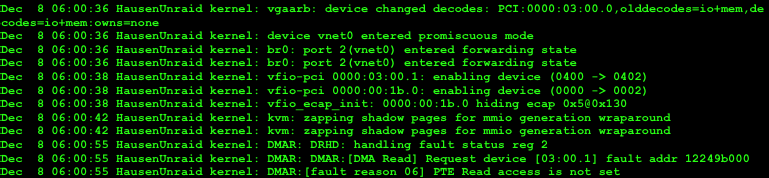

December 8, 20169 yr Info: unraid version 6.2.4 M/B: ASUSTeK Computer INC. - P6T CPU: Intel® Core™ i7 CPU 920 @ 2.67GHz HVM: Enabled IOMMU: Enabled I have a properly working unraid server with 1 VM: Windows 10 with GPU passthrough (and HDMI sound) and keyboard/mouse passthrough If I add my onboard soundchip to passthrough and start the VM, I can see the Windows 10 bootscreen with spinning dots for a few seconds - then the whole system freezes; even the console local and via ssh. Hard power down is the only option at this point. The VM was build only via webGUI - my working XML (without added Soundcard via webGUI): <domain type='kvm' id='1'> <name>Windows 10</name> <uuid>57baf60f-6100-19f4-8b3c-cf635bb11d9f</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>12582912</memory> <currentMemory unit='KiB'>12582912</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>6</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='2'/> <vcpupin vcpu='2' cpuset='3'/> <vcpupin vcpu='3' cpuset='5'/> <vcpupin vcpu='4' cpuset='6'/> <vcpupin vcpu='5' cpuset='7'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-2.5'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/57baf60f-6100-19f4-8b3c-cf635bb11d9f_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor id='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='3' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <alias name='virtio-disk2'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Win10_1607_EnglishInternational_x64.iso'/> <backingStore/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.118-2.iso'/> <backingStore/> <target dev='hdb' bus='sata'/> <readonly/> <alias name='sata0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <model name='i82801b11-bridge'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='2'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:a0:9f:19'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/1'/> <target port='0'/> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/1'> <source path='/dev/pts/1'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-Windows 10/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/> <alias name='video0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc512'/> <address bus='8' device='2'/> </source> <alias name='hostdev2'/> </hostdev> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x06' function='0x0'/> </memballoon> </devices> </domain> syslinux config: default /syslinux/menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append intel_iommu=1 vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append intel_iommu=1 vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemode label Memtest86+ kernel /memtest PCI Devices: 00:00.0 Host bridge [0600]: Intel Corporation 5520/5500/X58 I/O Hub to ESI Port [8086:3405] (rev 12) 00:01.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 1 [8086:3408] (rev 12) 00:03.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 3 [8086:340a] (rev 12) 00:07.0 PCI bridge [0604]: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 7 [8086:340e] (rev 12) 00:14.0 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers [8086:342e] (rev 12) 00:14.1 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers [8086:3422] (rev 12) 00:14.2 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers [8086:3423] (rev 12) 00:14.3 PIC [0800]: Intel Corporation 7500/5520/5500/X58 I/O Hub Throttle Registers [8086:3438] (rev 12) 00:1a.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37] 00:1a.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38] 00:1a.2 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39] 00:1a.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c] 00:1b.0 Audio device [0403]: Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e] 00:1c.0 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 1 [8086:3a40] 00:1c.2 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 3 [8086:3a44] 00:1c.3 PCI bridge [0604]: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 4 [8086:3a46] 00:1d.0 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34] 00:1d.1 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35] 00:1d.2 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36] 00:1d.7 USB controller [0c03]: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a] 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 PCI Bridge [8086:244e] (rev 90) 00:1f.0 ISA bridge [0601]: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller [8086:3a16] 00:1f.2 SATA controller [0106]: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22] 00:1f.3 SMBus [0c05]: Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30] 01:00.0 USB controller [0c03]: Fresco Logic FL1100 USB 3.0 Host Controller [1b73:1100] (rev 10) 02:00.0 VGA compatible controller [0300]: NVIDIA Corporation G86 [GeForce 8500 GT] [10de:0421] (rev a1) 03:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Juniper XT [Radeon HD 5770] [1002:68b8] 03:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Juniper HDMI Audio [Radeon HD 5700 Series] [1002:aa58] 04:00.0 FireWire (IEEE 1394) [0c00]: VIA Technologies, Inc. VT6315 Series Firewire Controller [1106:3403] 05:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10ec:8168] (rev 02) 07:01.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL-8100/8101L/8139 PCI Fast Ethernet Adapter [10ec:8139] (rev 10) ff:00.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture Generic Non-Core Registers [8086:2c41] (rev 05) ff:00.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture System Address Decoder [8086:2c01] (rev 05) ff:02.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 QPI Link 0 [8086:2c10] (rev 05) ff:02.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 QPI Physical 0 [8086:2c11] (rev 05) ff:03.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller [8086:2c18] (rev 05) ff:03.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Target Address Decoder [8086:2c19] (rev 05) ff:03.4 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Test Registers [8086:2c1c] (rev 05) ff:04.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Control Registers [8086:2c20] (rev 05) ff:04.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Address Registers [8086:2c21] (rev 05) ff:04.2 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Rank Registers [8086:2c22] (rev 05) ff:04.3 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Thermal Control Registers [8086:2c23] (rev 05) ff:05.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Control Registers [8086:2c28] (rev 05) ff:05.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Address Registers [8086:2c29] (rev 05) ff:05.2 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Rank Registers [8086:2c2a] (rev 05) ff:05.3 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Thermal Control Registers [8086:2c2b] (rev 05) ff:06.0 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Control Registers [8086:2c30] (rev 05) ff:06.1 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Address Registers [8086:2c31] (rev 05) ff:06.2 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Rank Registers [8086:2c32] (rev 05) ff:06.3 Host bridge [0600]: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Thermal Control Registers [8086:2c33] (rev 05) IOMMU Groups: /sys/kernel/iommu_groups/0/devices/0000:00:00.0 /sys/kernel/iommu_groups/1/devices/0000:00:01.0 /sys/kernel/iommu_groups/2/devices/0000:00:03.0 /sys/kernel/iommu_groups/3/devices/0000:00:07.0 /sys/kernel/iommu_groups/4/devices/0000:00:14.0 /sys/kernel/iommu_groups/4/devices/0000:00:14.1 /sys/kernel/iommu_groups/4/devices/0000:00:14.2 /sys/kernel/iommu_groups/4/devices/0000:00:14.3 /sys/kernel/iommu_groups/5/devices/0000:00:1a.0 /sys/kernel/iommu_groups/5/devices/0000:00:1a.1 /sys/kernel/iommu_groups/5/devices/0000:00:1a.2 /sys/kernel/iommu_groups/5/devices/0000:00:1a.7 /sys/kernel/iommu_groups/6/devices/0000:00:1b.0 /sys/kernel/iommu_groups/7/devices/0000:00:1c.0 /sys/kernel/iommu_groups/7/devices/0000:00:1c.2 /sys/kernel/iommu_groups/7/devices/0000:00:1c.3 /sys/kernel/iommu_groups/7/devices/0000:04:00.0 /sys/kernel/iommu_groups/7/devices/0000:05:00.0 /sys/kernel/iommu_groups/8/devices/0000:00:1d.0 /sys/kernel/iommu_groups/8/devices/0000:00:1d.1 /sys/kernel/iommu_groups/8/devices/0000:00:1d.2 /sys/kernel/iommu_groups/8/devices/0000:00:1d.7 /sys/kernel/iommu_groups/9/devices/0000:00:1e.0 /sys/kernel/iommu_groups/9/devices/0000:07:01.0 /sys/kernel/iommu_groups/10/devices/0000:00:1f.0 /sys/kernel/iommu_groups/10/devices/0000:00:1f.2 /sys/kernel/iommu_groups/10/devices/0000:00:1f.3 /sys/kernel/iommu_groups/11/devices/0000:01:00.0 /sys/kernel/iommu_groups/12/devices/0000:02:00.0 /sys/kernel/iommu_groups/13/devices/0000:03:00.0 /sys/kernel/iommu_groups/13/devices/0000:03:00.1 /sys/kernel/iommu_groups/14/devices/0000:ff:00.0 /sys/kernel/iommu_groups/14/devices/0000:ff:00.1 /sys/kernel/iommu_groups/15/devices/0000:ff:02.0 /sys/kernel/iommu_groups/15/devices/0000:ff:02.1 /sys/kernel/iommu_groups/16/devices/0000:ff:03.0 /sys/kernel/iommu_groups/16/devices/0000:ff:03.1 /sys/kernel/iommu_groups/16/devices/0000:ff:03.4 /sys/kernel/iommu_groups/17/devices/0000:ff:04.0 /sys/kernel/iommu_groups/17/devices/0000:ff:04.1 /sys/kernel/iommu_groups/17/devices/0000:ff:04.2 /sys/kernel/iommu_groups/17/devices/0000:ff:04.3 /sys/kernel/iommu_groups/18/devices/0000:ff:05.0 /sys/kernel/iommu_groups/18/devices/0000:ff:05.1 /sys/kernel/iommu_groups/18/devices/0000:ff:05.2 /sys/kernel/iommu_groups/18/devices/0000:ff:05.3 /sys/kernel/iommu_groups/19/devices/0000:ff:06.0 /sys/kernel/iommu_groups/19/devices/0000:ff:06.1 /sys/kernel/iommu_groups/19/devices/0000:ff:06.2 /sys/kernel/iommu_groups/19/devices/0000:ff:06.3 The syslog output at the time of starting the VM is attached below - and might be the solution to the puzzle. But it's no hint for me - //Edit: except that after enabling device 0000:00:1b.0 (soundchip) there is an DMAR Error for device 0000:03:00.1 (GPU HDMI Soundchip). So the soundchips seem to interfere with eachother. I found related topics here https://lime-technology.com/forum/index.php?topic=48617.msg466319#msg466319 and here https://lime-technology.com/forum/index.php?topic=50636.msg487461#msg487461 Does anybody have any idea or hint?
December 8, 20169 yr Would you happen to be running a virus scanner such as Avast in the VM? I had this same problem and turns out Avast installed some drivers that would conflict with the way the VM image file wrote to itself.
December 8, 20169 yr Author Fresh install of Windows 10, no other software installed except Chrome. But thank you
December 8, 20169 yr Author So after extended research it seems the switch intel_iommu=pt might help. What does this affect? Is this safe to do? ----- Edit: Now I configured an libreelec VM with GPU + HDMI sound + keyboard/mouse passthrough and got another DMAR error. This time for the GPU itself... So, can somebody tell me more about DMAR? ----- Edit: Or should intel_oimmu=nopt be my option? In my understanding iommu=pt is default as off unraid 6.2
