Even Peoples.

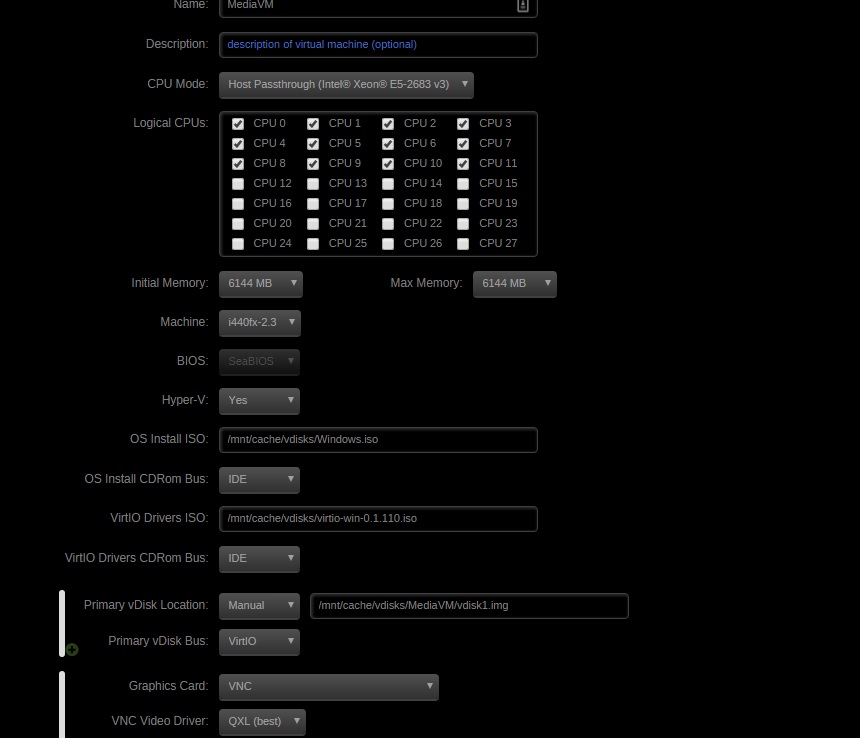

I have 2 VM's that im running one being a ubuntu VM which I have 4 logical CPU's being used. This VM is running fine and shows up in ubuntu as have 4 logical CPU's.



My Windows 10 VM however is a different story.



It shows up as having only 1 logical CPU and actually feels like its only running on 1 logical CPU as well.



Have I missed something?



Thanks in advance.



<domain type='kvm'>

  <name>MediaVM</name>

  <uuid>2a9c8b93-34cd-f444-960c-5f6e799726b5</uuid>

  <metadata>

    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>

  </metadata>

  <memory unit='KiB'>6291456</memory>

  <currentMemory unit='KiB'>6291456</currentMemory>

  <memoryBacking>

    <nosharepages/>

  </memoryBacking>

  <vcpu placement='static'>12</vcpu>

  <cputune>

    <vcpupin vcpu='0' cpuset='0'/>

    <vcpupin vcpu='1' cpuset='1'/>

    <vcpupin vcpu='2' cpuset='2'/>

    <vcpupin vcpu='3' cpuset='3'/>

    <vcpupin vcpu='4' cpuset='4'/>

    <vcpupin vcpu='5' cpuset='5'/>

    <vcpupin vcpu='6' cpuset='6'/>

    <vcpupin vcpu='7' cpuset='7'/>

    <vcpupin vcpu='8' cpuset='8'/>

    <vcpupin vcpu='9' cpuset='9'/>

    <vcpupin vcpu='10' cpuset='10'/>

    <vcpupin vcpu='11' cpuset='11'/>

  </cputune>

  <os>

    <type arch='x86_64' machine='pc-i440fx-2.3'>hvm</type>

  </os>

  <features>

    <acpi/>

    <apic/>

    <hyperv>

      <relaxed state='on'/>

      <vapic state='on'/>

      <spinlocks state='on' retries='8191'/>

      <vendor id='none'/>

    </hyperv>

  </features>

  <cpu mode='host-passthrough'>

    <topology sockets='1' cores='6' threads='2'/>

  </cpu>

  <clock offset='localtime'>

    <timer name='hypervclock' present='yes'/>

    <timer name='hpet' present='no'/>

  </clock>

  <on_poweroff>destroy</on_poweroff>

  <on_reboot>restart</on_reboot>

  <on_crash>restart</on_crash>

  <devices>

    <emulator>/usr/local/sbin/qemu</emulator>

    <disk type='file' device='disk'>

      <driver name='qemu' type='raw' cache='writeback'/>

      <source file='/mnt/cache/vdisks/MediaVM/vdisk1.img'/>

      <target dev='hdc' bus='virtio'/>

      <boot order='1'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/cache/vdisks/Windows.iso'/>

      <target dev='hda' bus='ide'/>

      <readonly/>

      <boot order='2'/>

      <address type='drive' controller='0' bus='0' target='0' unit='0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/cache/vdisks/virtio-win-0.1.110.iso'/>

      <target dev='hdb' bus='ide'/>

      <readonly/>

      <address type='drive' controller='0' bus='0' target='0' unit='1'/>

    </disk>

    <controller type='usb' index='0' model='ich9-ehci1'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci1'>

      <master startport='0'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci2'>

      <master startport='2'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci3'>

      <master startport='4'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>

    </controller>

    <controller type='pci' index='0' model='pci-root'/>

    <controller type='ide' index='0'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>

    </controller>

    <controller type='virtio-serial' index='0'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>

    </controller>

    <interface type='bridge'>

      <mac address='52:54:00:69:93:2f'/>

      <source bridge='br0'/>

      <model type='virtio'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>

    </interface>

    <serial type='pty'>

      <target port='0'/>

    </serial>

    <console type='pty'>

      <target type='serial' port='0'/>

    </console>

    <channel type='unix'>

      <source mode='connect'/>

      <target type='virtio' name='org.qemu.guest_agent.0'/>

      <address type='virtio-serial' controller='0' bus='0' port='1'/>

    </channel>

    <input type='tablet' bus='usb'/>

    <input type='mouse' bus='ps2'/>

    <input type='keyboard' bus='ps2'/>

    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>

      <listen type='address' address='0.0.0.0'/>

    </graphics>

    <video>

      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>

    </video>

    <memballoon model='virtio'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>

    </memballoon>

  </devices>

</domain>



Logical "Core" or Logical "CPU" CPU mean 1 cpu chip core mean the processing unit inside it

But if you don't know what I am talking about then try this xml  it might help

<domain type='kvm'>

  <name>MediaVM</name>

  <uuid>2a9c8b93-34cd-f444-960c-5f6e799726b5</uuid>

  <metadata>

    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>

  </metadata>

  <memory unit='KiB'>6291456</memory>

  <currentMemory unit='KiB'>6291456</currentMemory>

  <memoryBacking>

    <nosharepages/>

  </memoryBacking>

  <vcpu placement='static'>12</vcpu>

  <cputune>

    <vcpupin vcpu='0' cpuset='0'/>

    <vcpupin vcpu='1' cpuset='1'/>

    <vcpupin vcpu='2' cpuset='2'/>

    <vcpupin vcpu='3' cpuset='3'/>

    <vcpupin vcpu='4' cpuset='4'/>

    <vcpupin vcpu='5' cpuset='5'/>

    <vcpupin vcpu='6' cpuset='6'/>

    <vcpupin vcpu='7' cpuset='7'/>

    <vcpupin vcpu='8' cpuset='8'/>

    <vcpupin vcpu='9' cpuset='9'/>

    <vcpupin vcpu='10' cpuset='10'/>

    <vcpupin vcpu='11' cpuset='11'/>

  </cputune>

  <os>

    <type arch='x86_64' machine='pc-i440fx-2.3'>hvm</type>

  </os>

  <features>

    <acpi/>

    <apic/>

    <hyperv>

      <relaxed state='on'/>

      <vapic state='on'/>

      <spinlocks state='on' retries='8191'/>

      <vendor id='none'/>

    </hyperv>

  </features>

  <cpu mode='host-passthrough'>

    <topology sockets='4' cores='3' threads='1'/>

  </cpu>

  <clock offset='localtime'>

    <timer name='hypervclock' present='yes'/>

    <timer name='hpet' present='no'/>

  </clock>

  <on_poweroff>destroy</on_poweroff>

  <on_reboot>restart</on_reboot>

  <on_crash>restart</on_crash>

  <devices>

    <emulator>/usr/local/sbin/qemu</emulator>

    <disk type='file' device='disk'>

      <driver name='qemu' type='raw' cache='writeback'/>

      <source file='/mnt/cache/vdisks/MediaVM/vdisk1.img'/>

      <target dev='hdc' bus='virtio'/>

      <boot order='1'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/cache/vdisks/Windows.iso'/>

      <target dev='hda' bus='ide'/>

      <readonly/>

      <boot order='2'/>

      <address type='drive' controller='0' bus='0' target='0' unit='0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/cache/vdisks/virtio-win-0.1.110.iso'/>

      <target dev='hdb' bus='ide'/>

      <readonly/>

      <address type='drive' controller='0' bus='0' target='0' unit='1'/>

    </disk>

    <controller type='usb' index='0' model='ich9-ehci1'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci1'>

      <master startport='0'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci2'>

      <master startport='2'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>

    </controller>

    <controller type='usb' index='0' model='ich9-uhci3'>

      <master startport='4'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>

    </controller>

    <controller type='pci' index='0' model='pci-root'/>

    <controller type='ide' index='0'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>

    </controller>

    <controller type='virtio-serial' index='0'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>

    </controller>

    <interface type='bridge'>

      <mac address='52:54:00:69:93:2f'/>

      <source bridge='br0'/>

      <model type='virtio'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>

    </interface>

    <serial type='pty'>

      <target port='0'/>

    </serial>

    <console type='pty'>

      <target type='serial' port='0'/>

    </console>

    <channel type='unix'>

      <source mode='connect'/>

      <target type='virtio' name='org.qemu.guest_agent.0'/>

      <address type='virtio-serial' controller='0' bus='0' port='1'/>

    </channel>

    <input type='tablet' bus='usb'/>

    <input type='mouse' bus='ps2'/>

    <input type='keyboard' bus='ps2'/>

    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>

      <listen type='address' address='0.0.0.0'/>

    </graphics>

    <video>

      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>

    </video>

    <memballoon model='virtio'>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>

    </memballoon>

  </devices>

</domain>

Thanks, will give it a go.

Ok if it work please mark this as Solve
