SpaceInvaderOne Posted February 19, 2017 Share Posted February 19, 2017 This video is about advanced OSX VM techniques in KVM with unRAID. You will see how to pass through physical devices to a KVM osx sierra VM such as GPU, sound and USB. You will learn to what hardware that you can use and how to edit the XML template to add the hardware. You will learn how to use a Nvidia GPU in sierra by installing the Nvidia web drivers. You will see how to get your HDMI sound working using an HDMI audio kext. I will quickly run through using virt manager to avoid manual edits then discuss common osx VM problems. Advanced OSX VM techniques in unRAID. Get everything working! 1 Quote Link to comment
RobJ Posted February 19, 2017 Share Posted February 19, 2017 Added to Guides and Videos (it's only for those Mac users!) Quote Link to comment
1812 Posted February 20, 2017 Share Posted February 20, 2017 next time would be good to address what happens to an nvidia gpu using web drivers when you update os x... and how to fix that. I've bonked a few disk images that way. otherwise another good vid! Quote Link to comment
SpaceInvaderOne Posted February 21, 2017 Author Share Posted February 21, 2017 Thanks 1812. I havent upgraded myself. I normally just stay on the build i created the VM with. I will have a look later. I guess best way would be to uninstall nvidia web drivers first. Then upgrade to os to new build then next reinstall new web drivers. Is this how you do it or is there anything else to look out for? Quote Link to comment
1812 Posted February 21, 2017 Share Posted February 21, 2017 2 hours ago, gridrunner said: Thanks 1812. I havent upgraded myself. I normally just stay on the build i created the VM with. I will have a look later. I guess best way would be to uninstall nvidia web drivers first. Then upgrade to os to new build then next reinstall new web drivers. Is this how you do it or is there anything else to look out for? There may be a better way, but I don't know it. Half the time I forget to not enable auto updates which causes the problem. I think there is a way to access the vm image again via clover options at boot, but I usually just drag a copy of the image back over pre-screwup. also, that's a mighty big sig you've got there. Quote Link to comment
SpaceInvaderOne Posted February 21, 2017 Author Share Posted February 21, 2017 (edited) 7 hours ago, 1812 said: There may be a better way, but I don't know it. Half the time I forget to not enable auto updates which causes the problem. I think there is a way to access the vm image again via clover options at boot, but I usually just drag a copy of the image back over pre-screwup. also, that's a mighty big sig you've got there. 2 22 7 hours ago, 1812 said: Yeah you can just add start the machine and before you boot in the clover selection screen goto options then, add to boot args nv_disable=1 That will stop the webdrivers from loading. Then you can ubinstall the old ones and install new ones. Also without webdrivers its hard to see bottom of clover to moount the efi to load config plist. So just open a terminal window and run sudo mkdir /Volumes/efi sudo mount -t msdos /dev/disk0s1 /Volumes/efi Ha I wish i could see my sig. This new web forum is confusing me. I dont now how to add code etc like before. Its weird. I guess its that im getting old and dont like change..... Huh aswell where the preview button........ Edited February 21, 2017 by gridrunner Quote Link to comment
SpaceInvaderOne Posted February 21, 2017 Author Share Posted February 21, 2017 Ah i see. Reading the announcements helps!! Fixed my sig now Quote Link to comment
1812 Posted February 22, 2017 Share Posted February 22, 2017 5 hours ago, gridrunner said: Well, here you go! Quote Link to comment
ijuarez Posted February 22, 2017 Share Posted February 22, 2017 @gridrunner got my el capitan running , thanks for the video, can i upgrade to sierra or is that no go? Quote Link to comment
SpaceInvaderOne Posted February 22, 2017 Author Share Posted February 22, 2017 22 minutes ago, ijuarez said: @gridrunner got my el capitan running , thanks for the video, can i upgrade to sierra or is that no go? Yeah, will be fine to upgrade from el cap to sierra. Just check your CPU is set as Penryn in XML first. Disable the Nvidia web drivers then uninstall them if using an Nvidia card passed through. After this just download the sierra app from apple and upgrade as normal. After install you can check you build number then redownload webdrivers for that build then install them and re-enable in clover. When the system reboots to clover be sure to choose the newly created install partition for sieera else you will be back into el cap Also just before you start, make a copy of the vdisk just in case Quote Link to comment
ijuarez Posted February 22, 2017 Share Posted February 22, 2017 1 hour ago, gridrunner said: Yeah, will be fine to upgrade from el cap to sierra. Just check your CPU is set as Penryn in XML first. Disable the Nvidia web drivers then uninstall them if using an Nvidia card passed through. After this just download the sierra app from apple and upgrade as normal. After install you can check you build number then redownload webdrivers for that build then install them and re-enable in clover. When the system reboots to clover be sure to choose the newly created install partition for sieera else you will be back into el cap Also just before you start, make a copy of the vdisk just in case Thank you. Quote Link to comment
llonca13 Posted February 27, 2017 Share Posted February 27, 2017 (edited) Thank you very much for this guide the performance of this "VM" is amazing (and with 0 aditional kexts WTF ). I know how much time it took and how much time you saved for alot of people.Thank you for that. I have one question..did anyone passthrough entire integrated usb pci controller with success? ..whatever i try it doesnt work..integrated motherboard sound passthrough works great (alc662,with patched applehda) And why is my About this mac showing core2duo(i have sandy bridge i5 2400)? I dont have anything extra in my xml that define cpu(only at the end,qemu: penryn) Btw if anyone has a problem with Ethernet showing disconnected - you have to edit your xml under ethernet device - address type - put the slot number higher (for example slot=0x05).I lost couple of hours trying everything i could think off until i found this solution somwhere on google EDIT: just seen that gridrunner already pointed out this in another thread.serves me right for not reading everything first Edited February 28, 2017 by llonca13 1 Quote Link to comment
JonathanM Posted February 27, 2017 Share Posted February 27, 2017 50 minutes ago, llonca13 said: And why is my About this mac showing core2duo(i have sandy bridge i5 2400)? I dont have anything extra in my xml that define cpu(only at the end,qemu: penryn) https://en.wikipedia.org/wiki/Penryn_(microprocessor) Quote Link to comment

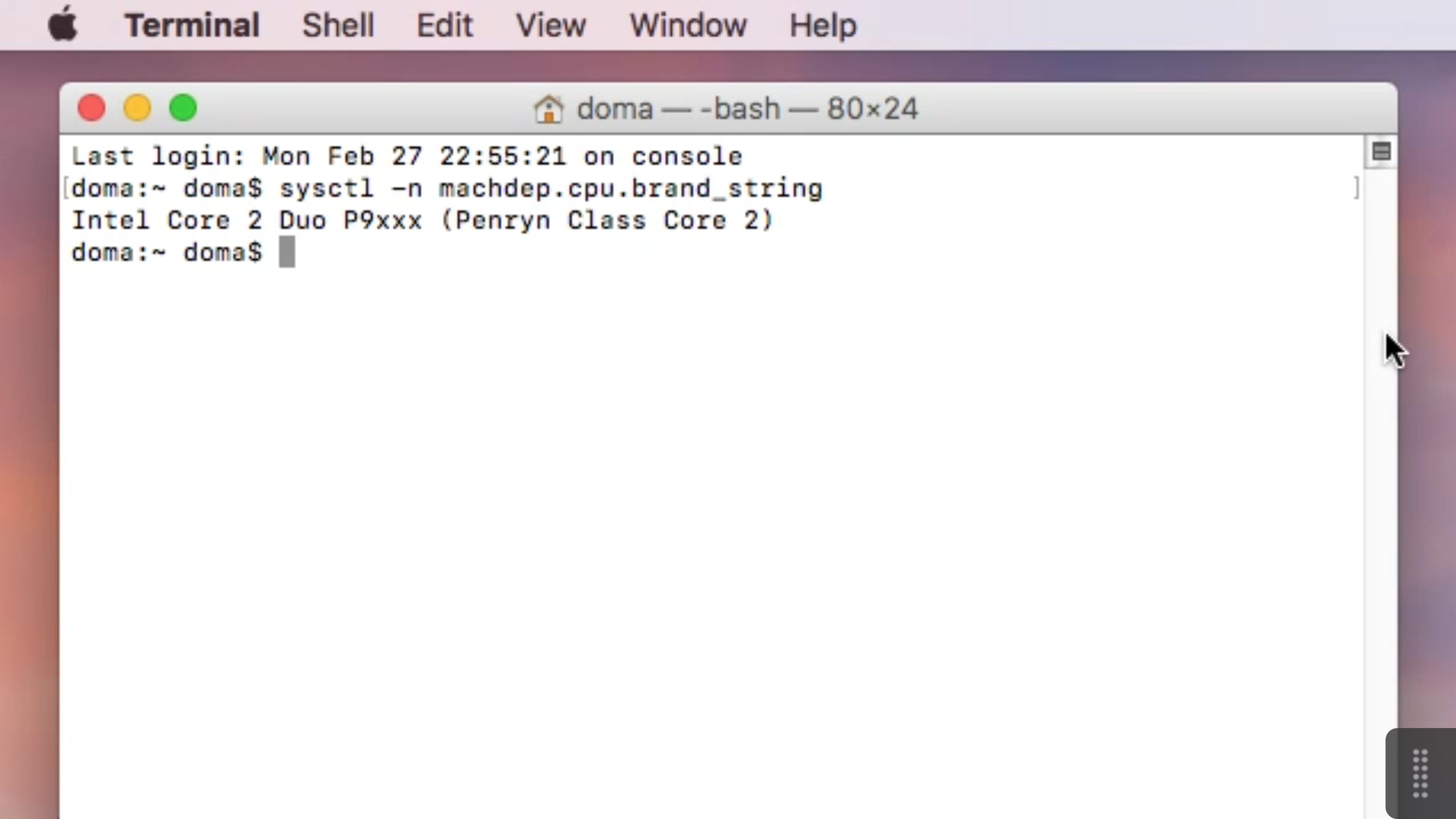

llonca13 Posted February 27, 2017 Share Posted February 27, 2017 (edited) I know that but did you see the video to the end? Gridrunner's cpu shows correct cpu(Xeon,not Penryn- i think?) in About this mac. @gridrunner could you please run this command sysctl -n machdep.cpu.brand_string ..to see if it display correct cpu model.Thank you Edited February 27, 2017 by llonca13 Quote Link to comment
ijuarez Posted February 27, 2017 Share Posted February 27, 2017 Mine, displayed xeon, however I started from El capitan since my mac cannot be upgraded to Sierra Quote Link to comment
