Hi my server at random intervals becomes unresponsive,I am on version 6.1.9.also i have been trying without fail to upgrade to latest version but once upgrade is done and i reboot my server fails to start up,i cant even ssh into it.



Thanks in advance.



tower-syslog-20170227-0813.zip

Edited February 27, 20179 yr by fanie

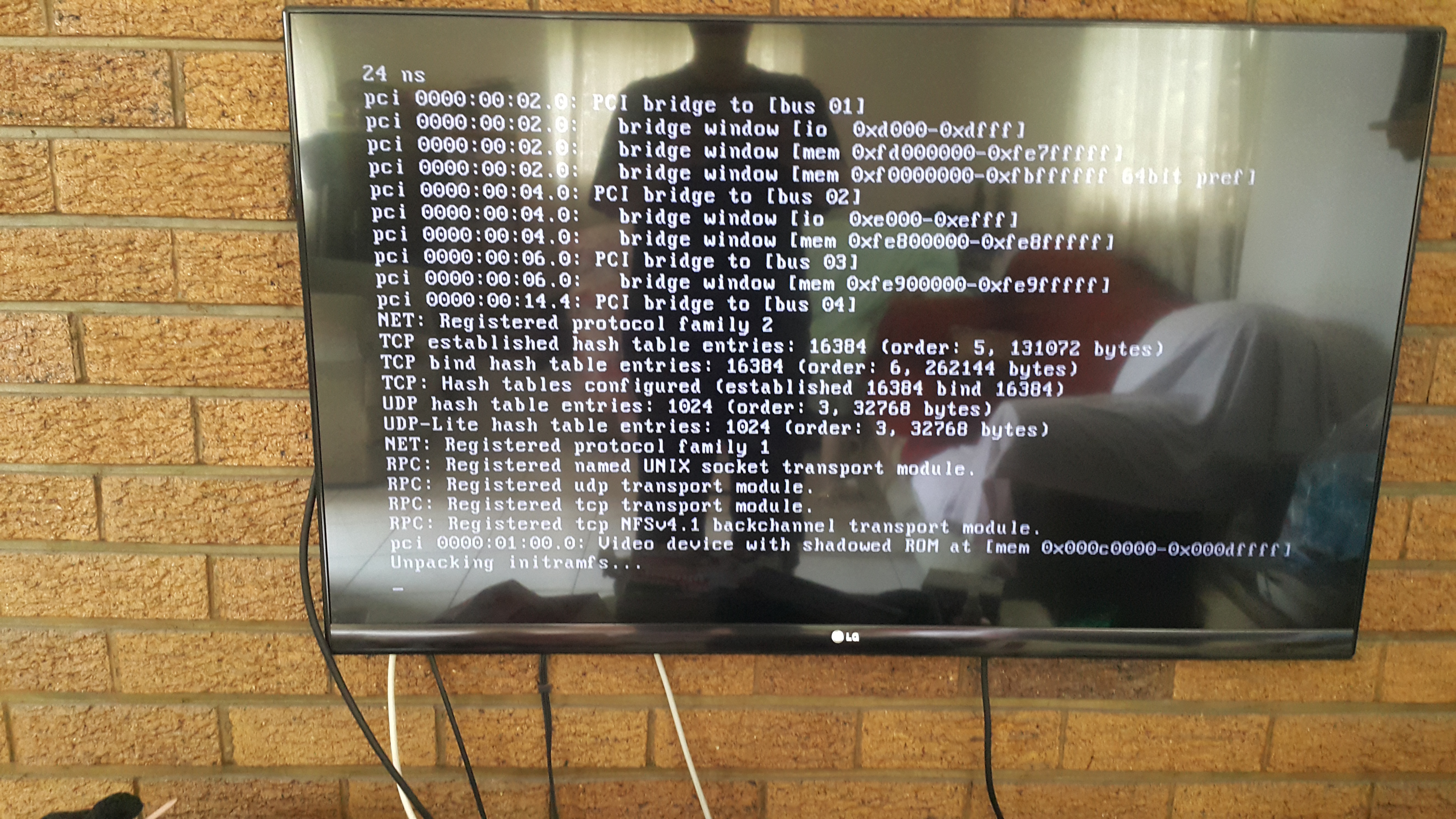

First, if you have a running 6.1.9, stop the array and copy all of the files to a folder on another computer.  Do the upgrade to 6.3.2 and reboot with a keyboard and monitor attached.  While the system is booting, watch what happens and tell us where is it hanging.  And take a picture of the monitor screen.  Make sure that is in focus, not blurred and no big flash burst that hides the text.  (Taking a lot of pictures. looking to see that you got some good ones before shutting down and  pick the best one to upload!)

After the upgrade the webgui doesn't start up.









Edited March 1, 20179 yr by fanie

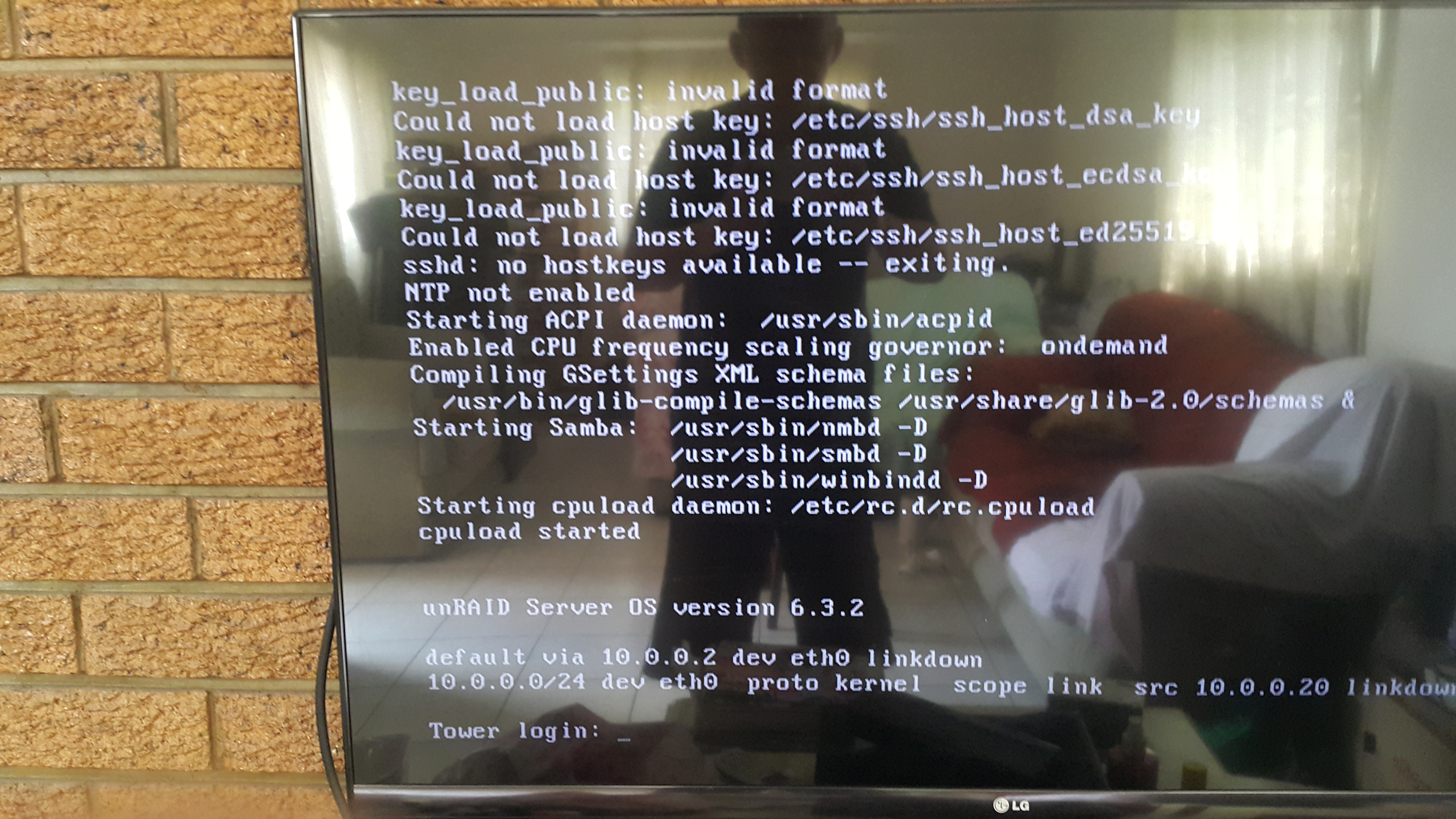

The server has booted.  (However, I can see what I think are some errors...)   Now login to the server and type  diagnostics at the command prompt.  That will write the Diagnostics Zip file to your Flash Drive.  Upload that file with your next post.

Thanks

tower-diagnostics-20170301-1441.zip

Try using   http://10.0.0.20/   on the URL of your browser.



If that doesn't work. I would be suspecting that two devices on your network are sharing the same address (10.0.0.20).  Check on the connected devices table on your router and make sure that you have 'reserved' this address for the exclusive use of your server.

Thank you for the quick reply,think i have found the problem. After the upgrade my NIC is dead I re installed 6.1.9 and my NIC is fine but once i did the upgrade it's dead again.



02:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection  (FAULTY NOT WORKING)
03:00.0 Ethernet controller: Broadcom Corporation NetXtreme BCM5723 Gigabit Ethernet PCIe (rev 10) (WORKING ONE)



How would i be able to fix that if possible



Thanks

Edited March 1, 20179 yr by fanie

Try one thing.  Plug your cat5 cable into the other RJ45 socket on your motherboard.



IF that doesn't work post up what your hardware setup is.  Make sure that  you post all of the complete model number on your MB.



EDIT:  Here is the reason why:



Mar  1 11:00:34 Tower kernel: tg3 0000:03:00.0 eth0: Tigon3 [partno(none) rev 5784100] (PCI Express) MAC address 00:10:18:00:00:00
Mar  1 11:00:34 Tower kernel: tg3 0000:03:00.0 eth0: attached PHY is 5784 (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[0])
Mar  1 11:00:34 Tower kernel: tg3 0000:03:00.0 eth0: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1]
Mar  1 11:00:34 Tower kernel: tg3 0000:03:00.0 eth0: dma_rwctrl[76180000] dma_mask[64-bit]
Mar  1 11:00:34 Tower kernel: e1000e: Intel(R) PRO/1000 Network Driver - 3.2.6-k
Mar  1 11:00:34 Tower kernel: e1000e: Copyright(c) 1999 - 2015 Intel Corporation.
Mar  1 11:00:34 Tower kernel: e1000e 0000:02:00.0: Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
Mar  1 11:00:34 Tower kernel: e1000e 0000:02:00.0 0000:02:00.0 (uninitialized): registered PHC clock
Mar  1 11:00:34 Tower kernel: e1000e 0000:02:00.0 eth1: (PCI Express:2.5GT/s:Width x1) 68:05:ca:1e:30:20
Mar  1 11:00:34 Tower kernel: e1000e 0000:02:00.0 eth1: Intel(R) PRO/1000 Network Connection
Mar  1 11:00:34 Tower kernel: e1000e 0000:02:00.0 eth1: MAC: 3, PHY: 8, PBA No: E46981-008
Mar  1 11:00:34 Tower rc.inet1: ip addr add 127.0.0.1 dev lo
Mar  1 11:00:34 Tower rc.inet1: ip link set lo up
Mar  1 11:00:34 Tower rc.inet1: ip route add 127.0.0.0/8 dev lo
Mar  1 11:00:34 Tower rc.inet1: ip addr add 10.0.0.20/255.255.255.0 dev eth0
Mar  1 11:00:34 Tower rc.inet1: ip link set eth0 up
Mar  1 11:00:34 Tower rc.inet1: ip route add default via 10.0.0.2

I believe there is a way to force the Intel NIC to become the assigned one but I don't know how.

Edited March 1, 20179 yr by Frank1940

Thanks for the help, guess i am stuck for now on this version.
