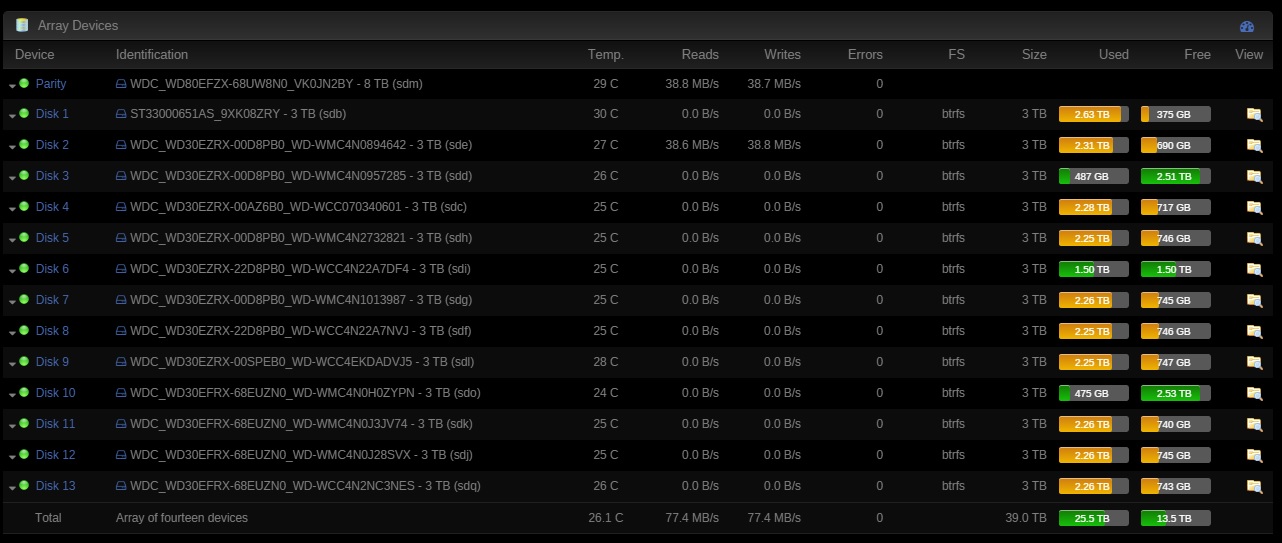

March 22, 20179 yr I'm new to unRaid and having moved over from DrivePool, I'm running version 6.3.2, and now my data is on the drives I notice three drives are not been used, SMART says the drives are fine but when I try to move data to any of the three drives via windows 10 it states the drives are full. Please see the attached picture, Whats wrong and how do I fix it.
March 23, 20179 yr Author the whole thing or just part WDC_WD30EZRX-00D8PB0_WD-WMC4N0957285-20170323-0504.txt
March 23, 20179 yr Hmmm ... your smart report looks fine. But did you read down to line 6 in the link that Johnnie posted? If you read there you will see how to pull the diagnostics file.
March 23, 20179 yr Community Expert Don't see nothing out of the ordinary on the diags, post the output of both: btrfs fi show /mnt/diskX btrfs fi df /mnt/diskX Replace X with 3, 6 and 10.
March 23, 20179 yr Author I'm not sure how to do that in the webgui but: Disk 3 Total devices 1 FS bytes used 453.39GiB devid 1 size 2.73TiB used 457.02GiB path /dev/md3 Disk 6 Total devices 1 FS bytes used 1.37TiB devid 1 size 2.73TiB used 1.38TiB path /dev/md6 Disk 10 Total devices 1 FS bytes used 441.62GiB devid 1 size 2.73TiB used 445.02GiB path /dev/md10
March 23, 20179 yr Author Disk 3 Data, single: total=456.01GiB, used=452.88GiB System, single: total=4.00MiB, used=64.00KiB Matadata, single: total=1.01GiB, used=517.44MiB GlobalReserve, single: total-512.00MiB, used=0.00B Disk 6 Data, single: total=1.38TiB, used=1.37TiB System, single: total=4.00MiB, used=176.00KiB Matadata, single: total=2.01GiB, used=1.50GiB GlobalReserve, single: total-512.00MiB, used=0.00B Disk 10 Data, single: total=444.01GiB, used=441.11GiB System, single: total=4.00MiB, used=64.00KiB Matadata, single: total=1.01GiB, used=520.91MiB GlobalReserve, single: total-512.92MiB, used=0.00B
March 23, 20179 yr Community Expert Everything looks normal also. Can you try a local copy? On the console type mc then on the left pane navigate to to one of your disks, e.g., /mnt/disk1 and on the right pane one of the problem disks, e.g., /mnt/disk3 and try to copy a large file.
March 23, 20179 yr Author Interesting that seems to work, so some sort of windows 10 issue then. I have tried to copy files using standard windows copy move and taraCopy Edited March 23, 20179 yr by phileeny
March 23, 20179 yr Community Expert When copying from Windows were you doing it directly to that disk share, e.g., \\tower\disk3 ?
March 23, 20179 yr Author no, I set unraid to high-water at first and thats when I saw the disks not been used, then I set unraid to most-free and still not used, when I set unraid to use only disk 3 thats when windows said the disk was full. I only move files to shares and not disks.
March 23, 20179 yr Community Expert OK, try this: Stop the array then go to Settings -> Global Share Settings -> Enable Disk Shares: Set to Yes Start the array again and you will now see all your disks as shares, try to copy directly to one of the affected disks. PS: while enable never copy anything from a disk share to a user share because of the user share copy bug.
March 24, 20179 yr Community Expert 14 hours ago, johnnie.black said: Don't see nothing out of the ordinary on the diags There's something wrong in the diags that I didn't check before, df output: Quote Filesystem Size Used Avail Use% Mounted on rootfs 7.5G 390M 7.1G 6% / tmpfs 7.5G 300K 7.5G 1% /run devtmpfs 7.5G 0 7.5G 0% /dev cgroup_root 7.5G 0 7.5G 0% /sys/fs/cgroup tmpfs 128M 2.5M 126M 2% /var/log /dev/sda1 30G 289M 30G 1% /boot /dev/md1 2.8T 2.4T 349G 88% /mnt/disk1 /dev/md2 2.8T 2.4T 347G 88% /mnt/disk2 /dev/md3 2.8T 454G 0 100% /mnt/disk3 /dev/md4 2.8T 2.2T 625G 78% /mnt/disk4 /dev/md5 2.8T 2.1T 695G 76% /mnt/disk5/dev/md6 2.8T 1.4T 0 100% /mnt/disk6 /dev/md7 2.8T 2.1T 694G 76% /mnt/disk7 /dev/md8 2.8T 2.1T 695G 76% /mnt/disk8 /dev/md9 2.8T 2.1T 695G 76% /mnt/disk9/dev/md10 2.8T 443G 0 100% /mnt/disk10 /dev/md11 2.8T 2.1T 689G 76% /mnt/disk11 /dev/md12 2.8T 2.1T 693G 76% /mnt/disk12 /dev/md13 2.8T 2.1T 691G 76% /mnt/disk13 /dev/sdn1 932G 22G 910G 3% /mnt/cache shfs 36T 24T 6.1T 80% /mnt/user0 shfs 37T 24T 7.0T 78% /mnt/user /dev/loop0 20G 20M 18G 1% /var/lib/docker /dev/loop1 1.0G 17M 905M 2% /etc/libvirt As you can see df is reporting the 3 problem disks with 0 free space, no idea why but will try to find out.
March 25, 20179 yr Author Thanks, I On 3/23/2017 at 10:33 PM, johnnie.black said: OK, try this: Stop the array then go to Settings -> Global Share Settings -> Enable Disk Shares: Set to Yes Start the array again and you will now see all your disks as shares, try to copy directly to one of the affected disks. PS: while enable never copy anything from a disk share to a user share because of the user share copy bug. I did this and moved a file from windows 10 to Disk 3 with no issues. very odd.
March 25, 20179 yr Community Expert Didn't have much time but did some searching and didn't found any solutions, also it's not a common problem, unlike the reverse, i.e., btrfs file system reports free space but you can't write anymore due to the deice being fully allocated, in fact only found one person running Mageia with the same issue, but for him it was mostly a cosmetic issue, since the system functions normally despite df reporting the disk full. With unRAID looks like the webGUI uses btrfs fi show and correctly reports the free space, but when doing a copy using a user share it looks at df for the available space and since it's not correctly reported it errors out. To fix it you'll probably need to reformat the disk, you can try to resize it first, doubt it will work but it's easy to try, so if you to try it, with the array started type on the console: btrfs filesystem resize 500G /mnt/disk3 Then: df -h /mnt/disk3 Check if available space changes or if it remains at 0. You can then manually resize the disk to max or it will be automatically resized at next array start.
March 25, 20179 yr Author 47 minutes ago, johnnie.black said: btrfs filesystem resize 500G /mnt/disk3 I can see what the above does but not the below 47 minutes ago, johnnie.black said: df -h /mnt/disk3 So I typed the above on the console and got this Size Used Avail Used Mounted on 2.8T 480G 2.3T 18% /mnt/disk3 then again Size Used Avail Used Mounted on 2.8T 433G 0 100% /mnt/disk10 So it looks like to me by moving files under MC or via disk share has reset disk3 somehow.
March 25, 20179 yr Community Expert Well, that's strange, but all this situation is Try doing the same to the other problem disks to see if they also "normalize".
March 25, 20179 yr Author Just shared Disk10 and moved a file 1.3mb from windows 10 to disk10, then df -h /mnt/disk10 Size Used Avail Used Mounted on 2.8T 433G 1.2T 16% /mnt/disk10 Well that worked. I would like to thank you as I've learned a lot.
March 25, 20179 yr Community Expert You're welcome, also learned something, this "solution" should work if the same happens again to another user.
March 25, 20179 yr Author Hole on there didn't work on disk6 The share disk then move/copy via windows just says disk full, so went to MC and that worked Size Used Avail Used Mounted on 2.8T 1.4T 1.4T 51% /mnt/disk6
March 25, 20179 yr Community Expert Using mc is probably the best, also noticed disk 10 is still not reporting the correct free space, may need to do it once more later in case it doesn't auto correct.
March 25, 20179 yr I would like to thank Johnnie for providing outstanding support to the "unRAID BTRFS pioneers" like phileeny. It is quite likely that BTRFS is the future of file systems, but it is still be in its formative years, and the community is gaining knowledge and experience by which to guide adopters. The fact that BTRFS does not really know how much space remains available on a disk seems to be a recurring theme. For those reading, if your goal is the most rock solid protected array, I would have to suggest sticking with XFS on array disks. If you are choosing to use BTRFS, make sure you follow @johnnie.black!
