I recently added a new 6tb hard drive to my array and while rebuilding the gui became unresponsive. I waiting long enough for the rebuild to finished before powering down the machine but after rebooting it kicked off the parity rebuild again. I finally got the rebuild done but now my parity keeps being removed from the array and I'm not sure what has happened to it because it was working fine until I added the new drive.  If anyone can help me I would greatly appreciate it. Thanks

yoshi-diagnostics-20170323-0044.zip

yoshi-smart-20170323-0138.zip

Edited March 23, 20179 yr by pwcracker

Timeout errors on parity, check/replace cables and try again.

There's file system corruption on disk12, you'll need to run xfs_repair.

On 3/23/2017 at 3:02 AM, johnnie.black said:

Timeout errors on parity, check/replace cables and try again.

There's file system corruption on disk12, you'll need to run xfs_repair.



Replaced one of my breakout cables and that seems to have fixed the issue. Thanks!

I upgraded another hard drive last night and started a rebuilt and today when it finished the parity had a ton of errors. Not sure what's going on all of a sudden. I had just did a parity sync the night before with no errors.





yoshi-diagnostics-20170328-2201.zip

14 minutes ago, pwcracker said:

I upgraded another hard drive last night

Parity has dropped offline. You should always double check all connections when you change things inside the machine.

There are no loose connections and the parity happens to be on the new cable I just replaced. I ran 2 parity checks with no errors after replacing the cable, powered down, replaced disk 8 and powered up, started rebuild and when done parity reported millions of errors. Not really sure where to go from here. Unraid has disabled my parity drive now.

You'll need to reboot/power cycle to get a SMART report from parity.

yoshi-smart-20170329-0635.zip

This does not look very good:


Quote

After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  04 61 0c 00 00 00 00  Device Fault; Error: ABRT





If you only replaced the sata cable replace power also, if you already replaced both cables it may be a bad disk.

I believe the disk is fine. Those aborts are likely signs of a cabling issue (unless the drive was dropped or something).



Although it could be power, my money is still on data. Likely not a bad cable but a less than perfect connection. Even a few degrees askew is enough to cause intermittent connection issues.



Every time you open your case to add and/or remove drives, you risk having your fat fingers jiggle the corrections to your existing drives. These connections are very fragile. Locking cables are highly recommended. As are drive cages (5in3 or 4in3) to allow easy exchange of disks without opening the case at all. These may seem like luxuries, but are required equipment IMO.



Problems with cabling after drive replacements occur very frequently here - dwarfing incidents of actual drive failures.

I will double check the connections but my sata cables are all locking. I'm not sure how to proceed from here without losing data.

4 minutes ago, pwcracker said:

I'm not sure how to proceed from here without losing data.

Parity disk doesn't have any of your data and each data disk is an independent filesystem which can be read without any of the other disks.

8 minutes ago, pwcracker said:

I'm not sure how to proceed from here without losing data.



Due to the parity errors disk8 rebuild is corrupt, you'll want to do a new config with your old disk8 and do a parity sync with the same or a spare disk as parity.

Edited March 29, 20179 yr by johnnie.black

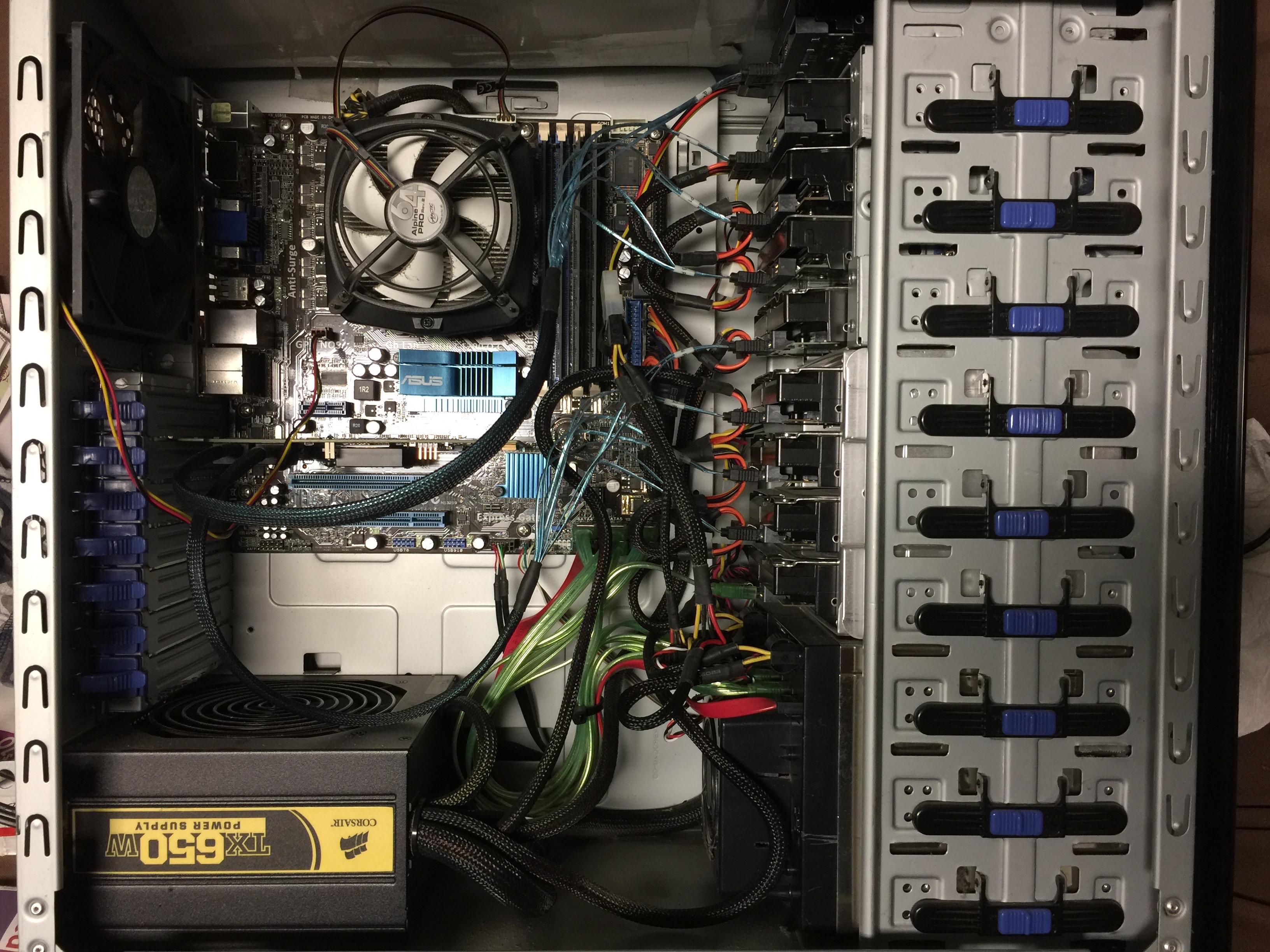

Well thank you guys for all your help. I've upgraded my hard drives 5 or 6 times over the years and have never run into any problems like these. Next time I upgrade a drive I will be a little more careful about my data. Uploaded a pic so you guys can see my setup. Parity is the drive at the very top.
