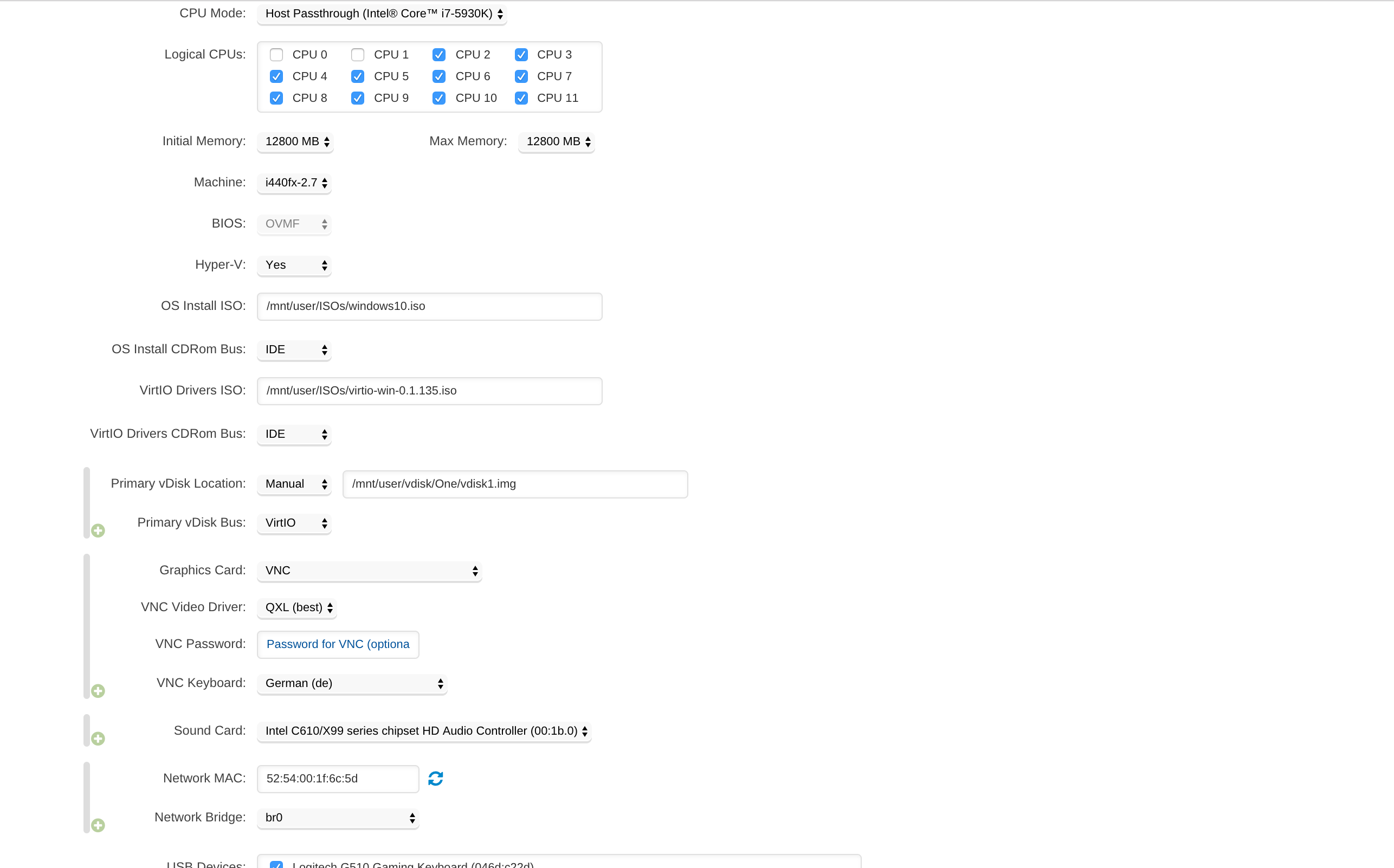

April 14, 20179 yr Hello Guys, i need you help. i want to install Windows 10 on VM. But the Maschine always stands still after the Windows Logo. i boot up -> press any key to boot from disk->Windows logo -> nothing more (stands still). <domain type='kvm'> <name>One</name> <uuid>ae704c73-0fab-a20c-fb0f-96ec03c82467</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>13107200</memory> <currentMemory unit='KiB'>13107200</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>10</vcpu> <cputune> <vcpupin vcpu='0' cpuset='2'/> <vcpupin vcpu='1' cpuset='3'/> <vcpupin vcpu='2' cpuset='4'/> <vcpupin vcpu='3' cpuset='5'/> <vcpupin vcpu='4' cpuset='6'/> <vcpupin vcpu='5' cpuset='7'/> <vcpupin vcpu='6' cpuset='8'/> <vcpupin vcpu='7' cpuset='9'/> <vcpupin vcpu='8' cpuset='10'/> <vcpupin vcpu='9' cpuset='11'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.7'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/ae704c73-0fab-a20c-fb0f-96ec03c82467_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='5' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/vdisk/One/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/windows10.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/ISOs/virtio-win-0.1.135.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='nec-xhci'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:1f:6c:5d'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1.4'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='de'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc22d'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0b05'/> <product id='0x180a'/> </source> <address type='usb' bus='0' port='3'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf001'/> </source> <address type='usb' bus='0' port='4'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0c70'/> <product id='0xf0b6'/> </source> <address type='usb' bus='0' port='1.1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0d8c'/> <product id='0x0134'/> </source> <address type='usb' bus='0' port='1.2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1af3'/> <product id='0x0001'/> </source> <address type='usb' bus='0' port='1.3'/> </hostdev> <hub type='usb'> <address type='usb' bus='0' port='1'/> </hub> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain> Log: Domain id=3 is tainted: high-privileges Domain id=3 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:37:40.175307Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:37:40.775+0000: shutting down, reason=destroyed 2017-04-14 14:38:51.735+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Gaming LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=One,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-4-One/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/18db5be1-1228-373f-dcd3-87c30dcbfcef_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 12288 -realtime mlock=off -smp 4,sockets=1,cores=2,threads=2 -uuid 18db5be1-1228-373f-dcd3-87c30dcbfcef -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-4-One/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device nec-usb-xhci,id=usb,bus=pci.0,addr=0x7 -device virort,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device usb-tablet,id=input0,bus=usb.0,port=1.4 -vnc 0.0.0.0:0,websocket=5700 -k de -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pci.0,addr=0x2 -device vfio-pci,host=00:1b.0,id=hostdev0,bus=pci.0,addr=0x6 -device usb-host,hostbus=3,hostaddr=10,id=hostdev1,bus=usb.0,port=2 -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=3 -device usb-host,hostbus=3,hostaddr=9,id=hostdev3,bus=usb.0,port=4 -device usb-host,hostbus=3,hostaddr=8,id=hostdev4,bus=usb.0,port=1.1 -device usb-host,hostbus=3,hostaddr=6,id=hostdev5,bus=usb.0,port=1.2 -device usb-host,hostbus=3,hostaddr=2,id=hostdev6,bus=usb.0,port=1.3 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x8 -msg timestamp=on Domain id=4 is tainted: high-privileges Domain id=4 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:39:29.685282Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:39:30.485+0000: shutting down, reason=destroyed 2017-04-14 14:49:54.119+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Gaming LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=One,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-5-One/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/ae704c73-0fab-a20c-fb0f-96ec03c82467_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 12800 -realtime mlock=off -smp 4,sockets=1,cores=2,threads=2 -uuid ae704c73-0fab-a20c-fb0f-96ec03c82467 -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-5-One/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device nec-usb-xhci,id=usb,bus=pci.0,addr=0x7 -device virt,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device usb-tablet,id=input0,bus=usb.0,port=1.4 -vnc 0.0.0.0:0,websocket=5700 -k de -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pci.0,addr=0x2 -device vfio-pci,host=00:1b.0,id=hostdev0,bus=pci.0,addr=0x6 -device usb-host,hostbus=3,hostaddr=10,id=hostdev1,bus=usb.0,port=2 -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=3 -device usb-host,hostbus=3,hostaddr=9,id=hostdev3,bus=usb.0,port=4 -device usb-host,hostbus=3,hostaddr=8,id=hostdev4,bus=usb.0,port=1.1 -device usb-host,hostbus=3,hostaddr=6,id=hostdev5,bus=usb.0,port=1.2 -device usb-host,hostbus=3,hostaddr=2,id=hostdev6,bus=usb.0,port=1.3 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x8 -msg timestamp=on Domain id=5 is tainted: high-privileges Domain id=5 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:53:09.847084Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:53:10.647+0000: shutting down, reason=destroyed 2017-04-14 14:53:24.642+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Gaming LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=One,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-6-One/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/ae704c73-0fab-a20c-fb0f-96ec03c82467_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 12800 -realtime mlock=off -smp 4,sockets=1,cores=2,threads=2 -uuid ae704c73-0fab-a20c-fb0f-96ec03c82467 -display none -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-6-One/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device nec-usb-xhci,id=usb,bus=pci.0,addr=0 virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device vfio-pci,host=01:00.0,id=hostdev0,bus=pci.0,addr=0x5 -device vfio-pci,host=00:1b.0,id=hostdev1,bus=pci.0,addr=0x6 -device usb-host,hostbus=3,hostaddr=10,id=hostdev2,bus=usb.0,port=2 -device usb-host,hostbus=3,hostaddr=3,id=hostdev3,bus=usb.0,port=3 -device usb-host,hostbus=3,hostaddr=9,id=hostdev4,bus=usb.0,port=4 -device usb-host,hostbus=3,hostaddr=8,id=hostdev5,bus=usb.0,port=1.1 -device usb-host,hostbus=3,hostaddr=6,id=hostdev6,bus=usb.0,port=1.2 -device usb-host,hostbus=3,hostaddr=2,id=hostdev7,bus=usb.0,port=1.3 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x8 -msg timestamp=on Domain id=6 is tainted: high-privileges Domain id=6 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:53:40.672086Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:53:41.472+0000: shutting down, reason=destroyed 2017-04-14 14:55:17.746+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Gaming LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=One,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-7-One/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/ae704c73-0fab-a20c-fb0f-96ec03c82467_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 12800 -realtime mlock=off -smp 10,sockets=1,cores=5,threads=2 -uuid ae704c73-0fab-a20c-fb0f-96ec03c82467 -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-7-One/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device nec-usb-xhci,id=usb,bus=pci.0,addr=0x7 -device virt,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device usb-tablet,id=input0,bus=usb.0,port=1.4 -vnc 0.0.0.0:0,websocket=5700 -k de -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pci.0,addr=0x2 -device vfio-pci,host=00:1b.0,id=hostdev0,bus=pci.0,addr=0x6 -device usb-host,hostbus=3,hostaddr=10,id=hostdev1,bus=usb.0,port=2 -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=3 -device usb-host,hostbus=3,hostaddr=9,id=hostdev3,bus=usb.0,port=4 -device usb-host,hostbus=3,hostaddr=8,id=hostdev4,bus=usb.0,port=1.1 -device usb-host,hostbus=3,hostaddr=6,id=hostdev5,bus=usb.0,port=1.2 -device usb-host,hostbus=3,hostaddr=2,id=hostdev6,bus=usb.0,port=1.3 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x8 -msg timestamp=on Domain id=7 is tainted: high-privileges Domain id=7 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:56:02.371581Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:56:03.172+0000: shutting down, reason=destroyed 2017-04-14 14:56:37.648+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Gaming LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=One,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-8-One/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/ae704c73-0fab-a20c-fb0f-96ec03c82467_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 12800 -realtime mlock=off -smp 10,sockets=1,cores=5,threads=2 -uuid ae704c73-0fab-a20c-fb0f-96ec03c82467 -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-8-One/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device nec-usb-xhci,id=usb,bus=pci.0,addr=0x7 -device viannel0,name=org.qemu.guest_agent.0 -device usb-tablet,id=input0,bus=usb.0,port=1.4 -vnc 0.0.0.0:0,websocket=5700 -k de -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pci.0,addr=0x2 -device vfio-pci,host=00:1b.0,id=hostdev0,bus=pci.0,addr=0x6 -device usb-host,hostbus=3,hostaddr=10,id=hostdev1,bus=usb.0,port=2 -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=3 -device usb-host,hostbus=3,hostaddr=9,id=hostdev3,bus=usb.0,port=4 -device usb-host,hostbus=3,hostaddr=8,id=hostdev4,bus=usb.0,port=1.1 -device usb-host,hostbus=3,hostaddr=6,id=hostdev5,bus=usb.0,port=1.2 -device usb-host,hostbus=3,hostaddr=2,id=hostdev6,bus=usb.0,port=1.3 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x8 -msg timestamp=on Domain id=8 is tainted: high-privileges Domain id=8 is tainted: host-cpu char device redirected to /dev/pts/0 (label charserial0) 2017-04-14T14:59:29.982245Z qemu-system-x86_64: terminating on signal 15 from pid 5089 2017-04-14 14:59:30.782+0000: shutting down, reason=destroyed Something wrong with my bios settings? (This will be a gaming VM) Need fast help. Thank you guys!
April 14, 20179 yr Try using only a single cpu during the installation process, and add the others you want after the install completes.
April 14, 20179 yr Author thanks for your reply. i started one machine with seabios. someone knows the different between them ? (Seabios much more slowly ? )
