I'm having trouble getting unraid to connect to my network.

I can see the unraid system on the list of things connected to my router but cant connect to the web interface from any PC. further more i cant access the web from unraid either.

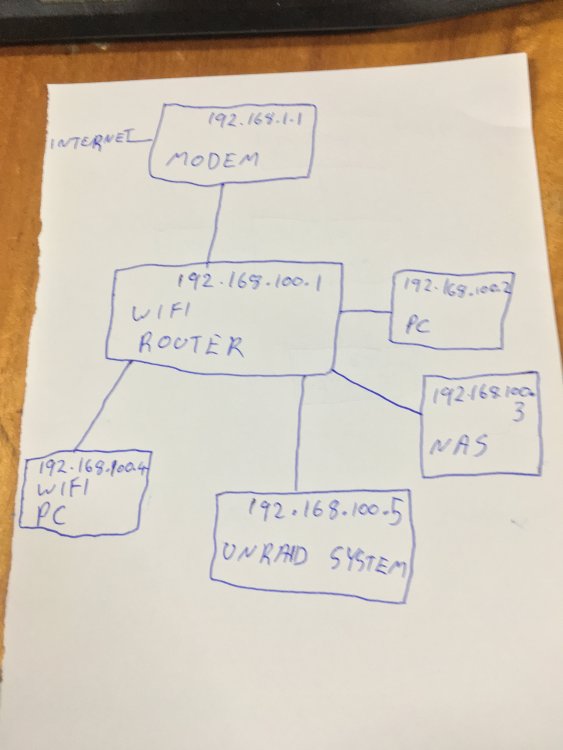

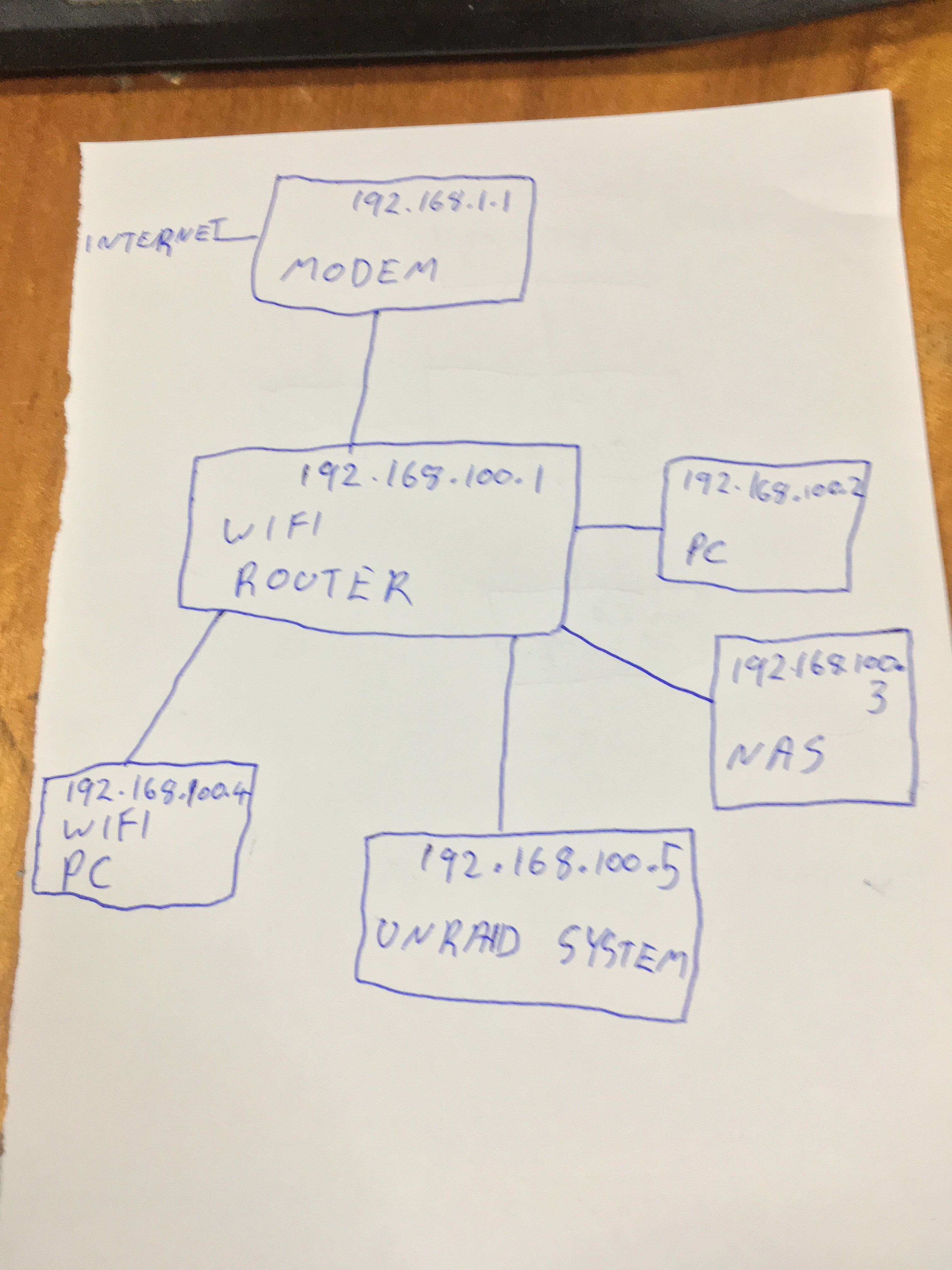

I have an internet modem (which has crap WiFi so i have it turned off) connected to a WiFi router and then everything connected to the WiFi router. i have posted a drawing of how my network is setup.



I have the settings in unraid set as follows

Enable Bonding: No

Enable Bridging: No

obtain IP address automatically: No

IP address: 192.168.100.5

Subnet mask: 255.255.255.0

Gateway: 192.168.100.1

Obtain DNS server automatically: No

DNS server 1: 192.168.100.1

Sorry about the bad hand writing.



I have tried to let unraid obtain the network information automatically and it gets info that makes no sense like

IP: 203.170.65.36

Subnet mask: 255.255.0.0

Did you try to connect to the GUI using            http://192.168.100.5/       ?



EDIT:  If this does not work, try     ping   192.168.100.5     from a command prompt window.

Edited June 13, 20179 yr by Frank1940

Did you try to connect to the GUI using            http://192.168.100.5/       ?

EDIT:  If this does not work, try     ping   192.168.100.5     from a command prompt window.

I tried both options and trying to connect to the GUI timed out and the ping said destination host unreachable.


Sent from my iPhone using Tapatalk

From a monitor and keyboard connected to your unRAID server, type    diagnostics    on the command line.  That will write the diagnostics file to the   logs    folder on the flash drive.  Upload that file with your next post.

Thanks for your help.
I found out that it was a bad motherboard.
Sorry it has taken so long to get back but I have been on a business trip.


Sent from my iPhone using Tapatalk
