August 1, 20178 yr Community Expert stop the array, start in maintenance mode again and run reiserfsck on the emulated disk9 and post the output: reiserfsck /dev/md9

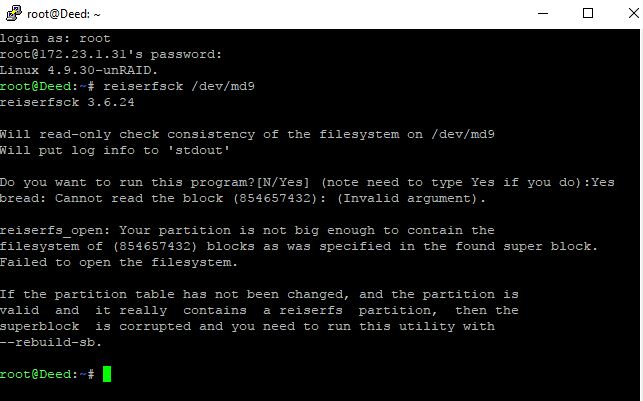

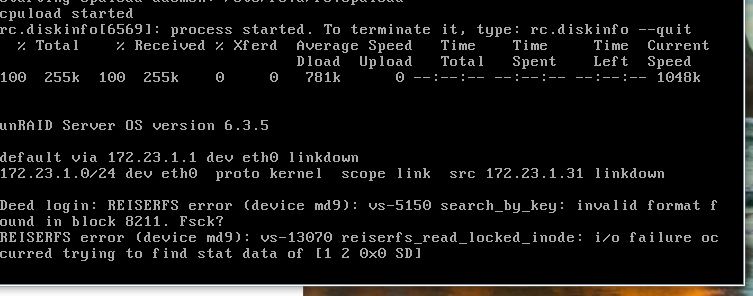

August 1, 20178 yr Author Ok I get to console and see the following attached picture1--this came up after one of the initial steps I believe. So I putty'd in and was able to login that way and got the output shown as picture2. Edit: I should add that doing anything in console in this top picture didn't respond--could not get a login prompt etc. Edited August 1, 20178 yr by talmania Clarification
August 1, 20178 yr Community Expert Superblock is damaged, this is not normal, could be the result of the problems with the original disk9 or there were changes to the array after the disk13 upgrade attempt, any change, like dockers writing to the array, etc will cause problems. You can still rebuild the superblock and see how it goes, follow the instructions from here: https://wiki.lime-technology.com/Check_Disk_Filesystems#Rebuilding_the_superblock
August 1, 20178 yr Author Ok thanks johnnie--I'm following the wiki and crossing my fingers. Didn't change the array status at all--hope that was correct. Currently status: root@Deed:~# reiserfsck --rebuild-sb /dev/md9 reiserfsck 3.6.24 Will check superblock and rebuild it if needed Will put log info to 'stdout' Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes Did you use resizer(y/n)[n]: n rebuild-sb: wrong block count occured (854657433), fixed (488378624) rebuild-sb: wrong bitmap number occured (26083), fixed (14905) rebuild-sb: wrong free block count occured (791198636), zeroed Reiserfs super block in block 16 on 0x909 of format 3.6 with standard journal Count of blocks on the device: 488378624 Number of bitmaps: 14905 Blocksize: 4096 Free blocks (count of blocks - used [journal, bitmaps, data, reserved] blocks): 0 Root block: 130410427 Filesystem is clean Tree height: 5 Hash function used to sort names: "r5" Objectid map size 8, max 972 Journal parameters: Device [0x0] Magic [0x63a76705] Size 8193 blocks (including 1 for journal header) (first block 18) Max transaction length 1024 blocks Max batch size 900 blocks Max commit age 30 Blocks reserved by journal: 0 Fs state field: 0x1: some corruptions exist. sb_version: 2 inode generation number: 2232 UUID: a150194f-d4db-4f12-8220-a6300f0b8386 LABEL: Set flags in SB: ATTRIBUTES CLEAN Mount count: 205 Maximum mount count: 30 Last fsck run: Fri Nov 5 23:24:38 2010 Check interval in days: 180 Is this ok ? (y/n)[n]: y The fs may still be unconsistent. Run reiserfsck --check. root@Deed:~# reiserfsck --check Usage: reiserfsck [mode] [options] device Modes: --check consistency checking (default) --fix-fixable fix corruptions which can be fixed without --rebuild-tree --rebuild-sb super block checking and rebuilding if needed (may require --rebuild-tree afterwards) --rebuild-tree force fsck to rebuild filesystem from scratch (takes a long time) --clean-attributes clean garbage in reserved fields in StatDatas Options: -j | --journal device specify journal if relocated -B | --badblocks file file with list of all bad blocks on the fs -l | --logfile file make fsck to complain to specifed file -n | --nolog make fsck to not complain -z | --adjust-size fix file sizes to real size -q | --quiet no speed info -y | --yes no confirmations -f | --force force checking even if the file system is marked clean -V prints version and exits -a and -p some light-weight auto checks for bootup -r ignored Expert options: --no-journal-available do not open nor replay journal -S | --scan-whole-partition build tree of all blocks of the device root@Deed:~# reiserfsck --check /dev/md9 reiserfsck 3.6.24 Will read-only check consistency of the filesystem on /dev/md9 Will put log info to 'stdout' Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes ########### reiserfsck --check started at Tue Aug 1 14:18:50 2017 ########### Replaying journal: Done. Reiserfs journal '/dev/md9' in blocks [18..8211]: 0 transactions replayed EDIT: It's continuing to run--worried that it hung up there on 0 transactions replayed. Edited August 1, 20178 yr by talmania More info
August 1, 20178 yr Community Expert Wait, since it's running on the emulated disk it will be slower than normal, as long as there's disk activity it should be running.
August 1, 20178 yr Author Just now, johnnie.black said: Wait, since it's running on the emulated disk it will be slower than normal, as long as there's disk activity it should be running. It is now---I can see the counters incrementing 2 (of 19)/52 (of 92)/ 107 (of 170) etc...
August 1, 20178 yr Author Looking further ahead--when this process completes do I simply complete the remaining steps in the original directive johnnie?
August 1, 20178 yr Community Expert reiserfsck will probably still find errors, but since they should be fixable and the replacement disk is new, so you don't overwrite anything, might as well rebuild first then finish fixing the filesystem, specially if it needs --rebuild-tree, since that would take much longer on the emulated disk. Keep old disk9 intact for now, some data (or most of it with some luck) should still be salvageable if needed.

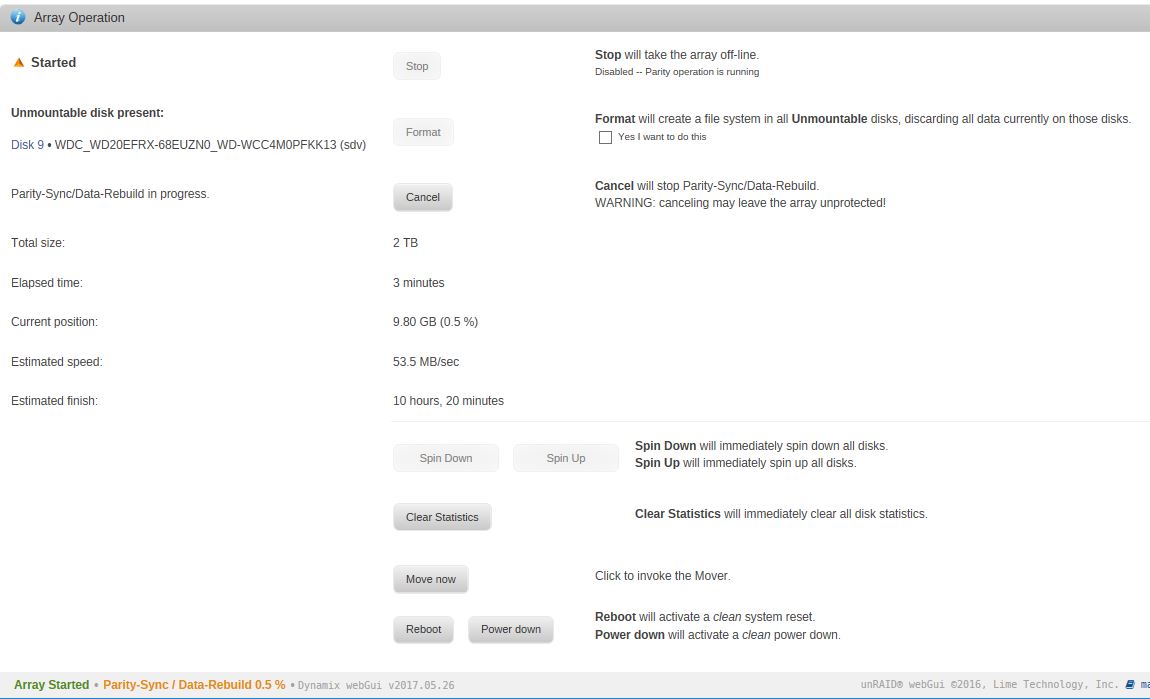

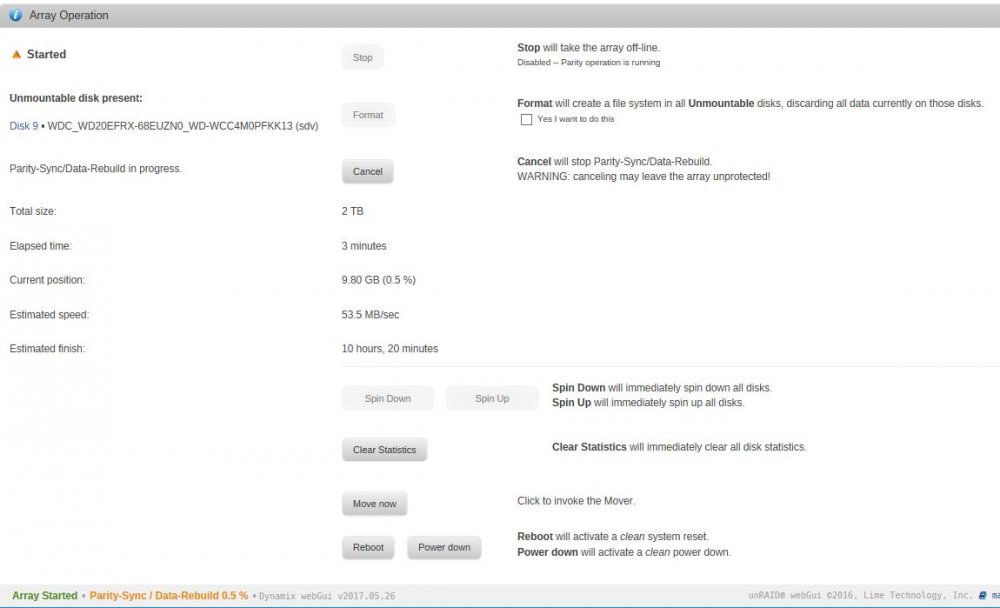

August 2, 20178 yr Author Evening update: came back home from the office and found the following in the summary of the log: Quote Replaying journal: Done. Reiserfs journal '/dev/md9' in blocks [18..8211]: 0 transactions replayed Zero bit found in on-disk bitmap after the last valid bit. Checking internal tree.. / 1 (of 19)/ 1 (of 93)/ 1 (of 87)block 8211: The number of items (6) is incorrect, should be (1) the problem in the internal node occured (8211), whol/ 36 (of 93)/142 (of 170)block 195496755: The level of the node (40014) is not correct, (1) expected the problem in the internal node occured/ 9 (of 19)/130 (of 130)/114 (of 115)bad_stat_data: The objectid (841) is marked free, but used by an object [834 841 0x0 SD (0)] finished Comparing bitmaps..vpf-10640: The on-disk and the correct bitmaps differs. Bad nodes were found, Semantic pass skipped 2 found corruptions can be fixed only when running with --rebuild-tree ########### reiserfsck finished at Tue Aug 1 16:08:26 2017 ########### root@Deed:~# root@Deed:~# Then I unmounted the array, assigned the new disk9 and brought the array online and now I see the following:
August 2, 20178 yr Author Should I be concerned that it states "unmountable"? It appears to be rebuilding but never been here before....thanks!
August 2, 20178 yr Community Expert I would wait until it finishes and then see what it says... (As I recall, it will say that until the disk has been rebuilt.) If it is unmounted, @johnnie.black will probably be around to give you further advise. (I think he is somewhere in the British Isles so it is the middle of the night there.)
August 2, 20178 yr Community Expert 3 hours ago, talmania said: Should I be concerned that it states "unmountable"? It appears to be rebuilding but never been here before....thanks! Wait until the rebuild finishes then run reiserfsck --rebuid-tree, that will take several hours but it should fix it.

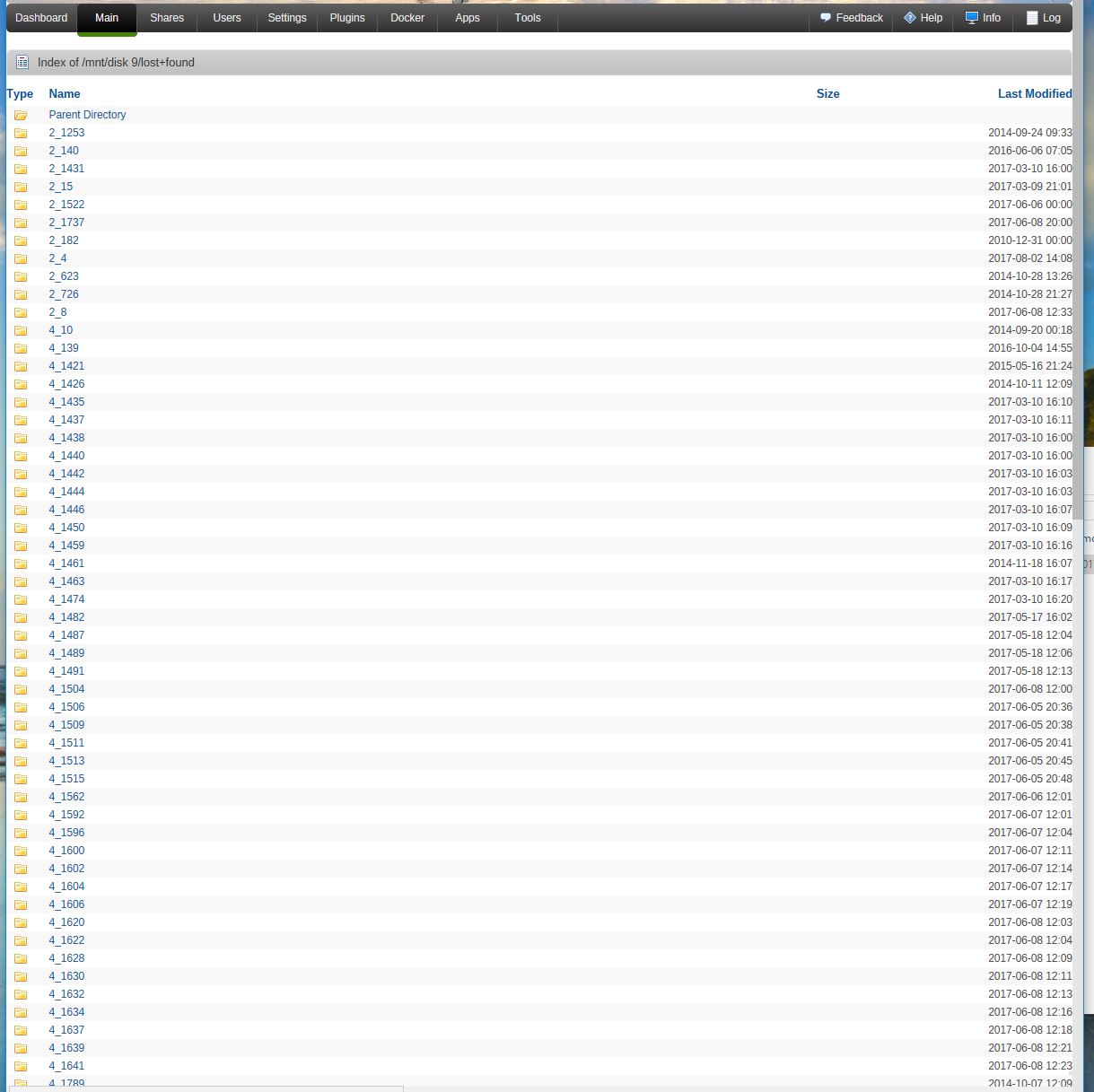

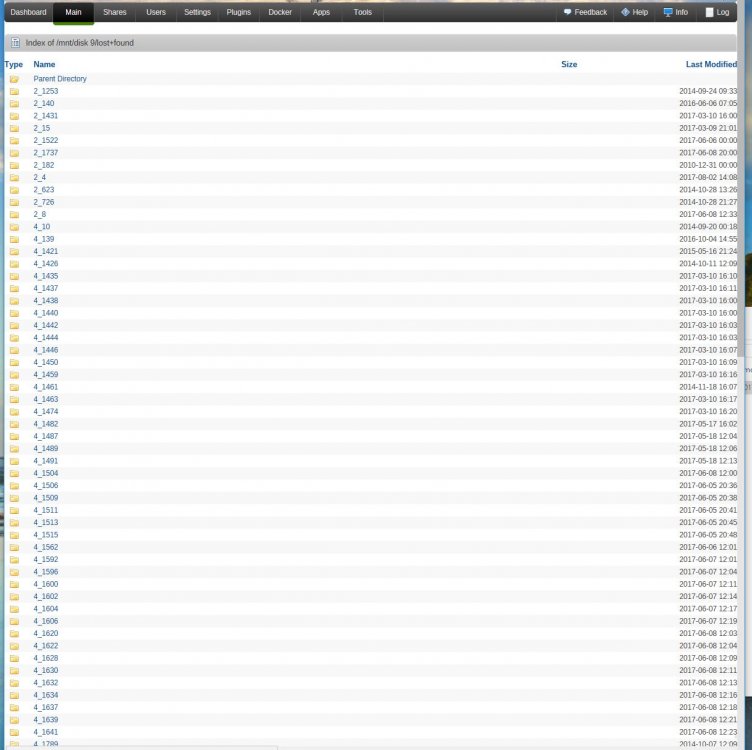

August 3, 20178 yr Author 17 hours ago, johnnie.black said: Wait until the rebuild finishes then run reiserfsck --rebuid-tree, that will take several hours but it should fix it. Ok I ran it and it completed....then had to stop the array and restart it. It allowed disk9 to be mounted and I can now see the disk share but nothing is there except "lost and found". Can't browse the share with windows but can under the gui. Tons of folders in there and files as well of the correctish sizes I presume. Assume I have to open them up to read them etc? They are named with simple numeric sequences--see attached picture. Attached is the output of the --rebuild-tree. rebuild-tree.txt
August 3, 20178 yr Author And I suck...was trying to access via disk9 and NOT the users share lost+found. Buried under those original directories are my ACTUAL directories and files! Tried a couple and they seem to work perfectly. I think we're done here...time to check and move!
August 3, 20178 yr 20 minutes ago, talmania said: I think we're done here...time to check and move! Are you familiar with the user share copy "bug"?
August 3, 20178 yr Author 3 minutes ago, jonathanm said: Are you familiar with the user share copy "bug"? Nope...sounds like I need to be!
August 3, 20178 yr 2 minutes ago, talmania said: Nope...sounds like I need to be! Yep. I'd advise researching a little, but in a nutshell, don't copy between /mnt/diskX locations and /mnt/user locations or vice-versa. Use either disk only or user only locations in copy operations, don't mix them. I only piped up because you mentioned accessing disk9 directly. If you want to copy using disk9 as a source, make sure your destination is also disk9 but another folder, or another diskX, not a user share. It doesn't effect all operations, but until you understand why it happens and what exactly causes your files to disappear if you do it wrong, just don't do it.
August 3, 20178 yr Author Just now, jonathanm said: Yep. I'd advise researching a little, but in a nutshell, don't copy between /mnt/diskX locations and /mnt/user locations or vice-versa. Use either disk only or user only locations in copy operations, don't mix them. I only piped up because you mentioned accessing disk9 directly. If you want to copy using disk9 as a source, make sure your destination is also disk9 but another folder, or another diskX, not a user share. It doesn't effect all operations, but until you understand why it happens and what exactly causes your files to disappear if you do it wrong, just don't do it. Actually windows gave me a permissions error and when I started poking around I realized I was under disk9/lost+found and not \\tower\lost+found. I'm assuming all I have to do is move the files from \\tower\lost+found to their respective \\tower\sharename and I'll be set no? Or is a more complex move needed? Usershare to usershare if I'm not mistaken...
August 3, 20178 yr 3 minutes ago, talmania said: all I have to do is move the files from \\tower\lost+found to their respective \\tower\sharename and I'll be set Yep.
