August 2, 20178 yr Hi Yesterday I had the issue of device disabled/ contents emulated in one of the drives. Assuming that it might be because of a bad power splitter, I was trying to solve this issue and my parity drive died. It is not getting detected in BIOS as well. The disabled drive though passed the smart short self-test without errors(after changing the sata power splitter). Attached is the diagnostics logs. Can anyone guide me to recover the array tower-diagnostics-20170803-0151.zip
August 2, 20178 yr Community Expert If parity is dead your best option is to do a new config and reassign all data disks and hope that the disabled disk is OK, there are some Runtime_Bad_Blocks, so it's seen better days.
August 2, 20178 yr Author Thanks for the quick response. Will try hoping the disabled disk is fine. Should I replace the parity and do a new config or have unprotected array and then add the parity disk
August 2, 20178 yr Community Expert If you have a new disk to use as parity might as well use it now.

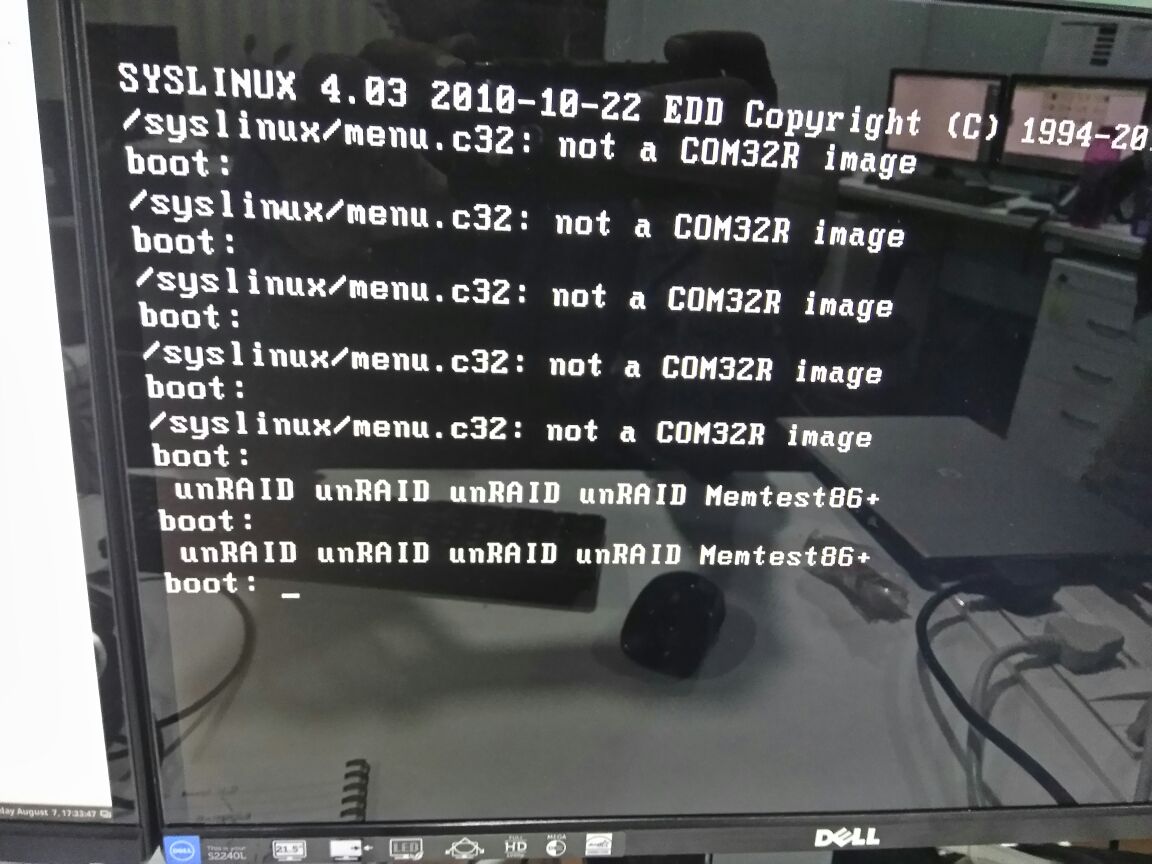

August 7, 20178 yr Author I have been receiving the "menu.c32: not a COM32R image" error for quite some days. Not sure which upgrade broke it. I type unRAID everytime and then it boots up normally. Now since I have fixed other issues(Power Supply was the main cause of it and replaced it with Seasonic 750W) need this to be completely headless. Can someone let me know how I should fix the error?
August 7, 20178 yr 3 minutes ago, sabarirjpm said: I have been receiving the "menu.c32: not a COM32R image" error for quite some days. Where are you seeing this? Where are you typing "unRAID" to fix this? (Post a cellphone pic if necessary). But it sounds like you've corrupted (or the P/S did) the flash drive. Download the zip file from Limetech's website, extract the files from it back onto the flash drive, and re-run the appropriate make_bootable script.
