Greygoose Posted September 1, 2017 Share Posted September 1, 2017 (edited) Could this be a bad cable or do you generally think the drive is dying ? Edited September 1, 2017 by Greygoose Quote Link to comment
JorgeB Posted September 1, 2017 Share Posted September 1, 2017 Can't be cable, if they are real, disk needs to be replaced, sometimes WD disks have false positives, extended SMART test will confirm. Quote Link to comment

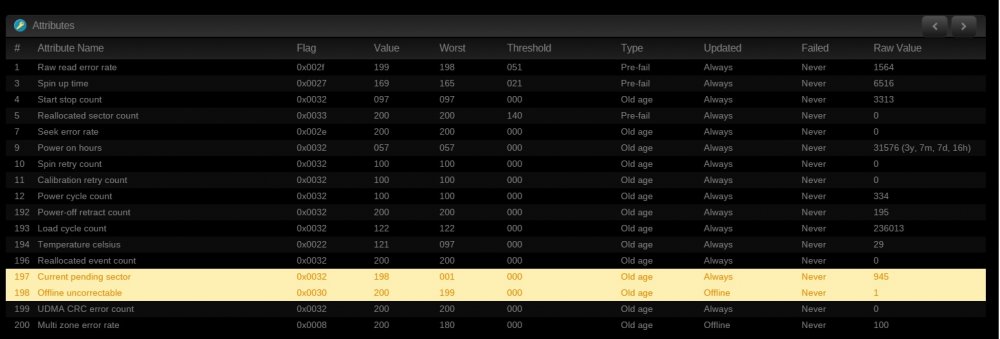

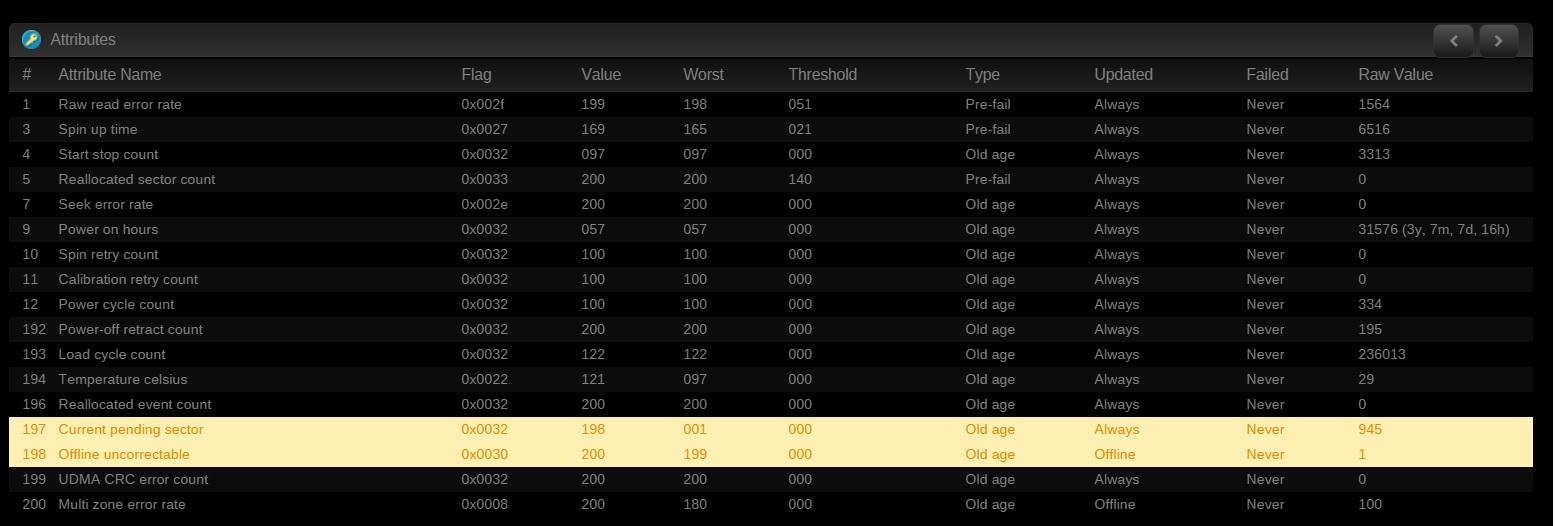

Greygoose Posted September 3, 2017 Author Share Posted September 3, 2017 Johnnie, This is my extedned report smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.9.30-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Caviar Green (AF) Device Model: WDC WD20EARS-00MVWB0 Serial Number: WD-WMAZA0657078 LU WWN Device Id: 5 0014ee 6ab13fdca Firmware Version: 51.0AB51 User Capacity: 2,000,398,934,016 bytes [2.00 TB] Sector Size: 512 bytes logical/physical Device is: In smartctl database [for details use: -P show] ATA Version is: ATA8-ACS (minor revision not indicated) SATA Version is: SATA 2.6, 3.0 Gb/s Local Time is: Sun Sep 3 07:49:54 2017 BST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 121) The previous self-test completed having the read element of the test failed. Total time to complete Offline data collection: (39300) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 379) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x3035) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 199 198 051 Pre-fail Always - 1564 3 Spin_Up_Time 0x0027 169 165 021 Pre-fail Always - 6516 4 Start_Stop_Count 0x0032 097 097 000 Old_age Always - 3313 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 057 057 000 Old_age Always - 31613 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 100 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 334 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 195 193 Load_Cycle_Count 0x0032 122 122 000 Old_age Always - 236170 194 Temperature_Celsius 0x0022 123 097 000 Old_age Always - 27 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 198 001 000 Old_age Always - 945 198 Offline_Uncorrectable 0x0030 200 199 000 Old_age Offline - 5 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 180 000 Old_age Offline - 78 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed: read failure 90% 31613 378173785 # 2 Extended offline Completed: read failure 90% 31599 378173788 SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. Quote Link to comment
JorgeB Posted September 3, 2017 Share Posted September 3, 2017 Just now, Greygoose said: # 1 Extended offline Completed: read failure 90% 31613 378173785 Replace. Quote Link to comment
