September 3, 20178 yr hi guys, i have the same issue, not sure if the above solved the problem, but here are my specs unraid 6.3.2 free total used free shared buff/cache available Mem: 8071464 5950368 1177376 504988 943720 1111740 Swap: 0 0 0 dmidecode -t 17 # dmidecode 3.0 Getting SMBIOS data from sysfs. SMBIOS 2.7 present. Handle 0x0012, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: 64 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: A1_DIMM0 Bank Locator: A1_BANK0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 1333 MHz Manufacturer: Undefined Serial Number: 00000000 Asset Tag: A1_AssetTagNum0 Part Number: F3-1866C10-8GSR Rank: 2 Configured Clock Speed: 667 MHz Handle 0x0014, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: Unknown Data Width: 64 bits Size: No Module Installed Form Factor: DIMM Set: None Locator: A1_DIMM1 Bank Locator: A1_BANK1 Type: Unknown Type Detail: Synchronous Speed: Unknown Manufacturer: A1_Manufacturer1 Serial Number: A1_SerNum1 Asset Tag: A1_AssetTagNum1 Part Number: Array1_PartNumber1 Rank: Unknown Configured Clock Speed: Unknown Handle 0x0016, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: 64 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: A1_DIMM2 Bank Locator: A1_BANK2 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 1333 MHz Manufacturer: Undefined Serial Number: 00000000 Asset Tag: A1_AssetTagNum2 Part Number: F3-1866C10-8GSR Rank: 2 Configured Clock Speed: 667 MHz Handle 0x0018, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: 64 bits Data Width: 64 bits Size: 4096 MB Form Factor: DIMM Set: None Locator: A1_DIMM3 Bank Locator: A1_BANK3 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 1333 MHz Manufacturer: Undefined Serial Number: 00000000 Asset Tag: A1_AssetTagNum3 Part Number: F3-14900CL9-4GBXL Rank: 2 Configured Clock Speed: 667 MHz

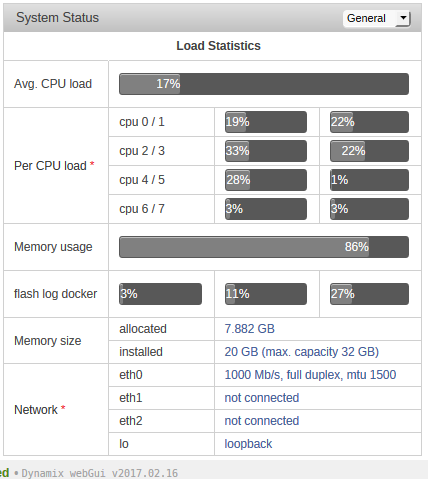

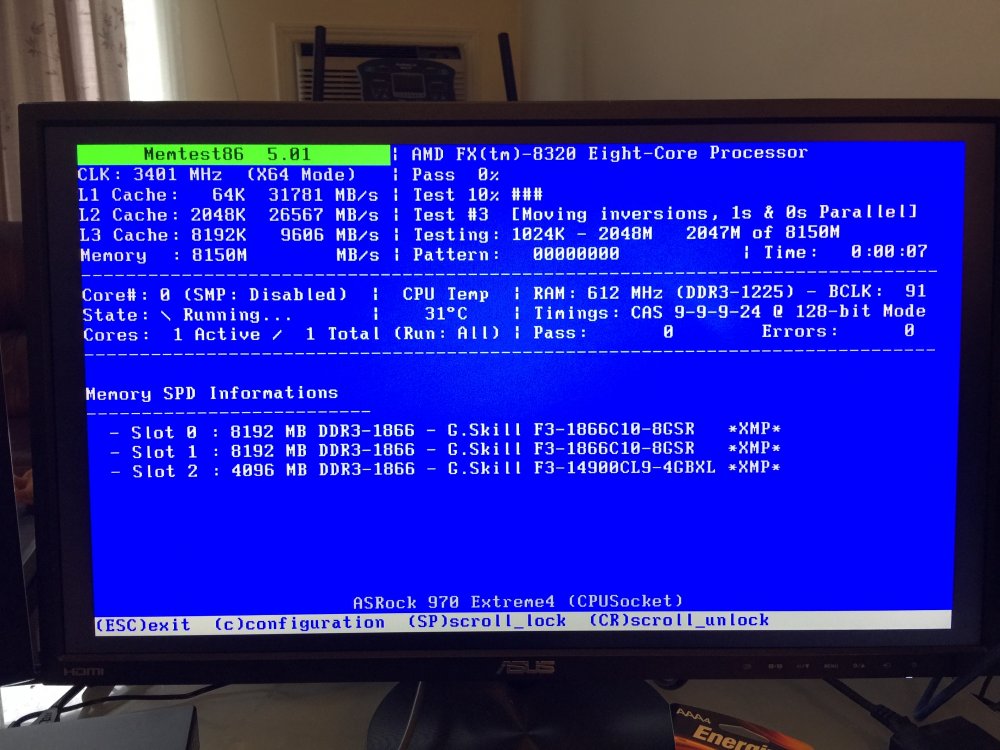

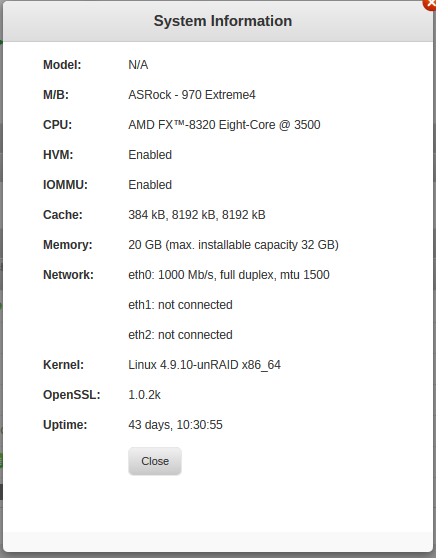

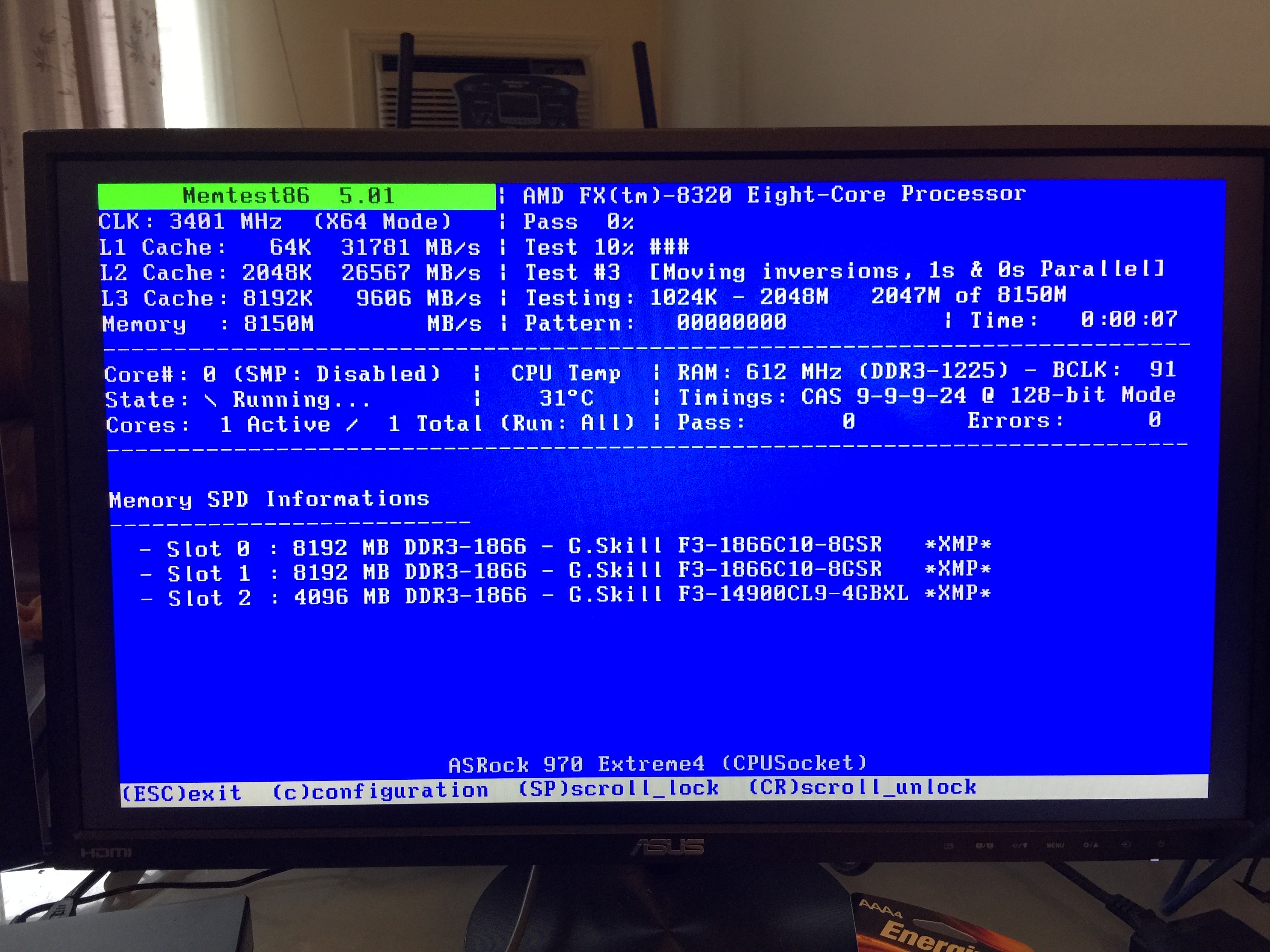

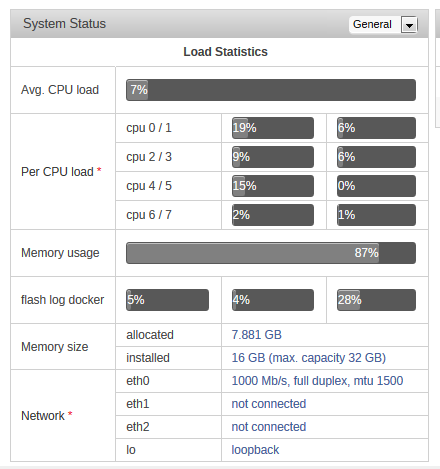

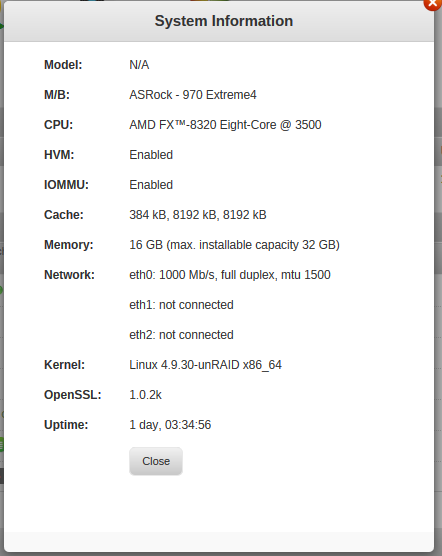

September 4, 20178 yr Author i did some testing moving my stick around. i had orginally installed 2 x 8GB + 1 x 4GB sticks of ram. i removed the 4GB of ram and just left the 2 x 8GB that are the same brand of memory. they are both in the blue slots as for some reason one of the two white slots isnt reading one of the sticks. i also updated unraid to 6.3.5 to make sure it's at it's latest version. also updated the plugin dynamix webgui to 20170526 version. still having issues, below are my spec and updated screen shots showing my issue, as well as the free and dmidecode -t 17 also i'm attaching the memtest start up so you can see that the motherboard is well recognizing the 2 sticks. note, i dont have any onboard video on my bios either. hope someone can help, i'm going crazy trying to find answers... i see a lot of questions about this, but not a solid answer. is this an issue with unraid?? root@Tower:~# dmidecode -t 17 # dmidecode 3.0 Getting SMBIOS data from sysfs. SMBIOS 2.7 present. Handle 0x0012, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: 64 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: A1_DIMM0 Bank Locator: A1_BANK0 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 1333 MHz Manufacturer: Undefined Serial Number: 00000000 Asset Tag: A1_AssetTagNum0 Part Number: F3-1866C10-8GSR Rank: 2 Configured Clock Speed: 667 MHz Handle 0x0014, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: Unknown Data Width: 64 bits Size: No Module Installed Form Factor: DIMM Set: None Locator: A1_DIMM1 Bank Locator: A1_BANK1 Type: Unknown Type Detail: Synchronous Speed: Unknown Manufacturer: A1_Manufacturer1 Serial Number: A1_SerNum1 Asset Tag: A1_AssetTagNum1 Part Number: Array1_PartNumber1 Rank: Unknown Configured Clock Speed: Unknown Handle 0x0016, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: 64 bits Data Width: 64 bits Size: 8192 MB Form Factor: DIMM Set: None Locator: A1_DIMM2 Bank Locator: A1_BANK2 Type: DDR3 Type Detail: Synchronous Unbuffered (Unregistered) Speed: 1333 MHz Manufacturer: Undefined Serial Number: 00000000 Asset Tag: A1_AssetTagNum2 Part Number: F3-1866C10-8GSR Rank: 2 Configured Clock Speed: 667 MHz Handle 0x0018, DMI type 17, 34 bytes Memory Device Array Handle: 0x0010 Error Information Handle: Not Provided Total Width: Unknown Data Width: 64 bits Size: No Module Installed Form Factor: DIMM Set: None Locator: A1_DIMM3 Bank Locator: A1_BANK3 Type: Unknown Type Detail: Synchronous Speed: Unknown Manufacturer: A1_Manufacturer3 Serial Number: A1_SerNum3 Asset Tag: A1_AssetTagNum3 Part Number: Array1_PartNumber3 Rank: Unknown Configured Clock Speed: Unknown
