I have a Supermicro X10sra-F with a Xeon e5-2620v3 cpu.

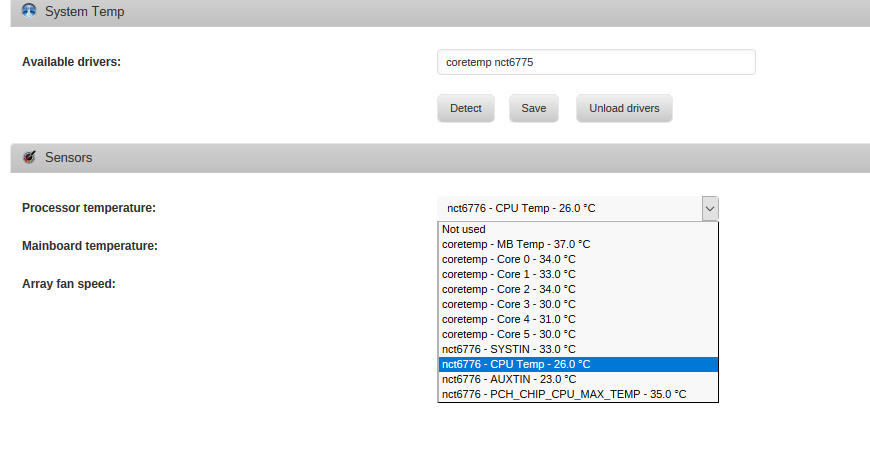

Dynamix System Temp shows a nice cool CPU temp of 26degC.

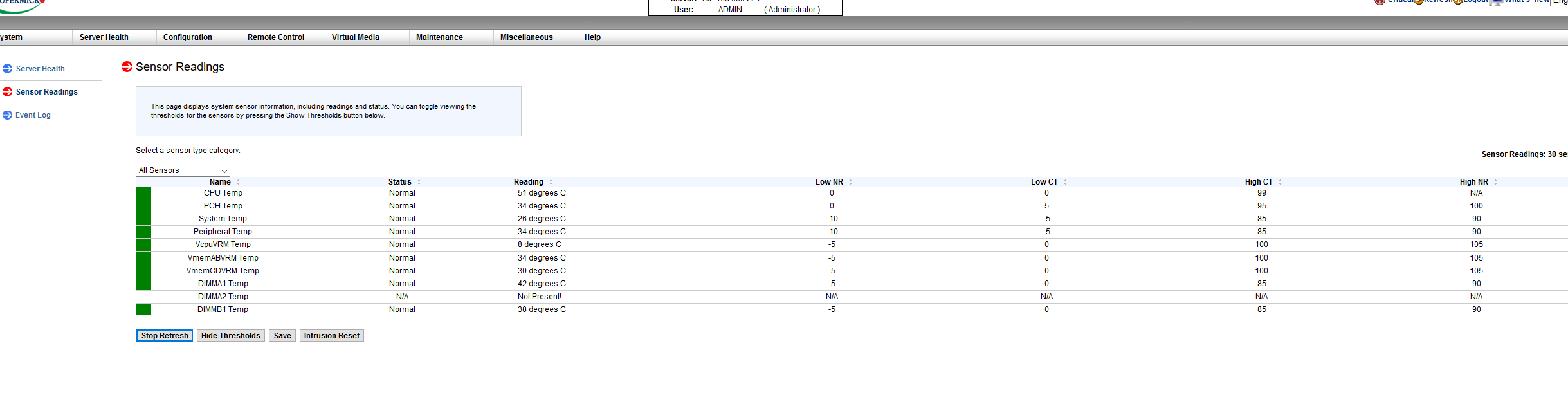

IPMI plugin and also the IPMI web interface shows a temp of 51 deg.



Which one should I believe. The cpu heatsink + fan is cool to the touch and the thernal paste was done according to the instructions and has spread well.



Cheers













Edited October 9, 20178 yr by al_uk

Anyone any ideas? Cheers :-)

having the same problem here! somebody knows what could be the problem?

Supermicro boards have a long history of not having a correct scaling lm-sensors and need to be offset.

I had this in the past on other linux distribution, but this probably would be the case with your machine.

You can correct this by setting the correct offset values in the sensors configuration.



Guide for this u can find here, not for Unraid but should do the same with sensors 3.4 on Unraid:

https://wiki.archlinux.org/index.php/lm_sensors#Example_1._Adjusting_temperature_offsets

(If it does not correct it directly after placing the file, it could be that u need to run sensors -s.)

Some configs u can find here: https://github.com/groeck/lm-sensors/tree/master/configs/SuperMicro

Mainly for the older boards, u could try supermicro support as well to get a config solution.



Some boards don't report to well with out superdoctor being installed on the system.

But i would try the offset route first, and see if that corrects the issue your having.



Hi.



Did you ever figure this out?



I have exactly the same problem with my X10SRA-F with a Xeon e5-2650L v3 cpu. I RMA'd the board thinking it was faulty but the new one had exactly the same readings. When I check lm-sensors in the OS the CPU looks normal and about 30 degrees C whereas IPMI is showing 60 degrees C.



Many thanks
