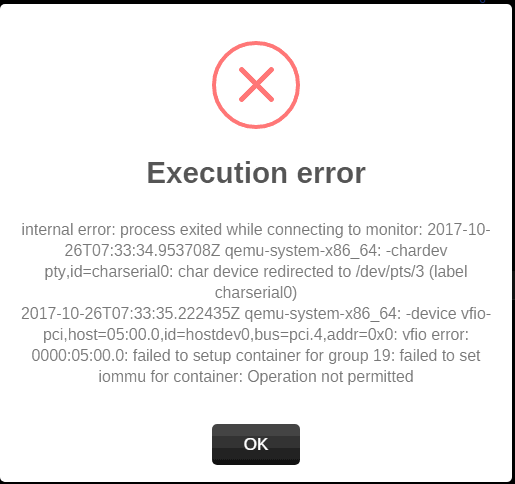

Eriic91 Posted October 26, 2017 Share Posted October 26, 2017 I saw a video by spaceinvader on Youtube where he passed through a nic to a virtual machine, I followed his steps and everything was moving along fine until I pressed start on the VM. I get the following error message: Anyone know what might cause this ? Quote Link to comment
BobPhoenix Posted October 26, 2017 Share Posted October 26, 2017 Post your diagnostics. Looking at the devices in the same IOMMU group may tell you what is wrong too. Quote Link to comment
Eriic91 Posted October 26, 2017 Author Share Posted October 26, 2017 tower-diagnostics-20171026-2358.zip There are no other devices there as far as I can see. IOMMU group 0 [8086:3406] 00:00.0 Host bridge: Intel Corporation 5520 I/O Hub to ESI Port (rev 13) IOMMU group 1 [8086:3408] 00:01.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 1 (rev 13) IOMMU group 2 [8086:3409] 00:02.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 2 (rev 13) IOMMU group 3 [8086:340a] 00:03.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 3 (rev 13) IOMMU group 4 [8086:340b] 00:04.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 4 (rev 13) IOMMU group 5 [8086:340c] 00:05.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 5 (rev 13) IOMMU group 6 [8086:340d] 00:06.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 6 (rev 13) IOMMU group 7 [8086:340e] 00:07.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 7 (rev 13) IOMMU group 8 [8086:340f] 00:08.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 8 (rev 13) IOMMU group 9 [8086:3410] 00:09.0 PCI bridge: Intel Corporation 7500/5520/5500/X58 I/O Hub PCI Express Root Port 9 (rev 13) IOMMU group 10 [8086:3411] 00:0a.0 PCI bridge: Intel Corporation 7500/5520/5500/X58 I/O Hub PCI Express Root Port 10 (rev 13) IOMMU group 11 [8086:343a] 00:0d.0 Host bridge: Intel Corporation Device 343a (rev 13) [8086:343b] 00:0d.1 Host bridge: Intel Corporation Device 343b (rev 13) [8086:343c] 00:0d.2 Host bridge: Intel Corporation Device 343c (rev 13) [8086:343d] 00:0d.3 Host bridge: Intel Corporation Device 343d (rev 13) [8086:3418] 00:0d.4 Host bridge: Intel Corporation 7500/5520/5500/X58 Physical Layer Port 0 (rev 13) [8086:3419] 00:0d.5 Host bridge: Intel Corporation 7500/5520/5500 Physical Layer Port 1 (rev 13) [8086:341a] 00:0d.6 Host bridge: Intel Corporation Device 341a (rev 13) IOMMU group 12 [8086:341c] 00:0e.0 Host bridge: Intel Corporation Device 341c (rev 13) [8086:341d] 00:0e.1 Host bridge: Intel Corporation Device 341d (rev 13) [8086:341e] 00:0e.2 Host bridge: Intel Corporation Device 341e (rev 13) [8086:341f] 00:0e.3 Host bridge: Intel Corporation Device 341f (rev 13) [8086:3439] 00:0e.4 Host bridge: Intel Corporation Device 3439 (rev 13) IOMMU group 13 [8086:342e] 00:14.0 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers (rev 13) [8086:3422] 00:14.1 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers (rev 13) [8086:3423] 00:14.2 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers (rev 13) IOMMU group 14 [8086:3a40] 00:1c.0 PCI bridge: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 1 IOMMU group 15 [8086:3a34] 00:1d.0 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a35] 00:1d.1 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a36] 00:1d.2 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a39] 00:1d.3 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a3a] 00:1d.7 USB controller: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 IOMMU group 16 [8086:244e] 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 90) [1002:515e] 01:03.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] ES1000 (rev 02) [0e11:b203] 01:04.0 System peripheral: Compaq Computer Corporation Integrated Lights Out Controller (rev 03) [0e11:b204] 01:04.2 System peripheral: Compaq Computer Corporation Integrated Lights Out Processor (rev 03) [103c:3300] 01:04.4 USB controller: Hewlett-Packard Company Integrated Lights-Out Standard Virtual USB Controller [103c:3302] 01:04.6 IPMI SMIC interface: Hewlett-Packard Company Integrated Lights-Out Standard KCS Interface IOMMU group 17 [8086:3a18] 00:1f.0 ISA bridge: Intel Corporation 82801JIB (ICH10) LPC Interface Controller [8086:3a20] 00:1f.2 IDE interface: Intel Corporation 82801JI (ICH10 Family) 4 port SATA IDE Controller #1 [8086:3a26] 00:1f.5 IDE interface: Intel Corporation 82801JI (ICH10 Family) 2 port SATA IDE Controller #2 IOMMU group 18 [103c:323a] 04:00.0 RAID bus controller: Hewlett-Packard Company Smart Array G6 controllers (rev 01) IOMMU group 19 [8086:105e] 05:00.0 Ethernet controller: Intel Corporation 82571EB Gigabit Ethernet Controller (rev 06) IOMMU group 20 [8086:105e] 05:00.1 Ethernet controller: Intel Corporation 82571EB Gigabit Ethernet Controller (rev 06) IOMMU group 21 [9005:0243] 0b:00.0 RAID bus controller: Adaptec Serial ATA II RAID 1430SA (rev 02) IOMMU group 22 [1166:0103] 02:00.0 PCI bridge: Broadcom EPB PCI-Express to PCI-X Bridge (rev b5) [14e4:1678] 03:04.0 Ethernet controller: Broadcom Limited NetXtreme BCM5715 Gigabit Ethernet (rev a3) [14e4:1678] 03:04.1 Ethernet controller: Broadcom Limited NetXtreme BCM5715 Gigabit Ethernet (rev a3) IOMMU group 23 [8086:2c70] 3e:00.0 Host bridge: Intel Corporation Xeon 5600 Series QuickPath Architecture Generic Non-core Registers (rev 02) [8086:2d81] 3e:00.1 Host bridge: Intel Corporation Xeon 5600 Series QuickPath Architecture System Address Decoder (rev 02) IOMMU group 24 [8086:2d90] 3e:02.0 Host bridge: Intel Corporation Xeon 5600 Series QPI Link 0 (rev 02) [8086:2d91] 3e:02.1 Host bridge: Intel Corporation Xeon 5600 Series QPI Physical 0 (rev 02) [8086:2d92] 3e:02.2 Host bridge: Intel Corporation Xeon 5600 Series Mirror Port Link 0 (rev 02) [8086:2d93] 3e:02.3 Host bridge: Intel Corporation Xeon 5600 Series Mirror Port Link 1 (rev 02) [8086:2d94] 3e:02.4 Host bridge: Intel Corporation Xeon 5600 Series QPI Link 1 (rev 02) [8086:2d95] 3e:02.5 Host bridge: Intel Corporation Xeon 5600 Series QPI Physical 1 (rev 02) IOMMU group 25 [8086:2d98] 3e:03.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Registers (rev 02) [8086:2d99] 3e:03.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Target Address Decoder (rev 02) [8086:2d9a] 3e:03.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller RAS Registers (rev 02) [8086:2d9c] 3e:03.4 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Test Registers (rev 02) IOMMU group 26 [8086:2da0] 3e:04.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Control (rev 02) [8086:2da1] 3e:04.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Address (rev 02) [8086:2da2] 3e:04.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Rank (rev 02) [8086:2da3] 3e:04.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Thermal Control (rev 02) IOMMU group 27 [8086:2da8] 3e:05.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Control (rev 02) [8086:2da9] 3e:05.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Address (rev 02) [8086:2daa] 3e:05.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Rank (rev 02) [8086:2dab] 3e:05.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Thermal Control (rev 02) IOMMU group 28 [8086:2db0] 3e:06.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Control (rev 02) [8086:2db1] 3e:06.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Address (rev 02) [8086:2db2] 3e:06.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Rank (rev 02) [8086:2db3] 3e:06.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Thermal Control (rev 02) IOMMU group 29 [8086:2c70] 3f:00.0 Host bridge: Intel Corporation Xeon 5600 Series QuickPath Architecture Generic Non-core Registers (rev 02) [8086:2d81] 3f:00.1 Host bridge: Intel Corporation Xeon 5600 Series QuickPath Architecture System Address Decoder (rev 02) IOMMU group 30 [8086:2d90] 3f:02.0 Host bridge: Intel Corporation Xeon 5600 Series QPI Link 0 (rev 02) [8086:2d91] 3f:02.1 Host bridge: Intel Corporation Xeon 5600 Series QPI Physical 0 (rev 02) [8086:2d92] 3f:02.2 Host bridge: Intel Corporation Xeon 5600 Series Mirror Port Link 0 (rev 02) [8086:2d93] 3f:02.3 Host bridge: Intel Corporation Xeon 5600 Series Mirror Port Link 1 (rev 02) [8086:2d94] 3f:02.4 Host bridge: Intel Corporation Xeon 5600 Series QPI Link 1 (rev 02) [8086:2d95] 3f:02.5 Host bridge: Intel Corporation Xeon 5600 Series QPI Physical 1 (rev 02) IOMMU group 31 [8086:2d98] 3f:03.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Registers (rev 02) [8086:2d99] 3f:03.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Target Address Decoder (rev 02) [8086:2d9a] 3f:03.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller RAS Registers (rev 02) [8086:2d9c] 3f:03.4 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Test Registers (rev 02) IOMMU group 32 [8086:2da0] 3f:04.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Control (rev 02) [8086:2da1] 3f:04.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Address (rev 02) [8086:2da2] 3f:04.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Rank (rev 02) [8086:2da3] 3f:04.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 0 Thermal Control (rev 02) IOMMU group 33 [8086:2da8] 3f:05.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Control (rev 02) [8086:2da9] 3f:05.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Address (rev 02) [8086:2daa] 3f:05.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Rank (rev 02) [8086:2dab] 3f:05.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 1 Thermal Control (rev 02) IOMMU group 34 [8086:2db0] 3f:06.0 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Control (rev 02) [8086:2db1] 3f:06.1 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Address (rev 02) [8086:2db2] 3f:06.2 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Rank (rev 02) [8086:2db3] 3f:06.3 Host bridge: Intel Corporation Xeon 5600 Series Integrated Memory Controller Channel 2 Thermal Control (rev 02) Quote Link to comment
BobPhoenix Posted October 27, 2017 Share Posted October 27, 2017 (edited) Looks like you have 4 nic connections: 03:04.0, 03:4.1, 05:00.0 & 05:00.1 03:04.0 & 03:04.0 and 02:00.0 are in the same IOMMU group: 22 05:00.0 is in IOMMU group 19 05:00.1 is in IOMMU group 20 So how sure are you that you are trying to pass through 05:00.0 or 05:00.1? In otherwords make sure you are NOT passing through the "Broadcom Limited NetXtreme" nics. If you are passing through those you would have to pass everything in IOMMU group 22 and 02:00.0 is a bridge which has never worked for me. Sorry not really sure what I'm looking at in the logs for your VMs to know what nic you are passing through or if that info is listed. Opps I guess your error message confirms your passthing through one of the Intel nics. So maybe someone else can tell what the problem is from the diagnostics because I'm lost now. Edited October 27, 2017 by BobPhoenix Quote Link to comment
Eriic91 Posted October 27, 2017 Author Share Posted October 27, 2017 Broadcom Limited NetXtreme are the ones on the motherboard, I am trying to passthrough the Intel nics, Quote Link to comment
