[Plugin] CA Appdata Backup / Restore v2

[sdcp73]

5 hours ago, ConnectivIT said:

This is the exact text I have in the "Excluded folders" setting (comma delimited)



/mnt/user/appdata/plex/Library/Application Support/Plex Media Server/Metadata,/mnt/user/appdata/plex/Library/Application Support/Plex Media Server/Cache,/mnt/user/appdata/plex/Library/Application Support/Plex Media Server/Media



Note that this was typed in to the field, I didn't use the Excluded Folder Browser.

Thank you. It still won't let me type a space. It will let me paste the path in with spaces though.

[DigitalDivide]

I guess this is the right place to ask this.  I backed up my cache drive, appdata, due to a bad drive.  I've replaced the drive and started the array.  D I just noow go to Restore and do a restore?  Then reinstall my dockers one by one?  I'm a little unclear on the step by step process.



Any guidance is appreciated

[Squid]

12 minutes ago, DigitalDivide said:

Then reinstall my dockers one by one?

Apps - Previous Apps.  Check off everything you want and hit the install button

[DigitalDivide]

Ok, thanks...here goes nothing...

[dubbly]

I have noticed what I believe is a bug.



 I started out with compression selected.  However, I have decided that I would rather have uncompress backups.  Switching to “no” for compression and saving the setting hasn’t changed anything with new daily backups still compressed.  Suggestions?

[Squid]

What's the rsync command it's using? (It's in the syslog)

[loz678]

in the "Restore" tab, how do I change the Source Directory field? I've tried changing it in the "Backup / Settings" tab but it appears to make no difference. What am I doing wrong?

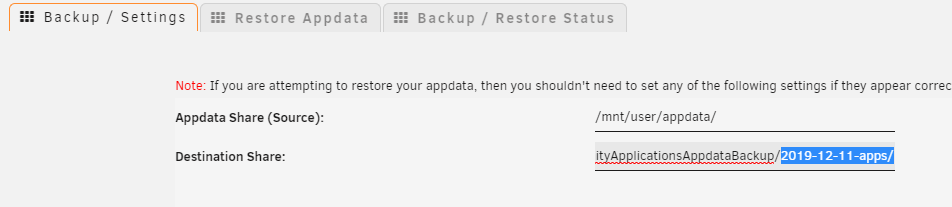

Here I've selected a directory called "2019-12-11-apps"

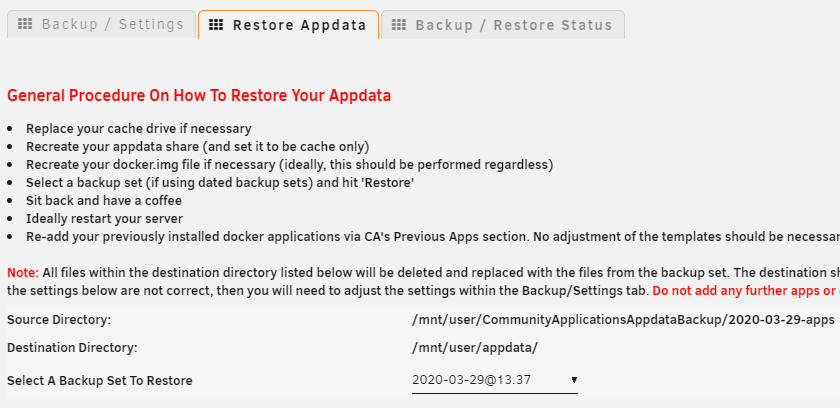

yet under restore the source is showing a different directory

[Squid]

The setting you set up according to a backup.   The restore automatically flips stuff around

[loz678]

16 minutes ago, Squid said:

The setting you set up according to a backup.   The restore automatically flips stuff around

as per the screenshots, i've changed the "Destination share" field under backup and the change isn't reflected in the restore tab. Maybe I'm misunderstanding the UI somehow, how exactly is it supposed to be used?

[Squid]

Reload the page.



You set up everything according to how you want to backup.  If/when you need to restore, you simply go to the restore tab and don't change anything on the Backup Settings page.

[preemz]

Hello, im working on migrating my server from using V1 to V2 of the CA Appdata backup/restore, and after installing the new version the setting tab will not load and i cannot enable the auto backup, also i cant find V1 in the App plugin to continue running my daily backup.. In a bit of pickle. When I click on ca.back2 in the plugins tab it redirects me to the Settings tab but never loads and it always just a black screen. Also i cant find it under settings if i try to navigate there on my own not from the plugins tab.

[Squid]

Yeah, I have no real good clue as to what happens if both are installed simultaneously.  I'd do plugins, remove v1  then reboot and go from there

[preemz]

I did remove V1 first before installing V2, are you recommending that a reboot might help? I can try that this evening, but my unraid box is the center of my network(virtualized PFsense) and everything so I have to wait until i'm no longer working

[Energen]

On 4/20/2020 at 10:02 AM, dubbly said:

I have noticed what I believe is a bug.



 I started out with compression selected.  However, I have decided that I would rather have uncompress backups.  Switching to “no” for compression and saving the setting hasn’t changed anything with new daily backups still compressed.  Suggestions?



On 4/20/2020 at 10:34 AM, Squid said:

What's the rsync command it's using? (It's in the syslog)

I just tried this as well, while just setting up some new options and exclusions..



With compression OFF, the command is

Using command: cd '/mnt/user/appdata/' && /usr/bin/tar -cvaf '/mnt/user/appdata_backup/[email protected]/CA_backup.tar'

With compression ON, the command is

Using command: cd '/mnt/user/appdata/' && /usr/bin/tar -cvaf '/mnt/user/appdata_backup/[email protected]/CA_backup.tar.gz'



So the only difference there is the file extension, but the resulting file size is different.  Uncompressed, 720MB, Compressed, 200MB.



I'm thinking what dubbly meant is that he wants no 'archive' file, but that's probably not the best idea.  Before I excluded Plex/radarr/sonarr image related stuff my backup archive had close to a million files.  You do not want to back up files like that outside of an archive.









There's one small thing to change though, here's the log for usb backup:

Apr 28 22:40:22 UNRAID CA Backup/Restore: Backing up USB Flash drive config folder to

in backup.php change line 127



From:  logger("Backing up USB Flash drive config folder to $usbDestination");  backupLog("Backing up USB Flash Drive");

To:     logger("Backing up USB Flash drive config folder to {$backupOptions['usbDestination']}");  backupLog("Backing up USB Flash Drive");



I thought my usb backup was not working but it looks like it is working properly.

Edited April 29, 2020 by Energen

[T0a]

I would like to propose two feature requests. Let me describe the use cases in more detail. Feel free to ask additional questions about both use cases and let me know what you think.



Use case 1



As a user of the plugin,

I want to schedule the backup right after my server booted,

so my array disks can go back to sleep after the backup is completed



• I backup appdata from a cache drive to the array
• I start (WOL) and stop (via sleep) my server on different schedules (during the week, weekend), due to rather high energy costs in the EU. Thus, I cannot use the custom cron schedule as it only allows a single cron entry. Using the time presets is likewise not possible.
• I want to do the backup during the week in the afternoon (where my server starts) and at the weekend in the morning (where my server starts)
• Possible solutions:
  • (1) add schedule 'At startup of array' as an indicator of booted (similar to the user script plugin)
  • (2) allow multiple cron entries or multiple triggers in general



Use case 2

As a user of the plugin,

I want to run a custom script after the backup is done and before the docker containers are restarted,

so I can inject my custom offsite backup



• I perform custom offsite backups from my appdata folder via rclone and gdrive
• The backup is implemented via a custom user script
• The script stops the docker container with access to appdata folders and executes the rclone task
• The feature would allow me to use the docker start/stop mechanism of your plugin, so I can throw away my custom code
• The feature would allow me to schedule my other backup jobs in accordance with your plugin. Making the backup process more transparent.
  • Example:  The backup job of your plugin triggers when the server is booted (see first use case). It performs the backup of appdata as *.tar(.gz) and the flashdrive as folder to the array. Then the hook is executed, uploads the latest flashdrive backup from the array and the appdata folder from the cache drive to the cloud. Finally your plugin restarts the container.
• Possible solutions:
  • (1) add a hook script field similar to "Custom stop (start) script" that is executed after the backup is done and before the docker container are restarted





Is it possible to execute the CA backup plugin with its configuration from a user scripts? Then I would create two user scripts triggering the CA backup having different cron entries. I still would have to duplicate the scripts as the user scripts plugin is also not able to have multiple triggers. But, I would have a workaround. Edit: Found it!



/usr/local/emhttp/plugins/ca.backup2/scripts/backup.sh
/usr/local/emhttp/plugins/ca.backup2/scripts/backup.php # for a blocking call









Edited May 1, 2020 by T0a
formatting

[HNGamingUK]

Could someone explain how the "Update Applications On Restart?" setting works on this plugin?



If I have this set to yes what should I set in the "CA Auto Update Applications" settings?

[Squid]

It calls the update script to check for and install updates at the time the backup runs

[HNGamingUK]

11 minutes ago, Squid said:

It calls the update script to check for and install updates at the time the backup runs

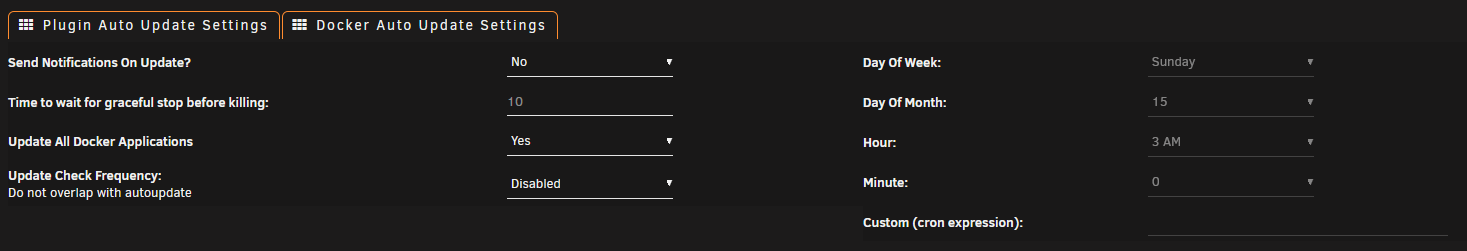

Okay brilliant so setting the following in Auto Update:

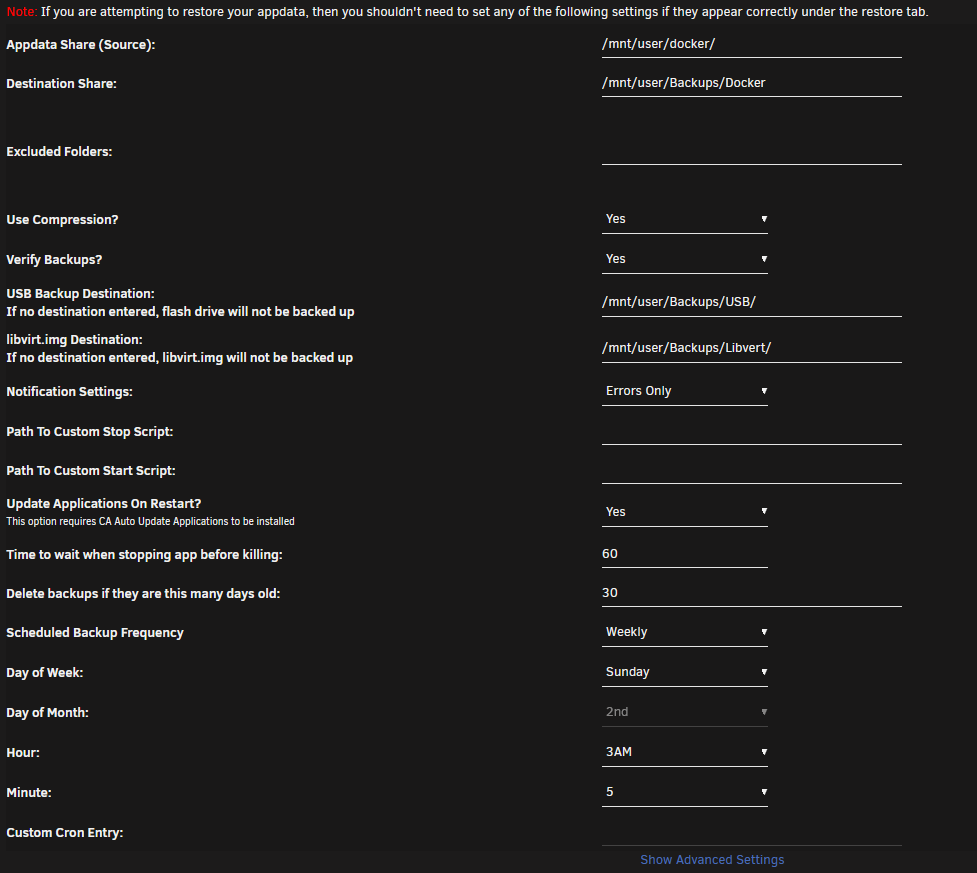

and then the following in backup:



Will backup every Sunday at 3:05 and once complete trigger an update.

[ramesivi]

Can someone help me with custom cron entry schedule? The first sunday of every month at 3AM, once a month.



Is this right cause I think this will just run it every Sunday which is too much...



 0 3 * 1-12 0



Thanks.

Edited May 20, 2020 by ramesivi

[Squid]

6 hours ago, ramesivi said:

Can someone help me with custom cron entry schedule? The first sunday of every month at 3AM, once a month.

0 3 * * 0 [[ $(date +%e) -le 7 ]] &&

You  may however get a line logged in the syslog every Sunday when it doesn't run.  Nothing can be done about that if it happens

[ramesivi]

6 hours ago, Squid said:

0 3 * * 0 [[ $(date +%e) -le 7 ]] &&

You  may however get a line logged in the syslog every Sunday when it doesn't run.  Nothing can be done about that if it happens

Thank you

[prytzen]

I had to rebuild my boot disk and replace my CACHE drive and am trying to get things back working again. thankfully i have a backup of my appdata with CA BAckup/Restore, but i guess i am not using it right. I have Restored the backup, but none of my docker containers show under the docker tab. what am i doing wrong or what am i missing?

[trurl]

3 hours ago, prytzen said:

I had to rebuild my boot disk and replace my CACHE drive and am trying to get things back working again. thankfully i have a backup of my appdata with CA BAckup/Restore, but i guess i am not using it right. I have Restored the backup, but none of my docker containers show under the docker tab. what am i doing wrong or what am i missing?

I have replied on your other thread.

[Justin B]

On 5/1/2020 at 7:39 AM, T0a said:

Use case 2

As a user of the plugin,

I want to run a custom script after the backup is done and before the docker containers are restarted,

so I can inject my custom offsite backup



• I perform custom offsite backups from my appdata folder via rclone and gdrive
• The backup is implemented via a custom user script
• The script stops the docker container with access to appdata folders and executes the rclone task
• The feature would allow me to use the docker start/stop mechanism of your plugin, so I can throw away my custom code
• The feature would allow me to schedule my other backup jobs in accordance with your plugin. Making the backup process more transparent.
  • Example:  The backup job of your plugin triggers when the server is booted (see first use case). It performs the backup of appdata as *.tar(.gz) and the flashdrive as folder to the array. Then the hook is executed, uploads the latest flashdrive backup from the array and the appdata folder from the cache drive to the cloud. Finally your plugin restarts the container.
• Possible solutions:
  • (1) add a hook script field similar to "Custom stop (start) script" that is executed after the backup is done and before the docker container are restarted

This is implemented in the 2020.05.31 release. You can now specify a script to run before the containers are started.

Edited May 31, 2020 by Justin B
comment no longer relevant

[HighNoon]

I recently replaced my dying cache drive and performed a backup/restore using this plugin. Everything seems fine except my Plex libraries are missing. I'm pretty confident I followed all of the instructions correctly. If anyone has experienced this before or has an idea where I may have messed up I would greatly appreciate the help. Thanks.
