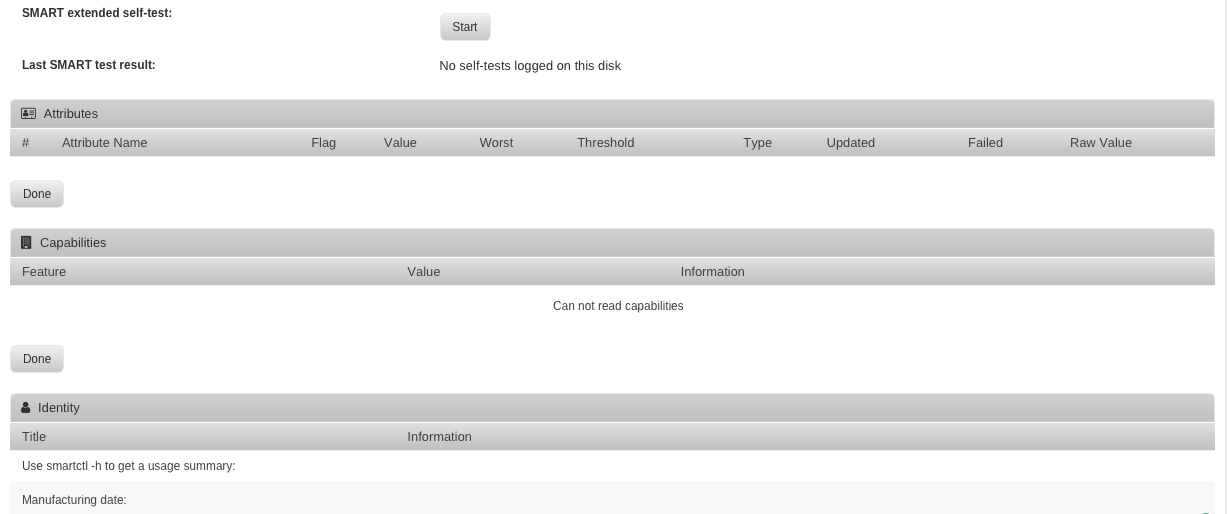

November 24, 20178 yr One of the SSDs in my cache pool (/dev/sdg) is not showing any SMART attributes when I go to its page from the Main or Dashboard pages: If I grab the diagnostics (attached, below) the relevant SMART report reads: smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.13.15-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org =======> UNRECOGNIZED OPTION: 1 Use smartctl -h to get a usage summary and the relevant file name is not consistent with the ones for the other disks, missing "sdg" from between the parentheses: 13inMBP:~ johnm$ ls -l Desktop/mandaue-diagnostics-20171124-1423/smart/ total 256 -rw-rw-rw-@ 1 johnm staff 231 24 Nov 14:23 SanDisk_SDSSDA240G_153611406738-20171124-1423 cache ().txt -rw-rw-rw-@ 1 johnm staff 4945 24 Nov 14:23 SanDisk_SDSSDA240G_153655400498-20171124-1423 cache2 (sdh).txt -rw-rw-rw-@ 1 johnm staff 5525 24 Nov 14:23 TOSHIBA_THNSNH256GMCT_X3ES101ITOMY-20171124-1423 cache3 (sdi).txt -rw-rw-rw-@ 1 johnm staff 5445 24 Nov 14:23 TOSHIBA_THNSNH256GMCT_X3ES1028TOMY-20171124-1423 cache4 (sdj).txt -rw-rw-rw-@ 1 johnm staff 300 24 Nov 14:23 Verbatim_STORE_N_GO_12460000000001D9-0-0-20171124-1423 flash (sda).txt -rw-rw-rw-@ 1 johnm staff 4865 24 Nov 14:23 WDC_WD60EFRX-68L0BN1_WD-WX31D9584LHA-20171124-1423 disk5 (sdl).txt 8< It responds to smartctl from the command line though and appears to be in a good state of health: root@Mandaue:~# smartctl -a /dev/sdg smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.13.15-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: SandForce Driven SSDs Device Model: SanDisk SDSSDA240G Serial Number: 153611406738 LU WWN Device Id: 5 001b44 ecf890992 Firmware Version: U21010RL User Capacity: 240,057,409,536 bytes [240 GB] Sector Size: 512 bytes logical/physical Rotation Rate: Solid State Device Form Factor: 2.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2 T13/2015-D revision 3 SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Fri Nov 24 14:19:56 2017 GMT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x02) Offline data collection activity was completed without error. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 0) seconds. Offline data collection capabilities: (0x71) SMART execute Offline immediate. No Auto Offline data collection support. Suspend Offline collection upon new command. No Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0002) Does not save SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 10) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SMART Attributes Data Structure revision number: 1 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 5 Retired_Block_Count 0x0032 100 100 000 Old_age Always - 0 9 Power_On_Hours_and_Msec 0x0032 107 100 000 Old_age Always - 107h+00m+00.000s 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 27 166 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 2 167 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0 168 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 5 169 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 35 170 Reserve_Block_Count 0x0032 100 100 000 Old_age Always - 0 171 Program_Fail_Count 0x0032 100 100 000 Old_age Always - 0 172 Erase_Fail_Count 0x0032 100 100 000 Old_age Always - 0 173 Unknown_SandForce_Attr 0x0032 100 100 --- Old_age Always - 4 174 Unexpect_Power_Loss_Ct 0x0032 100 100 000 Old_age Always - 4 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 194 Temperature_Celsius 0x0022 068 100 000 Old_age Always - 32 (Min/Max 0/48) 199 SATA_CRC_Error_Count 0x0032 100 100 000 Old_age Always - 0 230 Life_Curve_Status 0x0032 100 100 000 Old_age Always - 0 232 Available_Reservd_Space 0x0033 100 100 004 Pre-fail Always - 100 233 SandForce_Internal 0x0032 100 100 000 Old_age Always - 1055 241 Lifetime_Writes_GiB 0x0030 253 253 000 Old_age Offline - 994 242 Lifetime_Reads_GiB 0x0030 253 253 000 Old_age Offline - 391 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 0 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. root@Mandaue:~# mandaue-diagnostics-20171124-1423.zip

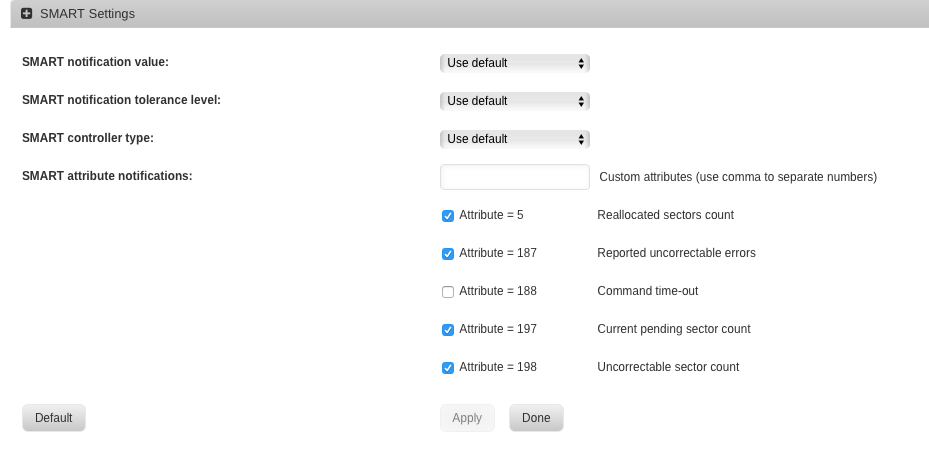

November 24, 20178 yr Did you set any more specific SMART settings for this disk, if so clear them? (see Main -> <disk name> -> SMART settings)
November 24, 20178 yr Author No, they are at their default values: I'll try changing one to something else and toggling it back.
November 24, 20178 yr Author Yes, that fixed it. I changed the first option to "Raw", saved it, then changed it back to "Use default" and saved again. Thank you for the pointer, @bonienl
