Hi,



Im trying to get my docker Domoticz get connected to my new z-stick z-wave controller.

Then i plugin the usb stick in the server i got a device name: yytam93 for example. Its seems that drivers is installed and everything is ok.



But then i trying to add the controller in the domoticz application there is no connection between the z-stick and Domosticz.



My question is: Do i need to the something in the docker config to get it work? Map the usb device into the docker?

In the domosticz application I set /dev/yytam93 as my z-stick on the hardware tab.



Big thanks in advance!







USB devices connected to the server need to be mapped.



Also be sure to give your USB a permanent name so that in the event of a server reset, then device name is not tagged with a different number rendering the device mapping invalid.

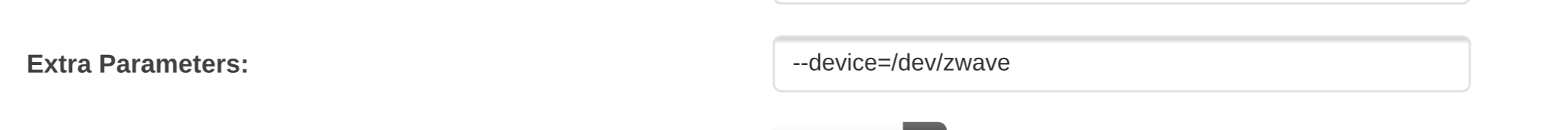

Below is how my device is mapped in my Home Assistant docker:



Hi again,



Who do you mapp a usb device and get a static name on it?



I got lots of errors when I add the parameters: /dev/ttyACM0 and also use this link in the applications.





Dec 4 18:27:43 Teknikum kernel: domoticz[41962]: segfault at 0 ip 00002b5b6f669345 sp 00002b5b72683680 error 4 in ld-musl-x86_64.so.1[2b5b6f64c000+89000]
Dec 4 18:27:45 Teknikum kernel: domoticz[42018]: segfault at 0 ip 00002b1049ef5345 sp 00002b104cf54680 error 4 in ld-musl-x86_64.so.1[2b1049ed8000+89000]
Dec 4 18:27:47 Teknikum kernel: domoticz[42065]: segfault at 0 ip 00002ae5a29a2345 sp 00002ae5a59bc680 error 4
Dec 4 18:27:47 Teknikum kernel: domoticz[42068]: segfault at 0 ip 00002ae5a29a2345 sp 00002ae5a5a01680 error 4
Dec 4 18:27:47 Teknikum kernel: in ld-musl-x86_64.so.1[2ae5a2985000+89000]
Dec 4 18:27:47 Teknikum kernel: in ld-musl-x86_64.so.1[2ae5a2985000+89000]
Dec 4 18:27:49 Teknikum kernel: domoticz[42116]: segfault at 0 ip 00002aae978f2345 sp 00002aae9a90c680 error 4 in ld-musl-x86_64.so.1[2aae978d5000+89000]
Dec 4 18:27:51 Teknikum kernel: domoticz[42159]: segfault at 0 ip 00002aec34c5f345 sp 00002aec37c79680 error 4 in ld-musl-x86_64.so.1[2aec34c42000+89000]



I belive that the sigma designs is the usb controller

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 001 Device 003: ID 0781:5530 SanDisk Corp. Cruzer
Bus 001 Device 008: ID 0658:0200 Sigma Designs, Inc.
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 002 Device 003: ID 0424:2660 Standard Microsystems Corp. Hub
Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 005 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
