Hi,

i bought this  controller:

https://www.mindfactory.de/product_info.php/Delock-89384-10-Port-PCIe-2-0-x2-Low-Profile-retail_993263.html



lets say this controller dies, will my data be corrupted or can i just buy another one and be happy?



I know its limited to 6gb/s, but this seems to be no problem im getting nearly 900mbits from and to the raid controller, so im happy.





Edited December 11, 20178 yr by nuhll

If the controller dies you can use a different one, if it corrupts data while dying it will be a different story, but it's not a recommended controller and you can get an used LSI cheaper than that, I'd choose that option every time.

Problem was, i couldnt get it here and i dont want to flash anything. I just plug it in and it worked. :>



Just to be sure, would this also work:

https://geizhals.de/inline-76617g-a1383867.html?hloc=de



What will happen when it dies while transfering? Max the file which was transfered should be damaged, correct?

Edited December 11, 20178 yr by nuhll

15 minutes ago, nuhll said:

and i dont want to flash anything.

Not all LSI controllers need to be flashed, e.g. 9201 and 9207 are plug'n play.



16 minutes ago, nuhll said:

Just to be sure, would this also work:

No idea, it doesn't mention the chipset used, most likely and Marvell with a port multiplier, it should work but not recommended also.



18 minutes ago, nuhll said:

What will happen when it dies while transfering? Max the file which was transfered should be damaged, correct?

Most likely yes.

Yeah but they cost 3x.



Lets say i buy one of these 2.



How do i connect my sata drives? If i understand correct, these cards have sas, and then?

They also work with SATA drives, and they can be found used for less than $50.

What do you mean, they work with sata drives, thats what i know, the question is how to connect them



OR do youi mea, i can connect sata to the sas ports? Do 9201 has 16x sata port?

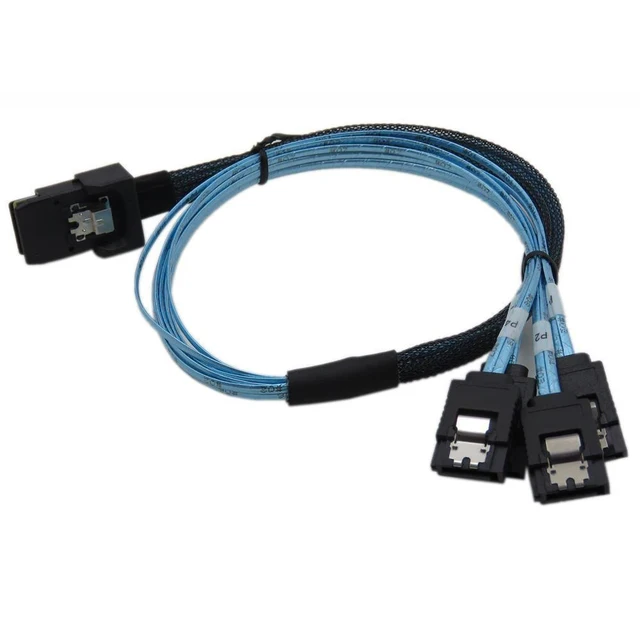

Also known as a SFF-8087 Forward Breakout Cable.

Okay i found offer for <90€ so i would buy this. But please tell me how to connect my sata drives.



And do you know a good psu? My license is for up to 16 drives, so i need a psu which can support that.

4 minutes ago, nuhll said:

But please tell me how to connect my sata drives.

We just did...  To connect SATA hard drives to a controller with SAS connectors you need a SFF-8087 Forward Breakout Cable, as mentioned and pictured above.



4 minutes ago, nuhll said:

And do you know a good psu?

Seasonic, Corsair - there are a number of good ones but I don't know what you will find in Germany.  Get one with a single 12v rail and run a power supply calculator with all your hard drives, cards, and peripherals.

Sorry, i posted my answer, then your asnwers came...



Is that the correct one? http://www.ebay.at/itm/LSI-Internal-SAS9201-8i-6Gb-s-PCI-Express-2-0-RAID-Controller-Card/272885782342?hash=item3f89429746:g:9VAAAOSwUSJZ4Hot

I saw some on the same name, but "only" 2x sas ?!?

Thanks for your help guys! Which is the correct cable? https://geizhals.de/?cat=kabelfp&asd=on&asuch=8087 SAS sata



I guess the linked from ebay is the right card with 4 sas mini?



Edit:
ah i see, its the wrong one. the 16i means 16 slots...

Edited December 15, 20178 yr by nuhll

OKay, i bought now: https://jet.com/product/detail/a42a930037c841e7b8f8472f1c0a6523?jcmp=afl:link:0JlRymcP1YU:503301:10855504094:15&siteID=0JlRymcP1YU-OZldaVYe0T4u9KiWgbEl6A



That should be the correct one, i dont know why, but i cant buy from ebay right now, and i really want to finish the server this year...

edit:

Omg, they dont ship to germany... its 2017... i cant seem to get this card for a reasonable price...



edit2:


Whats the difference to https://www.neweggbusiness.com/product/product.aspx?item=9b-16-118-147



16e?

Edit3: also not shipping to germany.



Its crazy, where should i get this card for <200€.



Is the only difference between i16 and e16, that e16 has 16 outside? So i just need longer cables!? Can u recommend this? Its in a Rack, so u wont see behind anyway.

Edited December 15, 20178 yr by nuhll

Yeah, the "i" is for internal connectors and the "e" is external connectors.  Be careful on the cable length, though - you don't want to go too long or you can have issues.  In the US we get many of these SAS/SATA controllers on eBay, pulled from corporate servers which are being decomm'd.



This was a good one:

2 hours ago, nuhll said:

Is that the correct one? http://www.ebay.at/itm/LSI-Internal-SAS9201-8i-6Gb-s-PCI-Express-2-0-RAID-Controller-Card/272885782342?hash=item3f89429746:g:9VAAAOSwUSJZ4Hot



I might buy here: https://www.madepc.com/ProductDetails.asp?ProductCode=301004783-01&CartID=1 Is there anythinig im missing?!



Which cable can you recommend, maybe also from this site. So i order together. Or which manufactur. I guess 1m or maybe 60-80 would be enaught to connect.



Do i need other cables now? SFF-8088?  Can you recommend any brand or ? Dont find any SFF-8088 - sata :((((



edit:

https://www.distrelec.de/de/aa-80884-mini-sas-4x-sata-kabel-extern-00-maxxtro-aa-80884/p/12511613?channel=b2c&price_gs=26.5489&source=googleps&ext_cid=shgooaqdede-na&gclid=Cj0KCQiAgs7RBRDoARIsANOo-Hgv_4emKK-lqVqoAs4IHgvwu56rGriSE3Xn_T8zO89dJSoHsM9MQ3IaAmnJEALw_wcB



good brand?



This would be cheaper:

https://www.amazon.de/UGREEN-SFF-8088-Kabel-MultiLane-x4-FanOut/dp/B01MZ2D2YB

Edited December 15, 20178 yr by nuhll

Okay guys, i have news.



I swaped the sata ports and it seems atleast to be much better:



Dec 16 22:22:37 Unraid-Server kernel: ata8.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Dec 16 22:22:37 Unraid-Server kernel: ata8.00: failed command: WRITE DMA EXT
Dec 16 22:22:37 Unraid-Server kernel: ata8.00: cmd 35/00:c0:80:76:e7/00:00:18:00:00/e0 tag 7 dma 98304 out
Dec 16 22:22:37 Unraid-Server kernel: res 40/00:01:01:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Dec 16 22:22:37 Unraid-Server kernel: ata8.00: status: { DRDY }
Dec 16 22:22:37 Unraid-Server kernel: ata8: hard resetting link
Dec 16 22:22:37 Unraid-Server kernel: ata8: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Dec 16 22:22:37 Unraid-Server kernel: ata8.00: configured for UDMA/133
Dec 16 22:22:37 Unraid-Server kernel: ata8: EH complete



one time in ~30 min parity - at 150mb/s - all dockers enabled.



I guess this works until i got the new raid controller.



I also swapped molex port. Could still be the sata cables, bc they hm i guess, not rly fit tight.

Edited December 16, 20178 yr by nuhll

Newest update:
2h parity build only the one error (above)

still 150mb/s

All dockers running, 1 Windows 10 VM running (stresstest)



I bought now:
https://www.amazon.de/gp/r.html?C=3ILR4VQSVD3HI&K=TNBU9SVHDQ3E&M=urn:rtn:msg:201712162246194e4e03d8e1564828b430a812e500p0eu&R=2HIUAXMX8YRF3&T=C&U=http%3A%2F%2Fwww.amazon.de%2Fdp%2FB01MZ2D2YB%2Fref%3Dpe_3044161_185740101_TE_item&H=QNJIBN6RSAXYBVPRICPEADMAD1IA&ref_=pe_3044161_185740101_TE_item



and



https://www.amazon.co.uk/gp/r.html?C=1VAYFMVJ4YLY6&K=TNBU9SVHDQ3E&M=urn:rtn:msg:2017121622424944839d38ae364d13adb85df9e2f0p0eu&R=2HIUAXMX8YRF3&T=C&U=http%3A%2F%2Fwww.amazon.co.uk%2Fdp%2FB00487AYQQ%2Fref%3Dpe_3187911_185740111_TE_item&H=YPWMVAMIPQSIYTOMXMBTA9P0EL4A&ref_=pe_3187911_185740111_TE_item



Please tell me, this works together (i also bought 2 9201 e16, bc of price, and if i need replace sometime).



I was looking for a PSU. The highest i found was 6 sata power thingys. i could split them to 12, where how do you connect your drives with power? I dont want to split molex, bc it seems so cheap, i dont know.



Okay i got now: https://www.amazon.de/gp/product/B01F24PMV0/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1
